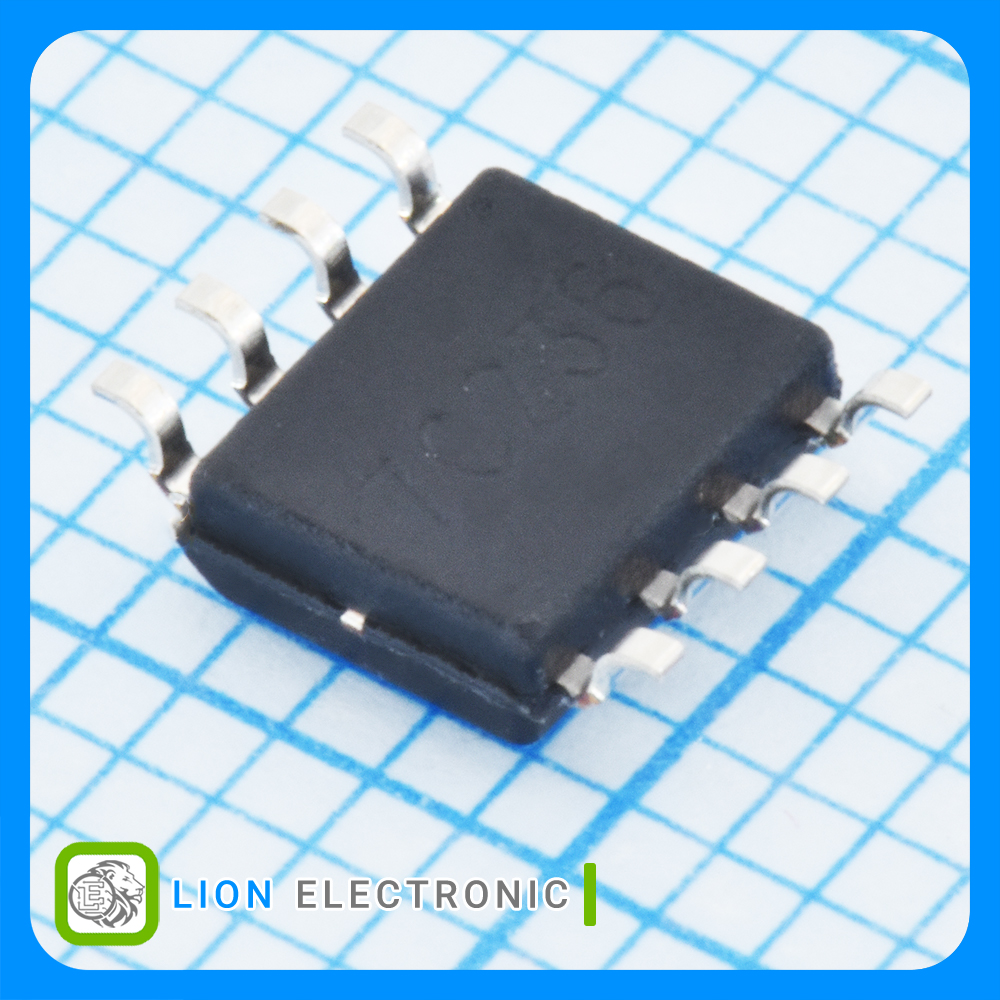

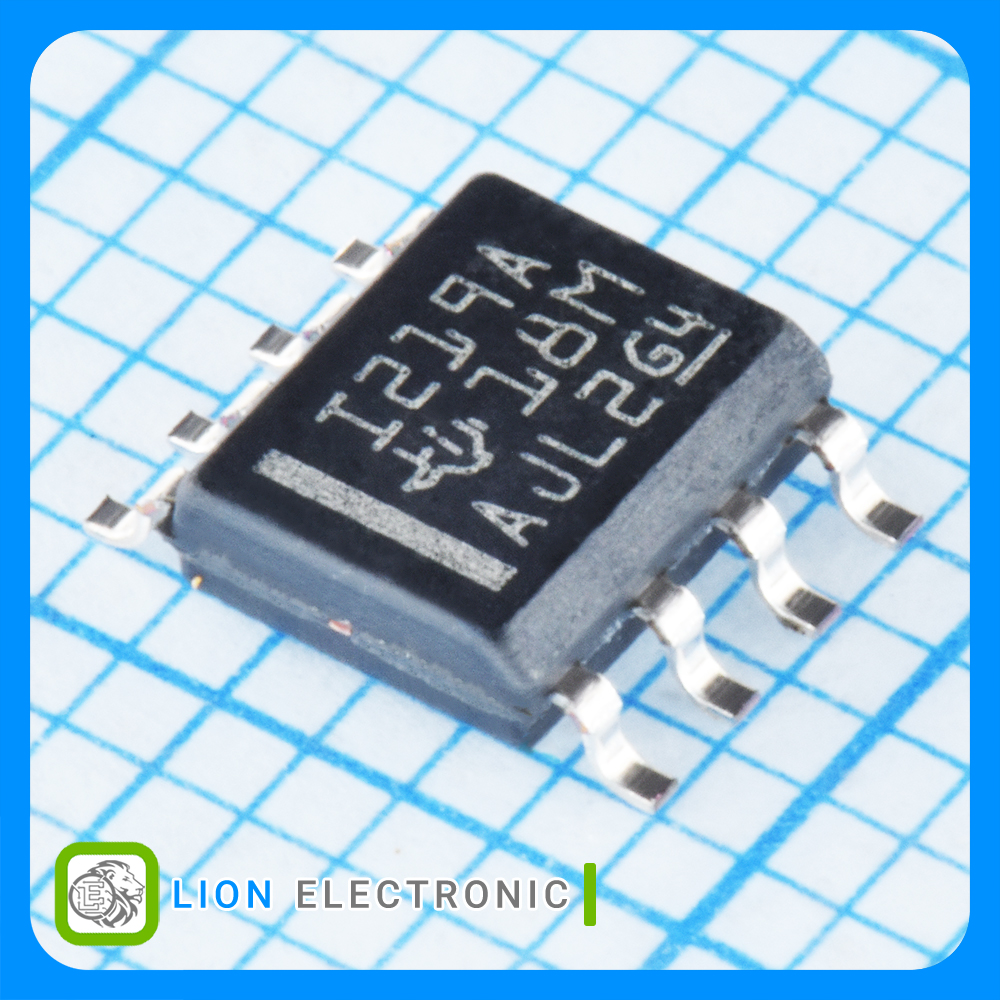

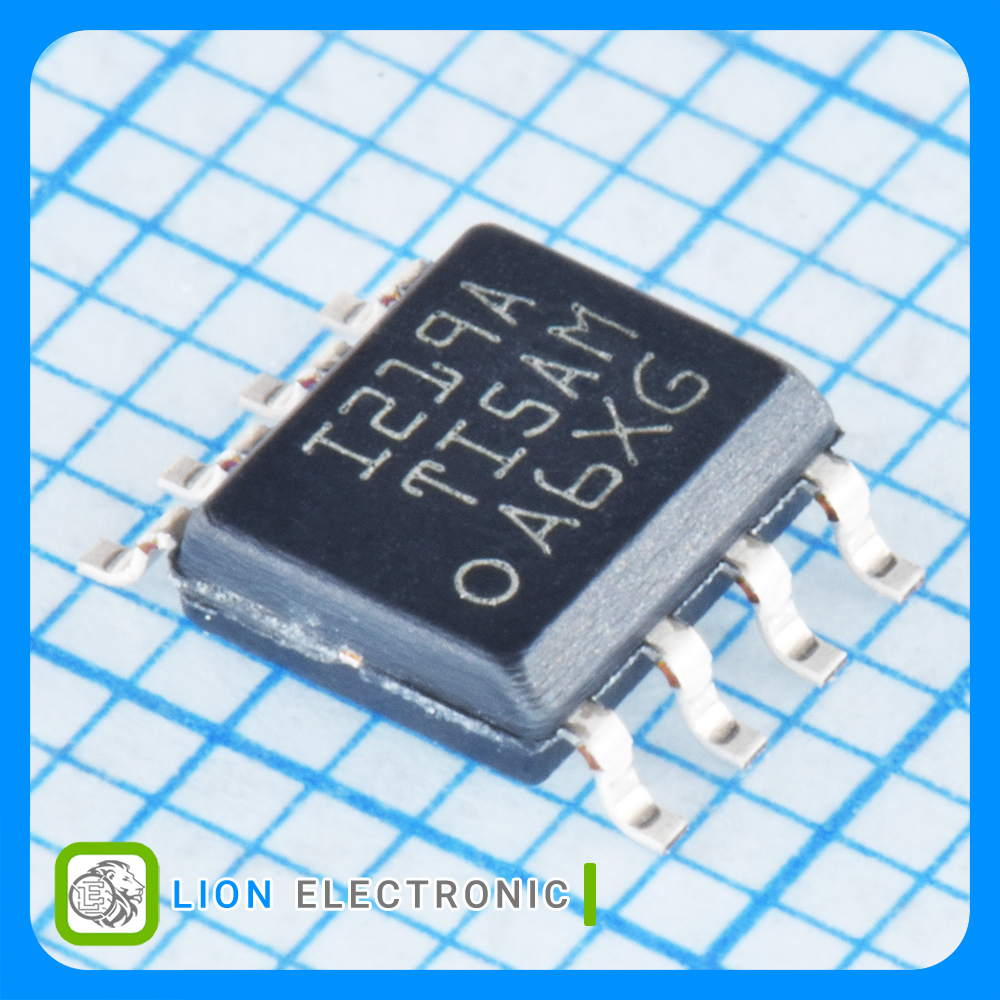

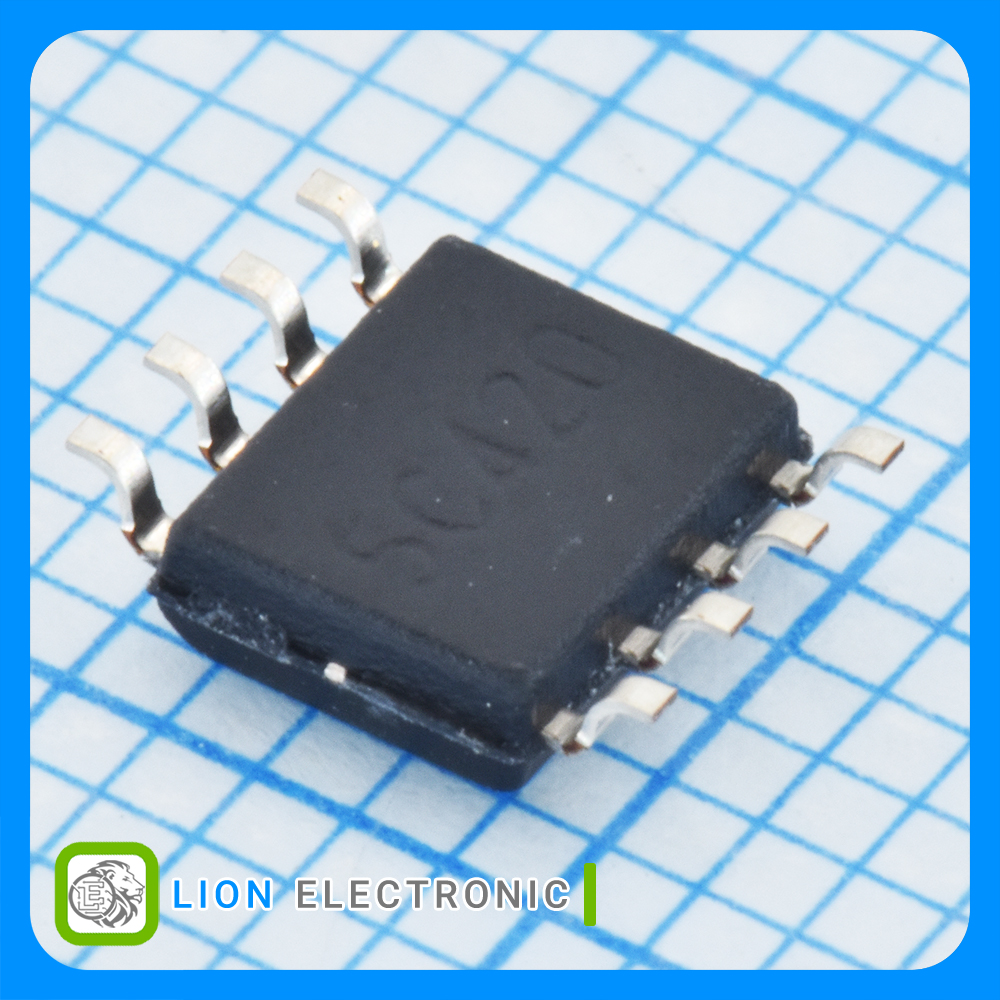

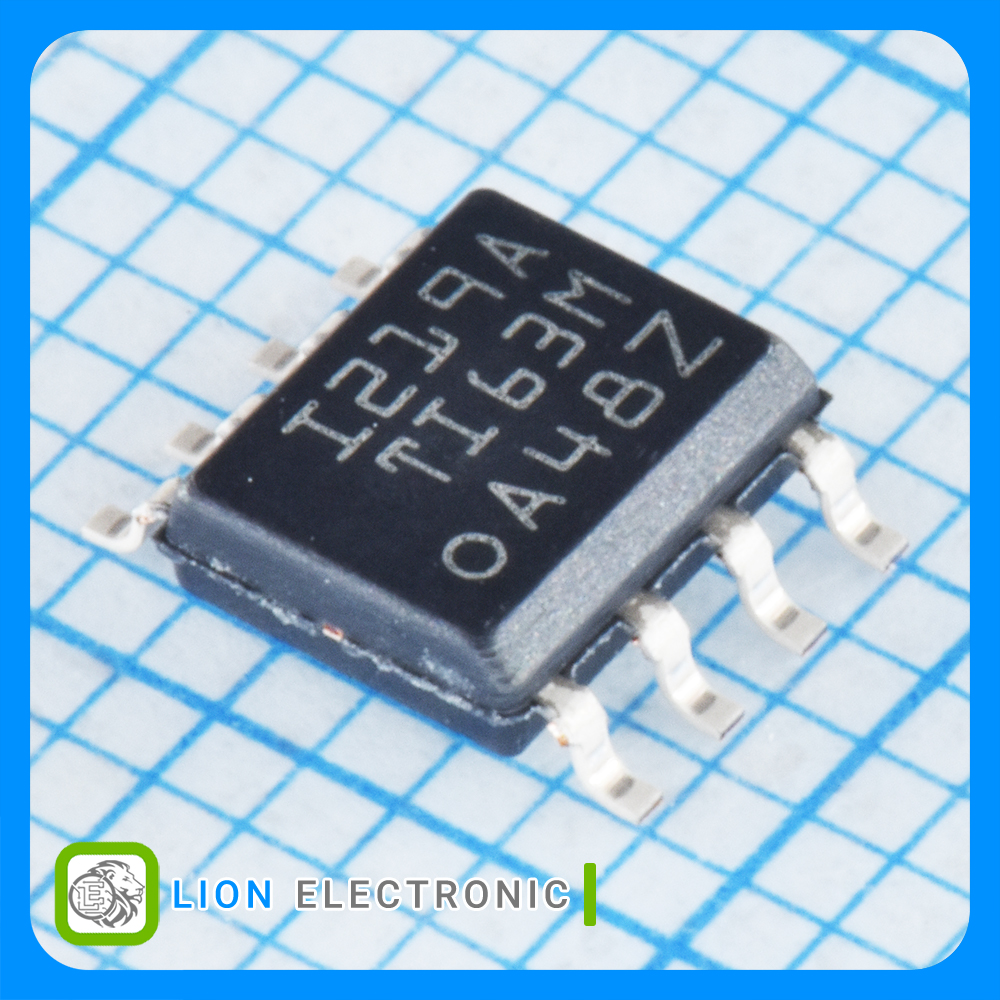

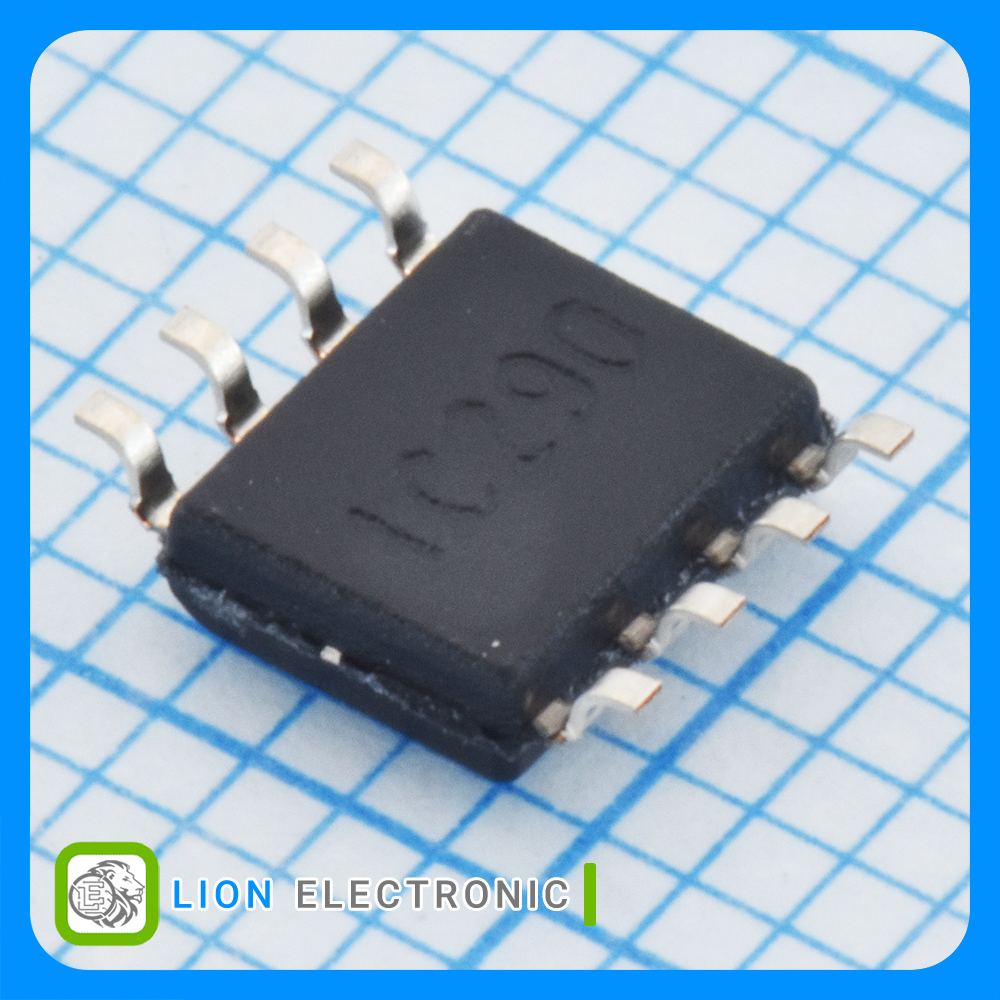

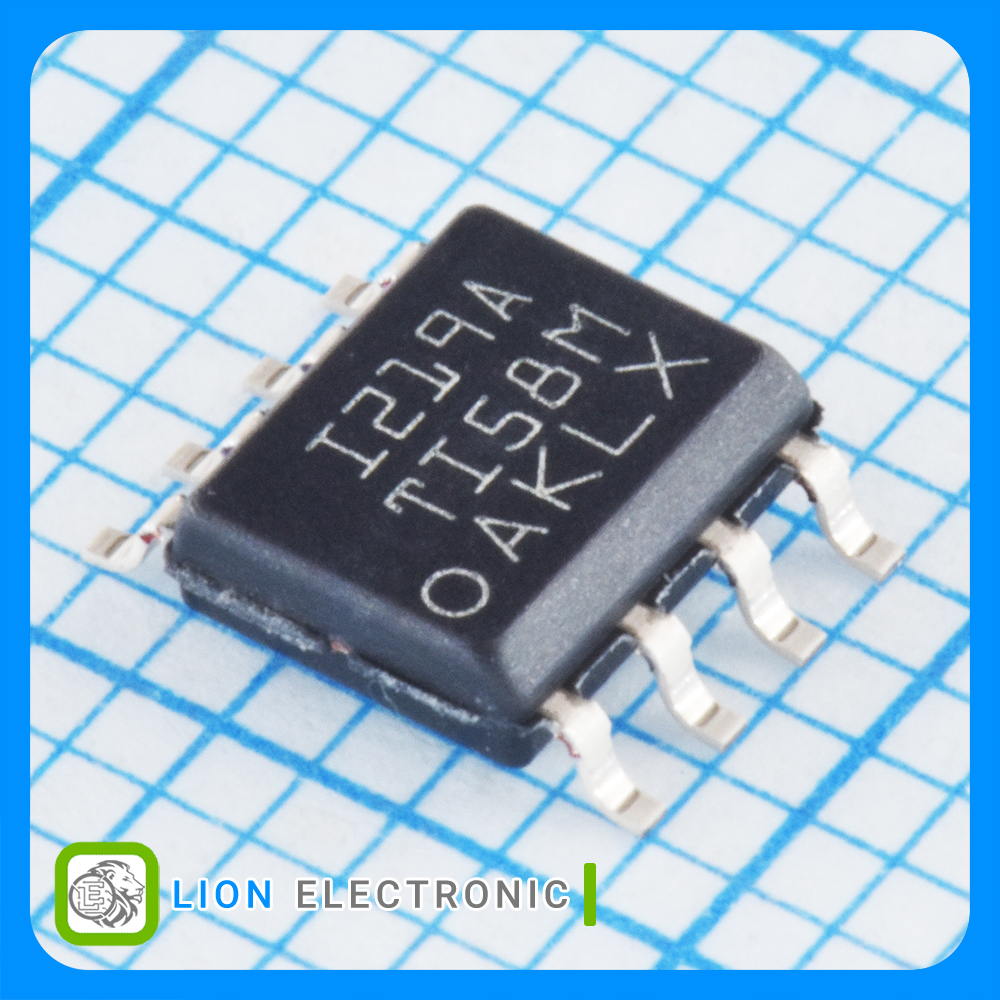

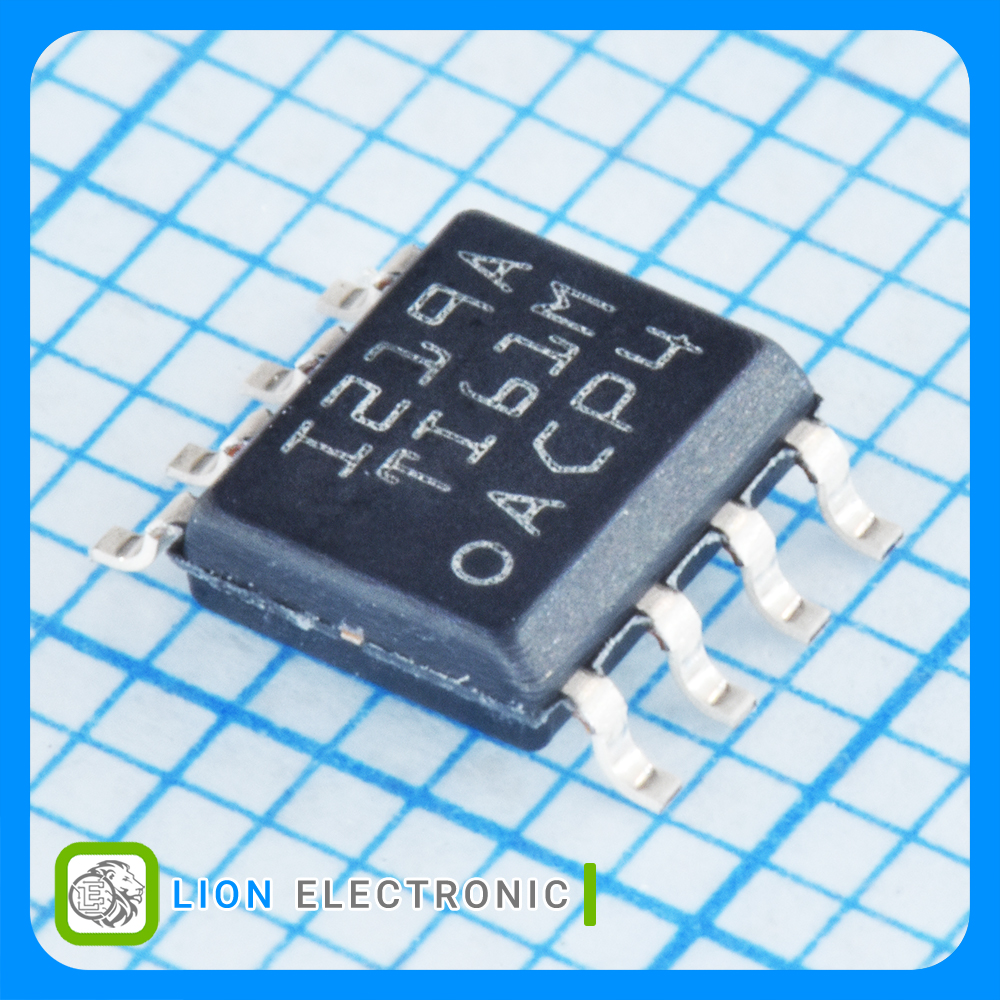

INA219AIDR
INA219AIDR
Part Number
6435
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی تقویتکننده سنس جریان 1 کاناله گین 11dB مانیتور جریان، ولتاژ و توان با رابط I2C/SMBus با پکیج SOIC-8
INA219 Current Sense Amplifier 1-Channel Gain 11dB, Current Shunt and Power Monitor with I2C- or SMBUS-Compatible Interface with SOIC-8 Package
معرفی
آیسی تقویتکننده سنس جریان 1 کاناله گین 11dB مانیتور جریان، ولتاژ و توان با رابط I2C/SMBus با پکیج SOIC-8
INA219 Current Sense Amplifier 1-Channel Gain 11dB, Current Shunt and Power Monitor with I2C- or SMBUS-Compatible Interface with SOIC-8 Package
Specifications
- Number of Channels: 1
- Gain: 11dB
- Vcm - Common Mode Voltage: 0 - 26V
- Vos - Input Offset Voltage: 100uV
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 20uA
- GBP - Gain Bandwidth Product: 8KHz
- Supply Voltage - Min: 3V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 700uA
- Gain Error: ±0.04%
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات INA219AIDR
INA219AIDR
Part Number
8KHz
GBP - Gain Bandwidth Product
1
Number of Channels
0 - 26V
Vcm - Common Mode Voltage
±0.04%
Gain Error
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+125C
Maximum Operating Temperature
11dB
Gain
100uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
3V
Supply Voltage - Min
120dB
CMRR - Common Mode Rejection Ratio
20uA
Ib - Input Bias Current
700uA
Operating Supply Current
SOIC-8
Package-Case
