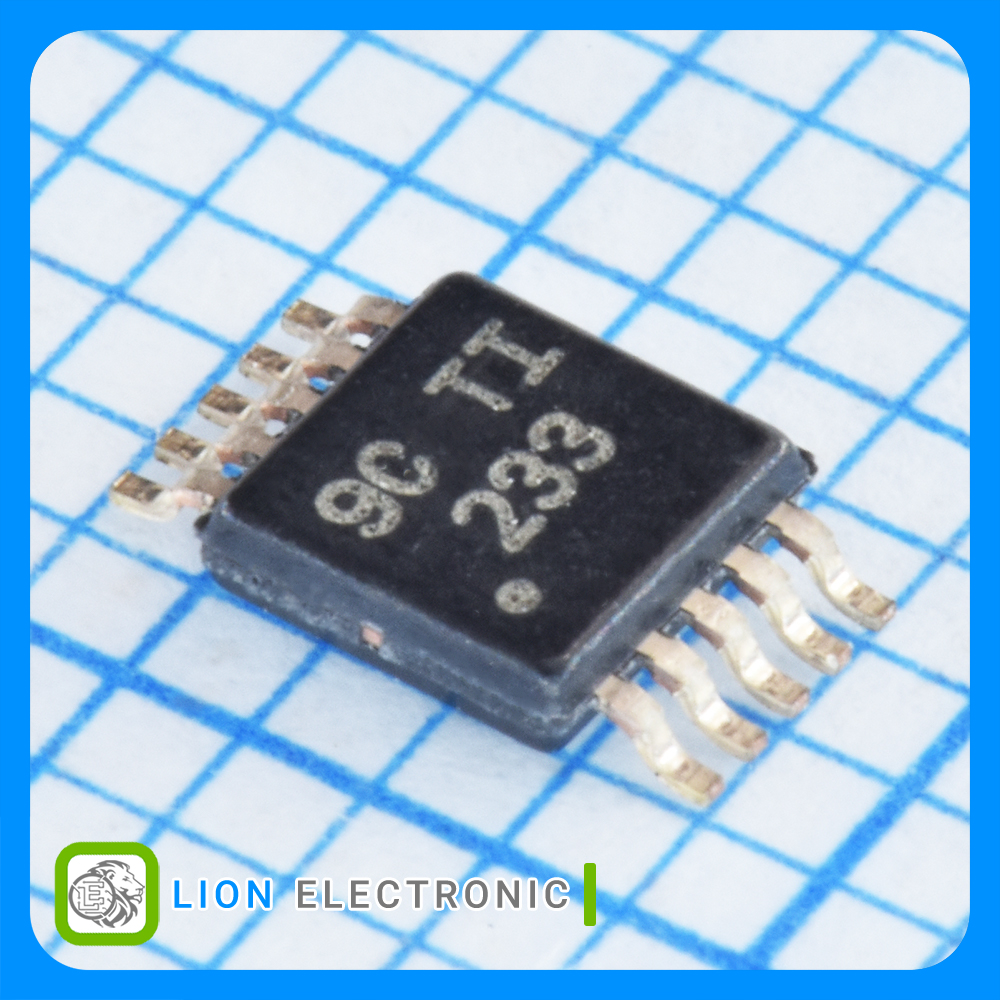

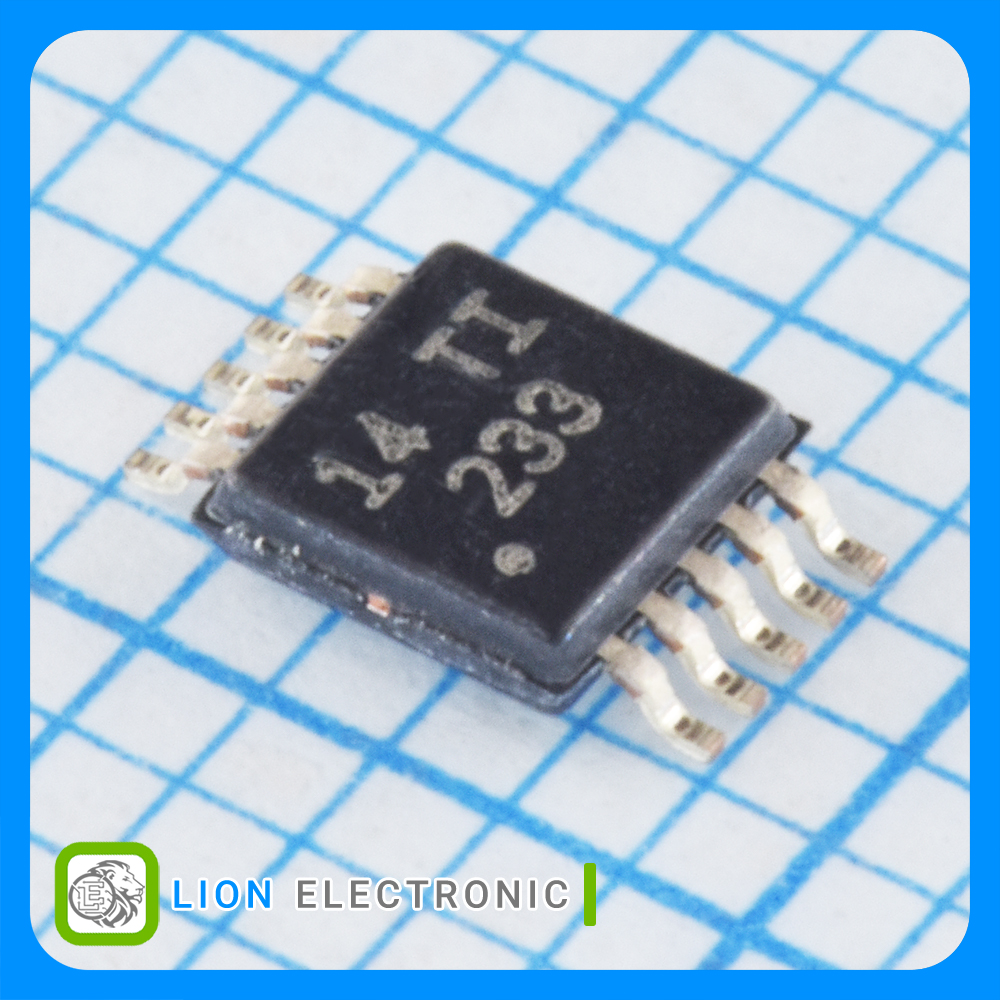

INA233AIDGSR
INA233AIDGSR
Part Number
6546
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی سنس جریان 1 کاناله 36 ولت با آفست 2.5 میکروولت و جریان بایاس 8 میکروآمپر با پکیج VSSOP-10
Current Sense Amplifier 1-Channel 0-36V, 2.5µV Offset, 8uA with VSSOP-10 Package
معرفی
آیسی سنس جریان 1 کاناله 36 ولت با آفست 2.5 میکروولت و جریان بایاس 8 میکروآمپر با پکیج VSSOP-10
Current Sense Amplifier 1-Channel 0-36V, 2.5µV Offset, 8uA with VSSOP-10 Package
Specifications
- Number of Channels: 1
- Vcm - Common Mode Voltage: 0 - 36V
- Vos - Input Offset Voltage: 2.5µV
- CMRR - Common Mode Rejection Ratio: 140dB
- Ib - Input Bias Current: 8uA
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 310uA
- Mounting Style: SMD/SMT
- Package/Case: VSSOP-10
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات INA233AIDGSR
INA233AIDGSR
Part Number
1
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
0 - 36V
Vcm - Common Mode Voltage
SMD/SMT
Mounting Style
-
Gain Error
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
-
Gain
2.7V
Supply Voltage - Min
140dB
CMRR - Common Mode Rejection Ratio
2.5µV
Vos - Input Offset Voltage
8uA
Ib - Input Bias Current
310uA
Operating Supply Current
VSSOP-10
Package-Case
