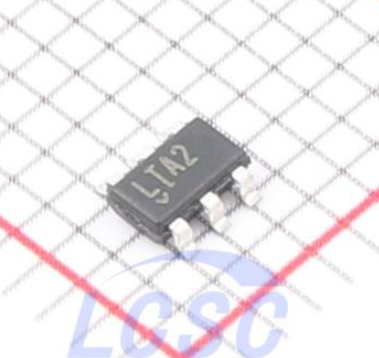

INA187A1IDBVR
INA187A1IDBVR
Part Number
6877
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی تقویتکننده سنس جریان تک کاناله گین 20، دوطرفه با دقت بالا، ولتاژ کاری -2 تا 42 ولت و پهنای باند 650 کیلوهرتز با پکیج SOT-23-6
Current Sense Amplifier 1-Channel Gain 20, Bi-directional High-Precision, -2V to 42V, 650kHz with SOT-23-6 Package
معرفی
آیسی تقویتکننده سنس جریان تک کاناله گین 20، دوطرفه با دقت بالا، ولتاژ کاری -2 تا 42 ولت و پهنای باند 650 کیلوهرتز با پکیج SOT-23-6
Current Sense Amplifier 1-Channel Gain 20, Bi-directional High-Precision, -2V to 42V, 650kHz with SOT-23-6 Package
Specifications
- Number of Channels: 1
- Gain: 20
- Vcm - Common Mode Voltage: -2 - 42V
- Vos - Input Offset Voltage: ±150uV
- CMRR - Common Mode Rejection Ratio: 65dB to 120dB
- Ib - Input Bias Current: 13uA
- GBP - Gain Bandwidth Product: 650kHz
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 12V
- Operating Supply Current: 450uA to 950uA
- Gain Error: ±0.25%
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tape&Reel
مشخصات INA187A1IDBVR
INA187A1IDBVR
Part Number
1
Number of Channels
±0.25%
Gain Error
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Tape&Reel
Packaging
-2 - 42V
Vcm - Common Mode Voltage
65dB to 120dB
CMRR - Common Mode Rejection Ratio
20
Gain
+125C
Maximum Operating Temperature
±150uV
Vos - Input Offset Voltage
12V
Supply Voltage - Max
2.7V
Supply Voltage - Min
650kHz
GBP - Gain Bandwidth Product
13uA
Ib - Input Bias Current
450uA to 950uA
Operating Supply Current
SOT-23-6
Package-Case
