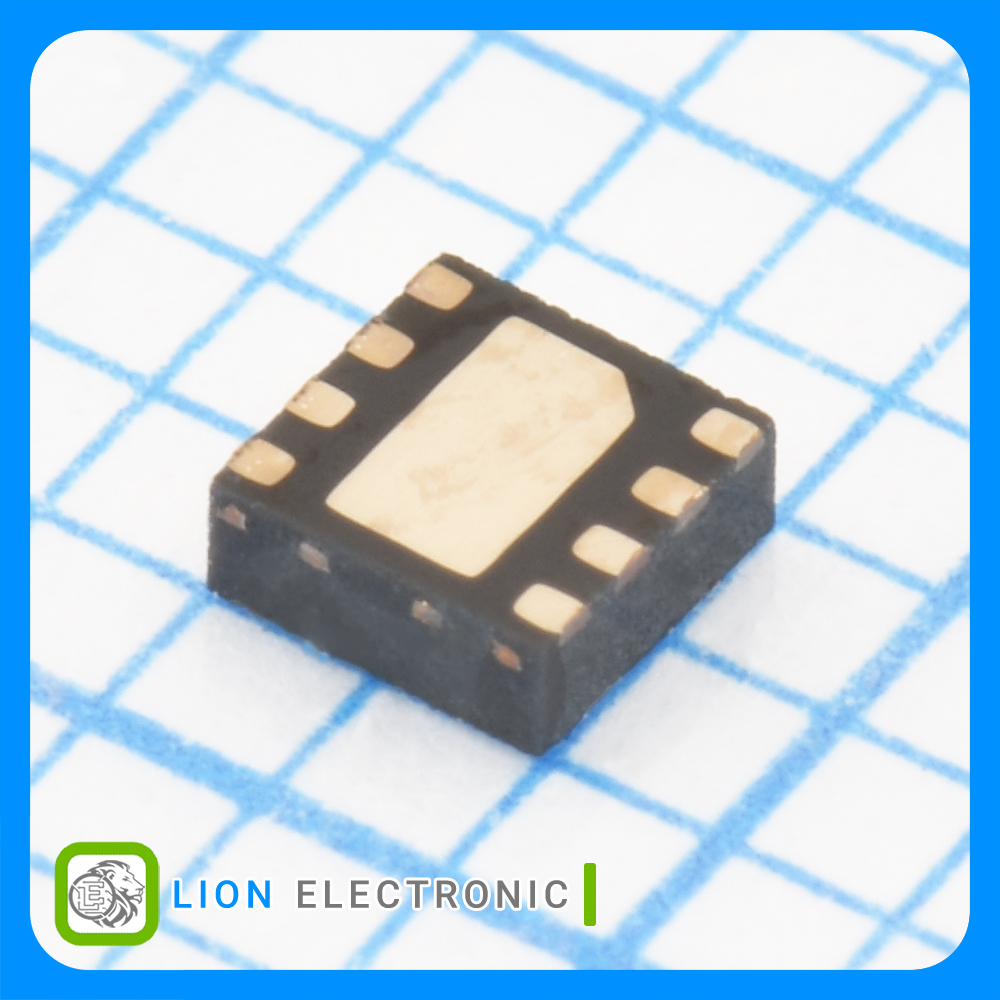

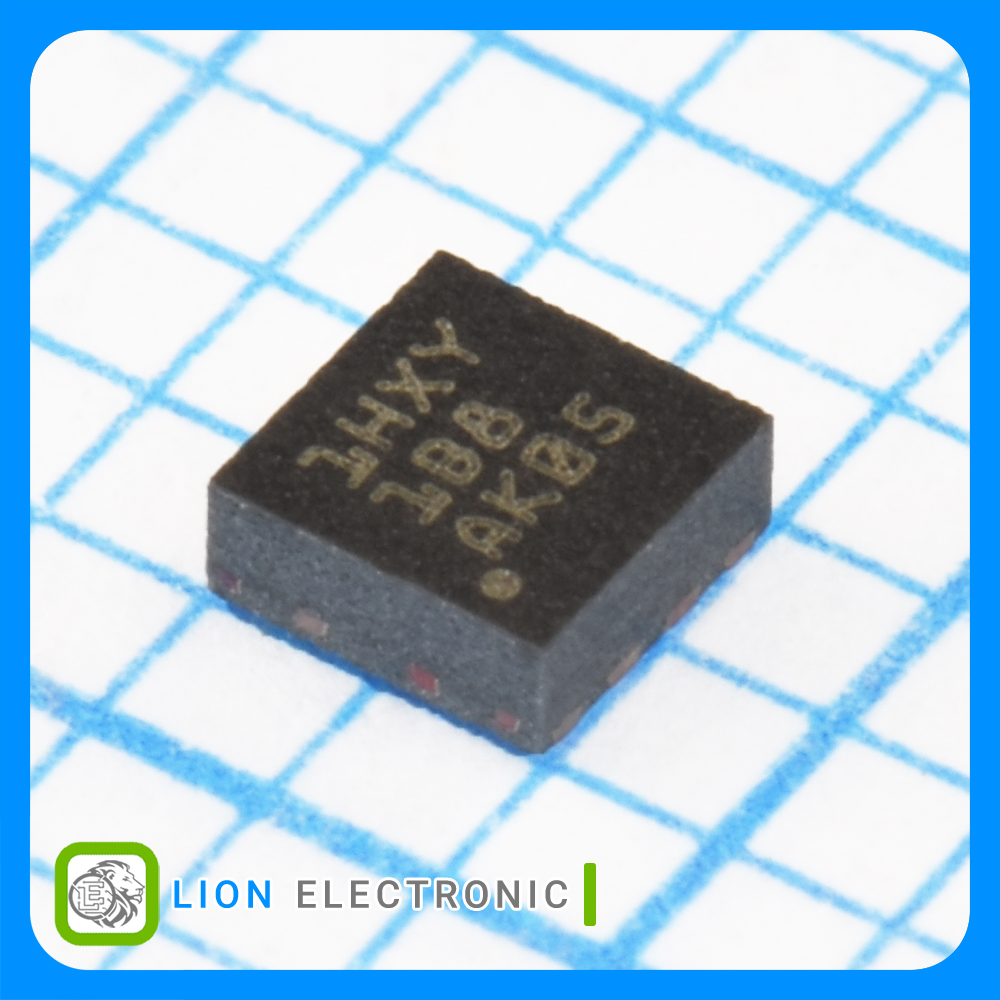

INA381A2IDSGR
INA381A2IDSGR
Part Number
3678
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی تقویتکننده سنس جریان تک کاناله 1 کاناله گین 50 با پکیج WSON-8
Current Sense Amplifier 1-Channel Gain 50 with WSON-8 Package
معرفی
آیسی تقویتکننده سنس جریان تک کاناله 1 کاناله گین 50 با پکیج WSON-8
Current Sense Amplifier 1-Channel Gain 50 with WSON-8 Package
Specifications
- Number of Channels: 1
- Gain: 50
- Vcm - Common Mode Voltage: 12V
- Vos - Input Offset Voltage: 100uV
- CMRR - Common Mode Rejection Ratio: 100dB
- Ib - Input Bias Current: 80uA
- GBP - Gain Bandwidth Product: 210KHz
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 350uA
- Gain Error: 0.1%
- Mounting Style: SMD/SMT
- Package/Case: WSON-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی سنس جریان INA381A2IDSGR
آیسی سنس جریان INA381A2IDSGR
Part Number
1
Number of Channels
0.1%
Gain Error
12V
Vcm - Common Mode Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
210KHz
GBP - Gain Bandwidth Product
SMD/SMT
Mounting Style
50
Gain
+125C
Maximum Operating Temperature
100uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
100dB
CMRR - Common Mode Rejection Ratio
350uA
Operating Supply Current
80uA
Ib - Input Bias Current
WSON-8
Package-Case
