DMP2002UPS
DMP2002UPS
Part Number
4164
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 20- ولت 60- آمپر نوع P با پکیج PowerDI5060-8(Type K)
P-CH MOSFET -20V, -60A with PowerDI5060-8(Type K) Package
معرفی
ماسفت 20- ولت 60- آمپر نوع P با پکیج PowerDI5060-8(Type K)
P-CH MOSFET -20V, -60A with PowerDI5060-8(Type K) Package
Specifications
- Package/Case: PowerDI5060-8(Type K)
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -60A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -500mV
- Vgs - Gate - Source Voltage: ±12V
- Rds On - Drain - Source Resistance: 1.3mΩ
- Pd - Power Dissipation: 104W
- Qg - Gate Charge: 476nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMP2002UPS

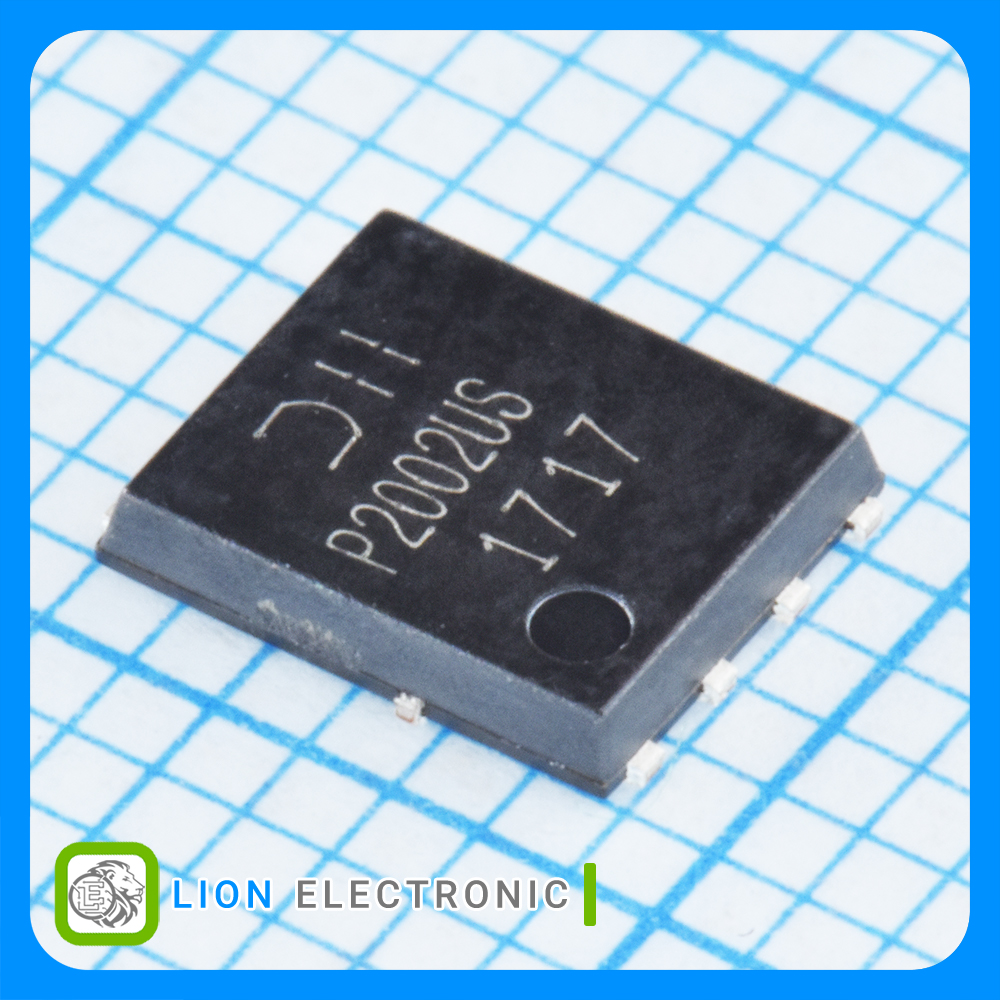

ماسفت DMP2002UPS
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-60A
Id - Continuous Drain Current
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
-20V
Vds - Drain - Source Breakdown Voltage
±12V
Vgs - Gate - Source Voltage
1.3mΩ
Rds On - Drain - Source Resistance
-500mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
104W
Pd - Power Dissipation
476nC
Qg - Gate Charge
PowerDI5060-8(Type K)
Package-Case
