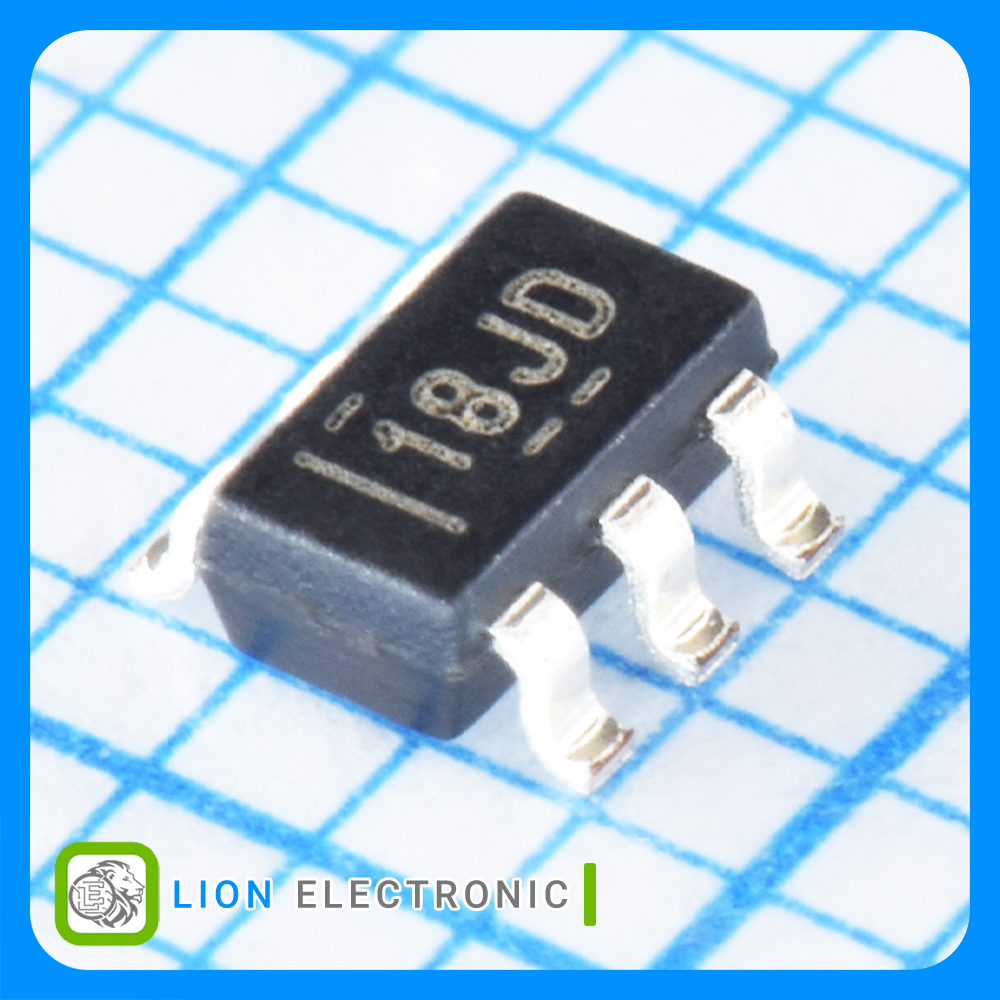

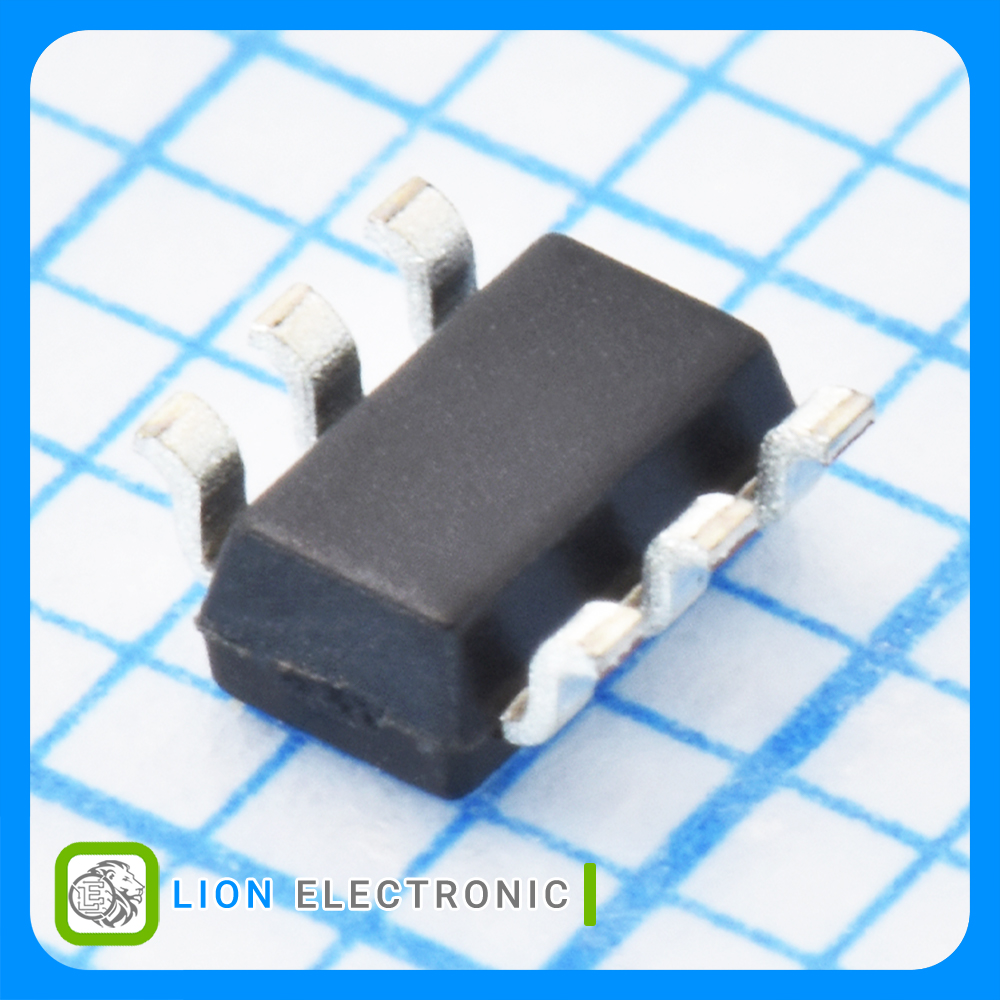

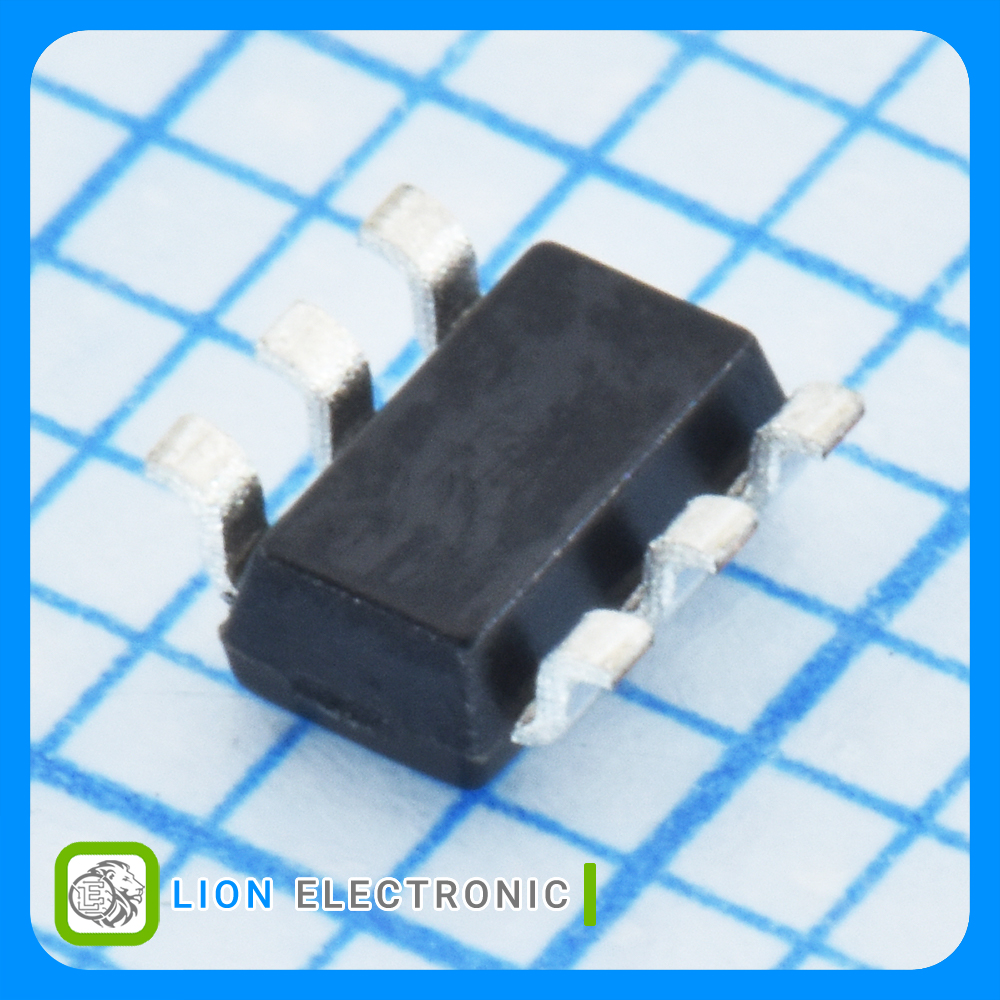

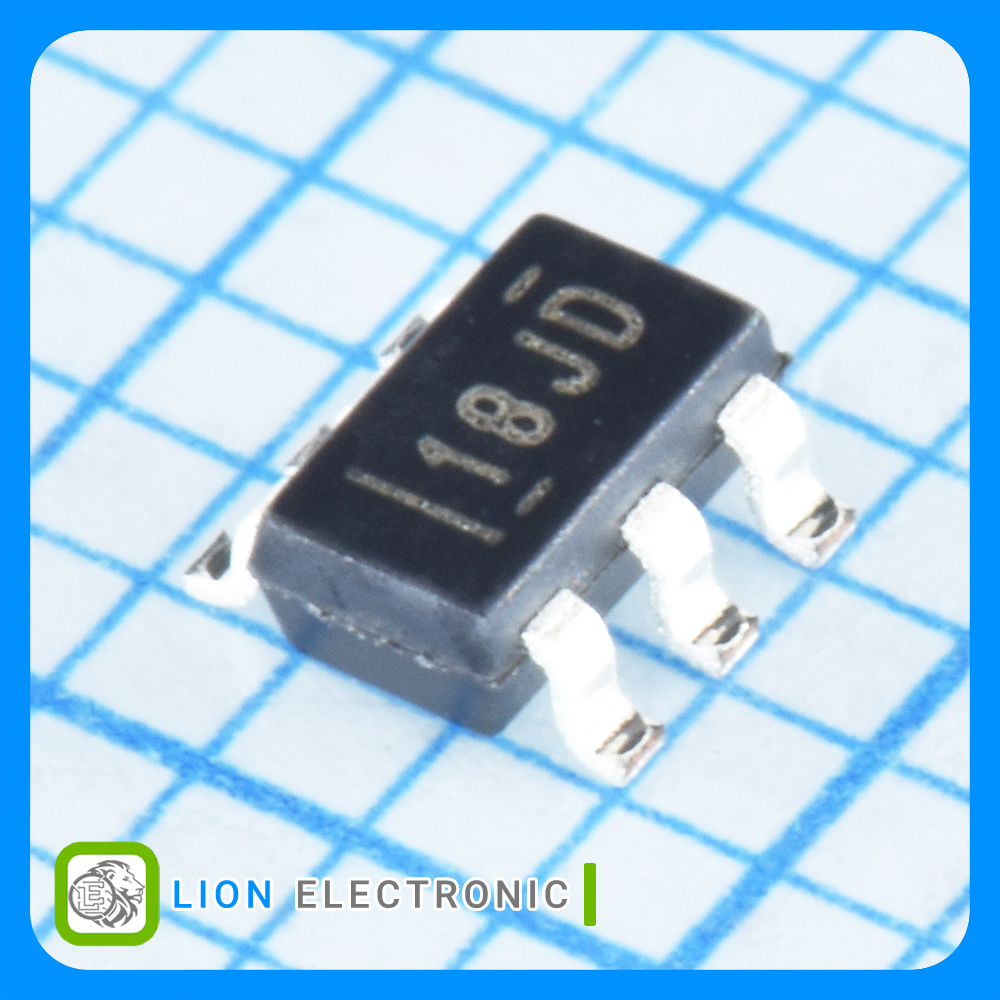

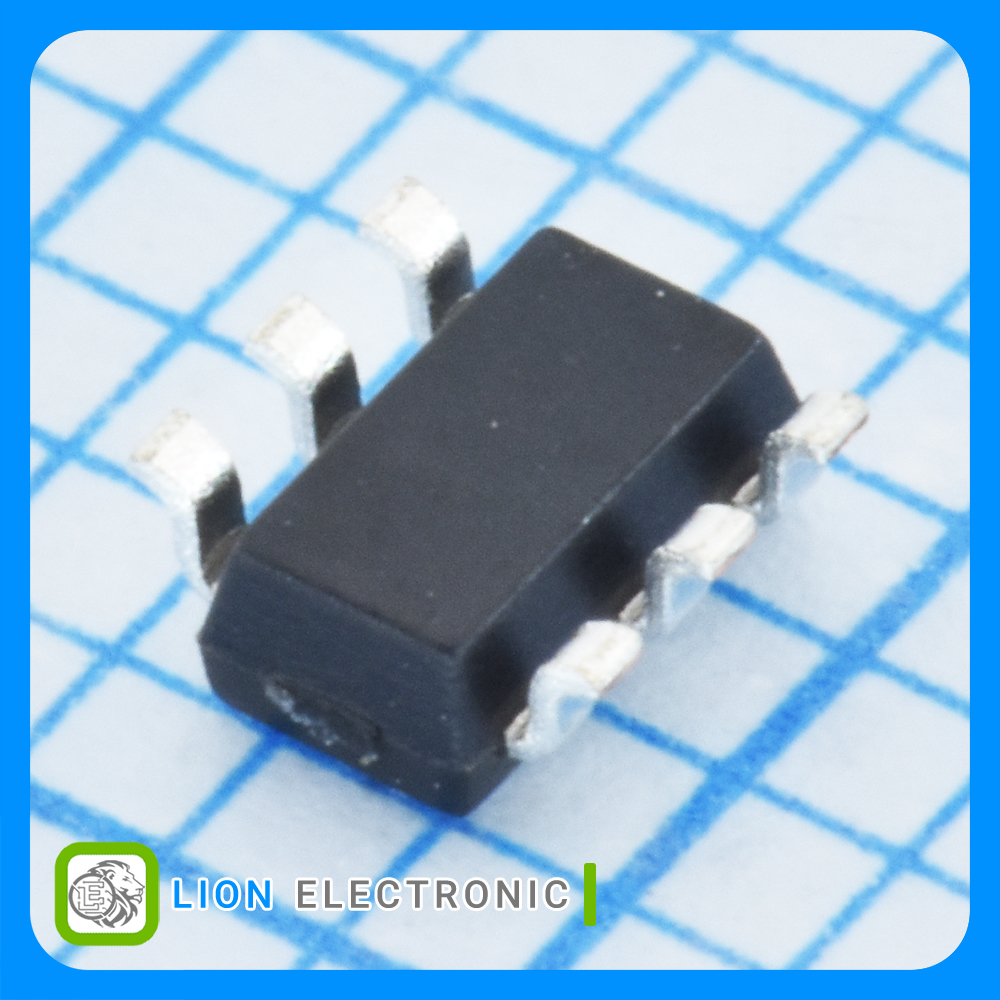

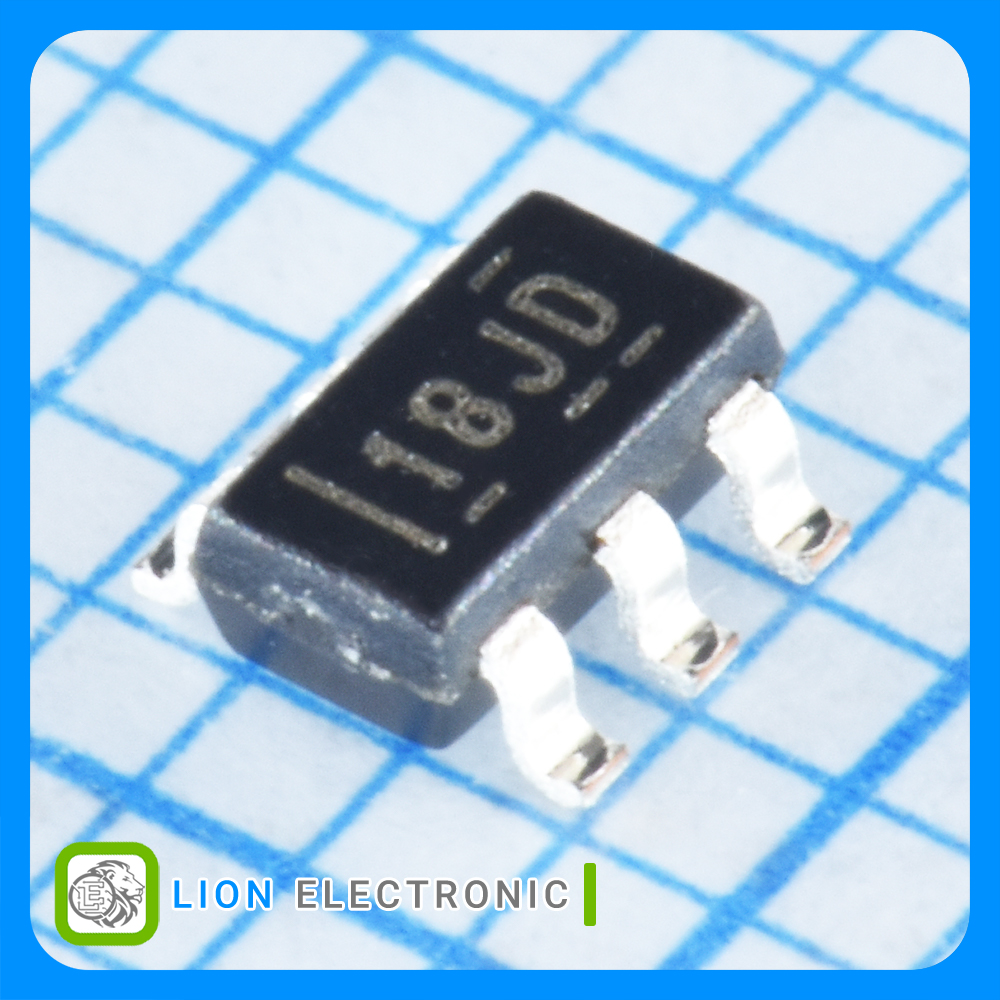

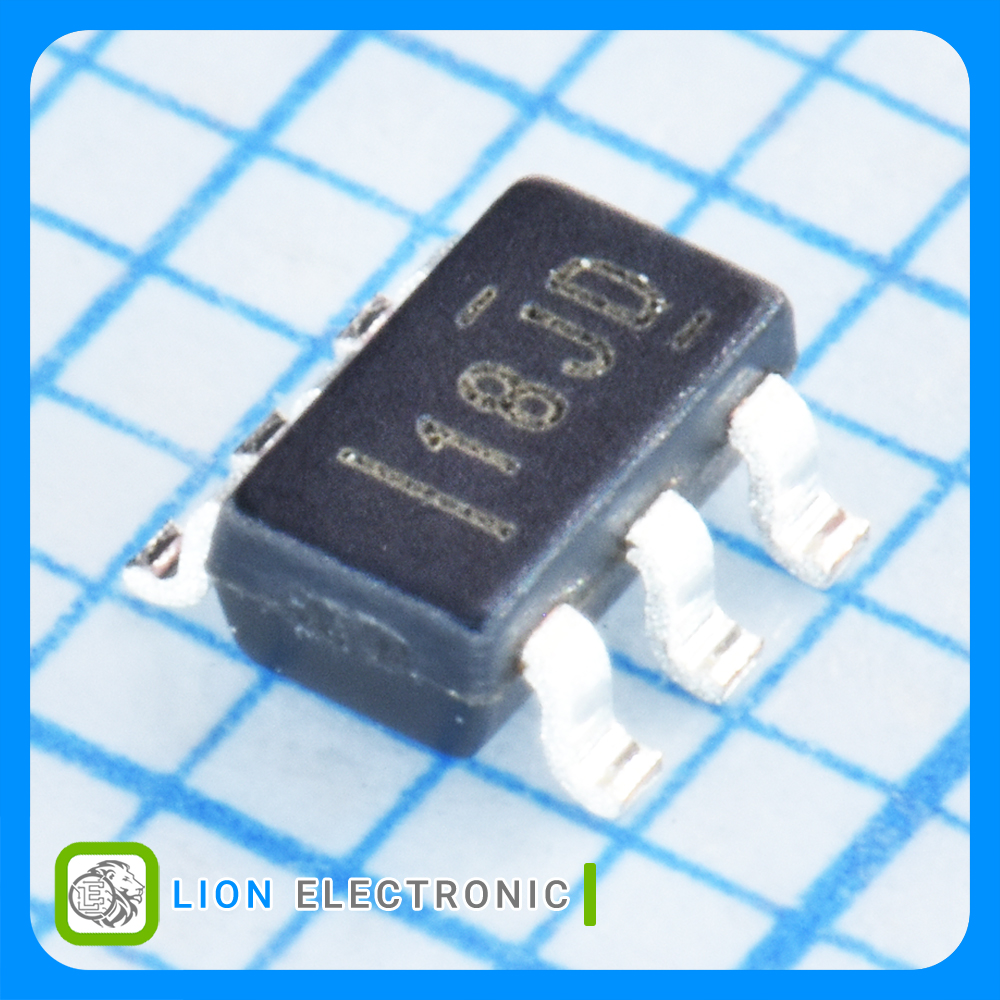

INA181A1IDBVR
INA181A1IDBVR
Part Number
4203
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی سنس جریان با گین 20 با پکیج SOT-23-6
Current Sense Amplifiers 100uV 75uA SOT-23-6
مشخصات آیسی سنس جریان INA181A1IDBVR
آیسی سنس جریان INA181A1IDBVR
Part Number
1
Number of Channels
-0.2 - 26V
Vcm - Common Mode Voltage
0.1%
Gain Error
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
350KHz
GBP - Gain Bandwidth Product
20
Gain
+125C
Maximum Operating Temperature
100uV
Vos - Input Offset Voltage
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
100dB
CMRR - Common Mode Rejection Ratio
260uA
Operating Supply Current
75uA
Ib - Input Bias Current
SOT-23-6
Package-Case
