HI-LINK
معرفی

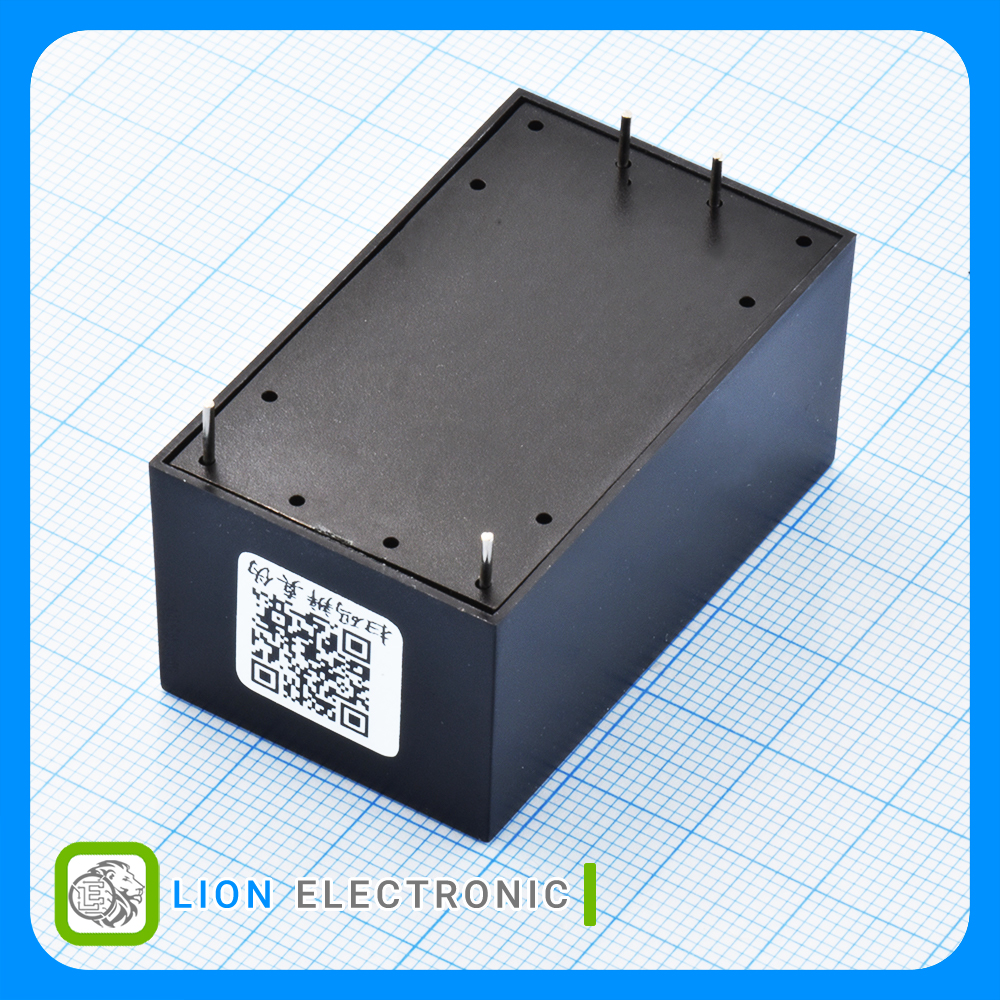

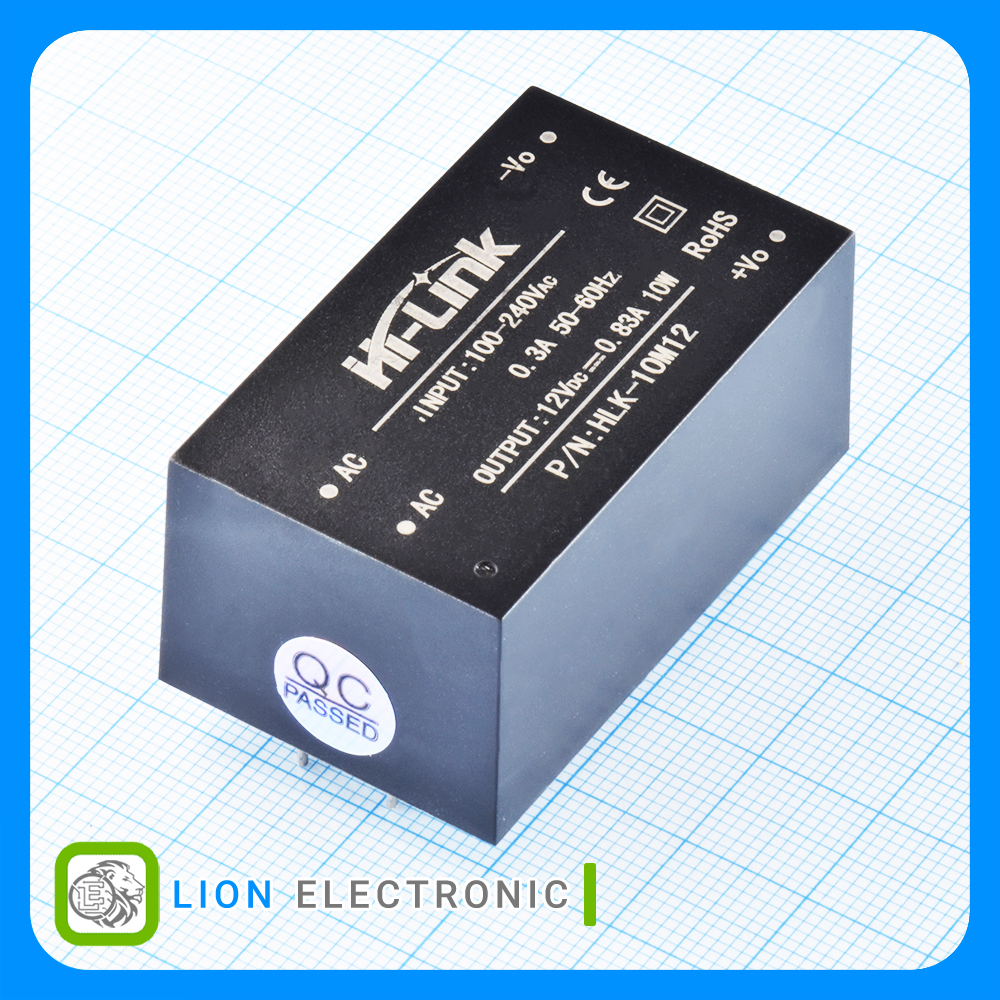

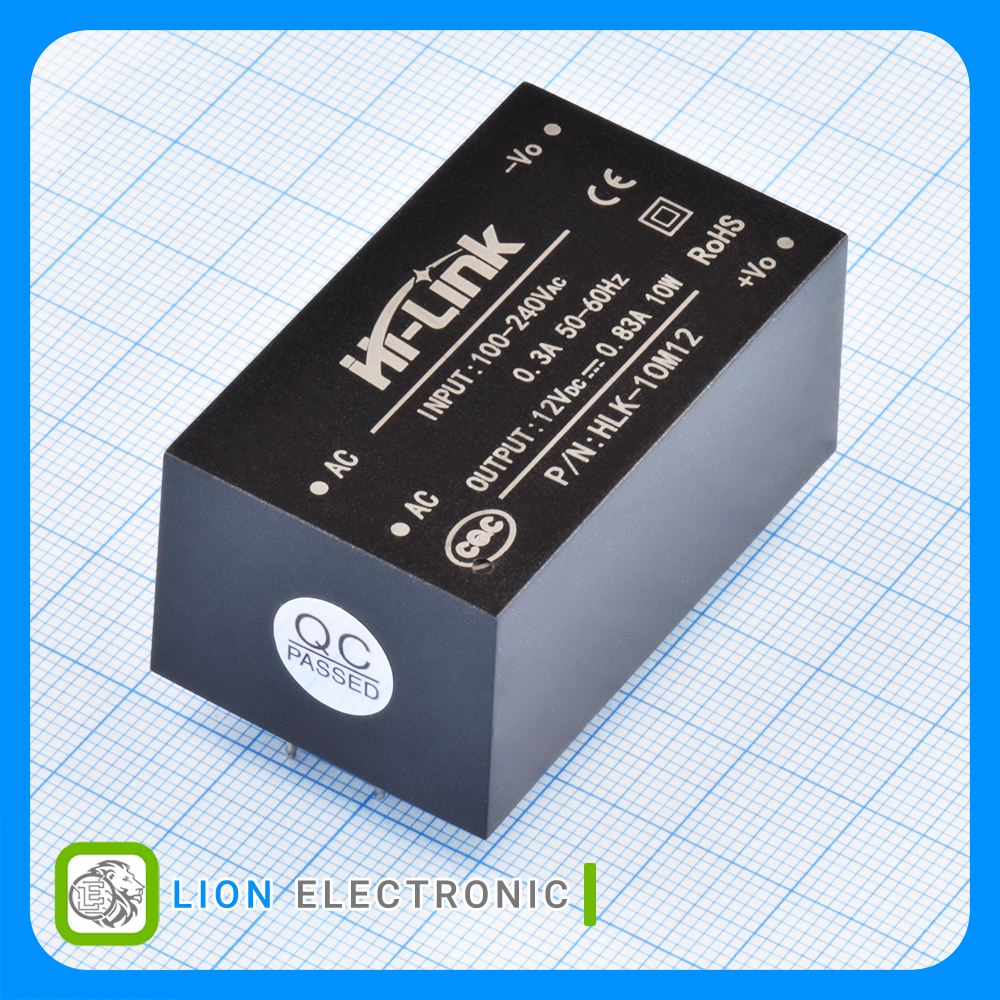

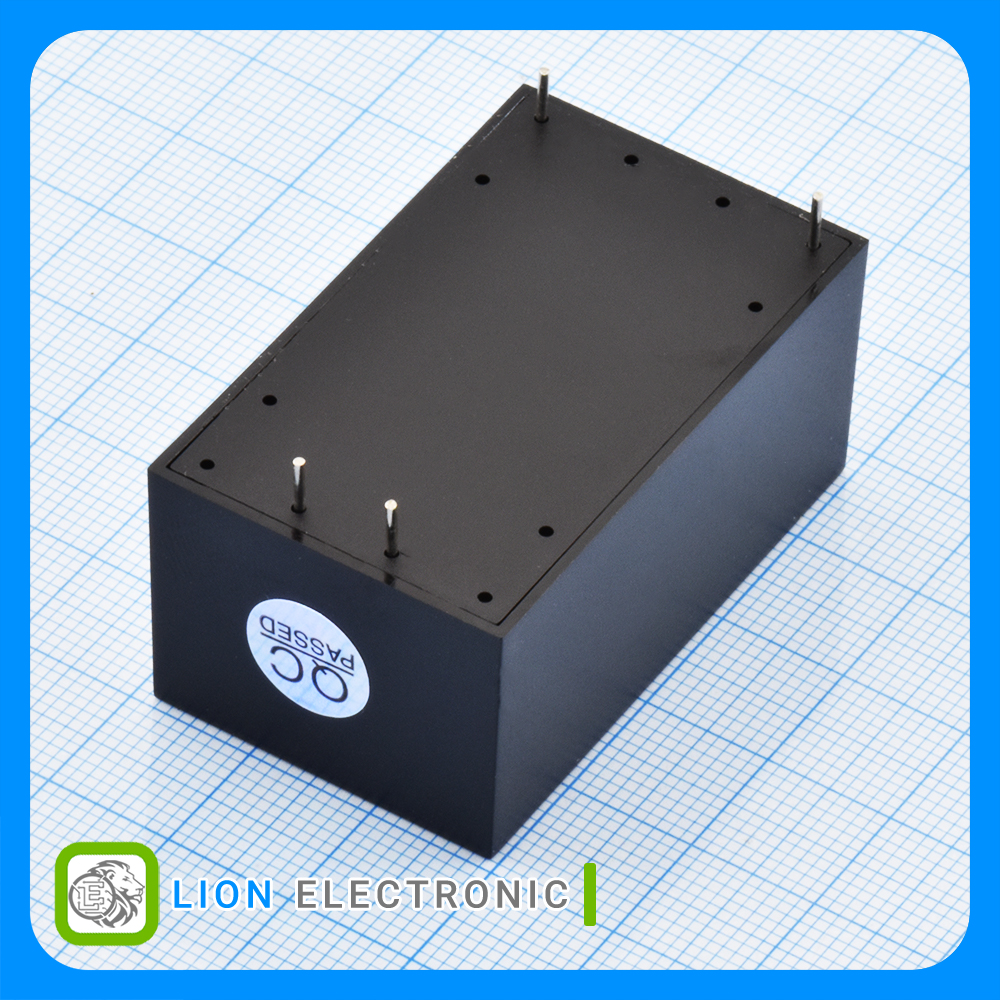

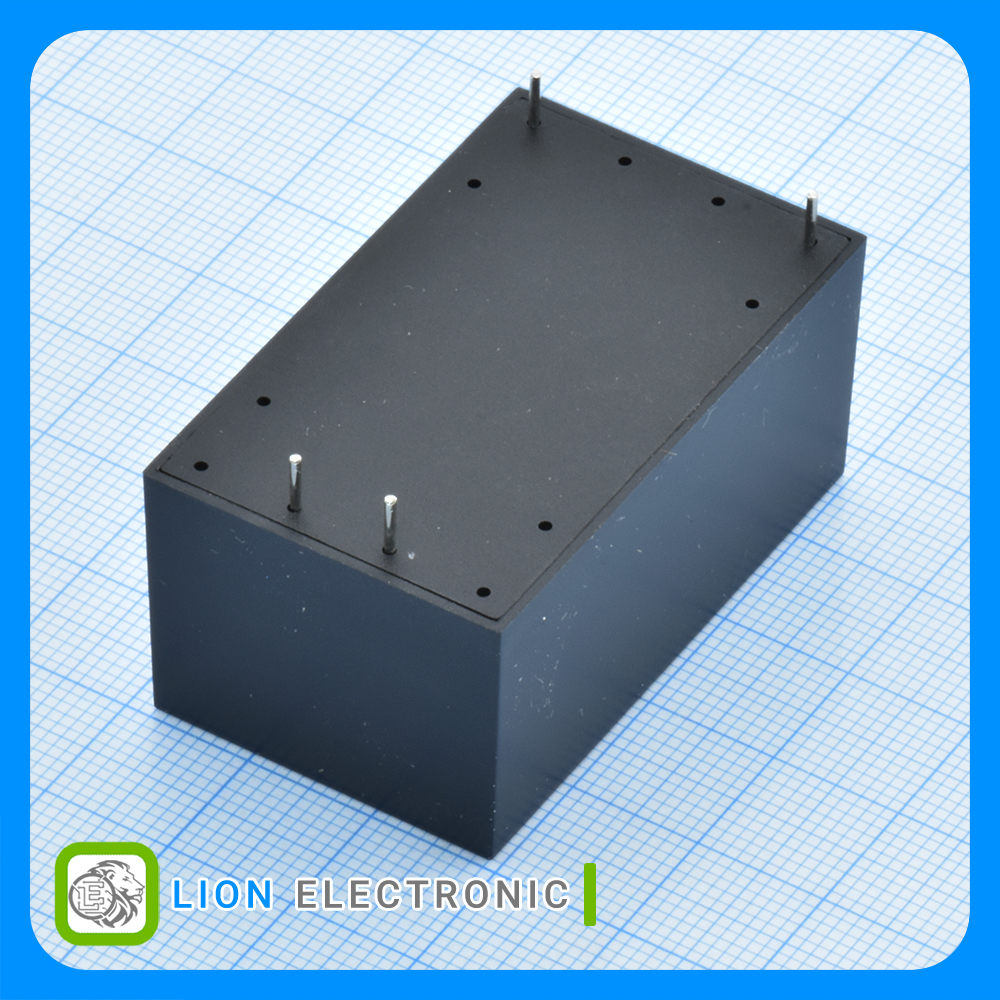

منبع تغذیه 10 وات خروجی 12 ولت 830 میلیآمپر ورودی 90 تا 245 ولت AC
Power Supply 10W, 12V 830mA with 90 - 245VAC Input
Specifications
- Input Voltage: 90 - 245VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 12V
- Output Current - Channel 1: 830mA
- Output Power: 10W
- Open Frame/Enclosed: Enclosed
- Length: 46.9mm
- Width: 27.8mm
- Height: 21.8mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات مبدل AC/DC ایزوله HLK-10M12

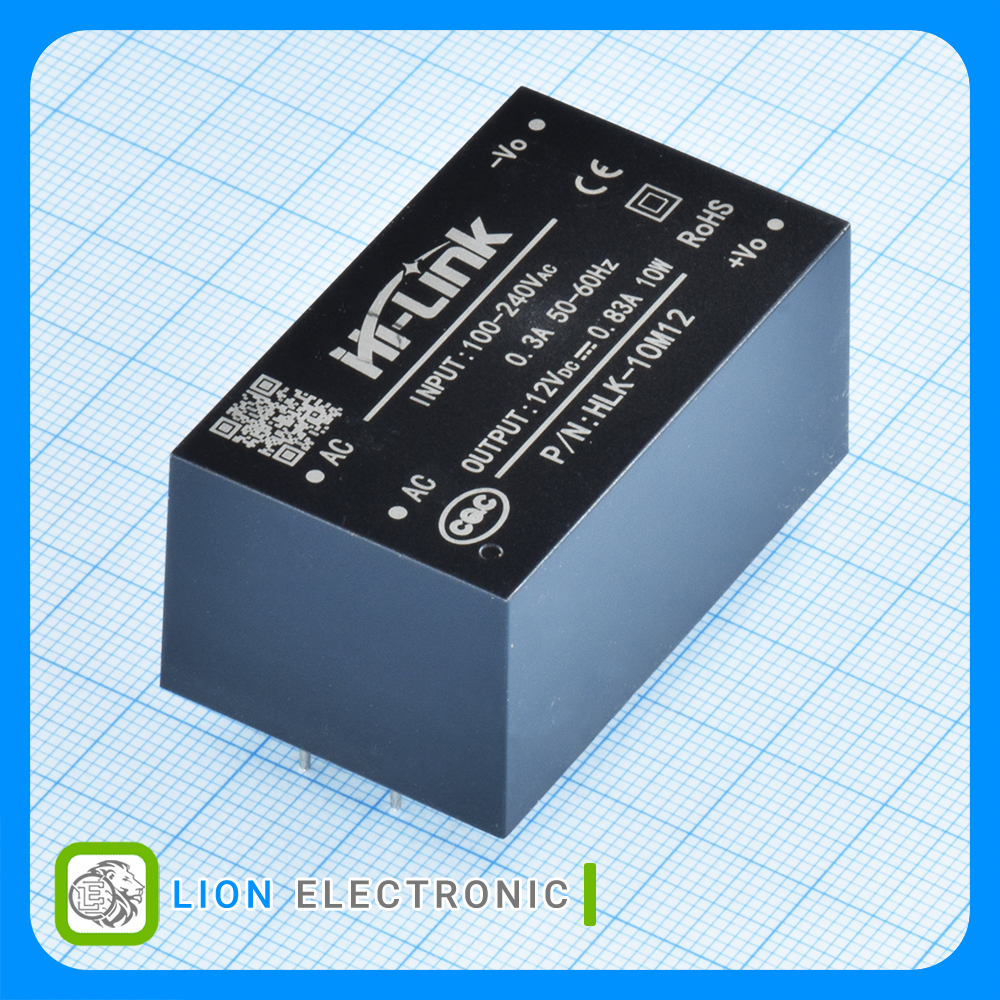

مبدل AC/DC ایزوله HLK-10M12
Part Number
1
Number of Outputs
AC/DC Power Modules
Product
Enclosed
Open Frame-Enclosed
+60C
Maximum Operating Temperature
12V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
-25C
Minimum Operating Temperature
Through Hole
Mounting Style
N/A
Output Current - Channel 2
830mA
Output Current - Channel 1
10W
Output Power
90 - 245VAC
Input Voltage
27.8mm
Width
46.9mm
Length
21.8mm
Height
12V
Output Voltage
