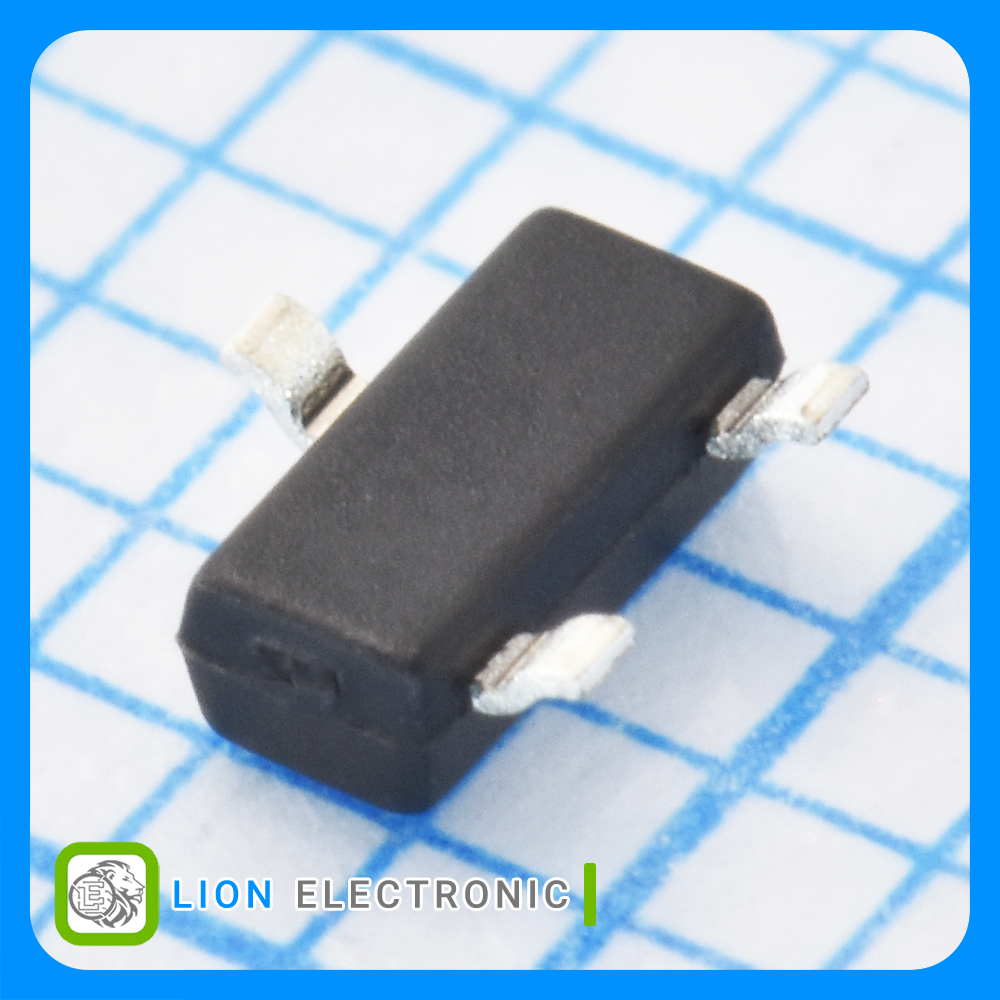

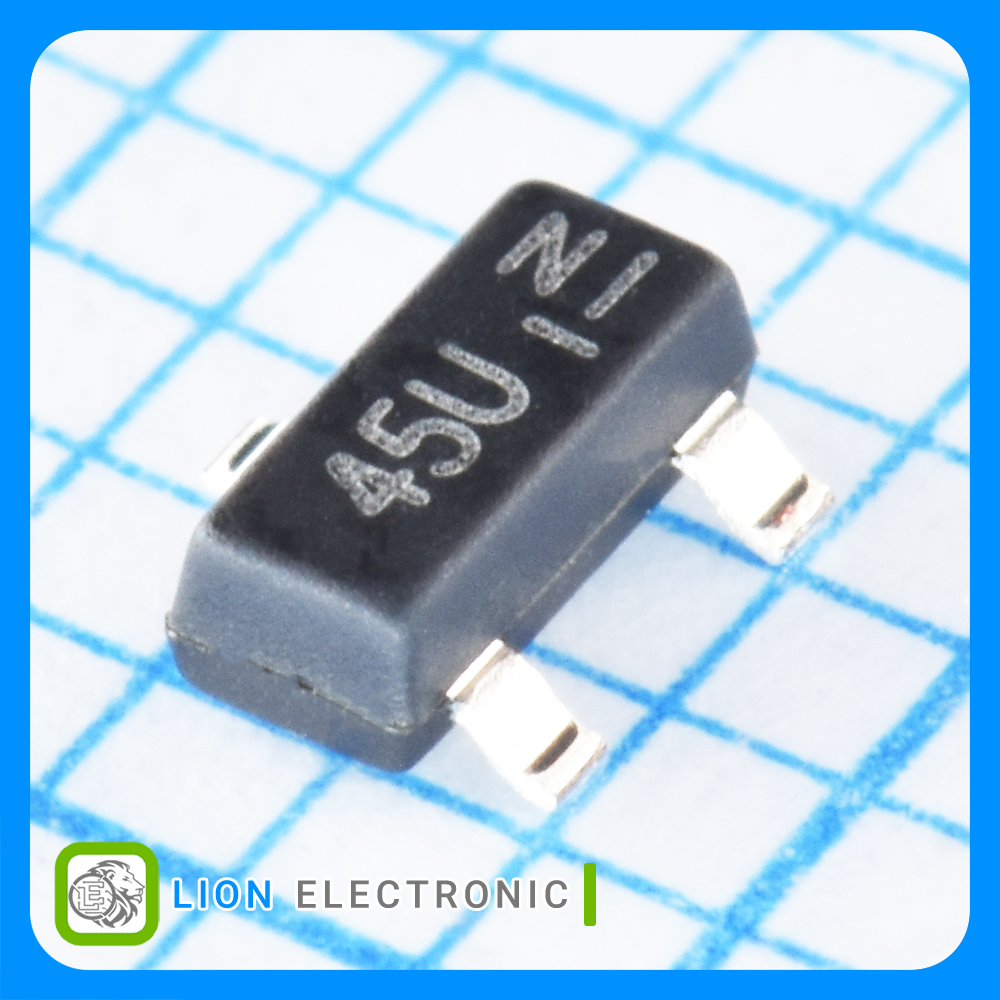

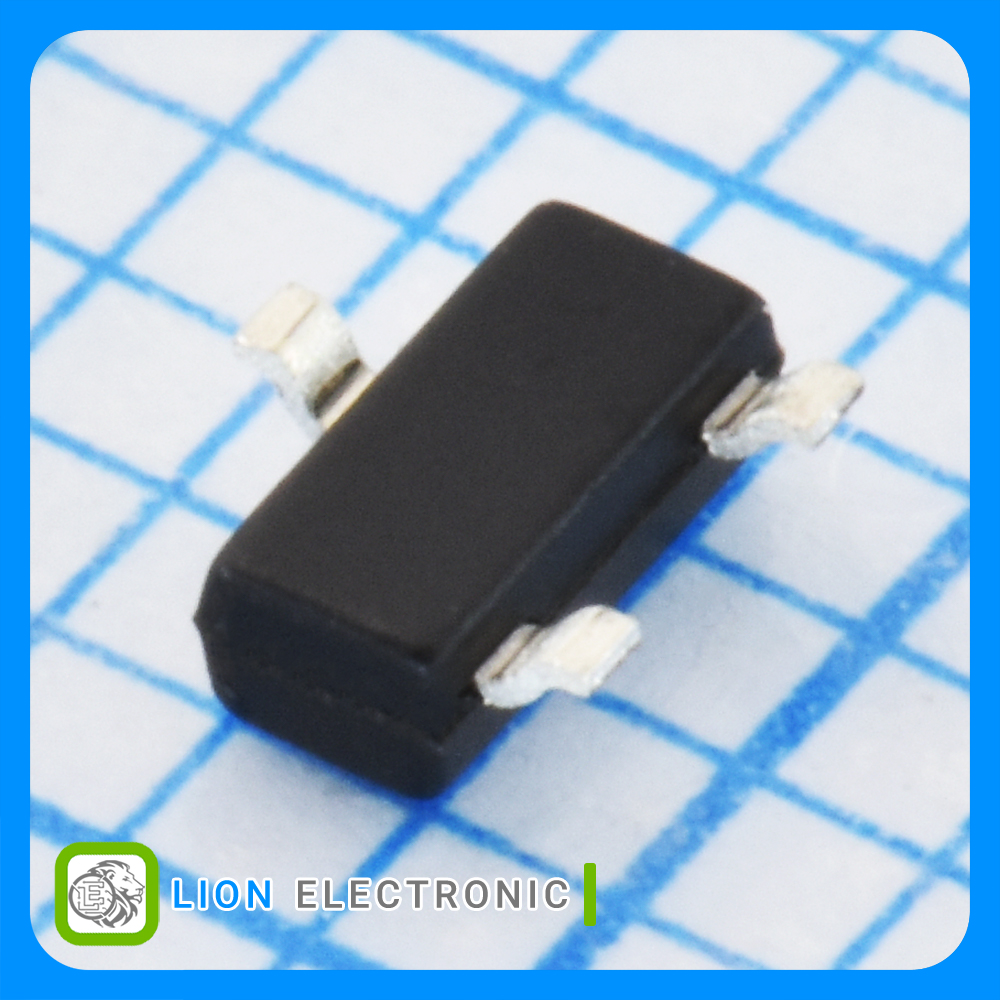

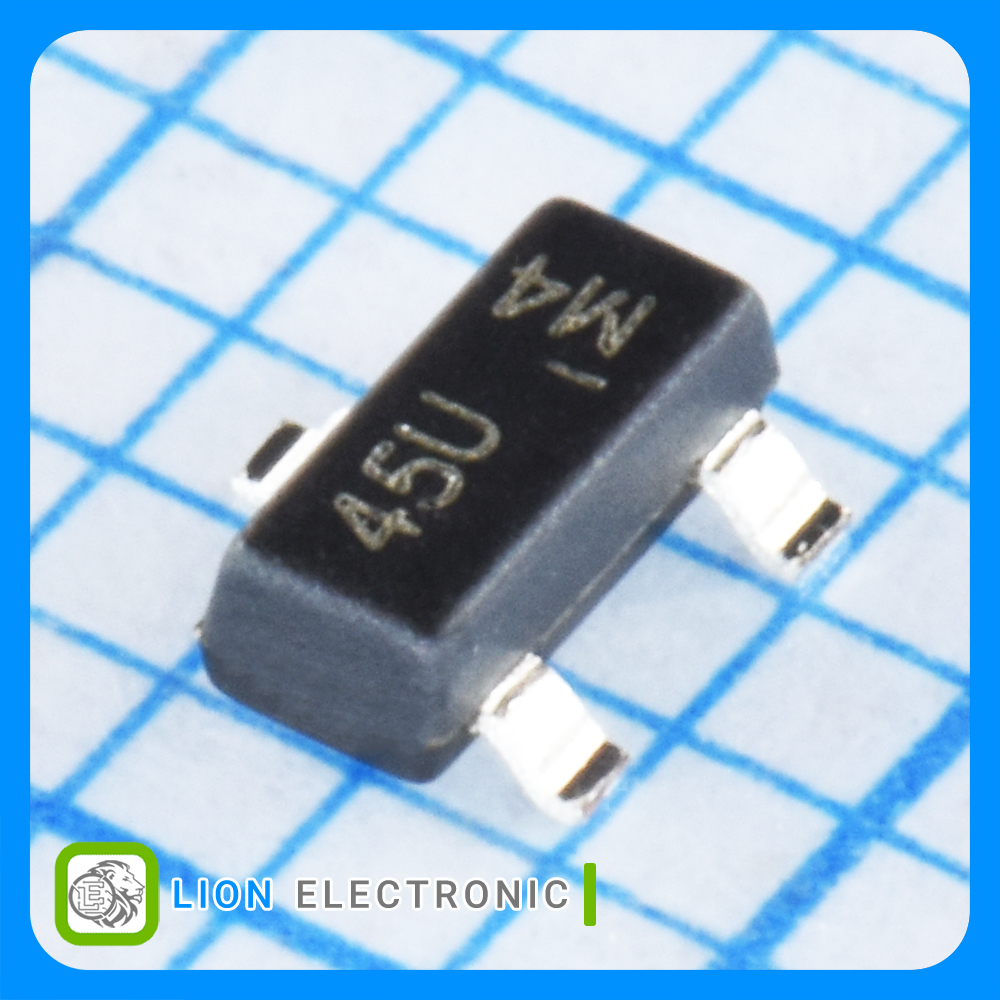

DMP2045U-7
DMP2045U-7
Part Number
4356
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت -20 ولت -4.3 آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET -20V, -4.3A with SOT-23-3 Package
معرفی
ماسفت -20 ولت -4.3 آمپر نوع P با پکیج SOT-23-3
P-CH MOSFET -20V, -4.3A with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: -20V
- Id - Continuous Drain Current: -4.3A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 300mV
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 32mΩ
- Pd - Power Dissipation: 800mW
- Qg - Gate Charge: 6.8nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMP2045U-7
ماسفت DMP2045U-7
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±8V
Vgs - Gate - Source Voltage
-20V
Vds - Drain - Source Breakdown Voltage
300mV
Vgs th - Gate - Source Threshold Voltage
+150C
Maximum Operating Temperature
6.8nC
Qg - Gate Charge
-4.3A
Id - Continuous Drain Current
800mW
Pd - Power Dissipation
32mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
