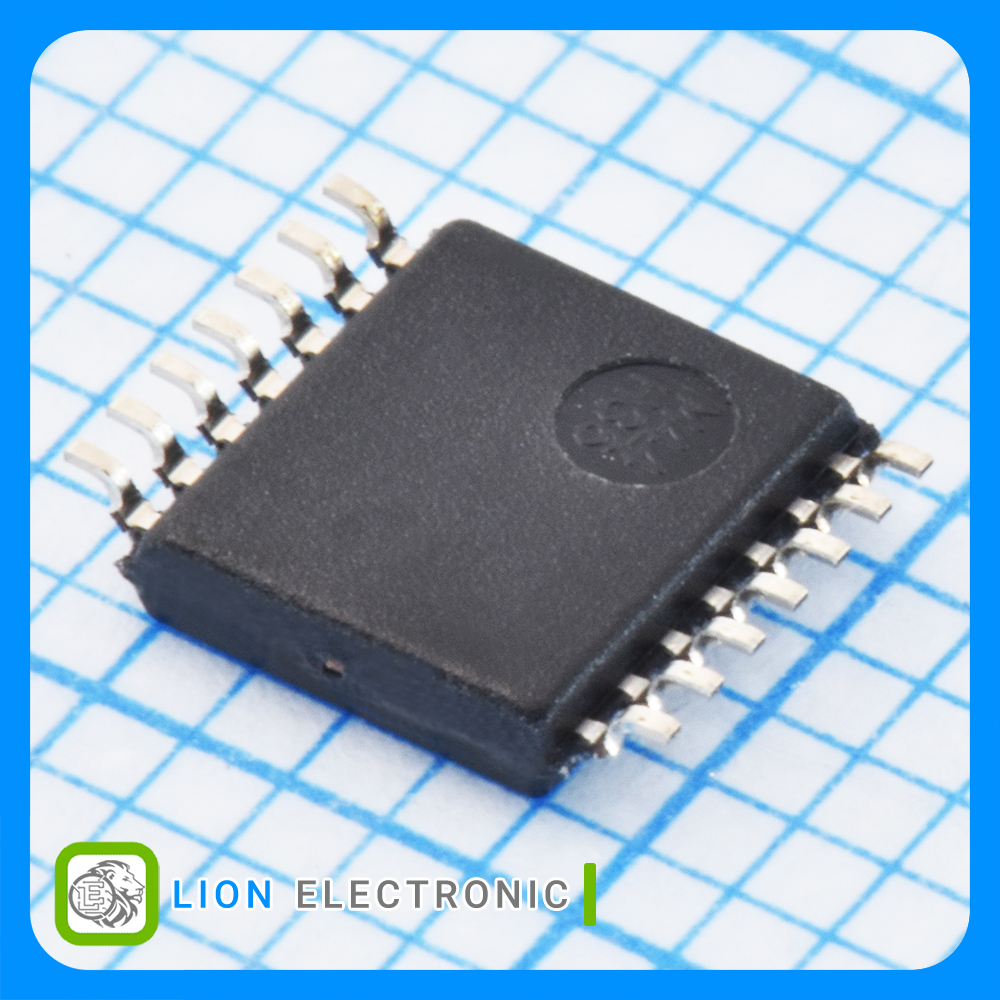

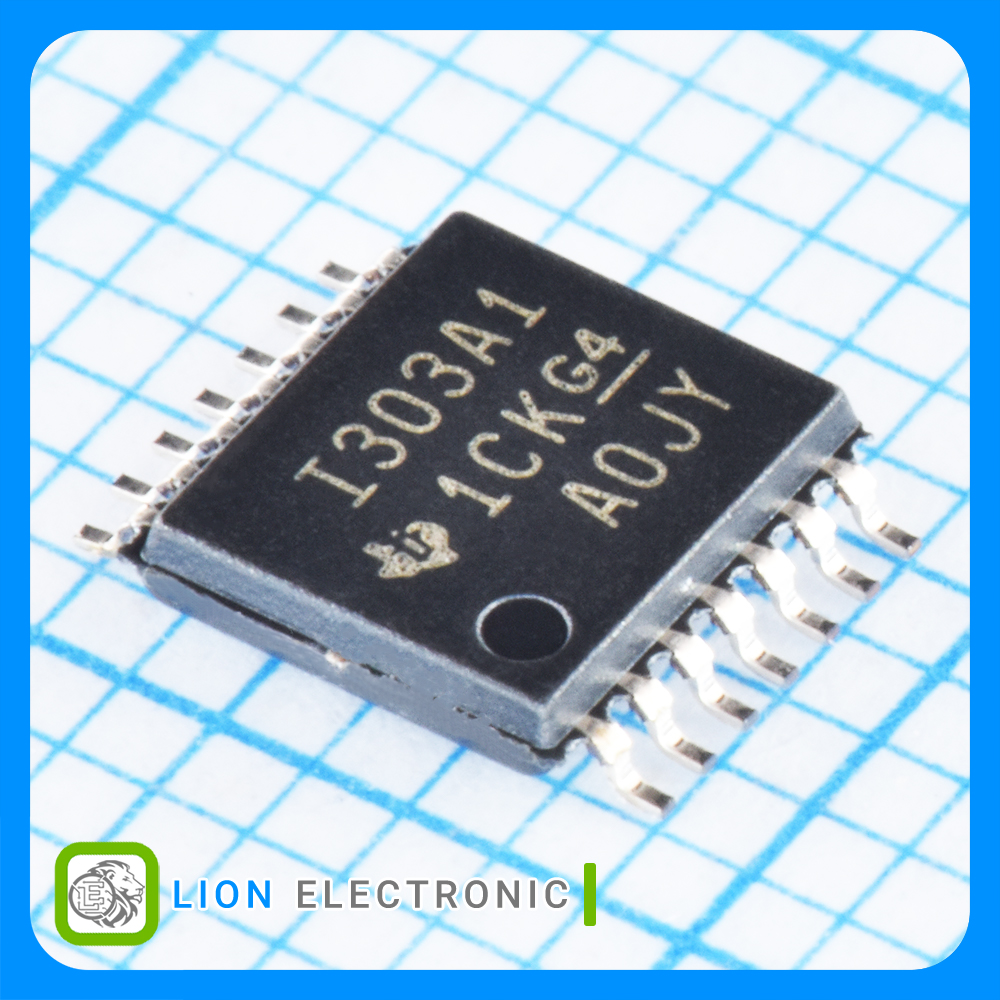

INA303A1IPWR
INA303A1IPWR
Part Number
4375
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی سنس جریان 2 کاناله با گین 20، آفست 15 میکروولت با پکیج TSSOP-14
Current Sense Amplifier 2-Channel, Gain 20, 15uV, 115uA with TSSOP-14 Package
معرفی
آیسی سنس جریان 2 کاناله با گین 20، آفست 15 میکروولت با پکیج TSSOP-14
Current Sense Amplifier 2-Channel, Gain 20, 15uV, 115uA with TSSOP-14 Package
Specifications
- Number of Channels: 2
- Gain: 20
- Vcm - Common Mode Voltage: 36V
- Vos - Input Offset Voltage: 15uV
- CMRR - Common Mode Rejection Ratio: 120dB
- Ib - Input Bias Current: 115uA
- GBP - Gain Bandwidth Product: 550KHz
- Supply Voltage - Min: 2.7V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 850uA
- Gain Error: 0.02%
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-14
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آیسی سنس جریان INA303A1IPWR
آیسی سنس جریان INA303A1IPWR
Part Number
0.02%
Gain Error
2
Number of Channels
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
36V
Vcm - Common Mode Voltage
15uV
Vos - Input Offset Voltage
20
Gain
550KHz
GBP - Gain Bandwidth Product
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
2.7V
Supply Voltage - Min
120dB
CMRR - Common Mode Rejection Ratio
115uA
Ib - Input Bias Current
850uA
Operating Supply Current
TSSOP-14
Package-Case
