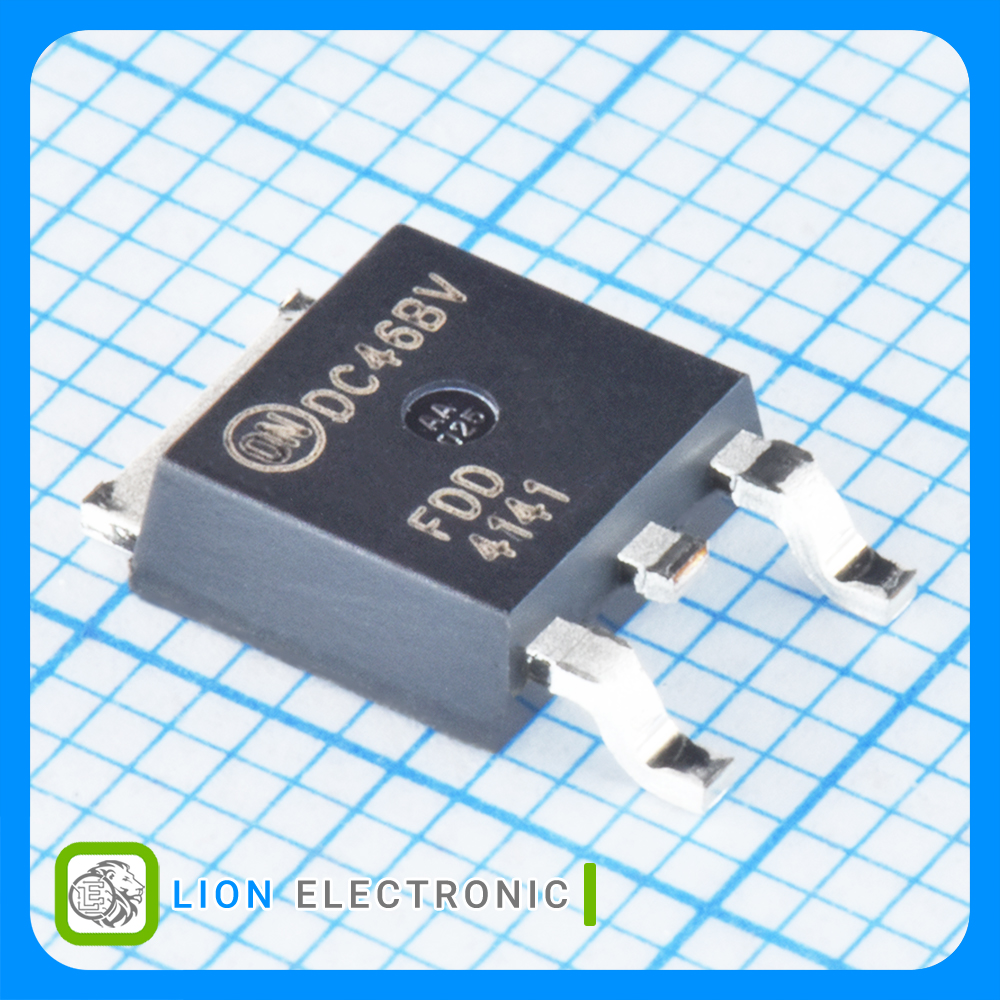

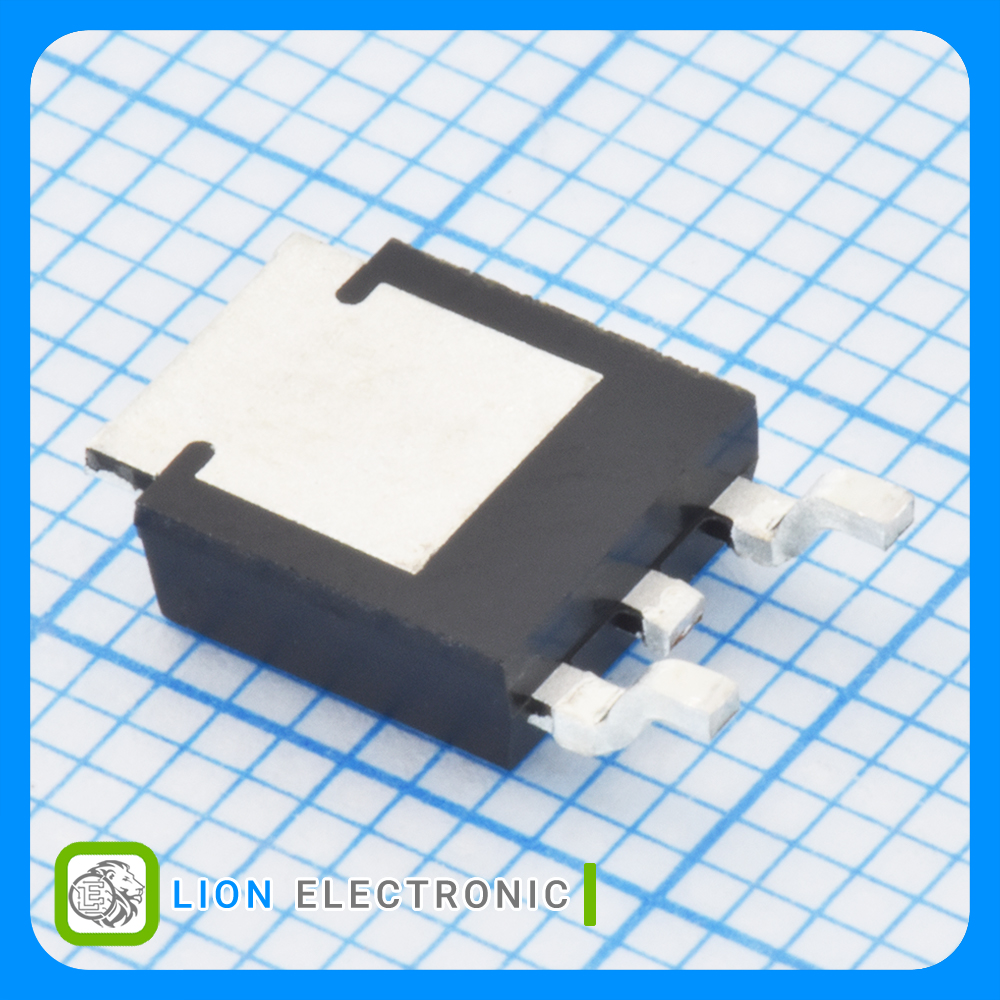

FDD4141-F085
FDD4141-F085
Part Number
4578
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت -40 ولت -50 آمپر نوع P با پکیج D-PAK
P-CH MOSFET -40V, -50A with D-PAK Package
معرفی
ماسفت -40 ولت -50 آمپر نوع P با پکیج D-PAK
P-CH MOSFET -40V, -50A with D-PAK Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -40V
- Id - Continuous Drain Current: -50A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1.8V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 17mΩ
- Pd - Power Dissipation: 69W
- Qg - Gate Charge: 36nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت FDD4141-F085
ماسفت FDD4141-F085
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-50A
Id - Continuous Drain Current
-1.8V
Vgs th - Gate - Source Threshold Voltage
-40V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
17mΩ
Rds On - Drain - Source Resistance
36nC
Qg - Gate Charge
DPAK
Package-Case
69W
Pd - Power Dissipation
