TOSHIBA
معرفی

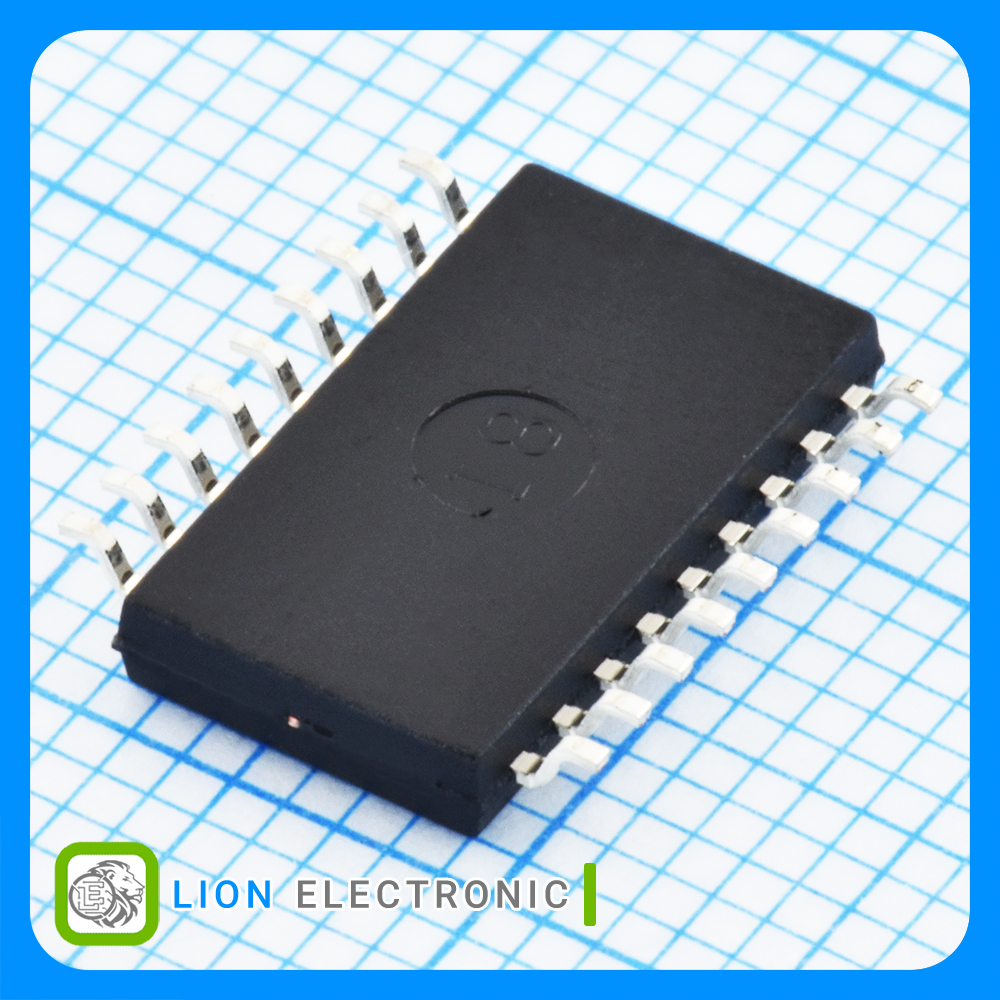

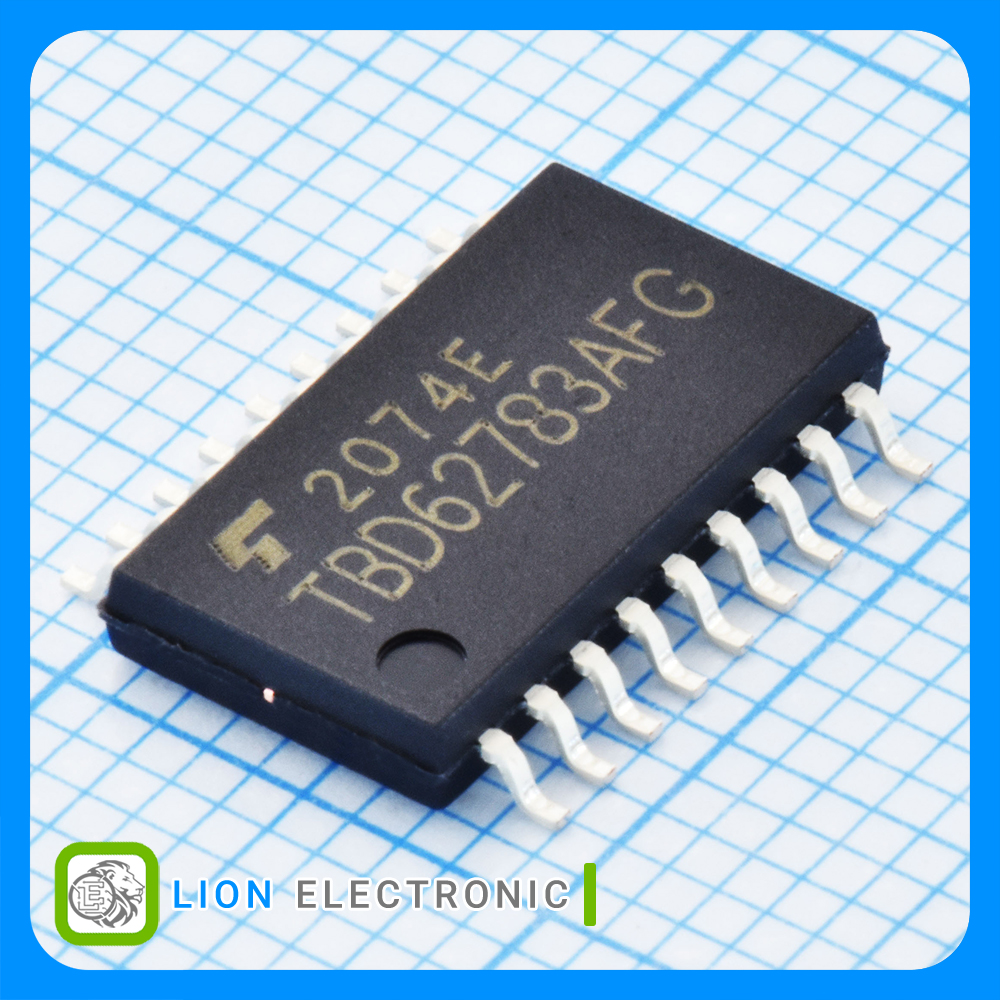

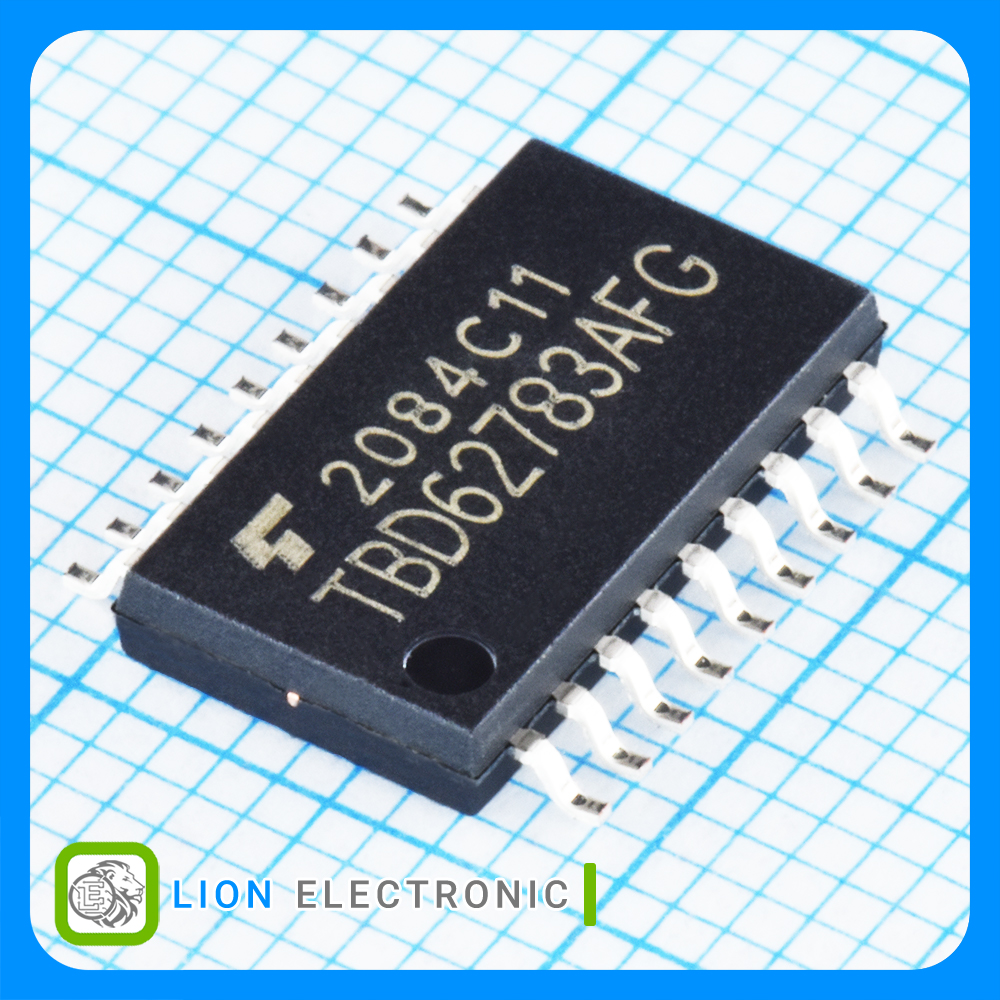

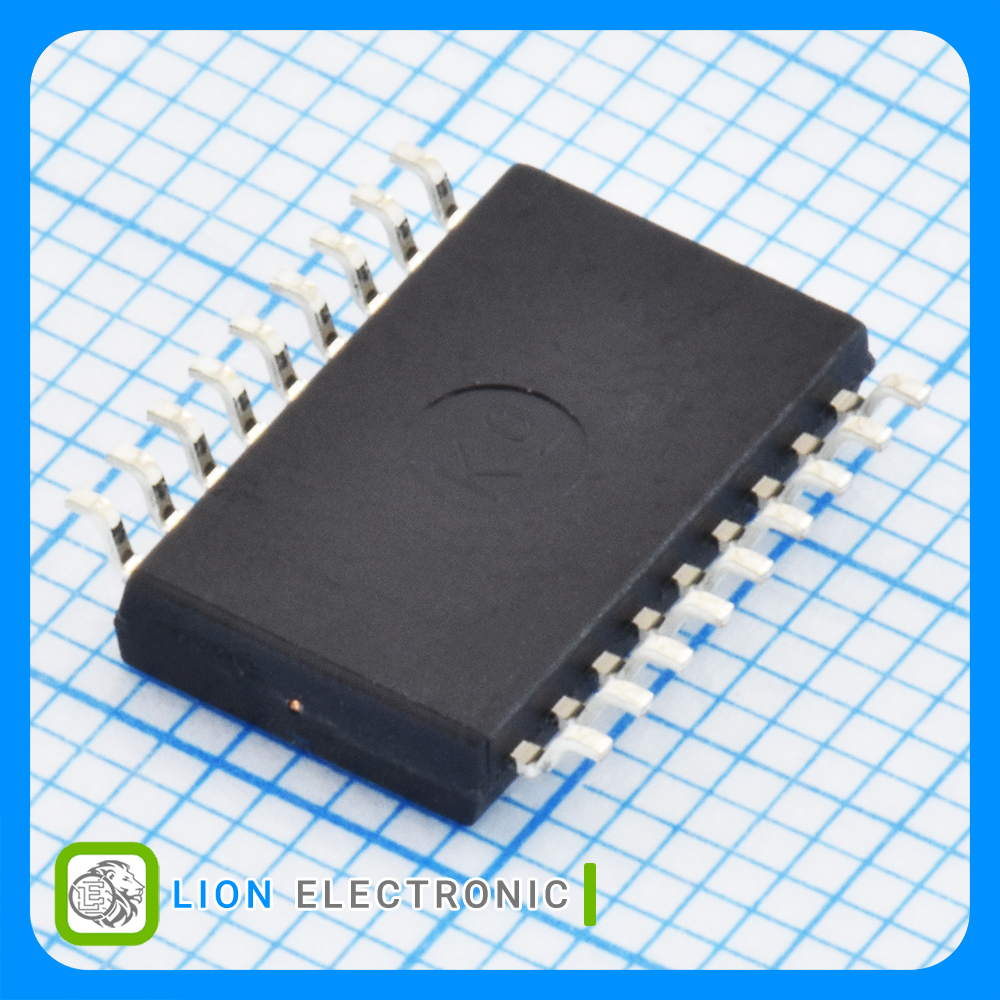

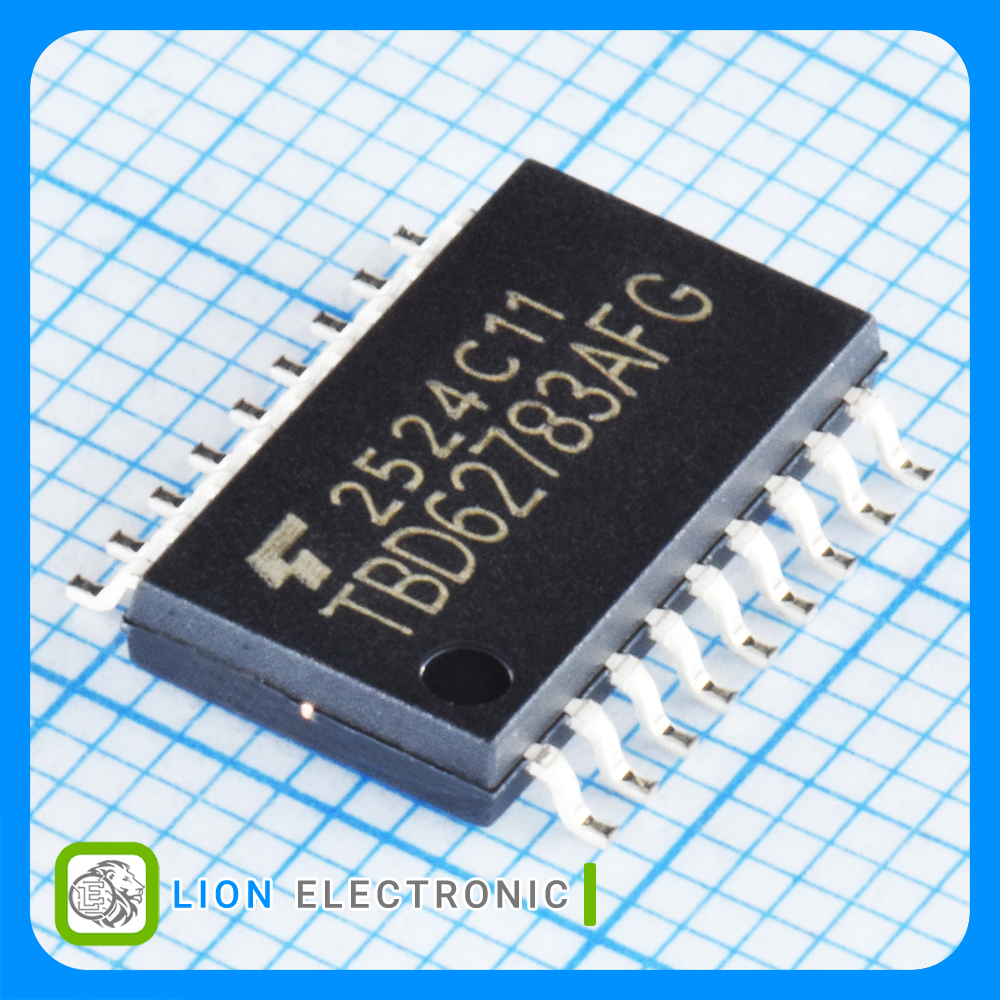

آرایه 8 تایی ماسفت DMOS نوع سورس -50 ولت -500 میلیآمپر با پکیج SOP18
8 DMOS transistor array with 8 circuits, -50V, -500mA, SOP18 Package
Specifications
- Package/Case: SOP-18
- Vds - Drain - Source Breakdown Voltage: -50V
- Id - Continuous Drain Current: -500mA
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 8
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: 0.6 - 2V
- Rds On - Drain - Source Resistance: 3.25Ω
- Pd - Power Dissipation: 90mW
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TBD62783AFG,EL
TBD62783AFG,EL
Part Number
-400mA
Output Current
Enhancement
Channel Mode
0.6 - 2V
Vgs - Gate - Source Voltage
-50V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
500mA
Current Limit
8
Number of Outputs
-40C
Minimum Operating Temperature
400ns
On Time - Max
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
90mW
Pd - Power Dissipation
2us
Off Time - Max
8
Number of Channels
3.25Ω
On Resistance - Max
-500mA
Id - Continuous Drain Current
2V
Vgs th - Gate - Source Threshold Voltage
High Side
Type
2 - 50V
Operating Supply Voltage
N/A
Qg - Gate Charge
3.25Ω
Rds On - Drain - Source Resistance
SOP-18
Package-Case
