TOSHIBA
معرفی

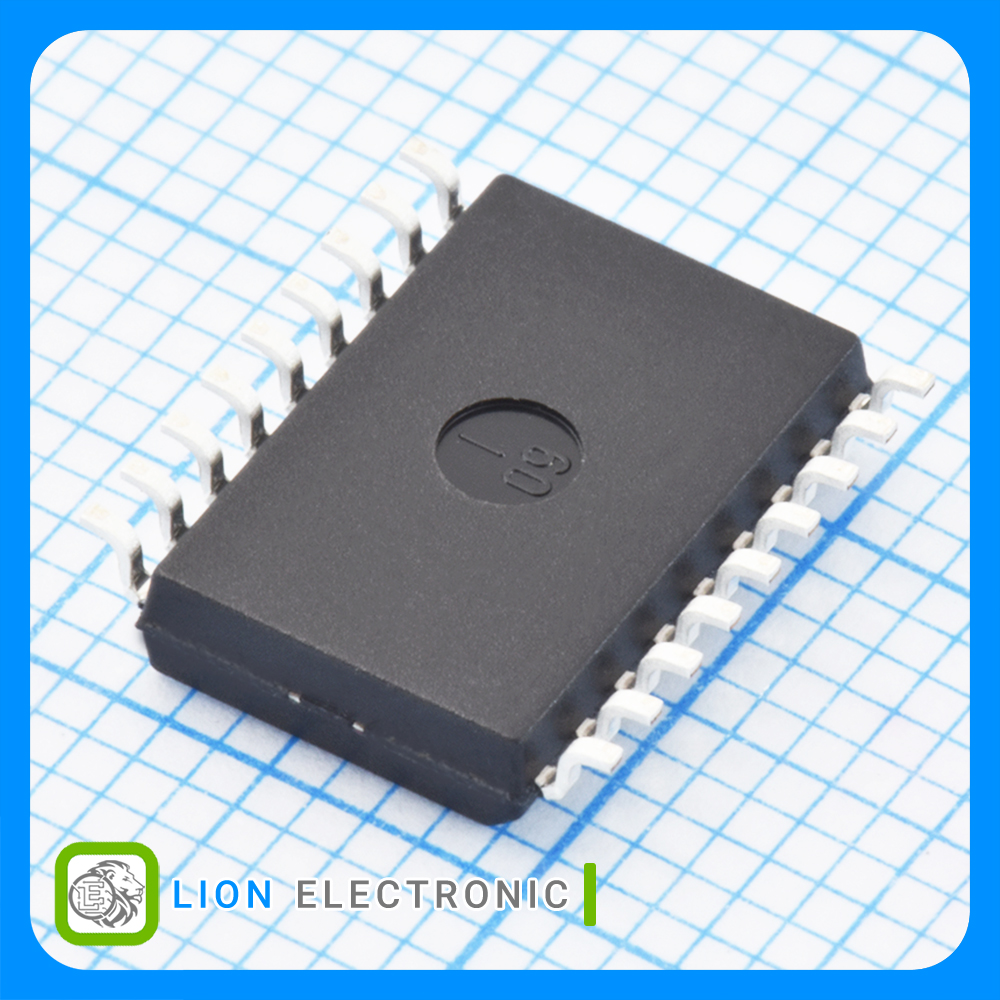

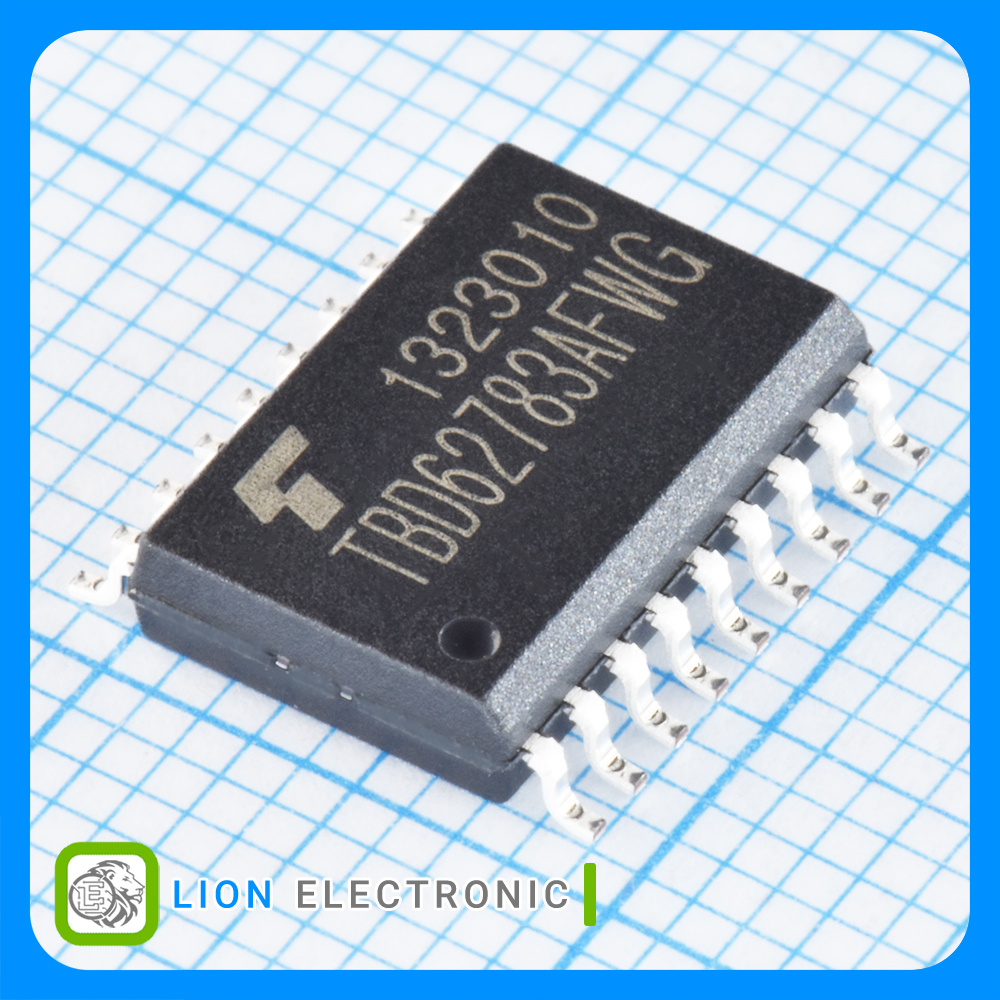

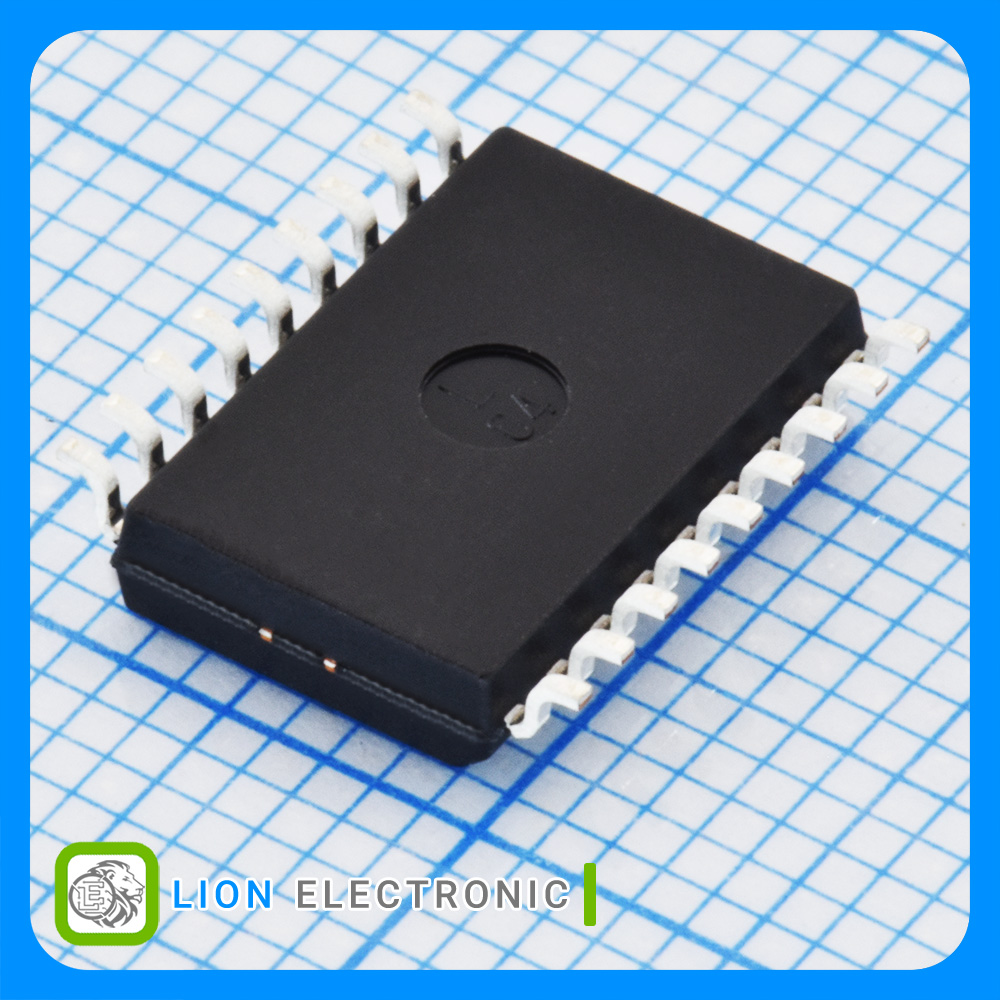

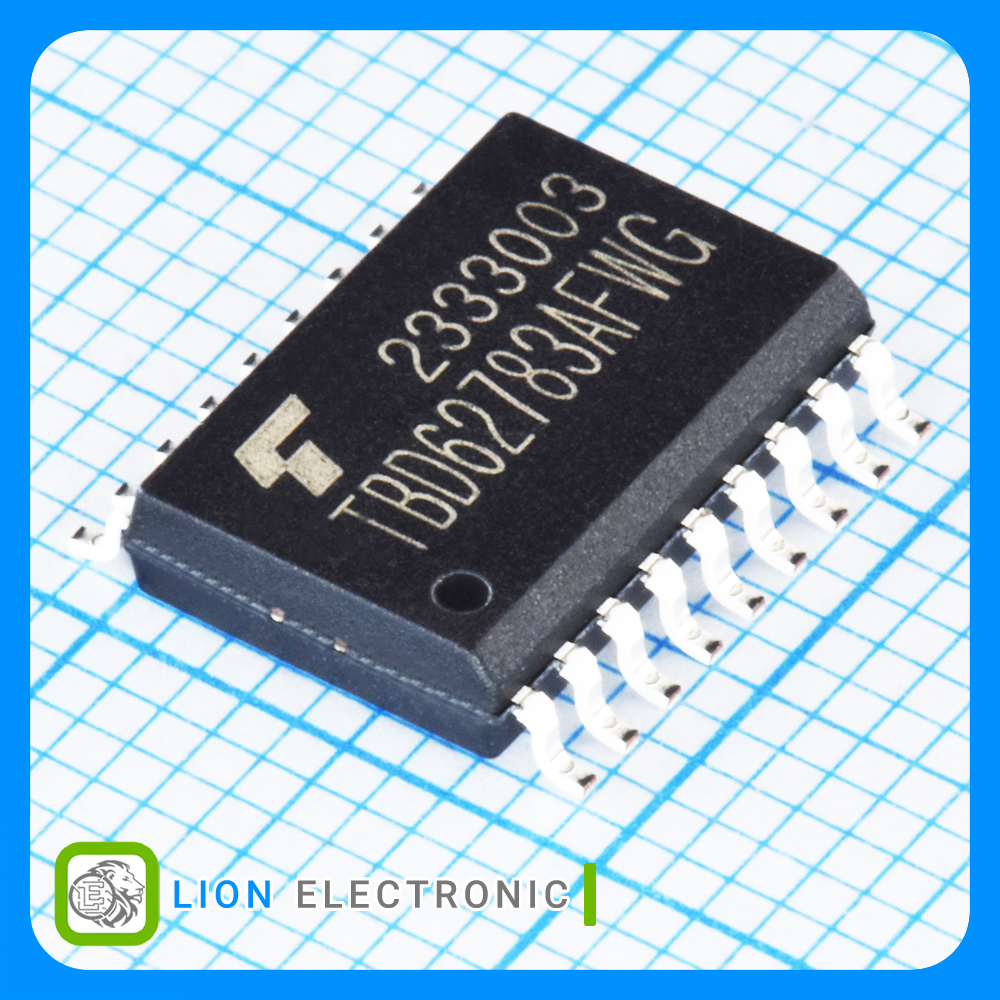

آرایه 8 تایی ماسفت DMOS نوع سورس 50 ولت 500 میلیآمپر نوع P با پکیج P-SOP18
8 DMOS transistor array with 8 circuits, P-Channel MOSFET -50V, -500mA with P-SOP18 Package
Specifications
- Package/Case: SOIC-18
- Vds - Drain - Source Breakdown Voltage: -50V
- Id - Continuous Drain Current: -500mA
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 8
- Vgs th - Gate - Source Threshold Voltage: 1.6V
- Vgs - Gate - Source Voltage: −0.5 - 30 V
- Rds On - Drain - Source Resistance: 3.25Ω
- Pd - Power Dissipation: 1.31W
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TBD62783AFWG,EL
TBD62783AFWG,EL
Part Number
-400mA
Output Current
−0.5 - 30 V
Vgs - Gate - Source Voltage
Enhancement
Channel Mode
-50V
Vds - Drain - Source Breakdown Voltage
500mA
Current Limit
Reel
Packaging
8
Number of Outputs
400ns
On Time - Max
-40C
Minimum Operating Temperature
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
2us
Off Time - Max
8
Number of Channels
3.25Ω
On Resistance - Max
-500mA
Id - Continuous Drain Current
1.6V
Vgs th - Gate - Source Threshold Voltage
High Side
Type
1.31W
Pd - Power Dissipation
2 - 50V
Operating Supply Voltage
N/A
Qg - Gate Charge
3.25Ω
Rds On - Drain - Source Resistance
SOIC-18
Package-Case
