HI-LINK
معرفی
ماژول مبدل AC به DC سوئیچینگ ایزوله پلاستیکی 2 وات خروجی 5 ولت 400 میلیآمپر ورودی 90 تا 245 ولت AC

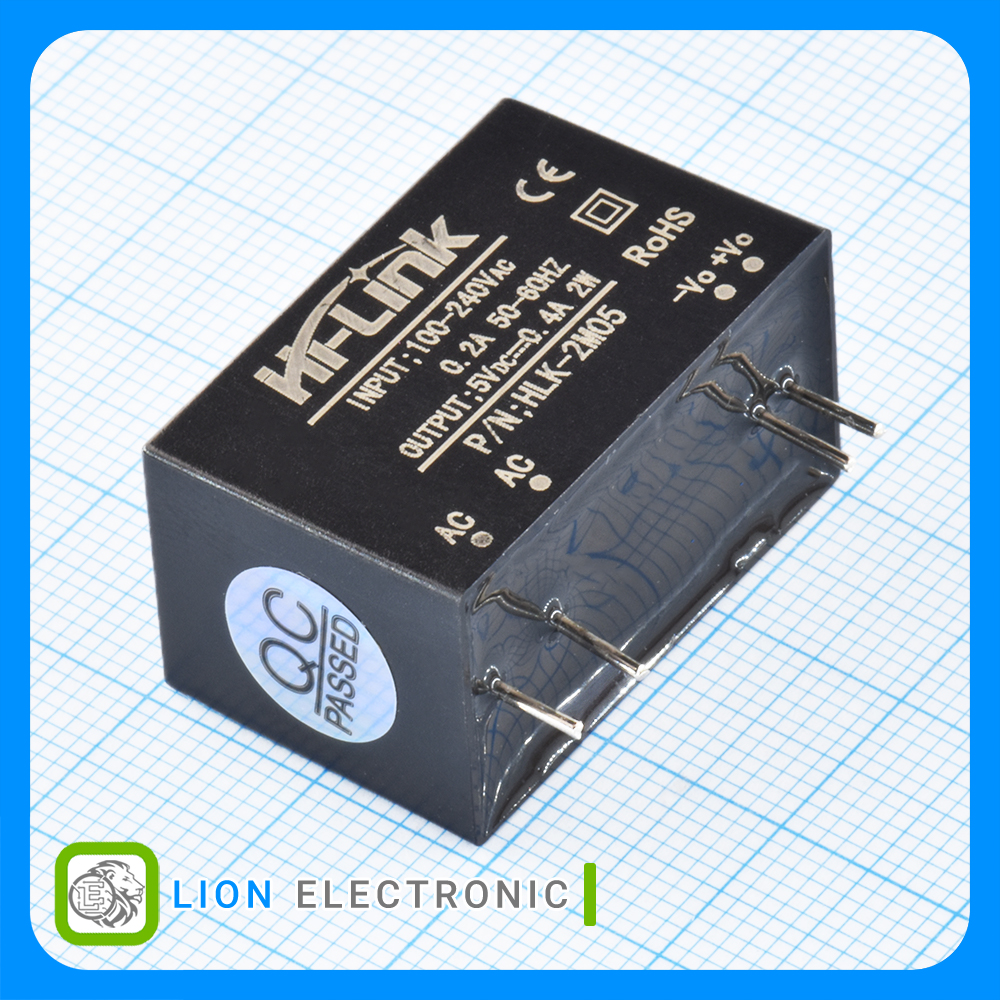

Isolated AC/DC Plastic Enclosed PCB Mounted Power Module 2W, 5V 400mA with 90 - 245VAC Input
Specifications
- Input Voltage: 90 - 245VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 5V
- Output Current - Channel 1: 400mA
- Output Power: 2W
- Open Frame/Enclosed: Enclosed
- Length: 30mm
- Width: 16mm
- Height: 19mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات مبدل AC/DC ایزوله HLK-2M05

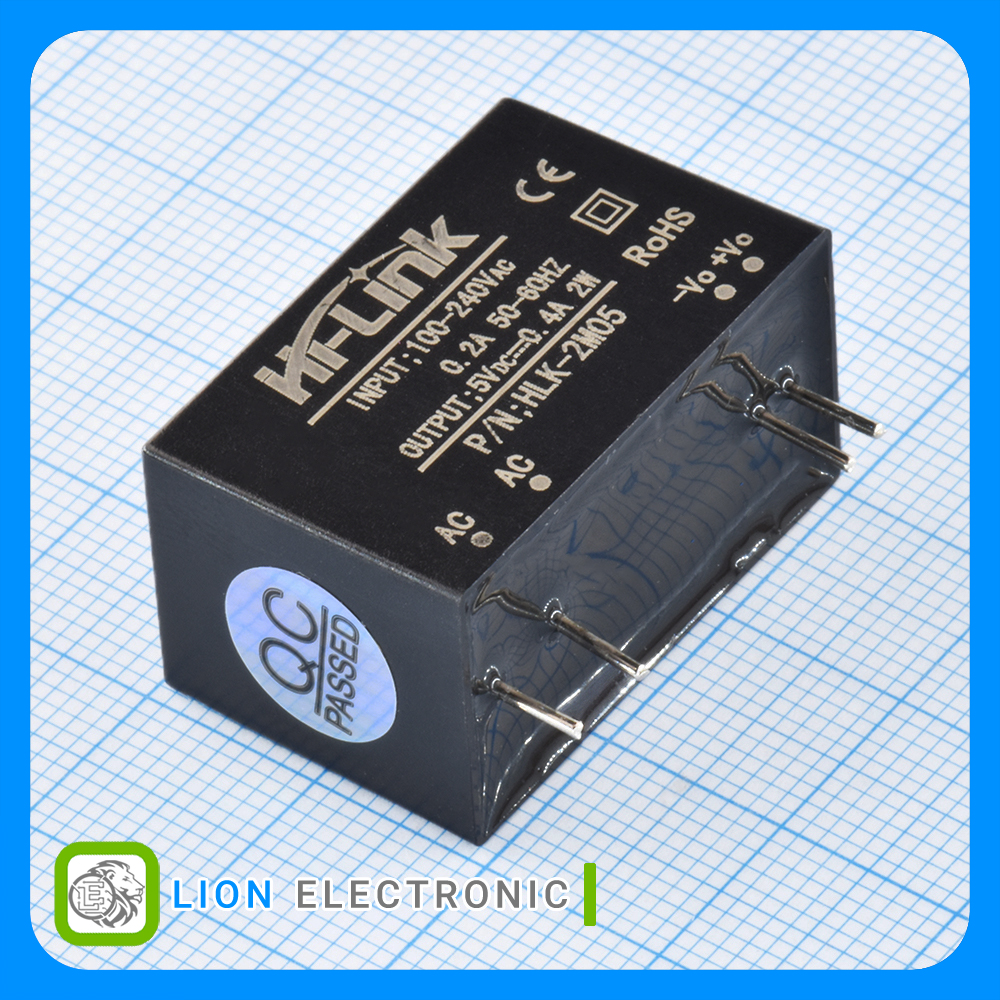

مبدل AC/DC ایزوله HLK-2M05
Part Number
1
Number of Outputs
AC/DC Power Modules
Product
Enclosed
Open Frame-Enclosed
5V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
2W
Output Power
400mA
Output Current - Channel 1
16mm
Width
30mm
Length
90 - 245VAC
Input Voltage
19mm
Height
