HI-LINK
معرفی
ماژول مبدل AC به DC سوئیچینگ ایزوله پلاستیکی 3 وات خروجی 5 ولت 600 میلیآمپر ورودی 90 تا 265 ولت AC

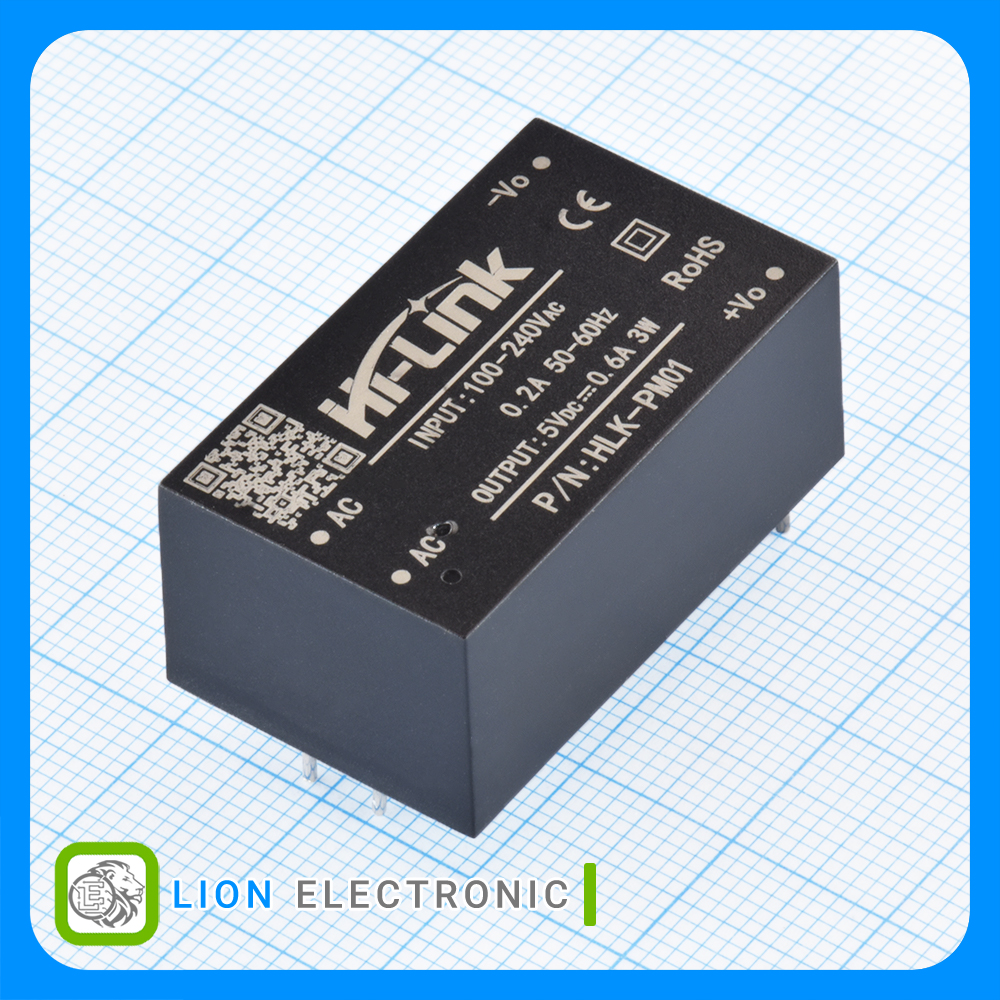

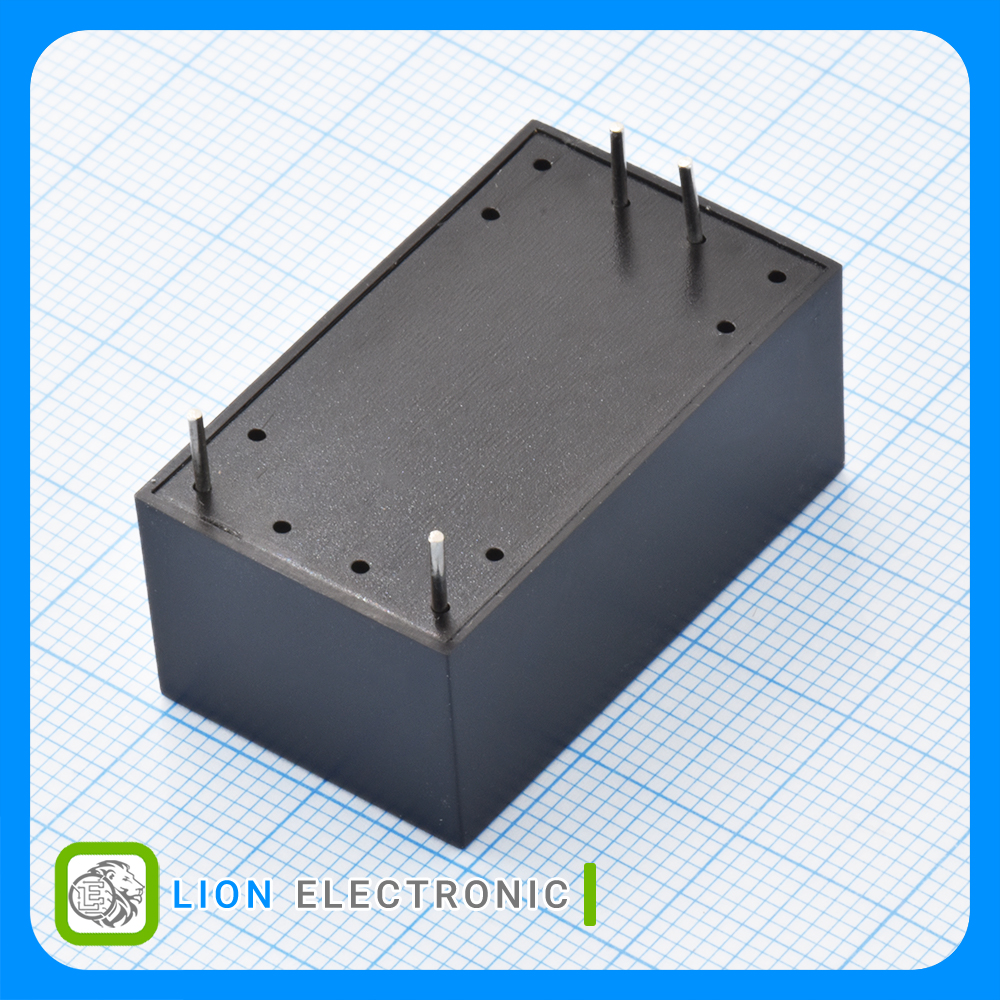

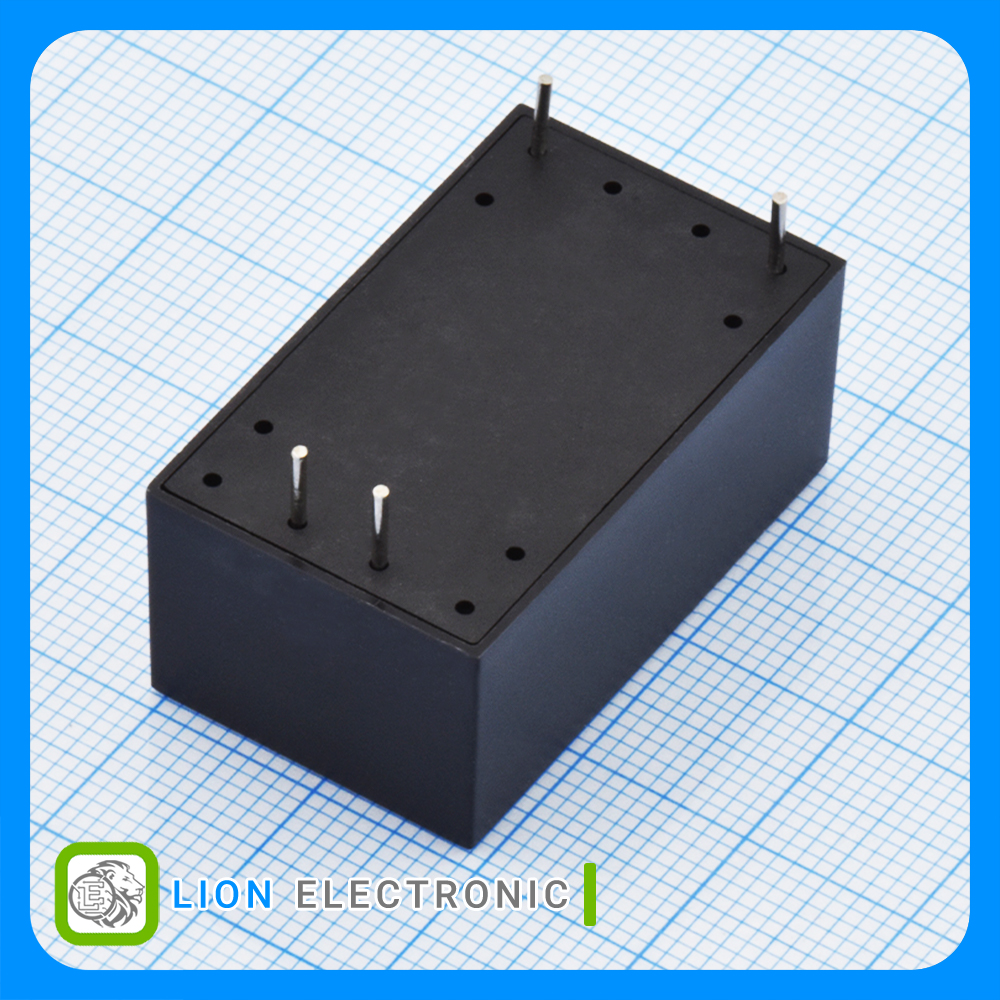

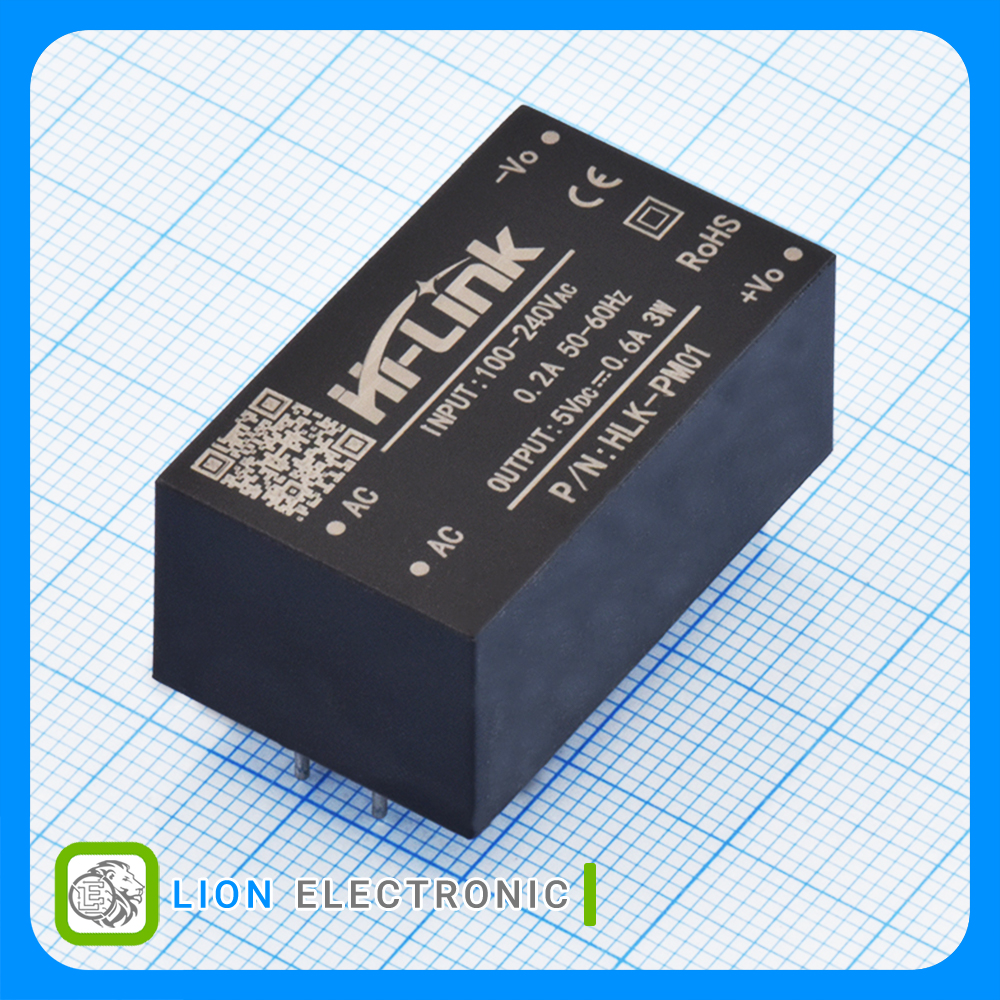

Isolated AC/DC Plastic Enclosed PCB Mounted Power Module 3W, 5V 600mA with 90 - 265VAC Input
Specifications
- Input Voltage: 90 - 265VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 5V
- Output Current - Channel 1: 600mA
- Output Power: 3W
- Open Frame/Enclosed: Enclosed
- Length: 34mm
- Width: 20mm
- Height: 15mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات مبدل AC/DC ایزوله HLK-PM01
مبدل AC/DC ایزوله HLK-PM01
Part Number
1
Number of Outputs
Enclosed
Open Frame-Enclosed
AC/DC Power Modules
Product
5V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
3W
Output Power
600mA
Output Current - Channel 1
20mm
Width
90 - 265VAC
Input Voltage
15mm
Height
34mm
Length
