AOD4185
AOD4185
Part Number
5558
Lion Part
Datasheet
Alpha & Omega Semiconductor Manufacture
ماسفت 40- ولت 40- آمپر نوع P با پکیج TO-252 (DPAK)

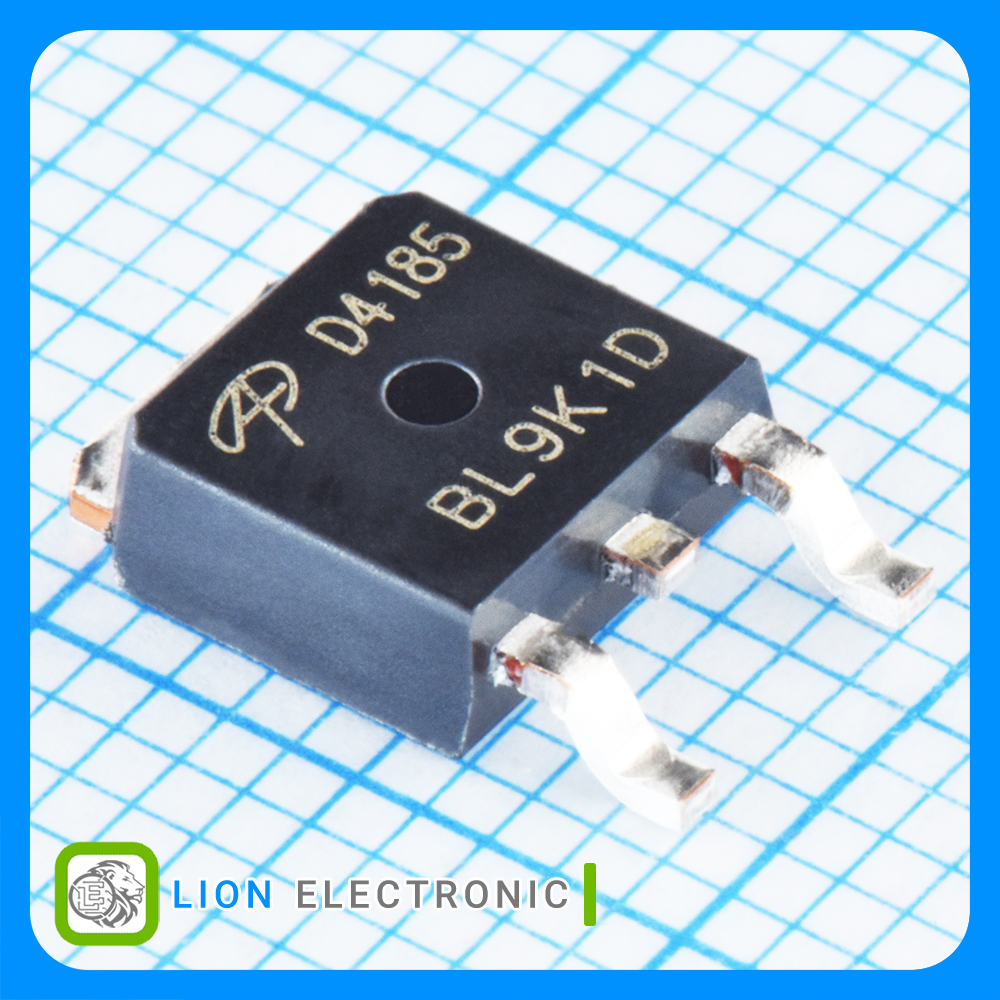

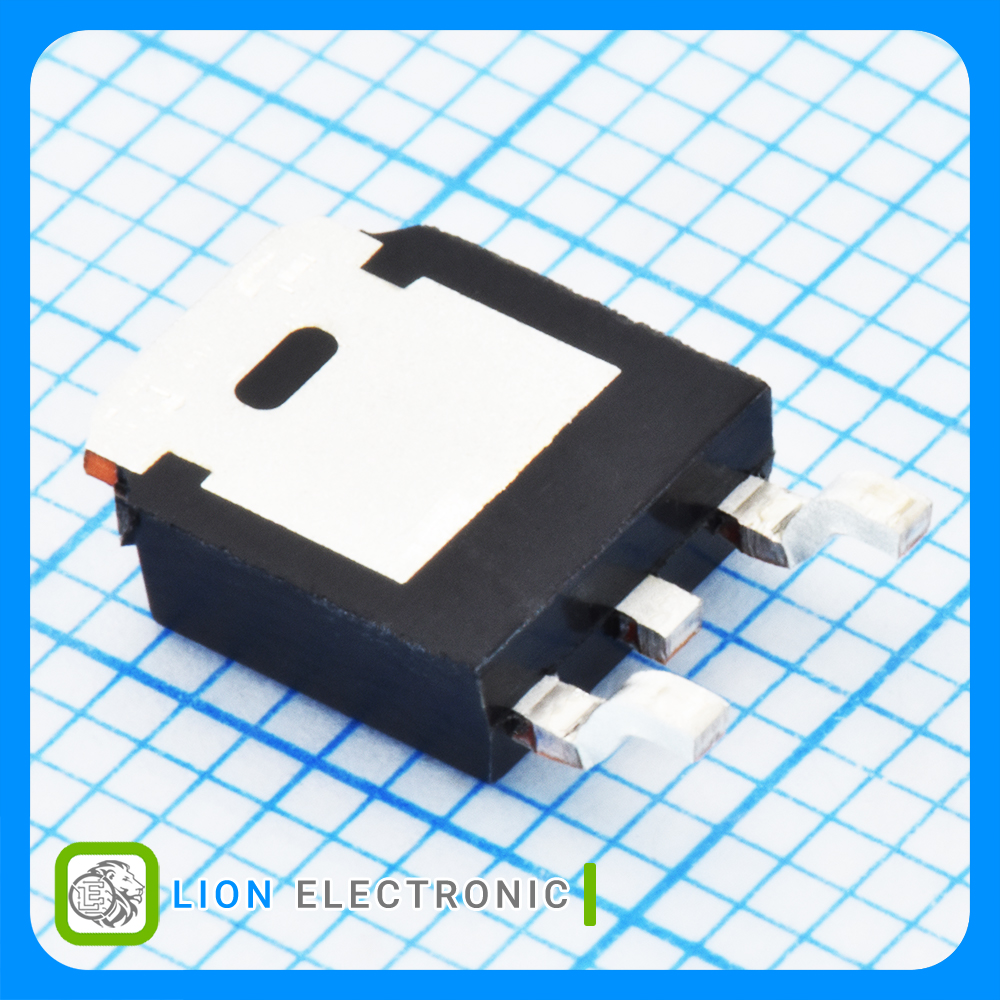

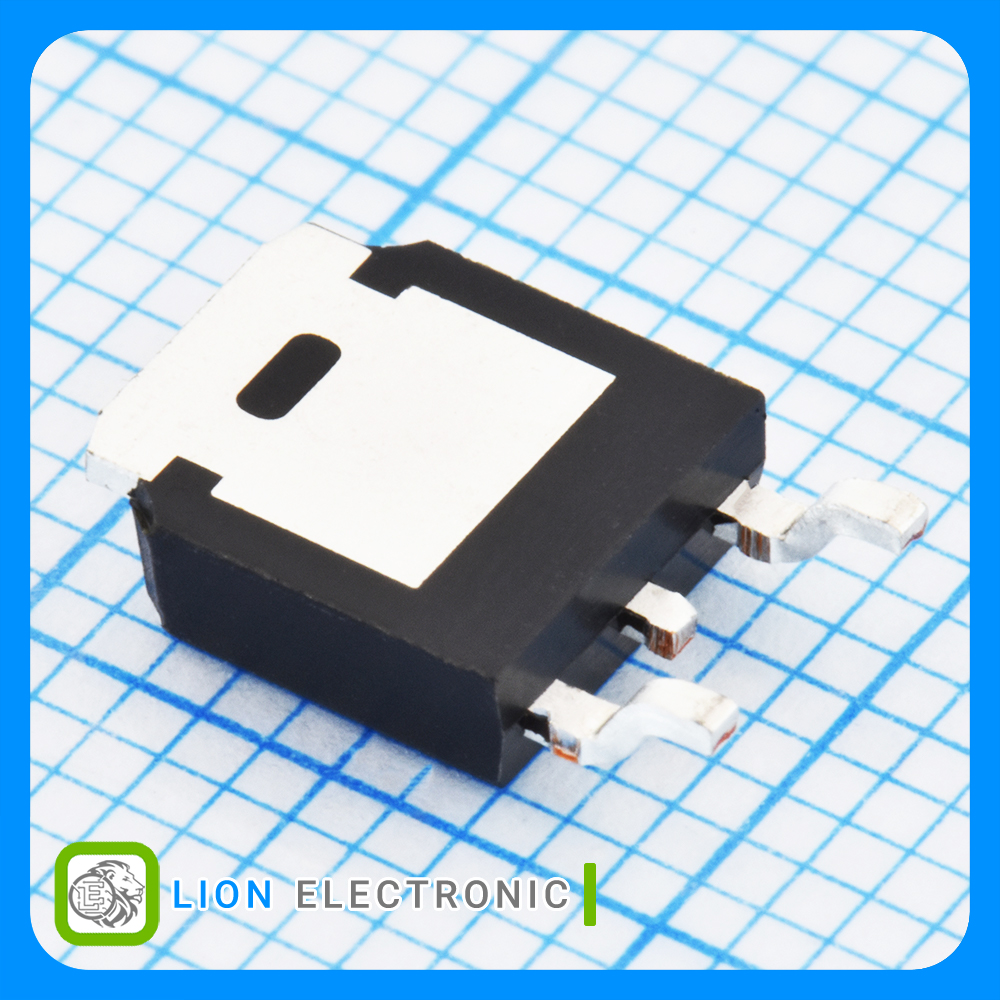

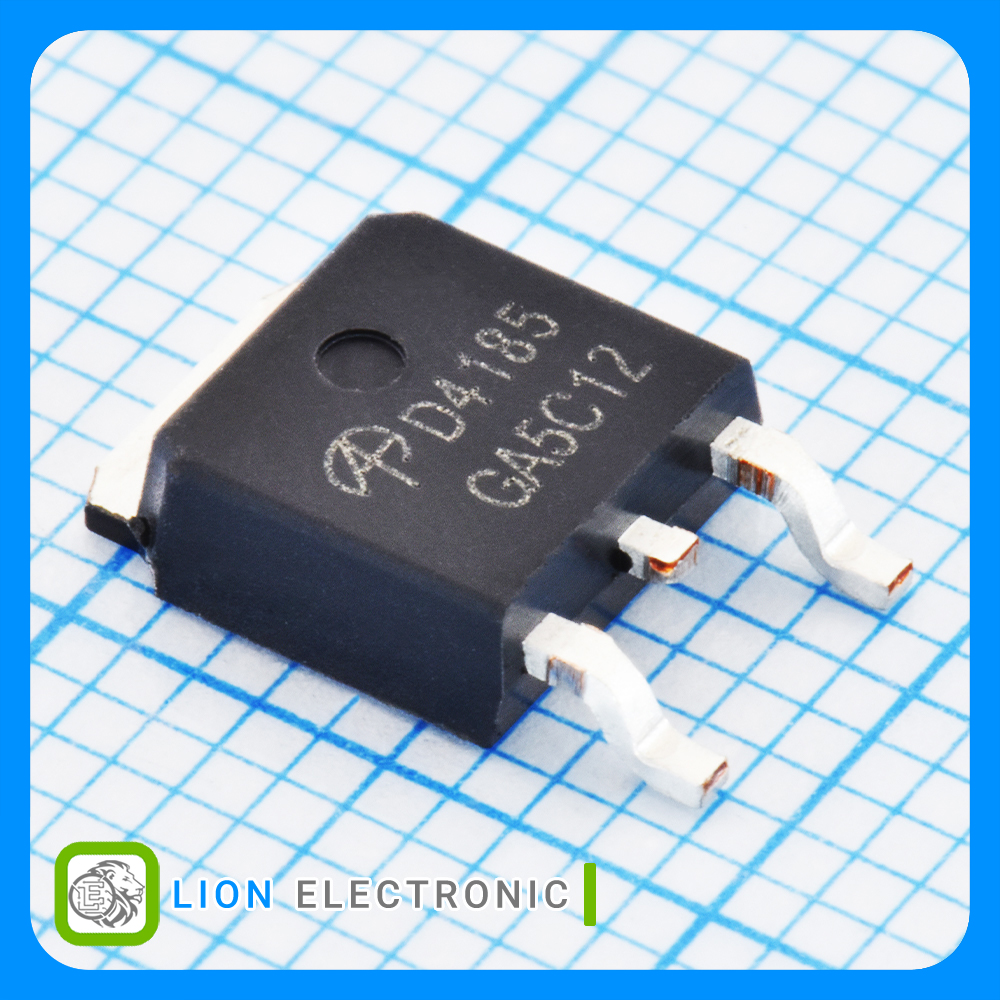

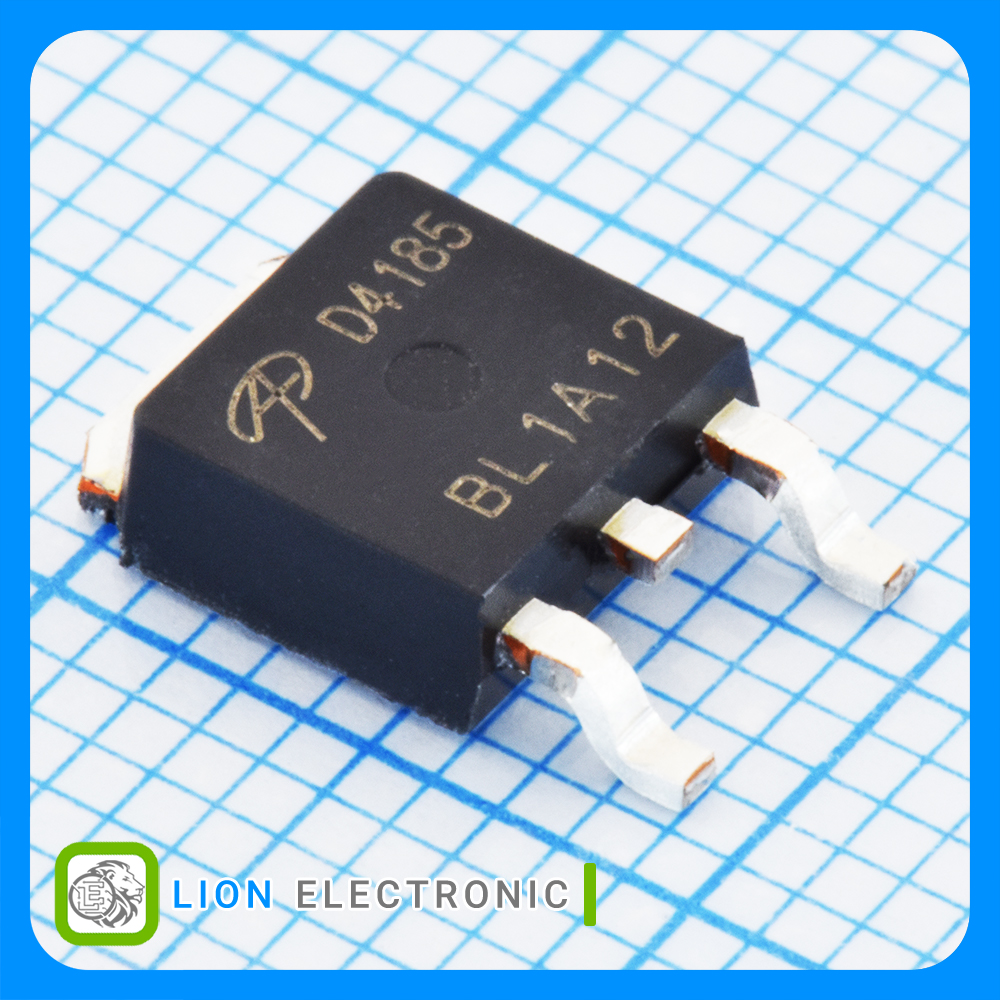

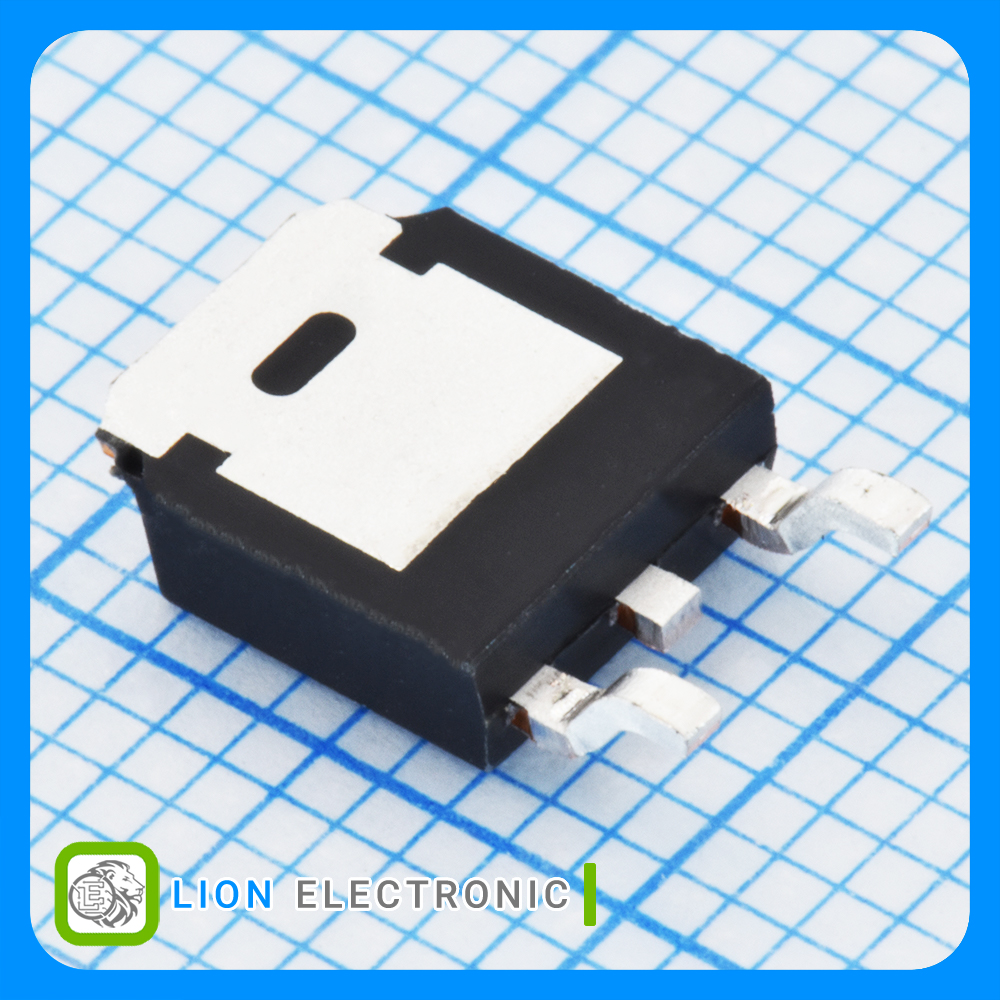

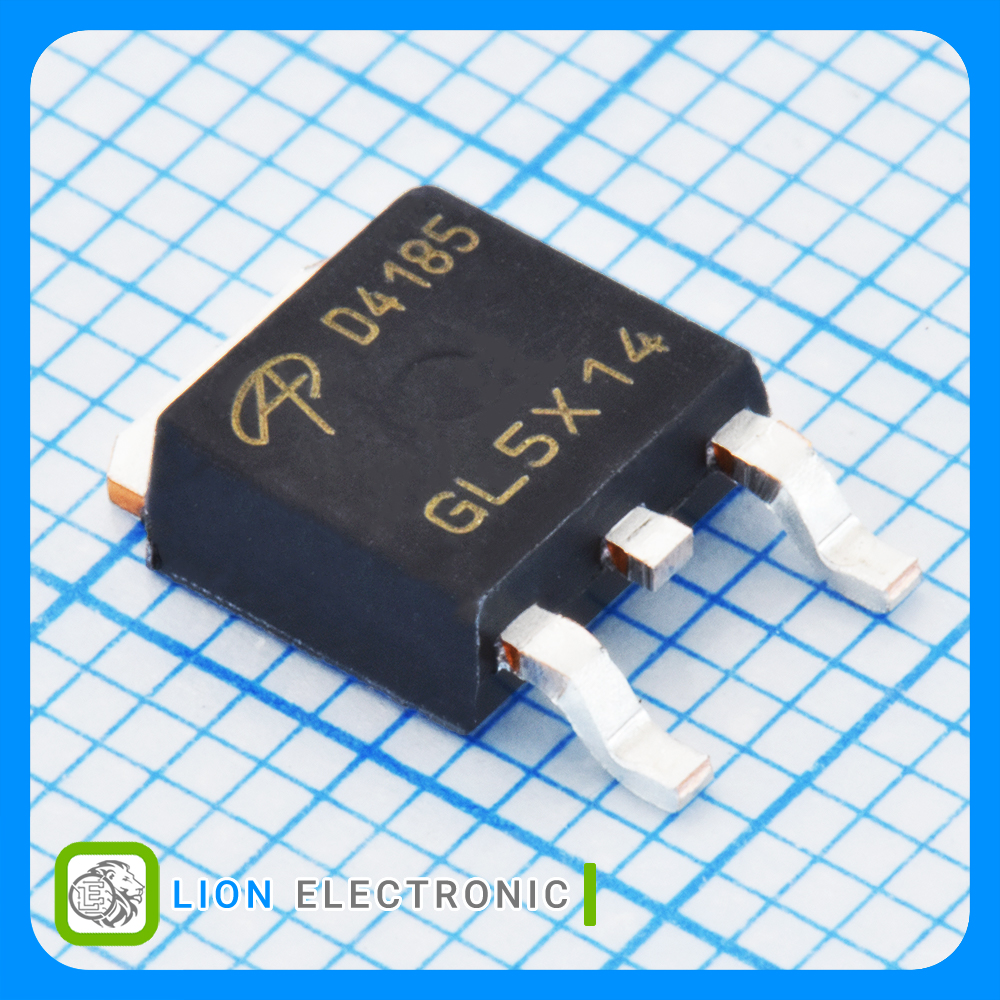

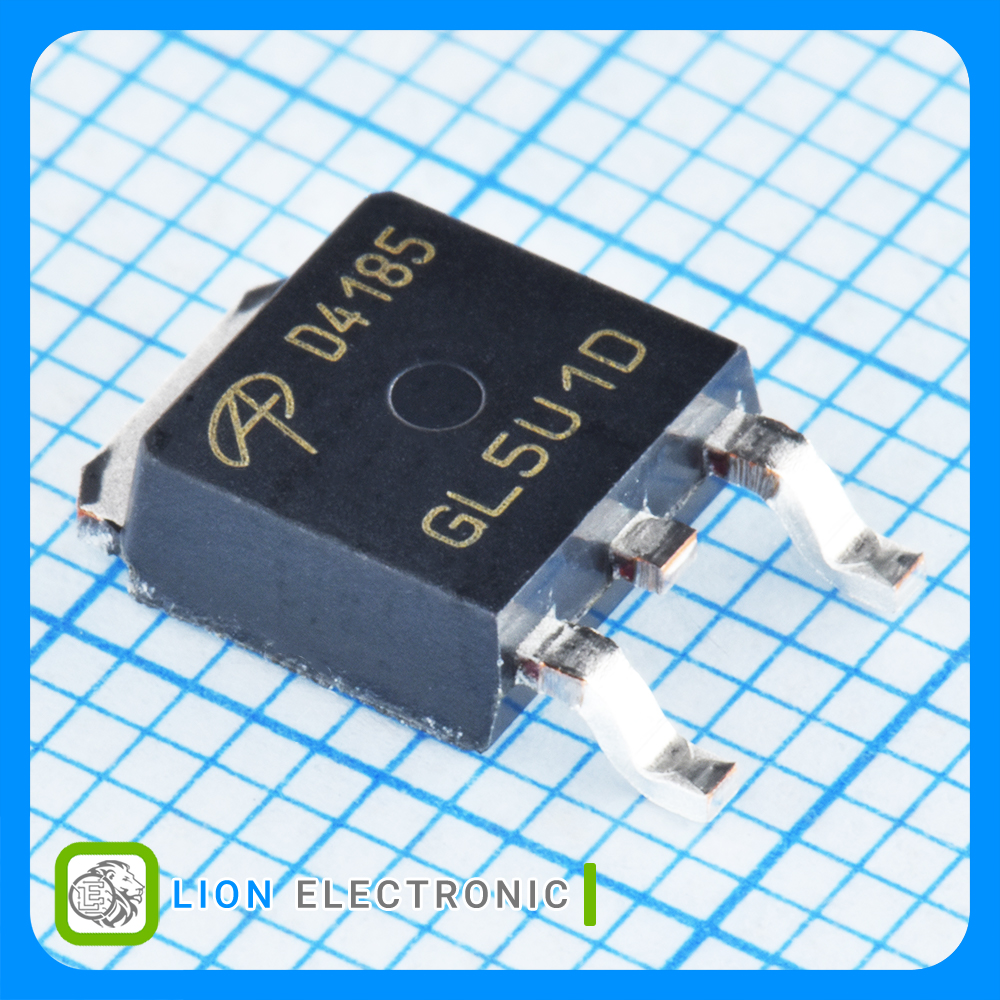

P-CH MOSFET -40V, -40A with TO-252 (DPAK) Package
معرفی
ماسفت 40- ولت 40- آمپر نوع P با پکیج TO-252 (DPAK)
P-CH MOSFET -40V, -40A with TO-252 (DPAK) Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: -40V
- Id - Continuous Drain Current: -40A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -1.7V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 12.5mΩ
- Pd - Power Dissipation: 62.5W
- Qg - Gate Charge: 42nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات ماسفت AOD4185
ماسفت AOD4185
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
-40V
Vds - Drain - Source Breakdown Voltage
Reel
Packaging
-40A
Id - Continuous Drain Current
-1.7V
Vgs th - Gate - Source Threshold Voltage
P-Channel
Transistor Polarity
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
12.5mΩ
Rds On - Drain - Source Resistance
42nC
Qg - Gate Charge
DPAK
Package-Case
62.5W
Pd - Power Dissipation
