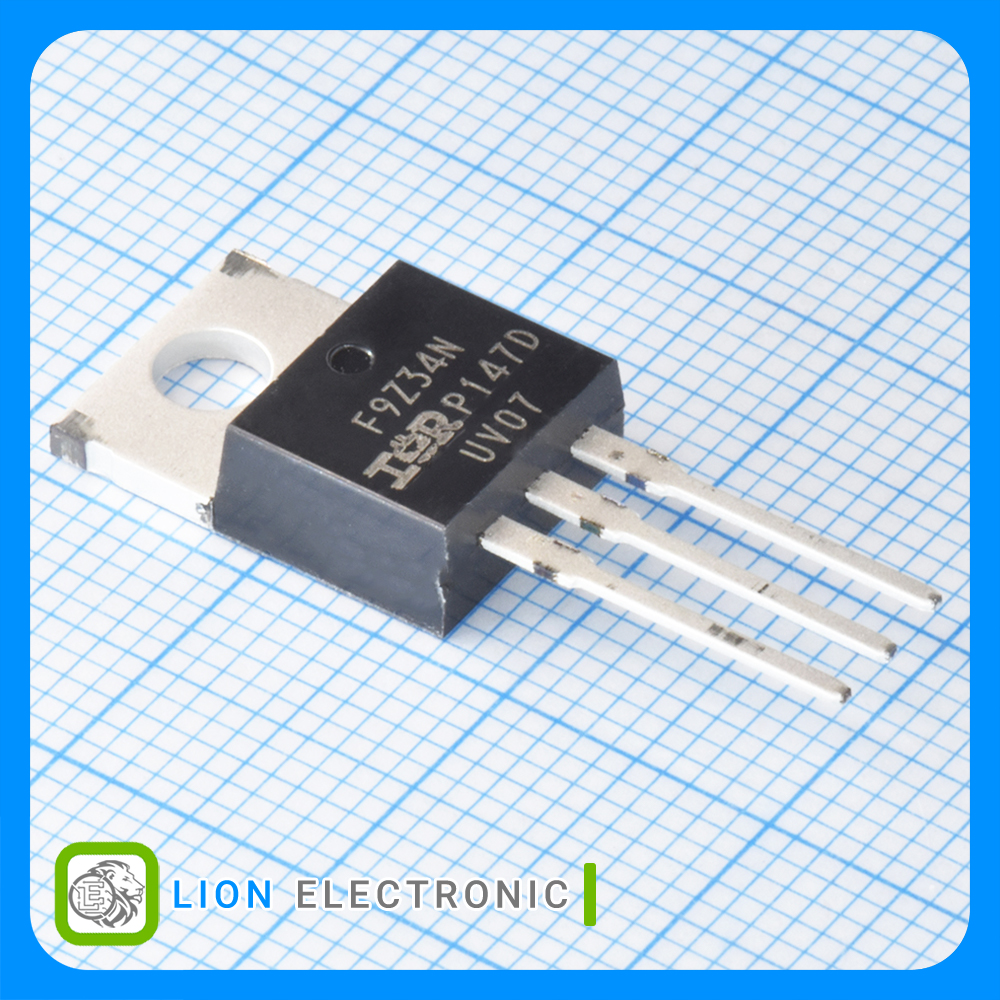

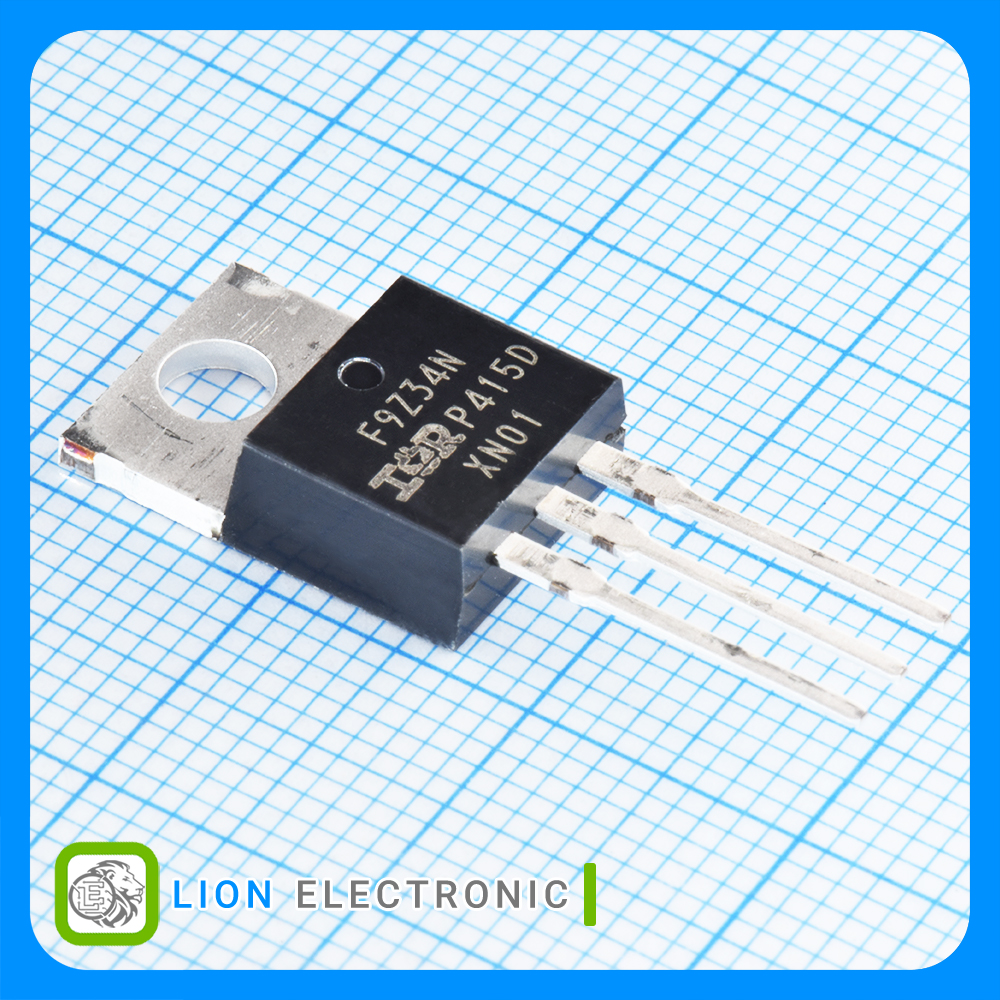

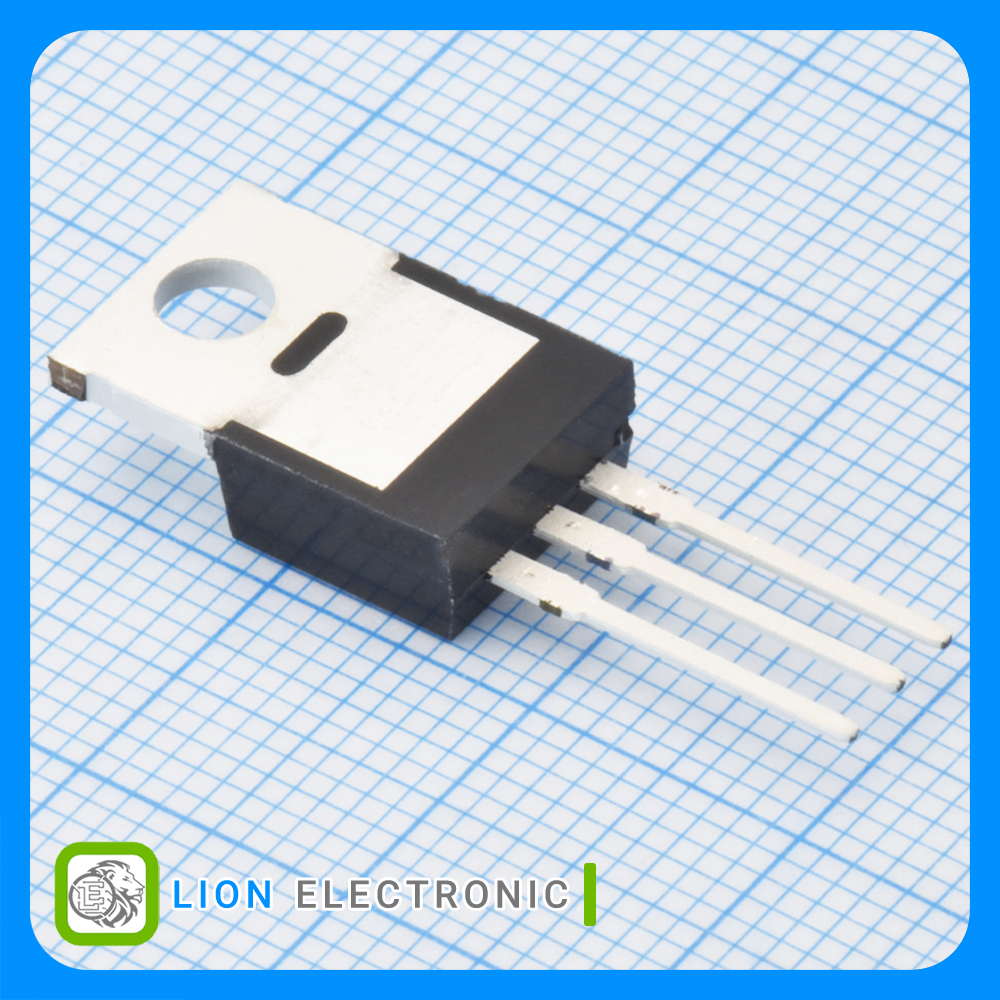

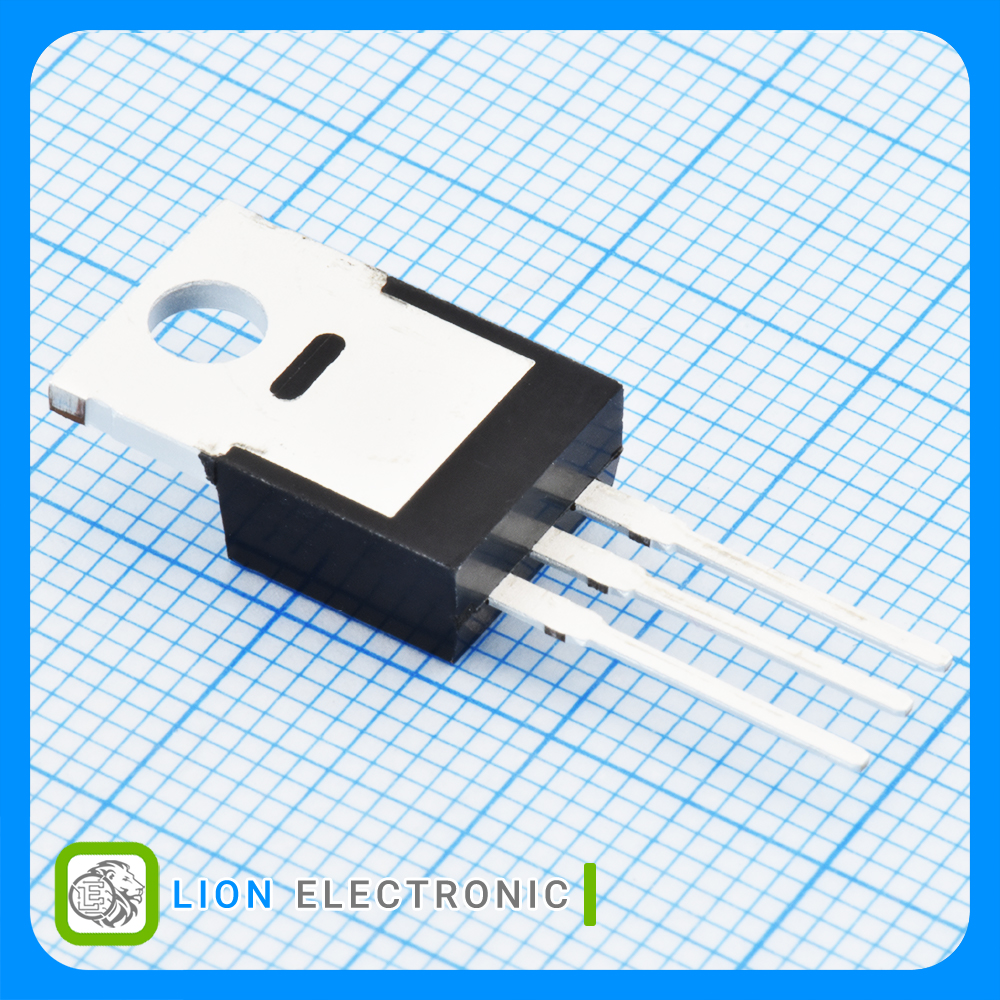

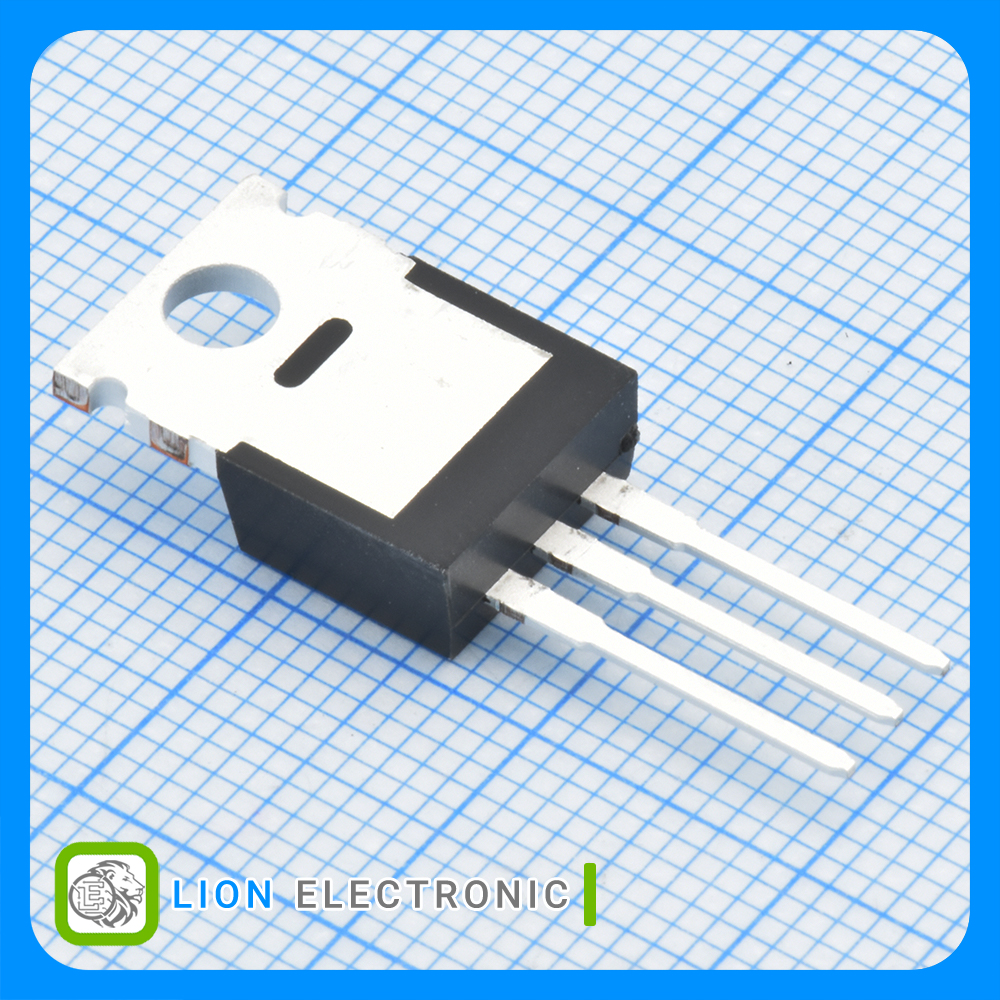

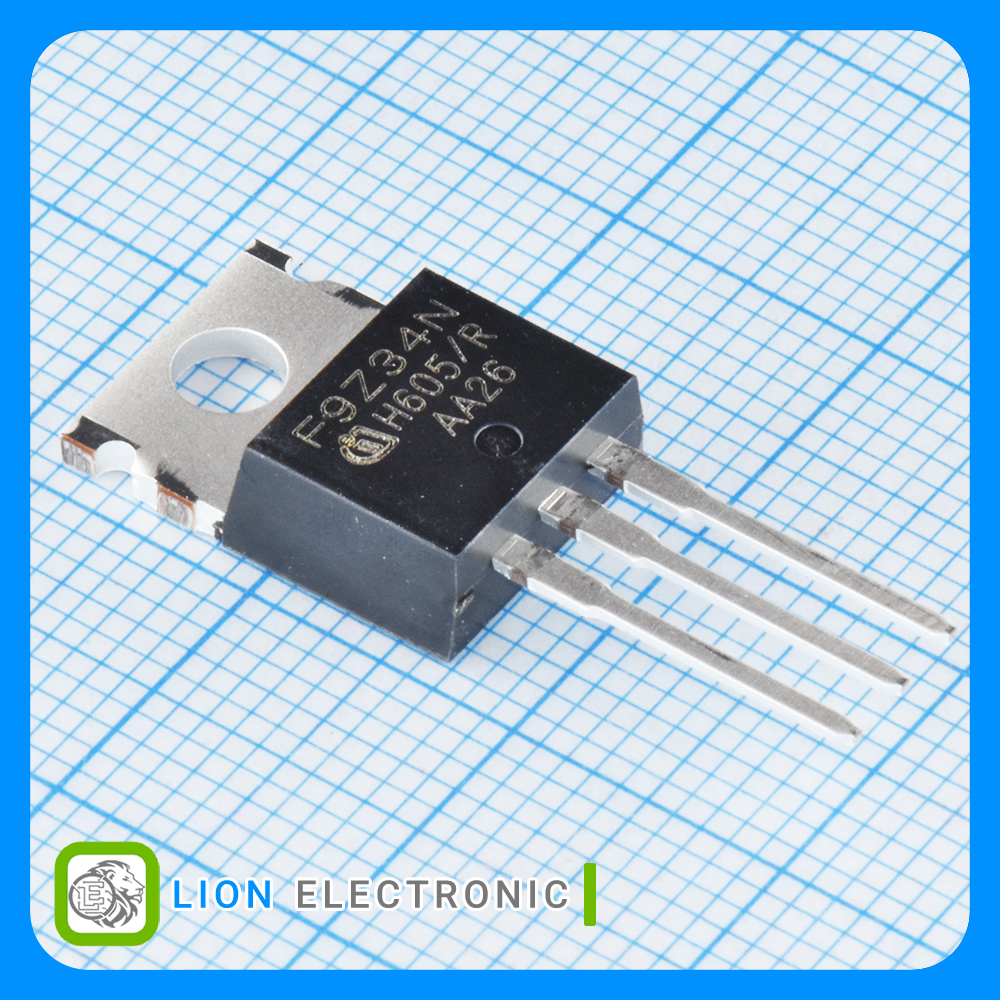

IRF9Z34NPBF
IRF9Z34NPBF
Part Number
5735
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 55- ولت 19- آمپر نوع P با پکیج TO-220-3
P-CH MOSFET -55V, -19A with TO-220-3 Package
معرفی
ماسفت 55- ولت 19- آمپر نوع P با پکیج TO-220-3
P-CH MOSFET -55V, -19A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: -55V
- Id - Continuous Drain Current: -19A
- Transistor Polarity: P-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: -2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 100mΩ
- Pd - Power Dissipation: 68W
- Qg - Gate Charge: 35nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات IRF9Z34NPBF
IRF9Z34NPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55V
Vds - Drain - Source Breakdown Voltage
-55C
Minimum Operating Temperature
-2V
Vgs th - Gate - Source Threshold Voltage
P-Channel
Transistor Polarity
Tube
Packaging
-19A
Id - Continuous Drain Current
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
35nC
Qg - Gate Charge
100mΩ
Rds On - Drain - Source Resistance
68W
Pd - Power Dissipation
TO-220
Package-Case
