MEAN WELL
معرفی
منبع تغذیه 10.05 وات خروجی 15 ولت 670 میلیآمپر ورودی 85 تا 305 ولت AC
Power Supply 10.05W, 15V 670mA with 85 - 305VAC Input
Specifications
- Input Voltage: 85 - 305VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 15V
- Output Current - Channel 1: 670mA
- Output Power: 10.05W
- Open Frame/Enclosed: Enclosed
- Length: 45.7mm
- Width: 25.4mm
- Height: 21.5mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات مبدل AC/DC ایزوله IRM-10-15

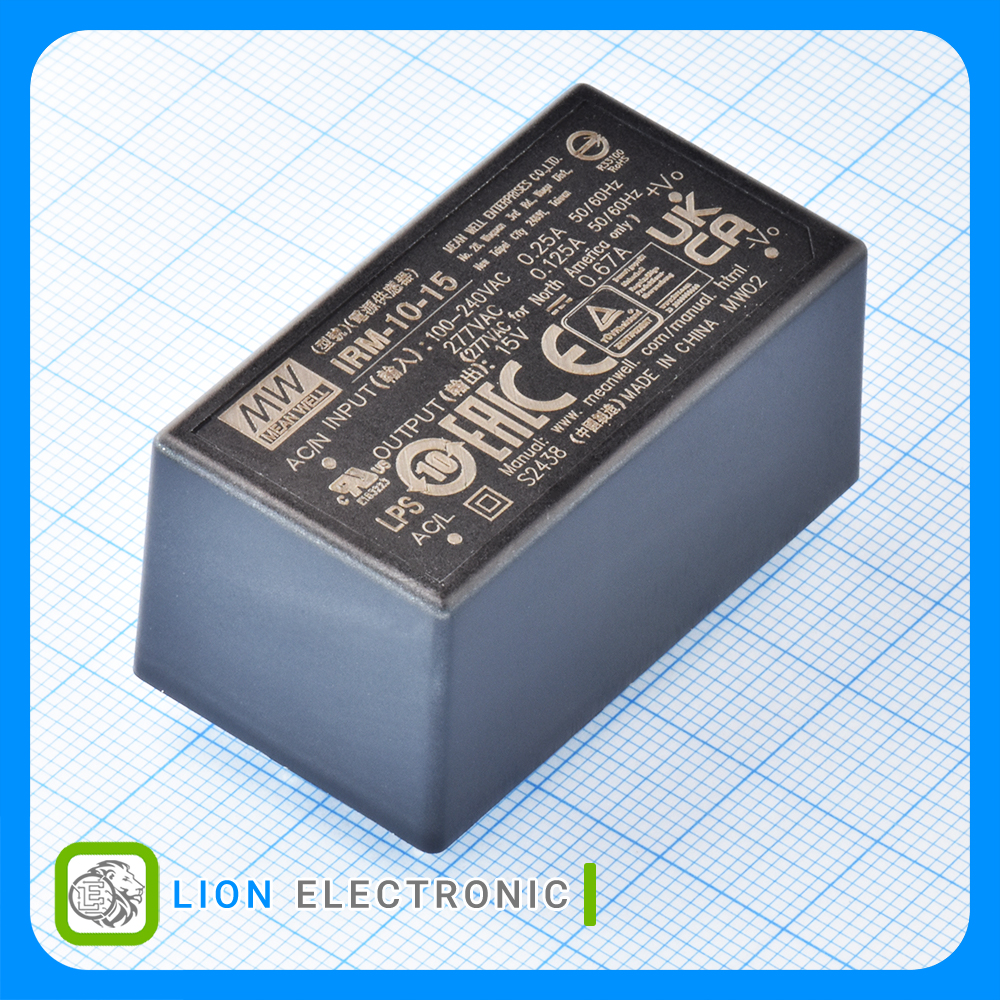

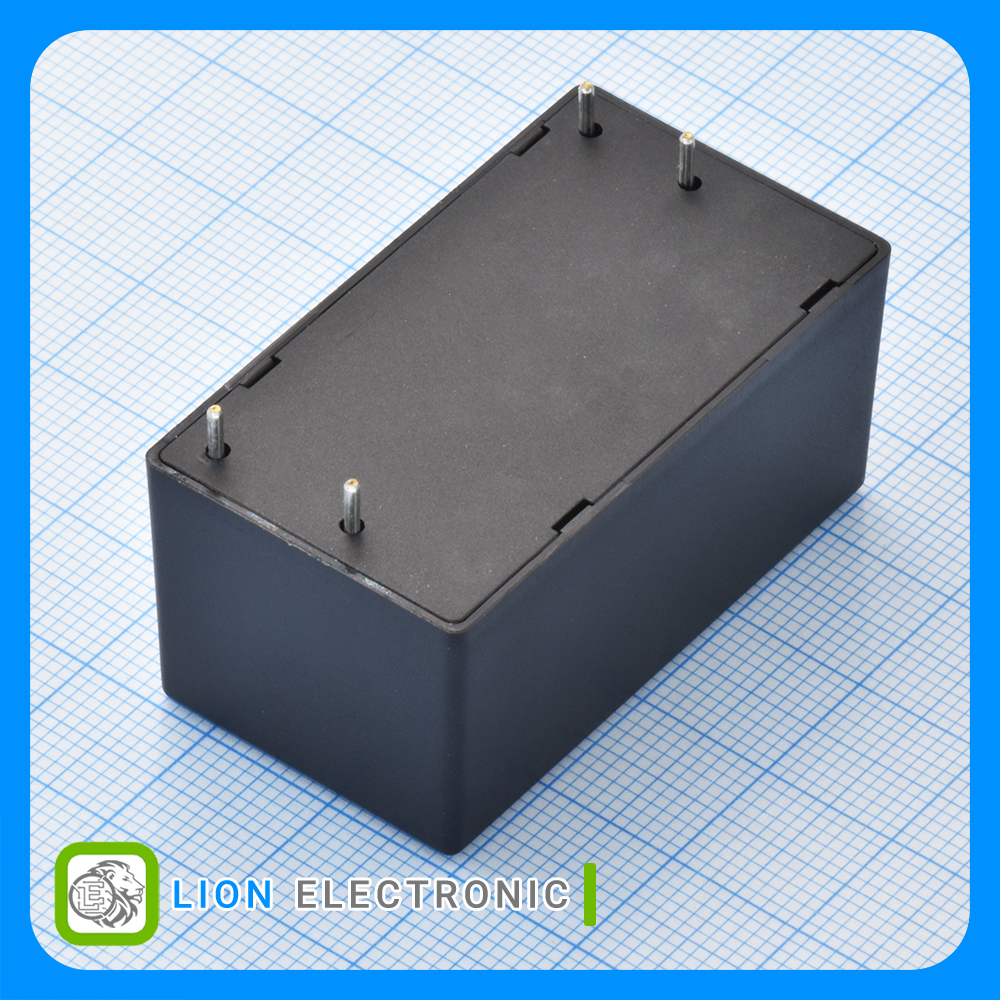

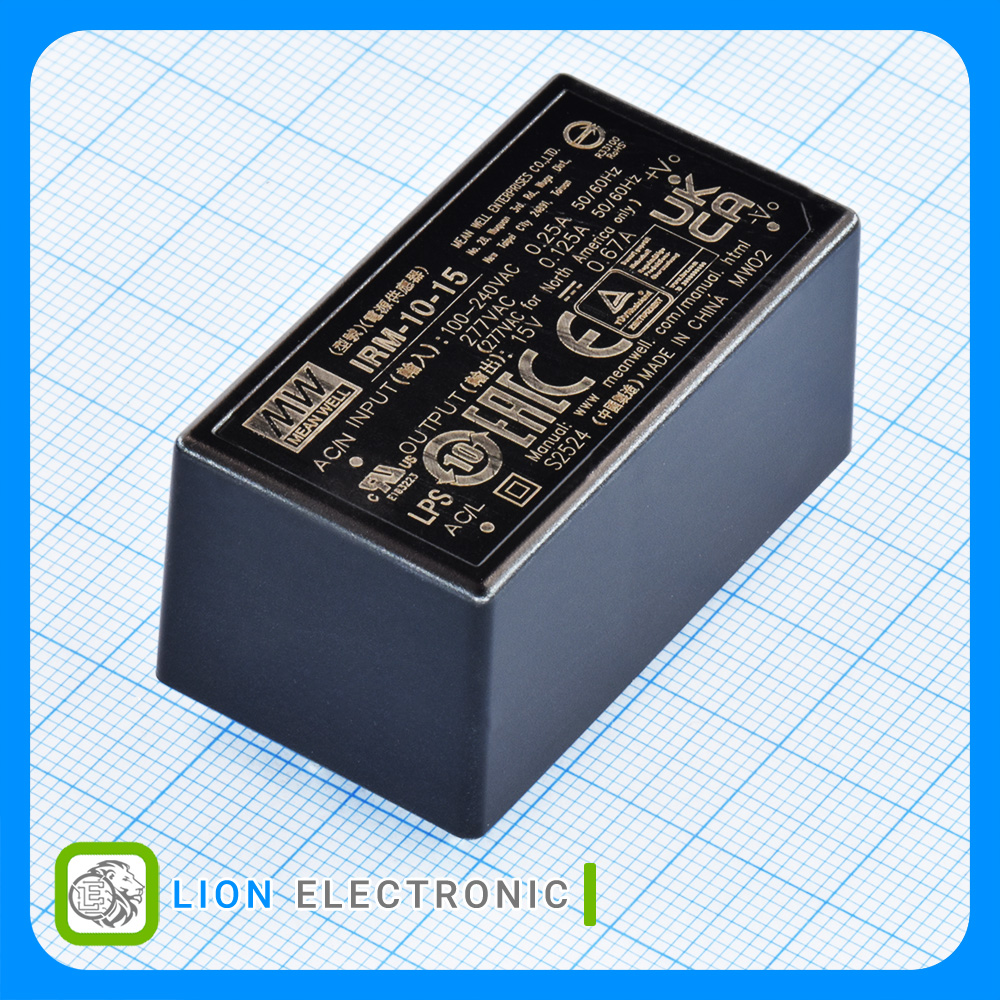

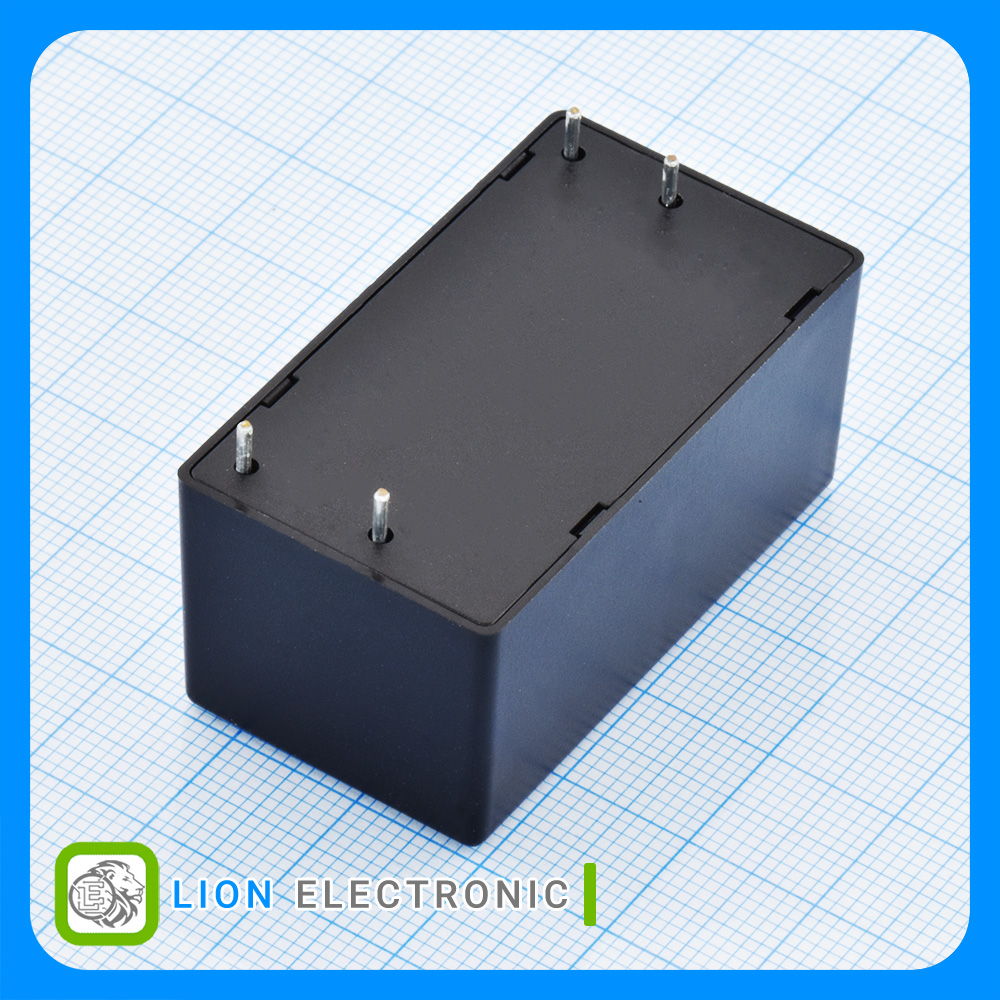

مبدل AC/DC ایزوله IRM-10-15
Part Number
1
Number of Outputs
AC/DC Power Modules
Product
Enclosed
Open Frame-Enclosed
15V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
670mA
Output Current - Channel 1
10.05W
Output Power
85 - 305VAC
Input Voltage
25.4mm
Width
45.7mm
Length
21.5mm
Height
