HI-LINK
معرفی
منبع تغذیه 10 وات خروجی 24 ولت 420 میلیآمپر ورودی 90 تا 265 ولت AC

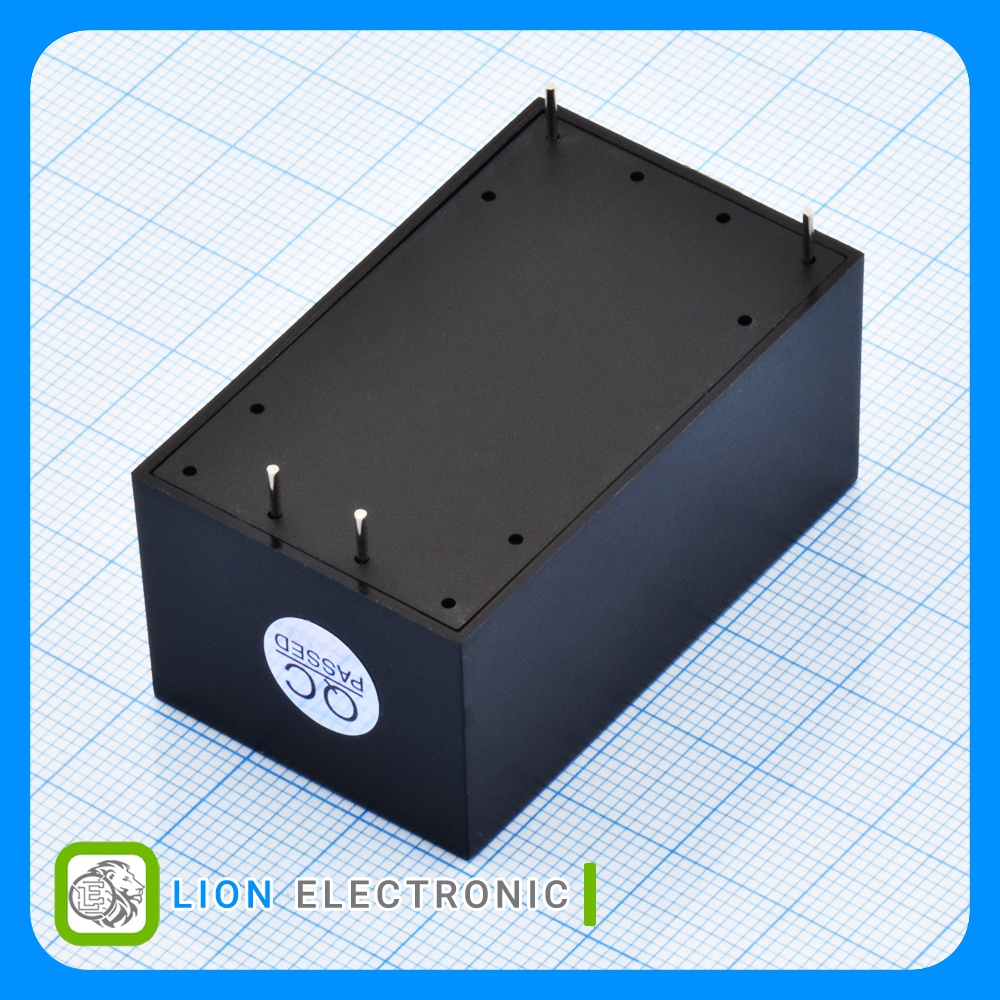

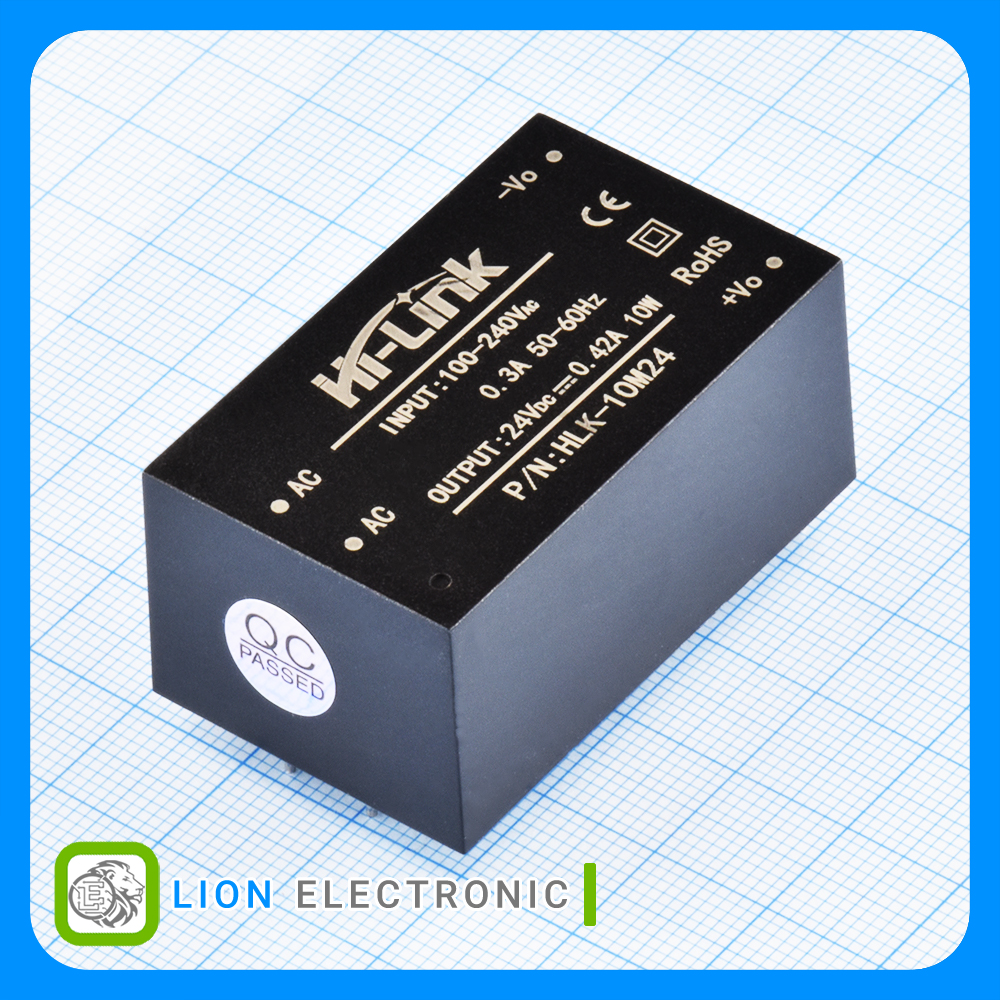

Power Supply 10W, 24V 420mA with 90 - 265VAC Input
Specifications
- Input Voltage: 90 - 265VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 24V
- Output Current - Channel 1: 420mA
- Output Power: 10W
- Open Frame/Enclosed: Enclosed
- Length: 46.9mm
- Width: 27.8mm
- Height: 21.8mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات HLK-10M24
HLK-10M24
Part Number
1
Number of Outputs
AC/DC Power Modules
Product
Enclosed
Open Frame-Enclosed
24V
Output Voltage - Channel 1
N/A
Output Voltage - Channel 2
Through Hole
Mounting Style
N/A
Output Current - Channel 2
420mA
Output Current - Channel 1
10W
Output Power
90 - 265VAC
Input Voltage
27.8mm
Width
46.9mm
Length
21.8mm
Height
