HI-LINK
معرفی
منبع تغذیه 20 وات خروجی 24 ولت 830 میلیآمپر ورودی 90 تا 265 ولت AC

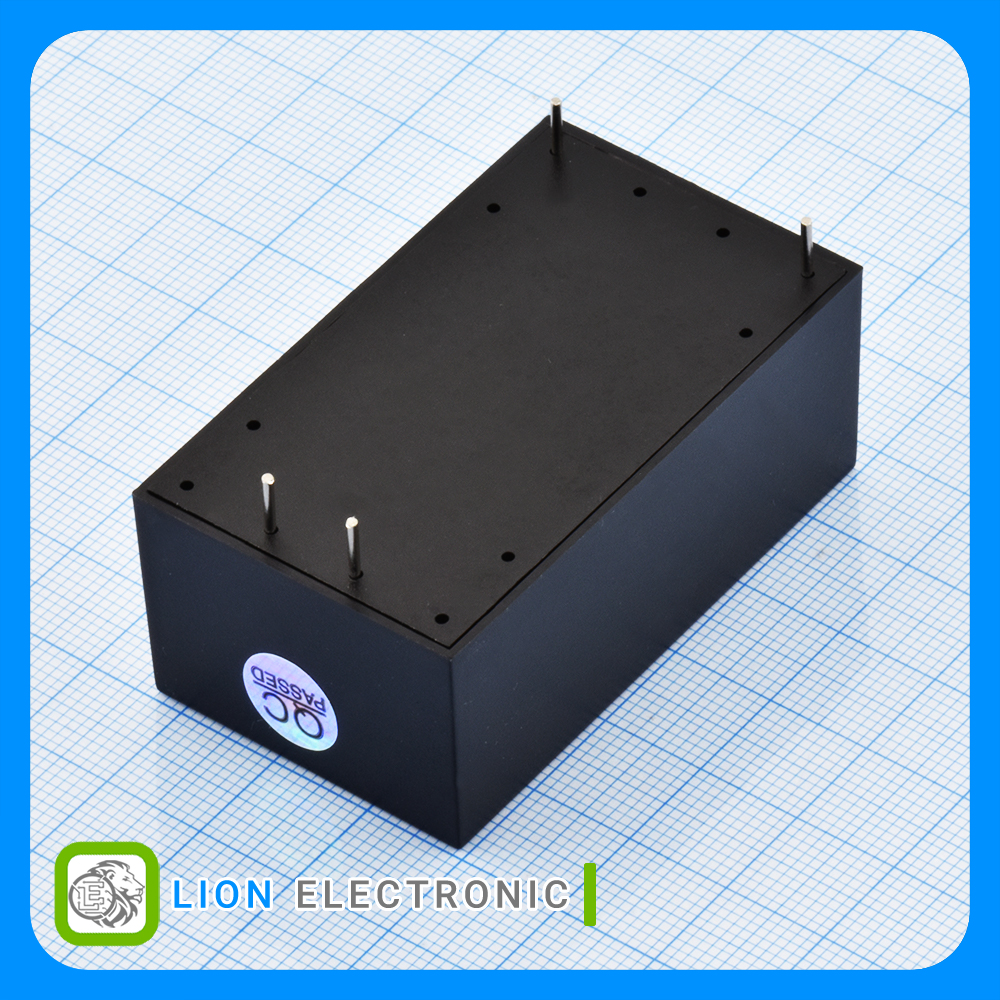

Power Supply 20W, 24V 830mA with 90 - 265VAC Input
Specifications
- Input Voltage: 90 - 265VAC
- Number of Outputs: 1
- Output Voltage - Channel 1: 24V
- Output Current - Channel 1: 830mA
- Output Power: 20W
- Open Frame/Enclosed: Enclosed
- Length: 56mm
- Width: 32mm
- Height: 22.5mm
- Mounting Style: Through Hole
- Product: AC/DC Power Modules
مشخصات HLK-20M24
HLK-20M24
Part Number
1
Number of Outputs
Enclosed
Open Frame-Enclosed
AC/DC Power Modules
Product
N/A
Output Voltage - Channel 2
24V
Output Voltage - Channel 1
Through Hole
Mounting Style
N/A
Output Current - Channel 2
830mA
Output Current - Channel 1
20W
Output Power
90 - 265VAC
Input Voltage
32mm
Width
56mm
Length
22.5mm
Height
