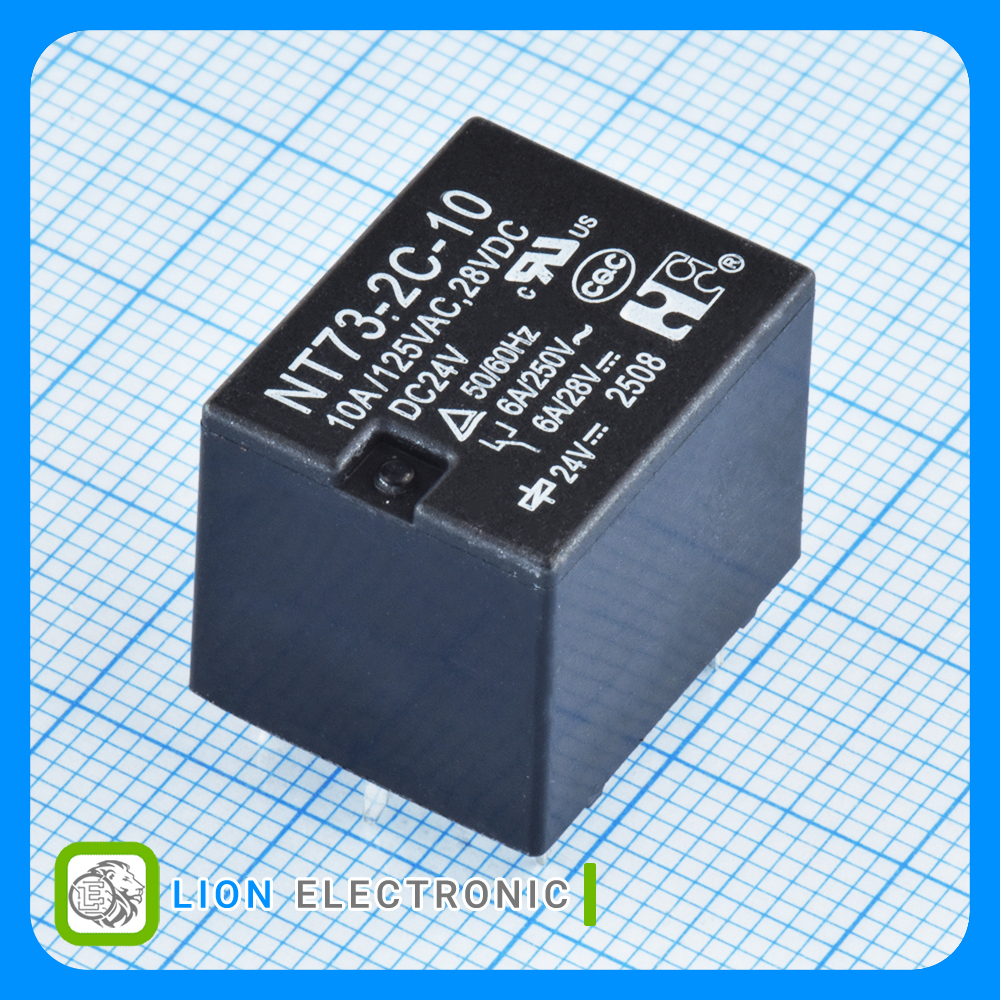

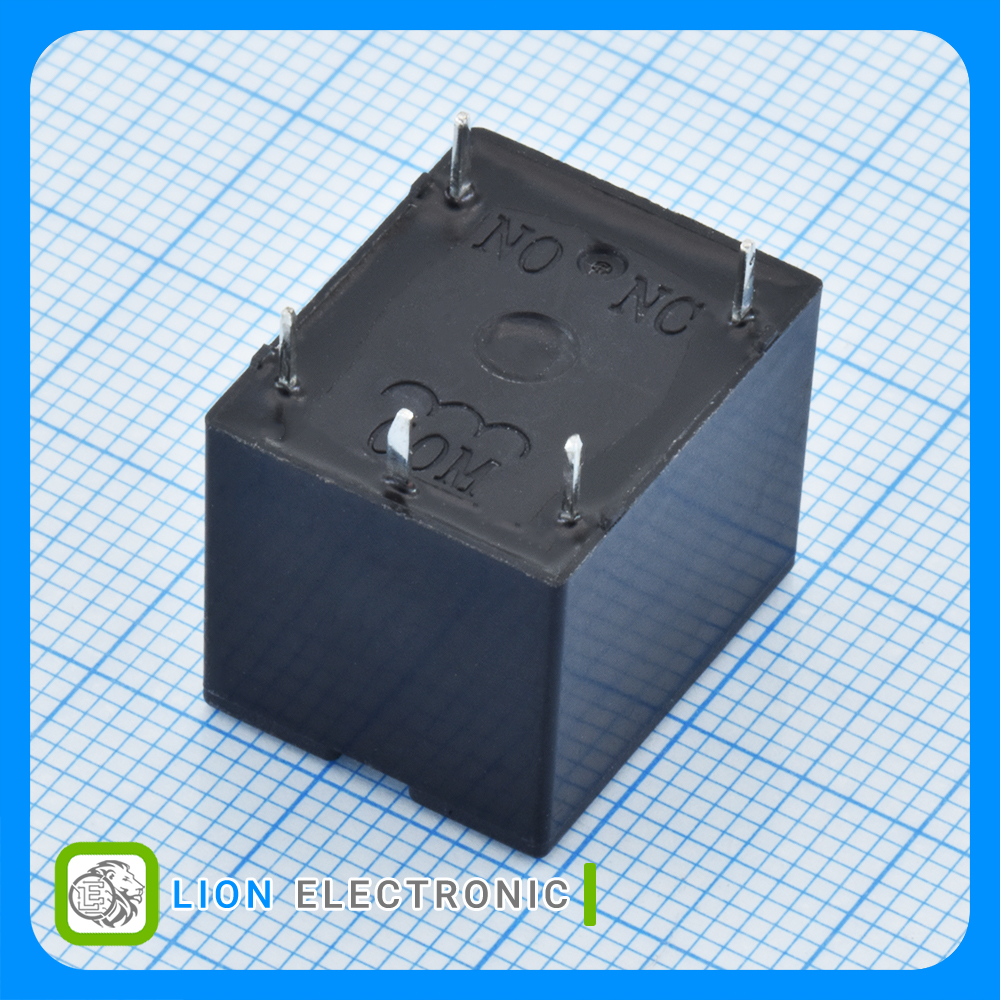

NT73-2C10DC24V0.36
NT73-2C10DC24V0.36
Part Number
6255
Lion Part
Datasheet
NF(Ningbo Forward Relay Corp) Manufacture
رله یک کنتاکت باز و بسته 24 ولت 10 آمپر
24V 10A SPDT-NO, NC (1 Form C) Plugin Power Relays
مشخصات NT73-2C10DC24V0.36
NT73-2C10DC24V0.36
Part Number
Non-Latching
Coil Type
Class B
insulation class
1 Form C (SPDT-NO, NC)
Relay Contact Form
360mW
Power Consumption
10A
Contact Current Rating
24VDC
Coil Voltage
277VAC
Max Switching Voltage
Tube
Packaging
Through Hole
Mounting Style
15mA
Coil Current
1.6kΩ
Coil Resistance
19.5mm
Length
15.6mm
Width
15.3mm
Height
