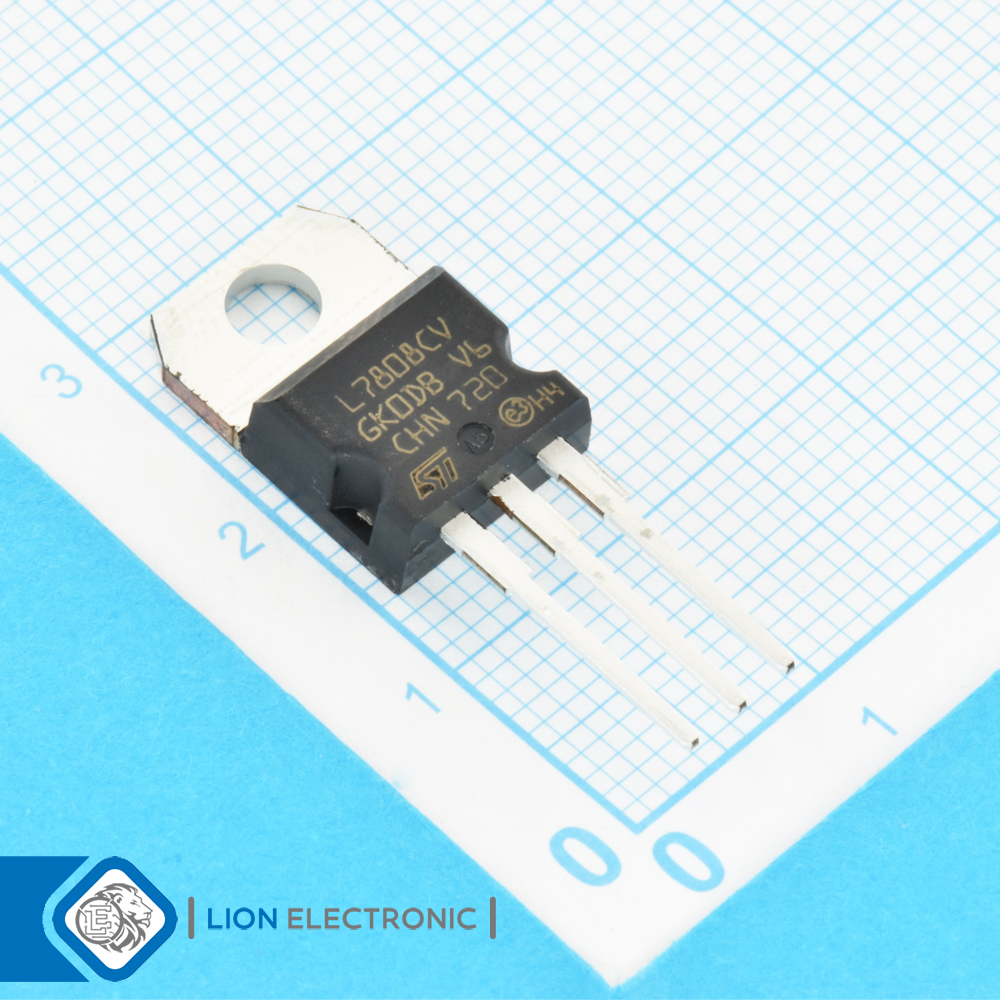

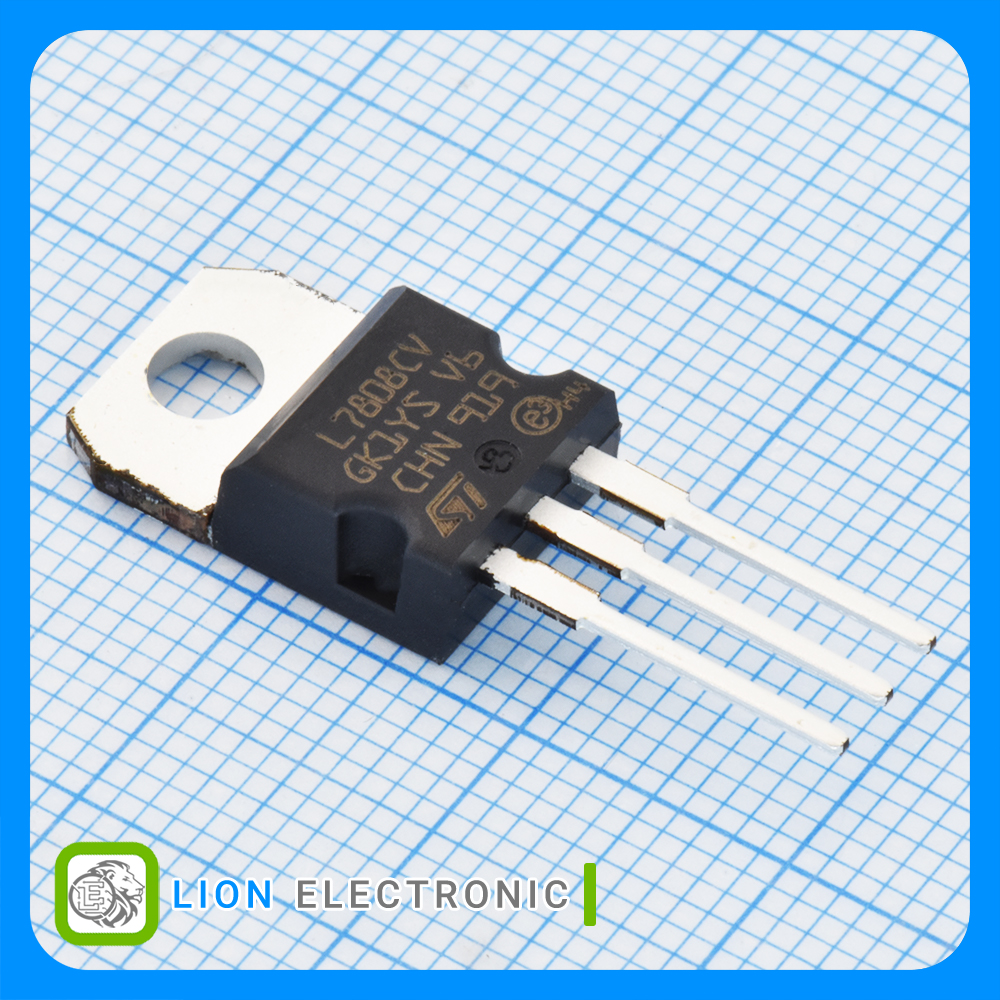

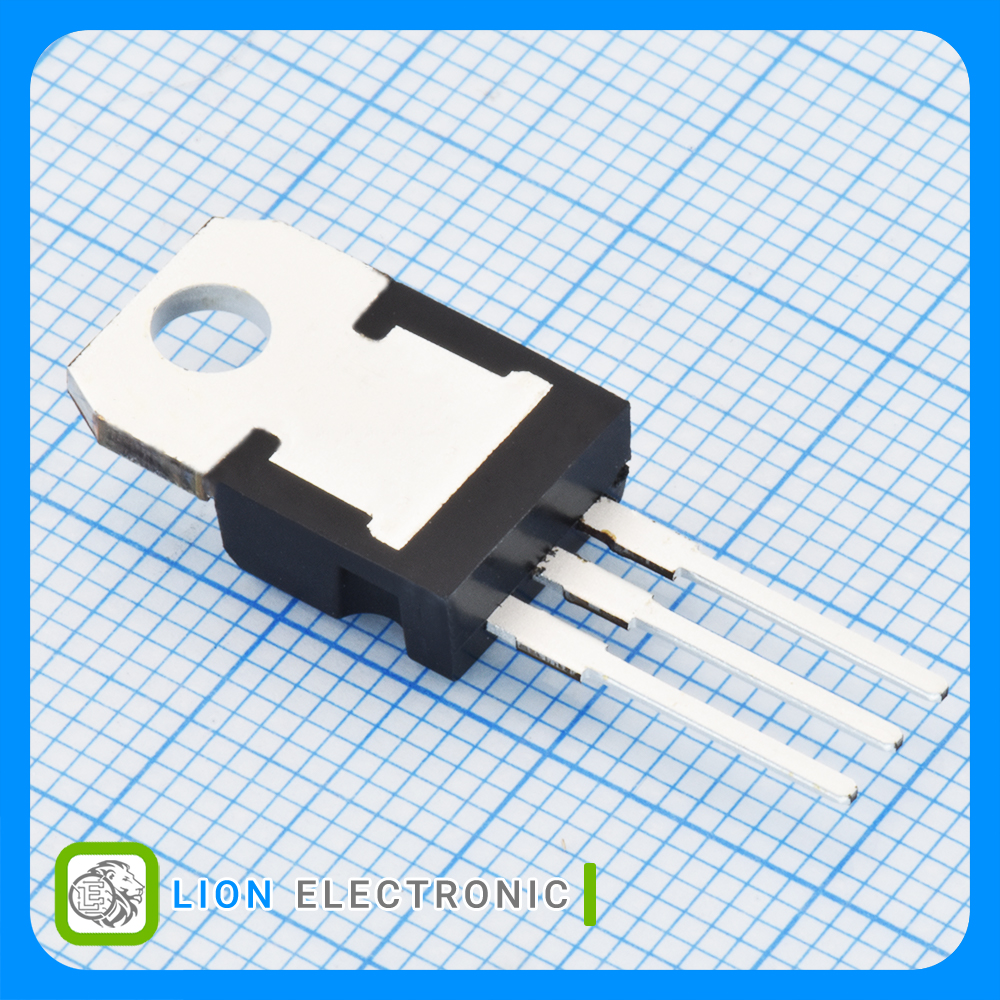

L7808CV
L7808CV
Part Number
849
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی 8 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator 8V, 1.5A with TO-220-3 Package
معرفی
رگولاتور خطی 8 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator 8V, 1.5A with TO-220-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: 8V
- Output Current: 1.5A
- Input Voltage Min: 10V
- Input Voltage Max: 35V
- Load Regulation: 160mV
- Line Regulation: 160mV
- Quiescent Current: 4.3mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات L7808CV
L7808CV
Part Number
1
Number of Outputs
Positive
Polarity
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
160mV
Line Regulation
Fixed
Output Type
+125C
Maximum Operating Temperature
160mV
Load Regulation
35V
Input Voltage Max
4.3mA
Quiescent Current
10V
Input Voltage Min
1.5A
Output Current
8V
Output Voltage
TO-220-3
Package-Case
