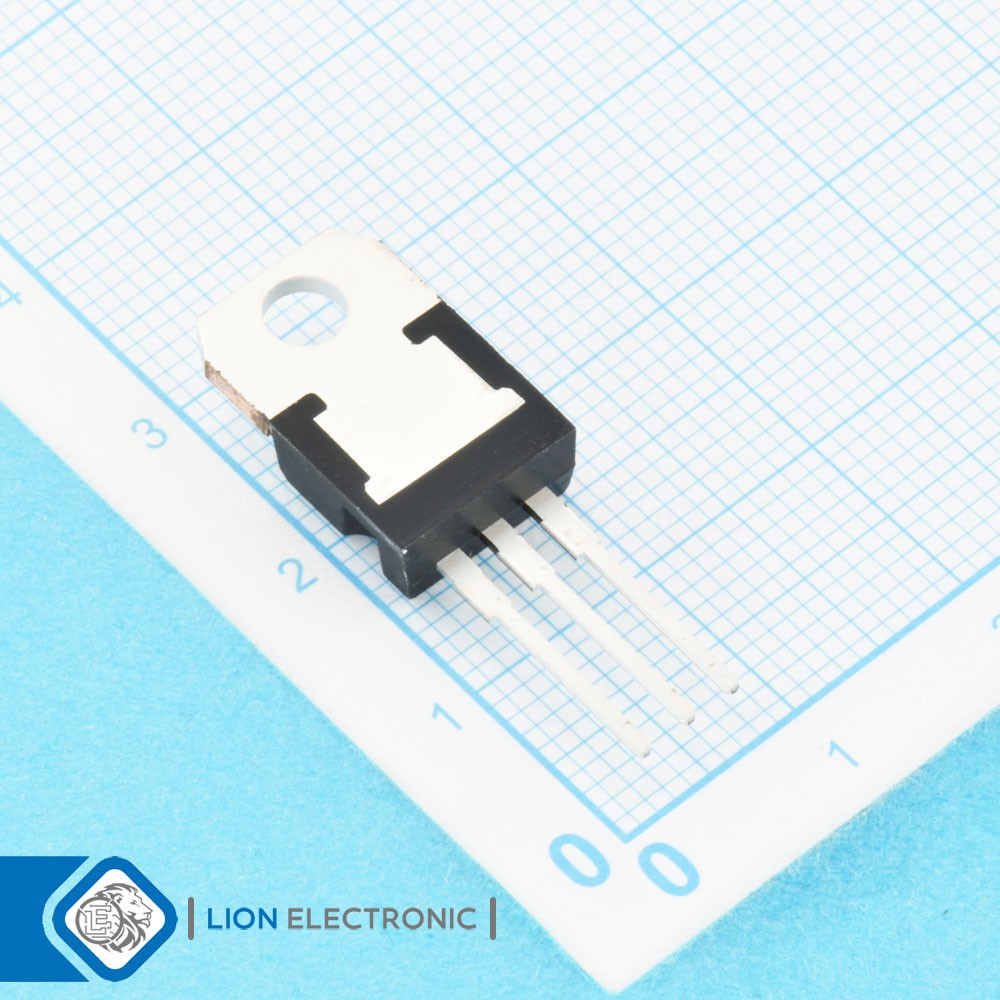

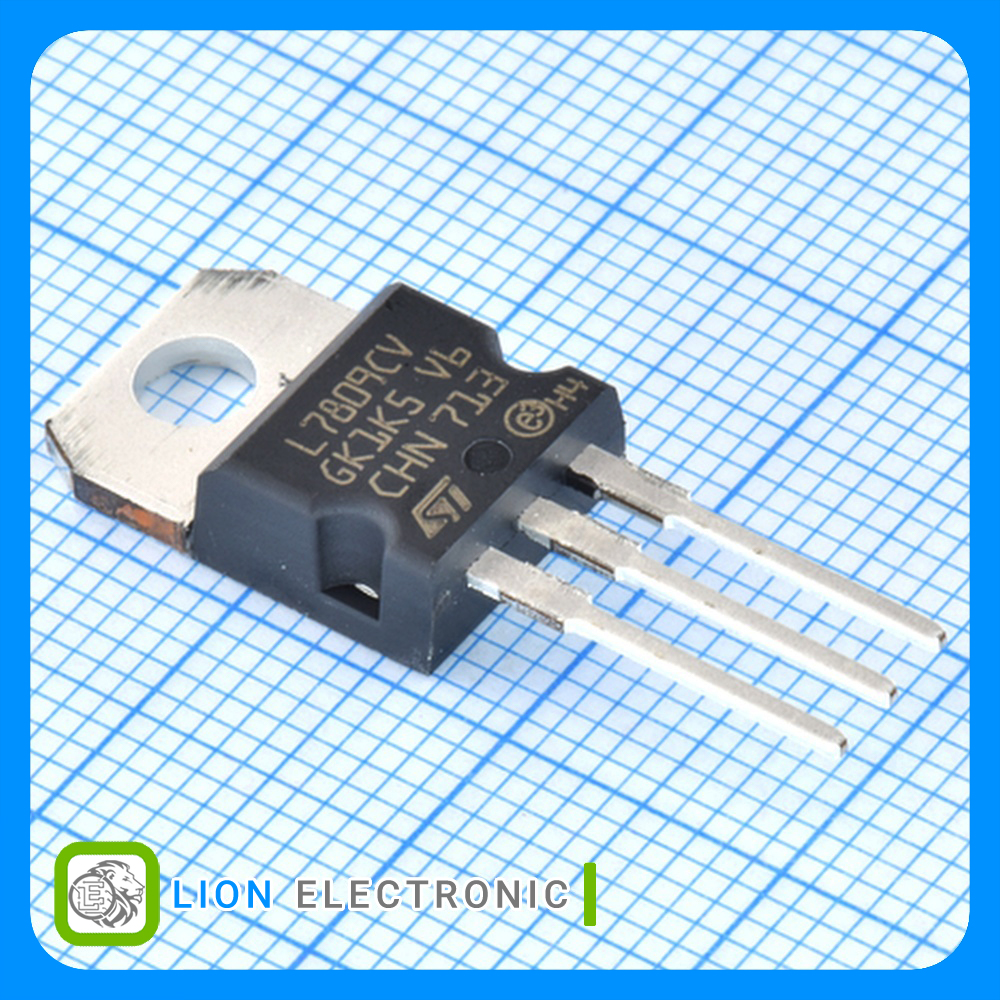

L7809CV
L7809CV
Part Number
850
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی 9 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulators 1.5A 9V TO-220-3
معرفی
رگولاتور خطی 9 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulators 1.5A 9V TO-220-3
Specifications
- Polarity: Positive
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: 9V
- Output Current: 1.5A
- Input Voltage Min: 11V
- Input Voltage Max: 35V
- Load Regulation: 180mV
- Line Regulation: 180mV
- Quiescent Current: 4.3mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات L7809CV
L7809CV
Part Number
1
Number of Outputs
Positive
Polarity
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
180mV
Line Regulation
Fixed
Output Type
+125C
Maximum Operating Temperature
180mV
Load Regulation
35V
Input Voltage Max
4.3mA
Quiescent Current
11V
Input Voltage Min
1.5A
Output Current
9V
Output Voltage
TO-220-3
Package-Case
