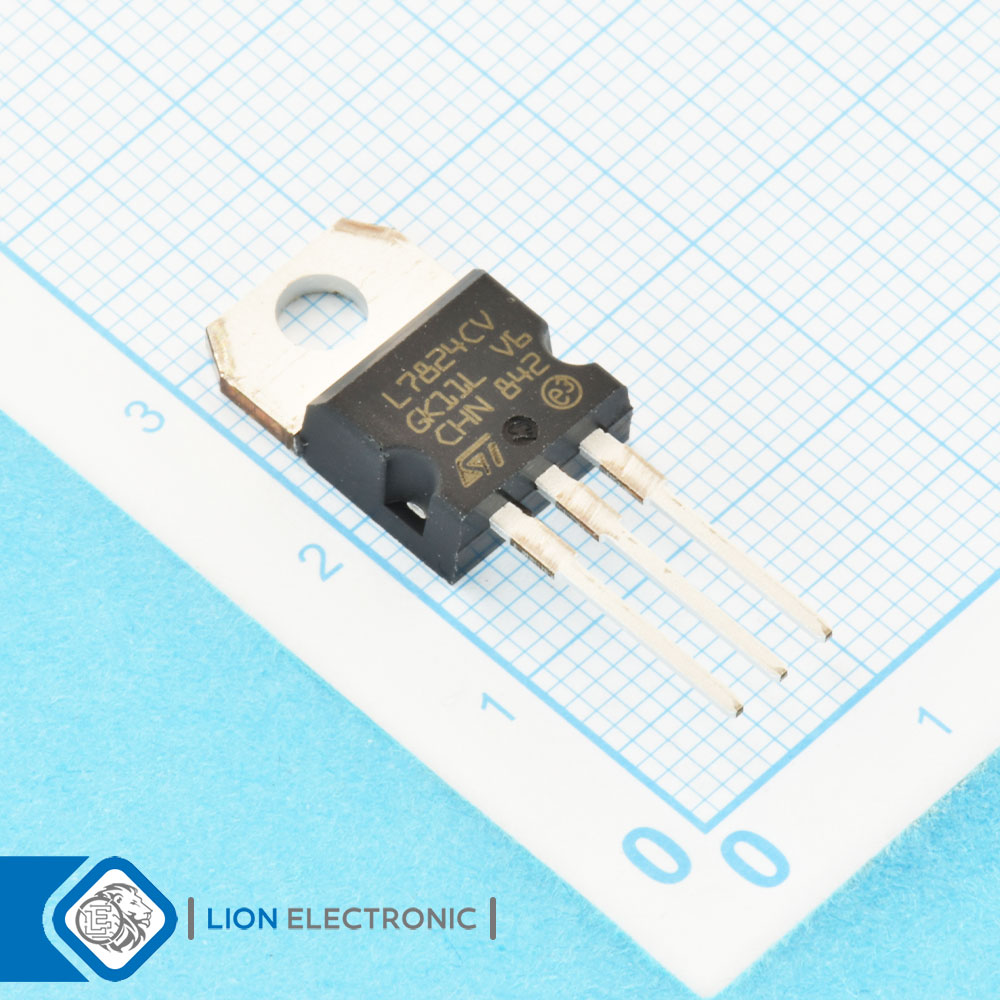

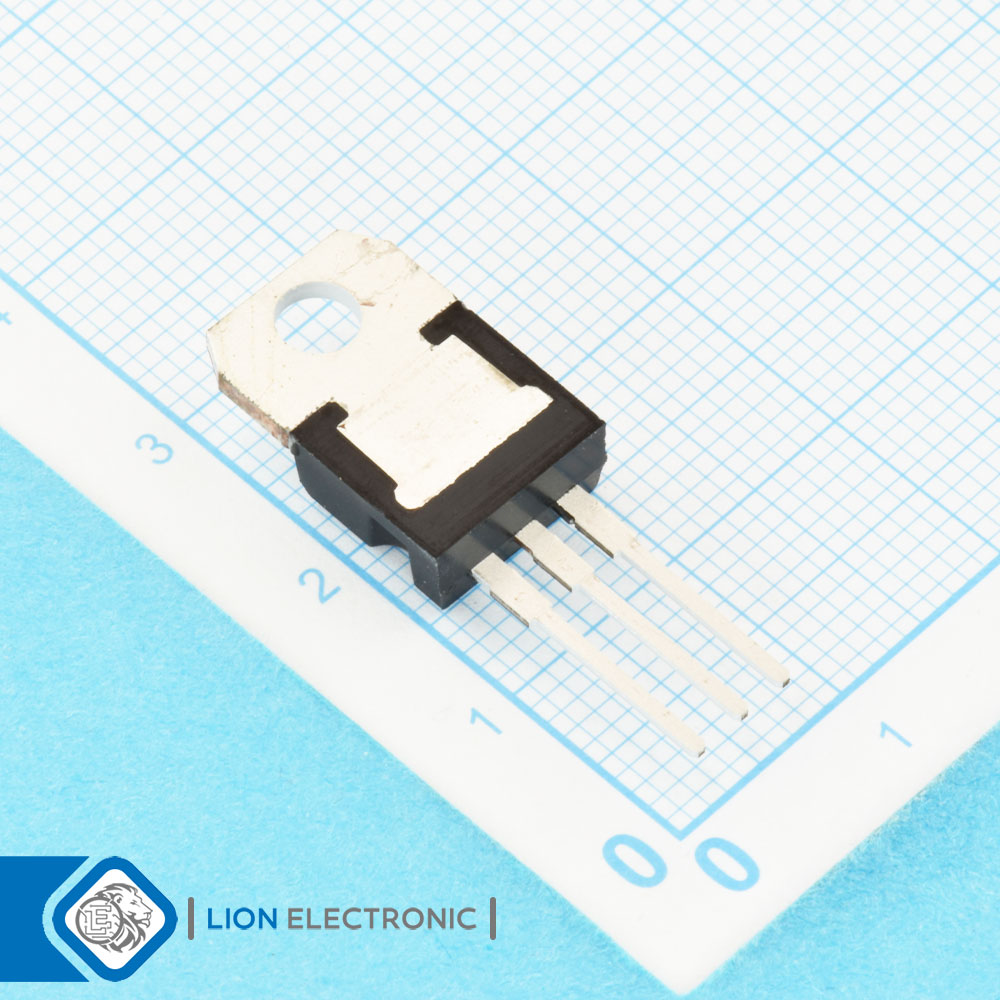

L7824CV
L7824CV
Part Number
855
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی 24 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator 24V, 1.5A with TO-220-3 Package
معرفی
رگولاتور خطی 24 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator 24V, 1.5A with TO-220-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: 24V
- Output Current: 1.5A
- Input Voltage Min: 26V
- Input Voltage Max: 35V
- Load Regulation: 480mV
- Line Regulation: 480mV
- Quiescent Current: 4.6mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات L7824CV
L7824CV
Part Number
1
Number of Outputs
Positive
Polarity
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
Fixed
Output Type
+125C
Maximum Operating Temperature
480mV
Line Regulation
480mV
Load Regulation
35V
Input Voltage Max
4.6mA
Quiescent Current
1.5A
Output Current
26V
Input Voltage Min
24V
Output Voltage
TO-220
Package-Case
