L78M09CDT
L78M09CDT
Part Number
858
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی 9 ولت 500 میلیآمپر با پکیج TO-252-3

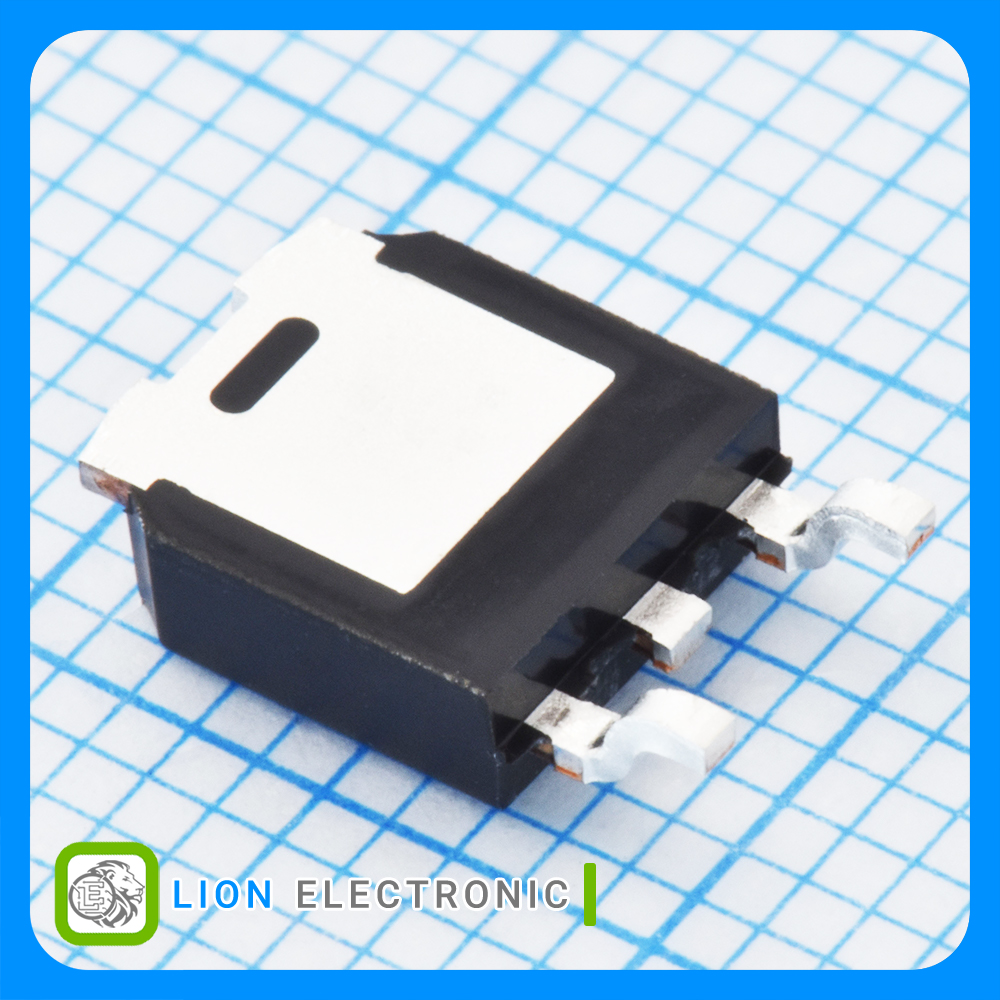

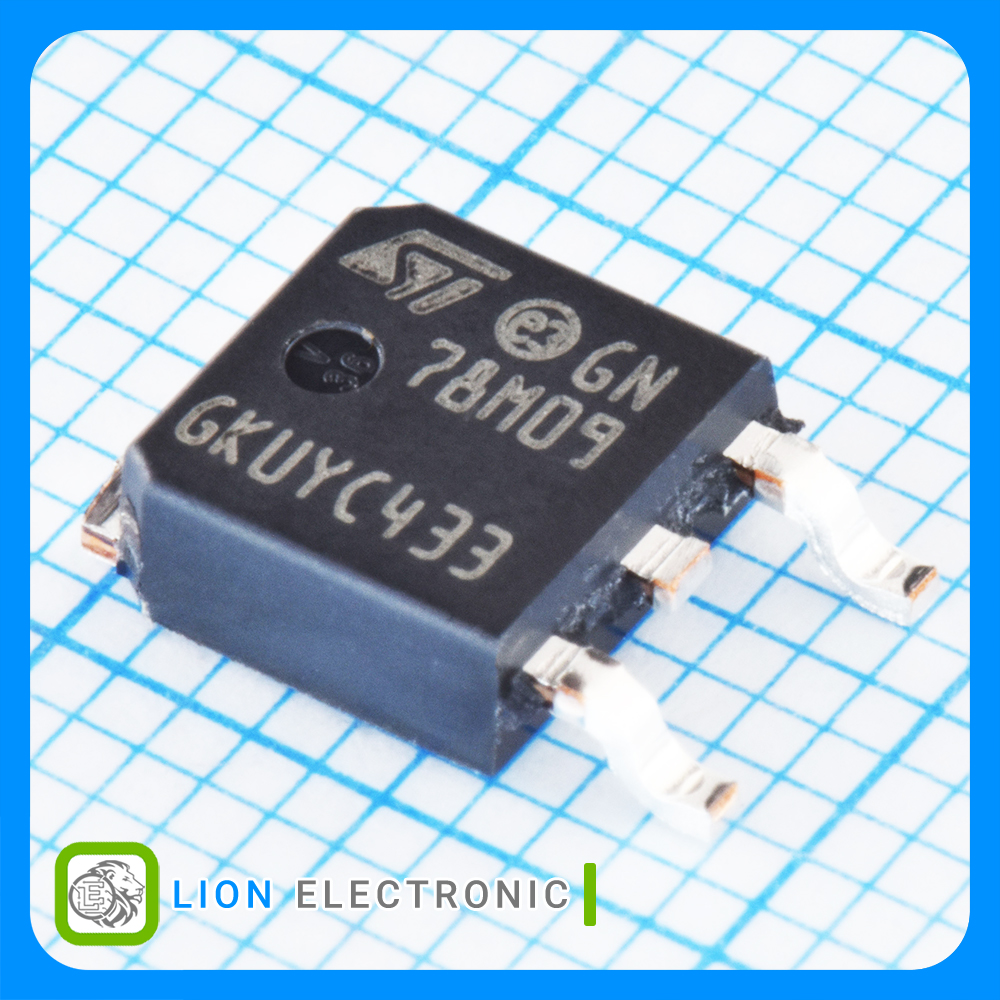

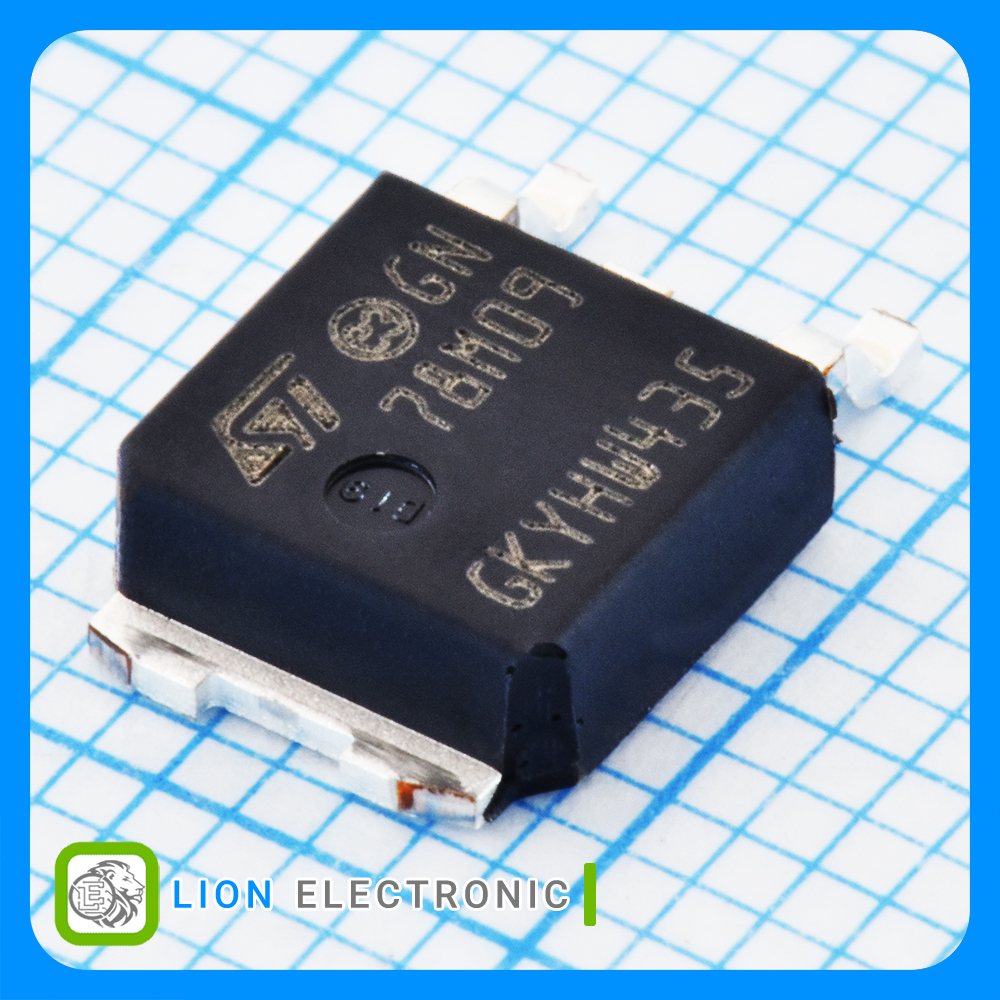

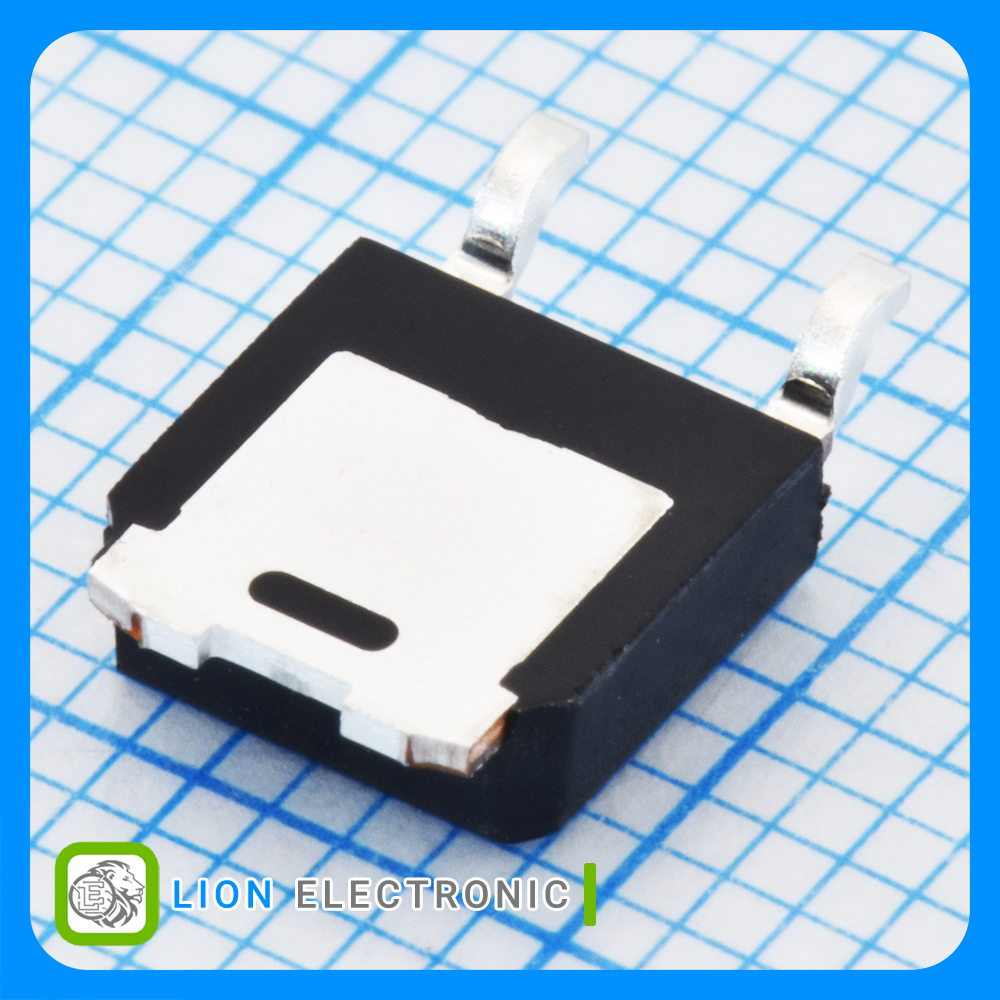

Fixed Linear Voltage Regulator 9V, 500mA with TO-252-3 Package
معرفی
رگولاتور خطی 9 ولت 500 میلیآمپر با پکیج TO-252-3
Fixed Linear Voltage Regulator 9V, 500mA with TO-252-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: 9V
- Output Current: 500mA
- Input Voltage Min: 35V
- Input Voltage Max: 35V
- Load Regulation: 180mV
- Line Regulation: 100mV
- Quiescent Current: 6mA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات L78M09CDT
L78M09CDT
Part Number
1
Number of Outputs
Positive
Polarity
Tube
Packaging
SMD/SMT
Mounting Style
100mV
Line Regulation
0C
Minimum Operating Temperature
Fixed
Output Type
180mV
Load Regulation
+150C
Maximum Operating Temperature
35V
Input Voltage Max
6mA
Quiescent Current
500mA
Output Current
35V
Input Voltage Min
DPAK
Package-Case
9V
Output Voltage
