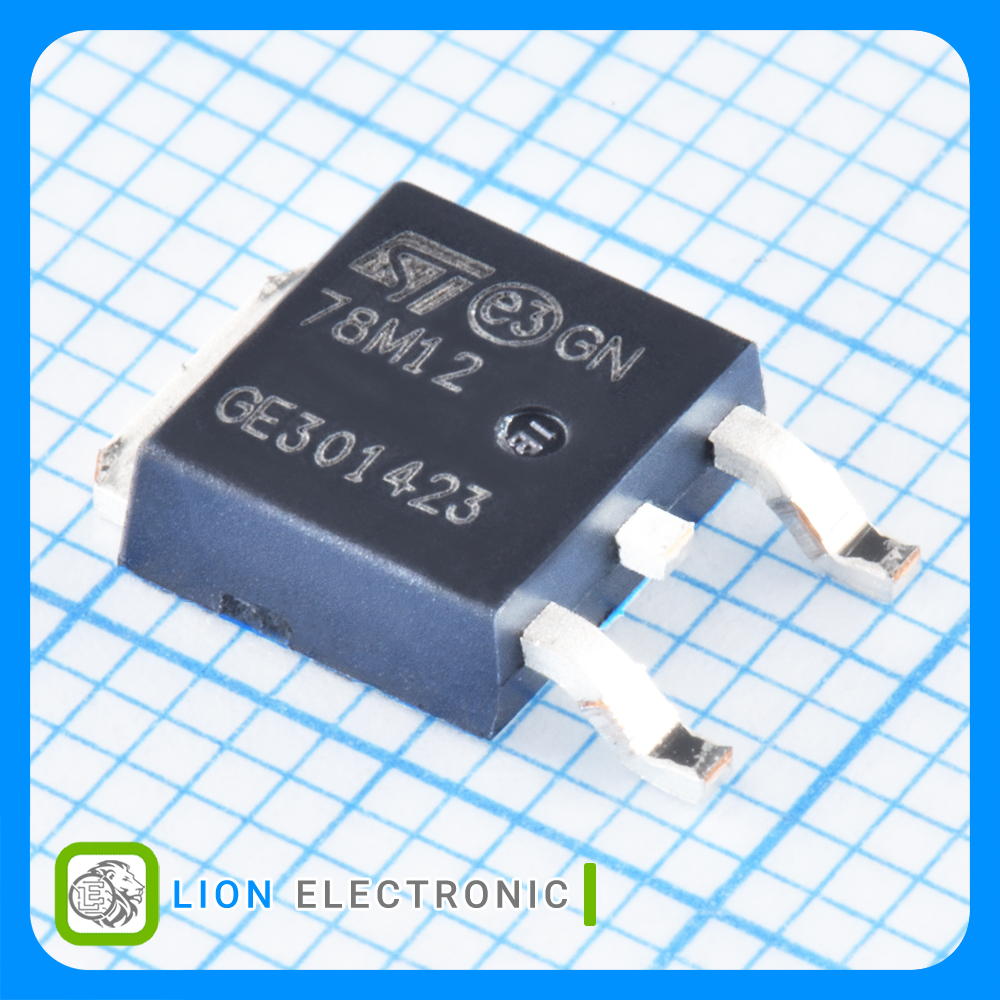

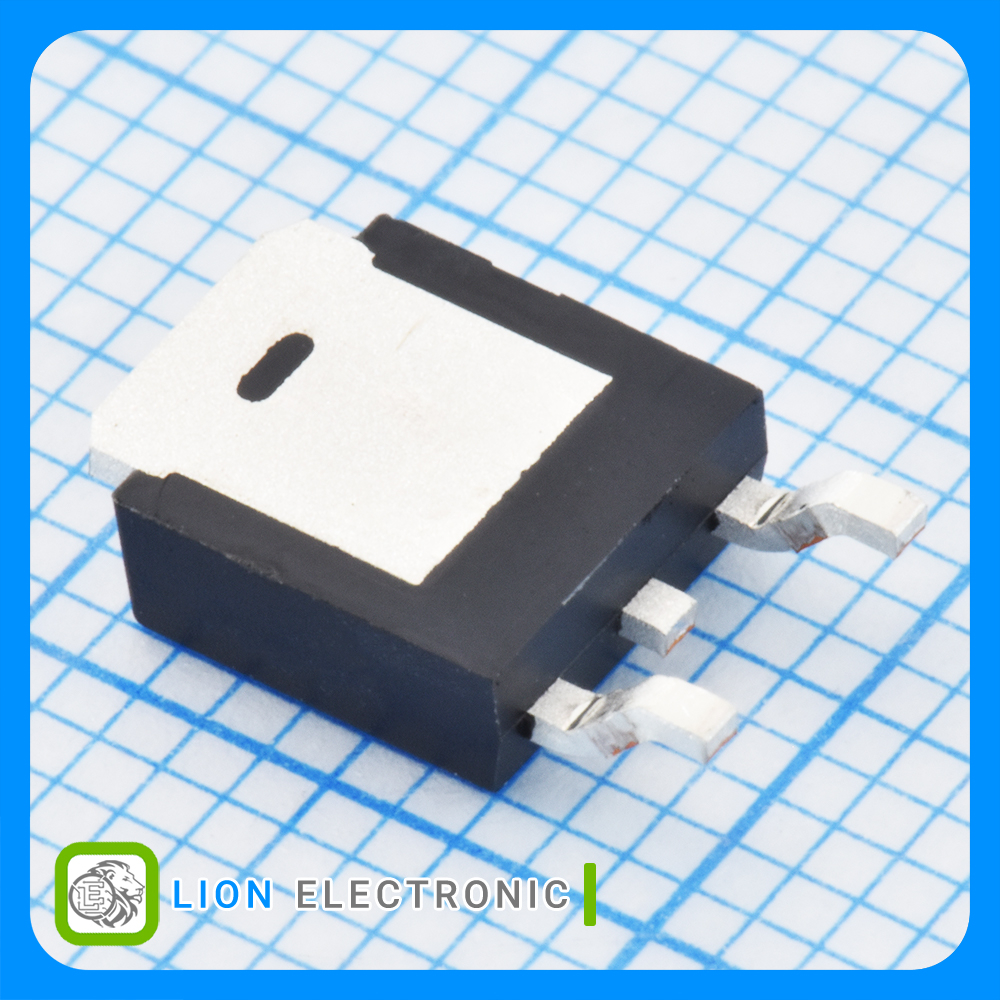

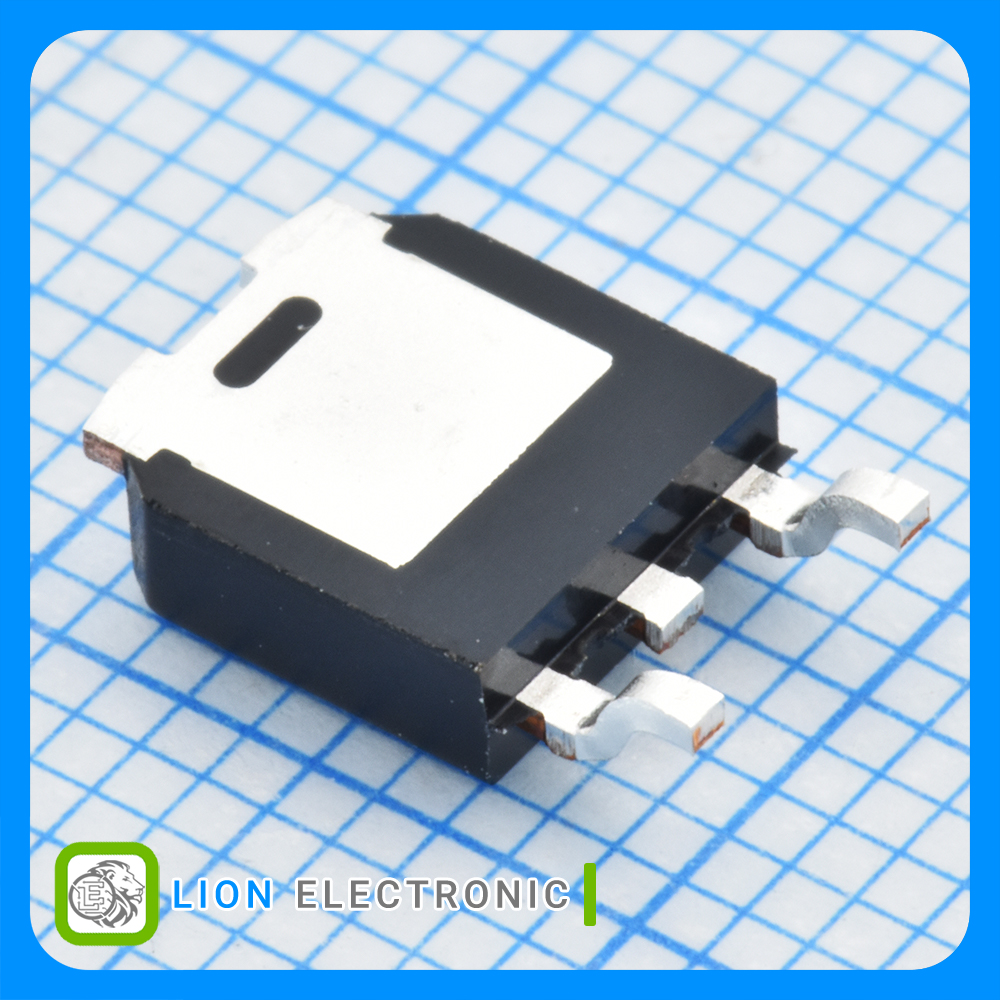

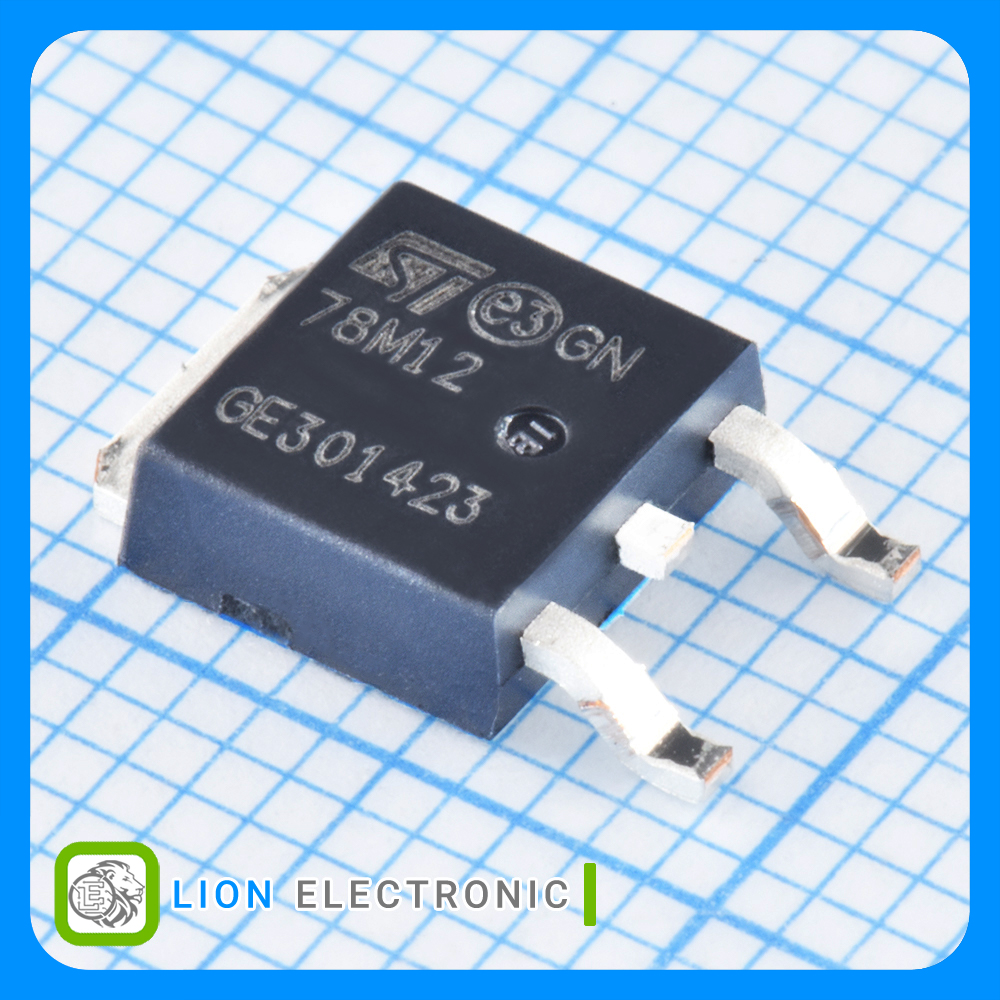

L78M12CDT
L78M12CDT
Part Number
859
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی مثبت 12 ولت 500 میلیآمپر با پکیج DPAK
Fixed Linear Voltage Regulator 12V, 500mA Positive with DPAK Package
معرفی
رگولاتور خطی مثبت 12 ولت 500 میلیآمپر با پکیج DPAK
Fixed Linear Voltage Regulator 12V, 500mA Positive with DPAK Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: 12V
- Output Current: 500mA
- Input Voltage Min: 35V
- Input Voltage Max: 35V
- Load Regulation: 240mV
- Line Regulation: 100mV
- Quiescent Current: 6mA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات رگولاتور L78M12CDT

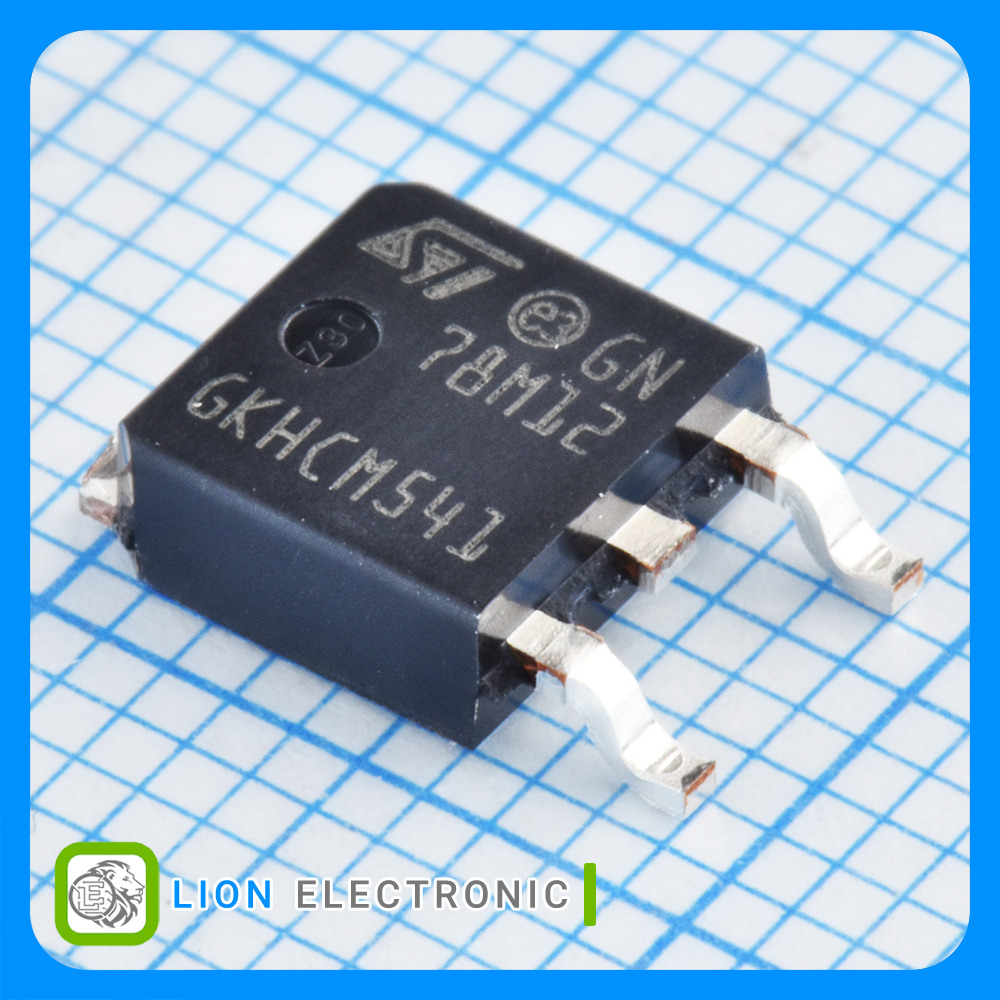

رگولاتور L78M12CDT
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
SMD/SMT
Mounting Style
100mV
Line Regulation
0C
Minimum Operating Temperature
Fixed
Output Type
240mV
Load Regulation
+150C
Maximum Operating Temperature
35V
Input Voltage Max
6mA
Quiescent Current
500mA
Output Current
35V
Input Voltage Min
DPAK
Package-Case
12V
Output Voltage
