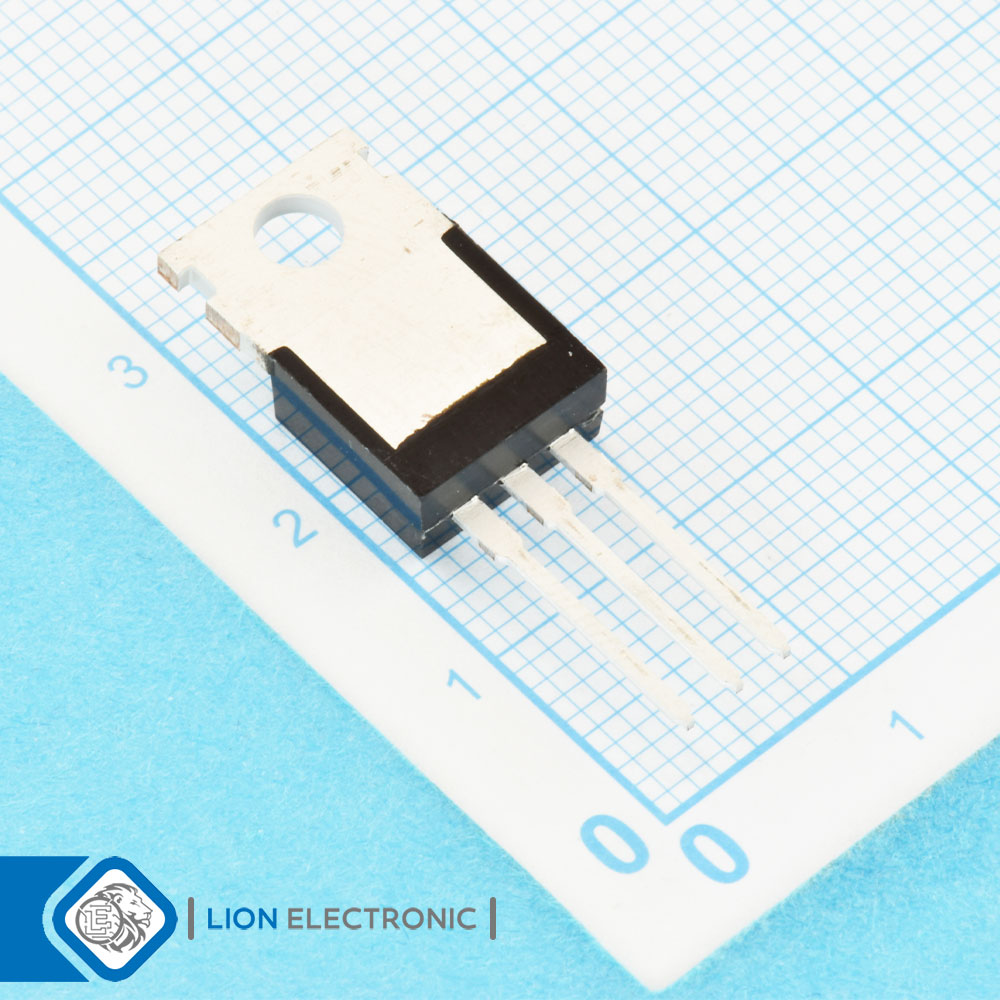

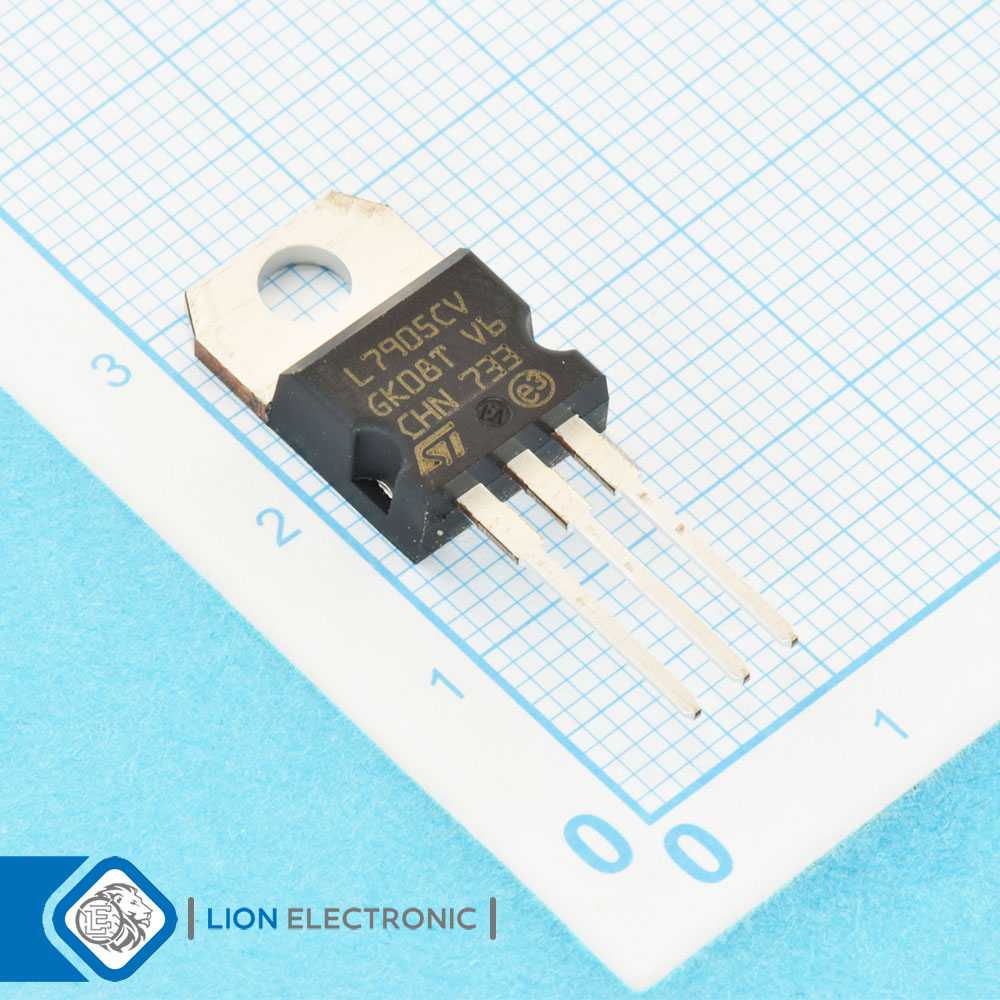

L7905CV
L7905CV
Part Number
861
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی منفی 5 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator -5V, 1.5A with TO-220-3 Package
معرفی
رگولاتور خطی منفی 5 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator -5V, 1.5A with TO-220-3 Package
Specifications
- Polarity: Negative
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: -5V
- Output Current: 1.5A
- Input Voltage Min: -7V
- Input Voltage Max: - 35V
- Load Regulation: 100mV
- Line Regulation: 100mV
- Quiescent Current: 3mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات رگولاتور منفی L7905CV
رگولاتور منفی L7905CV
Part Number
1
Number of Outputs
- 35V
Input Voltage Max
Negative
Polarity
-7V
Input Voltage Min
Tube
Packaging
-5V
Output Voltage
Through Hole
Mounting Style
100mV
Line Regulation
0C
Minimum Operating Temperature
Fixed
Output Type
100mV
Load Regulation
+150C
Maximum Operating Temperature
3mA
Quiescent Current
1.5A
Output Current
TO-220
Package-Case
