L7915CV
L7915CV
Part Number
864
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور خطی منفی 15 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator -15V, 1.5A with TO-220-3 Package
معرفی
رگولاتور خطی منفی 15 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulator -15V, 1.5A with TO-220-3 Package
Specifications
- Polarity: Negative
- Output Type: Fixed
- Number of Outputs: 1
- Output Voltage: -15V
- Output Current: 1.5A
- Input Voltage Min: -17.5V
- Input Voltage Max: - 35V
- Load Regulation: 300mV
- Line Regulation: 300mV
- Quiescent Current: 3mA
- Mounting Style: Through Hole
- Package/Case: TO-220-3
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات رگولاتور منفی L7915CV

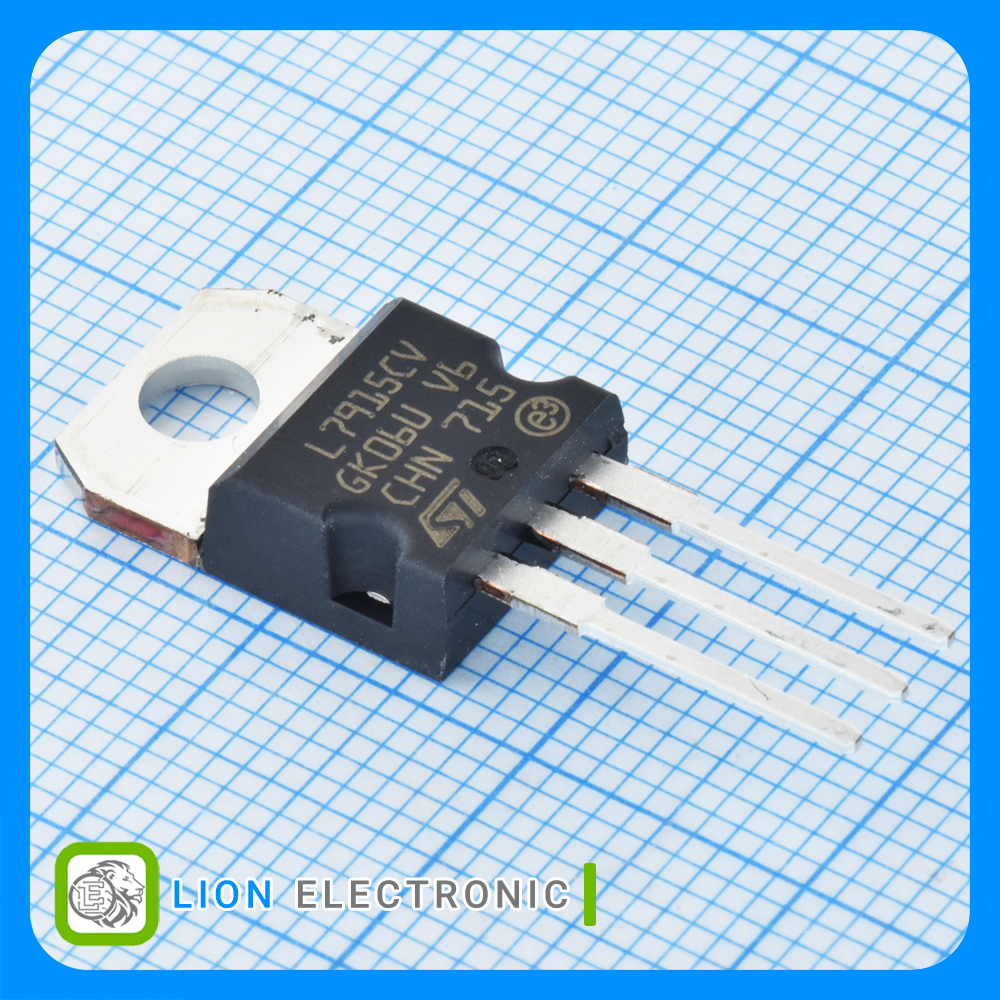

رگولاتور منفی L7915CV
Part Number
-17.5V
Input Voltage Min
1
Number of Outputs
- 35V
Input Voltage Max
Negative
Polarity
-15V
Output Voltage
Tube
Packaging
Through Hole
Mounting Style
0C
Minimum Operating Temperature
Fixed
Output Type
300mV
Line Regulation
300mV
Load Regulation
+150C
Maximum Operating Temperature
3mA
Quiescent Current
1.5A
Output Current
TO-220
Package-Case
