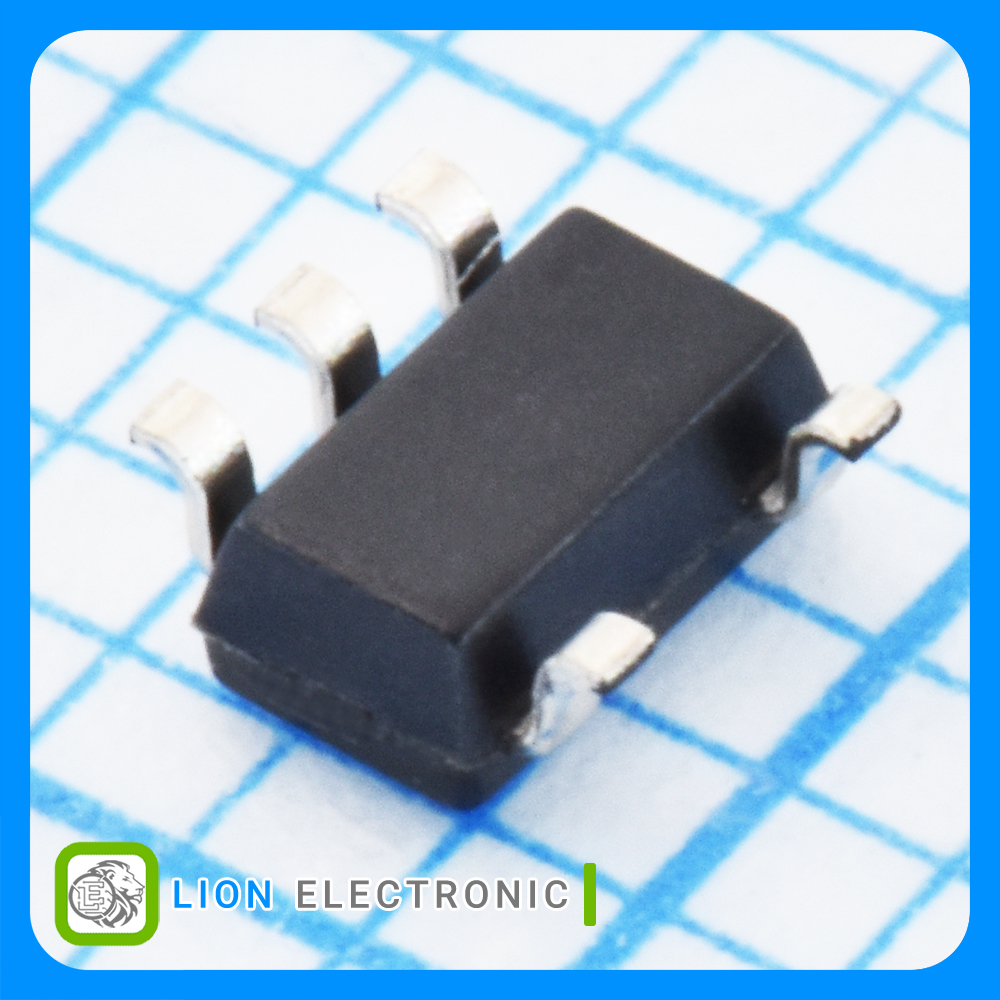

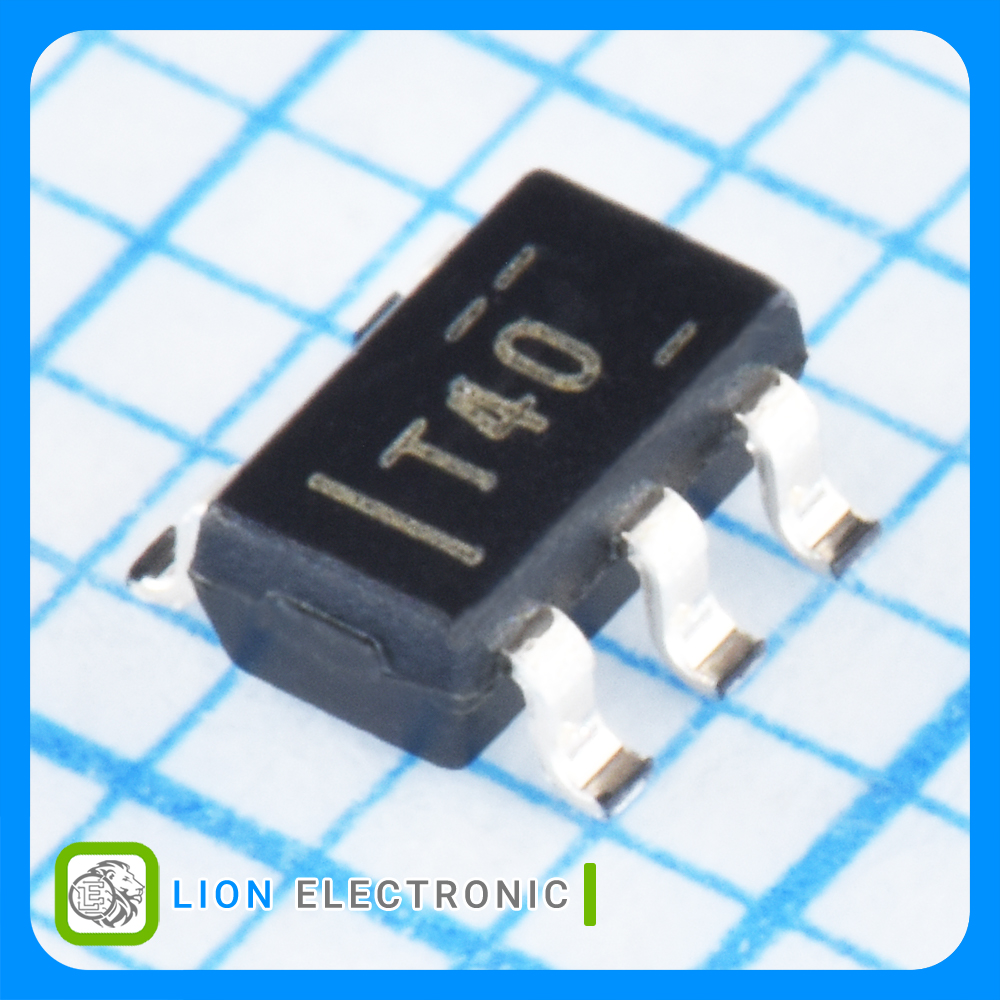

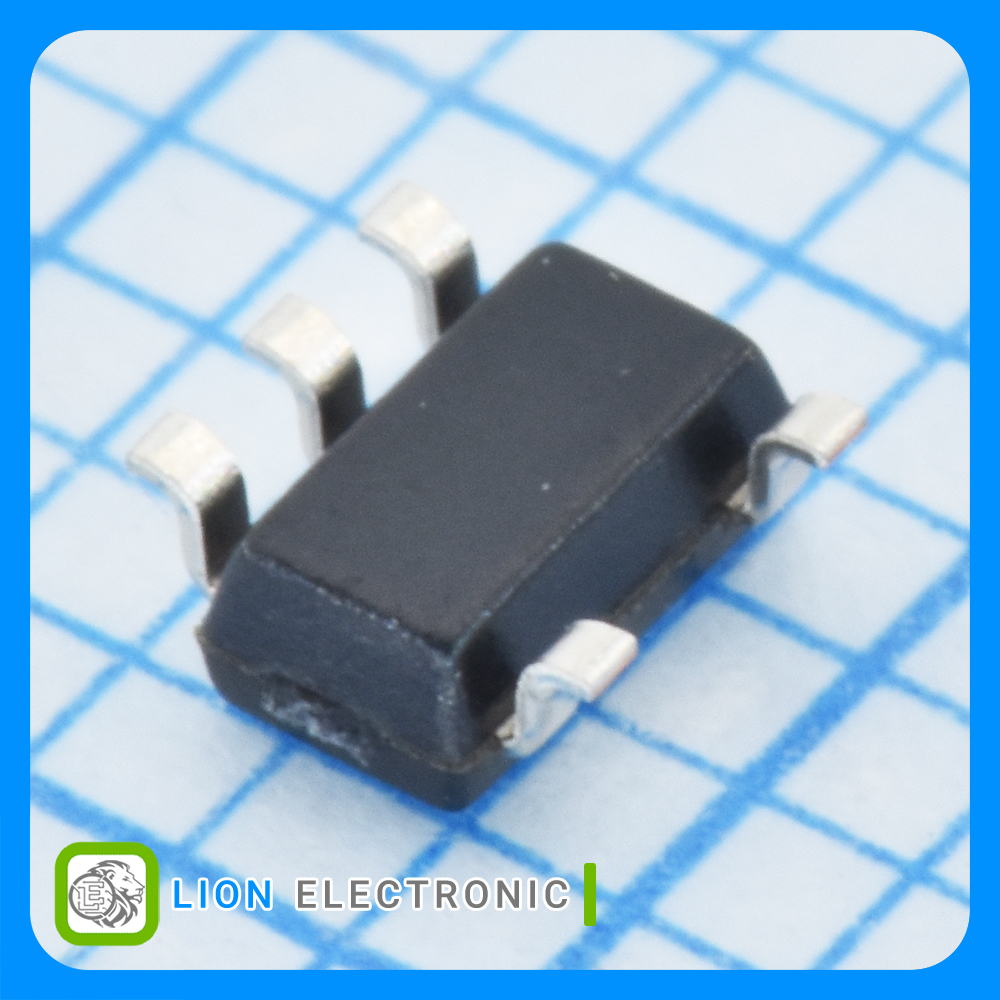

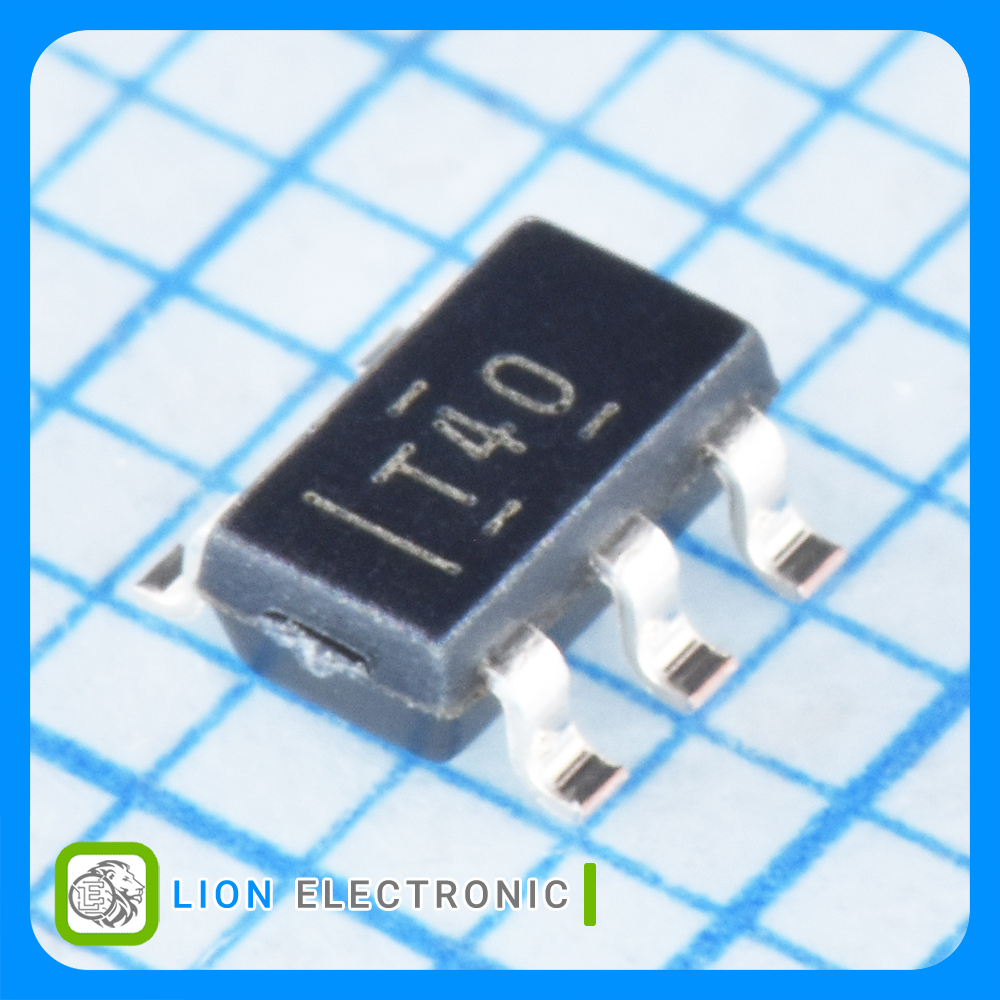

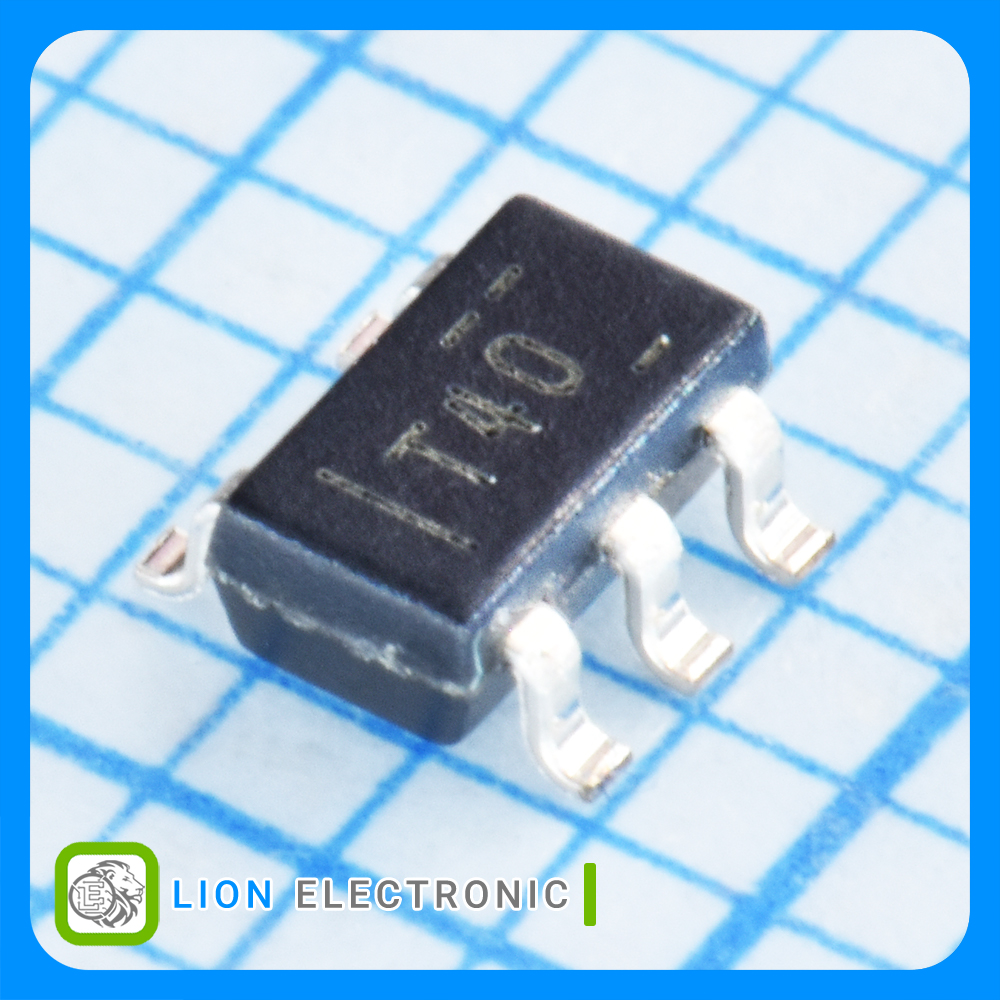

TPS73233DBVR
TPS73233DBVR
Part Number
1061
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 3.3 ولت 250 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 250mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 250 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 250mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 3.3V
- Output Current: 250mA
- Dropout Voltage: 40mV
- Input Voltage Min: 1.7V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: 58dB
- Quiescent Current: 550uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TPS73233DBVR
TPS73233DBVR
Part Number
1
Number of Outputs
40mV
Dropout Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
58dB
PSRR - Ripple Rejection - Typ
Fixed
Output Type
+125C
Maximum Operating Temperature
1.7V
Input Voltage Min
0.01%/V
Line Regulation
0.002%/mA
Load Regulation
550uA
Quiescent Current
250mA
Output Current
560mW
Pd - Power Dissipation
3.3V
Output Voltage
SOT-23-5
Package-Case
