NCV8141D2TR4G
NCV8141D2TR4G
Part Number
2435
Lion Part
Datasheet
ON Semiconductor Manufacture
رگولاتور LDO ثابت 5 ولت 500 میلیآمپر با پکیج TO-252-7 (DPAK)

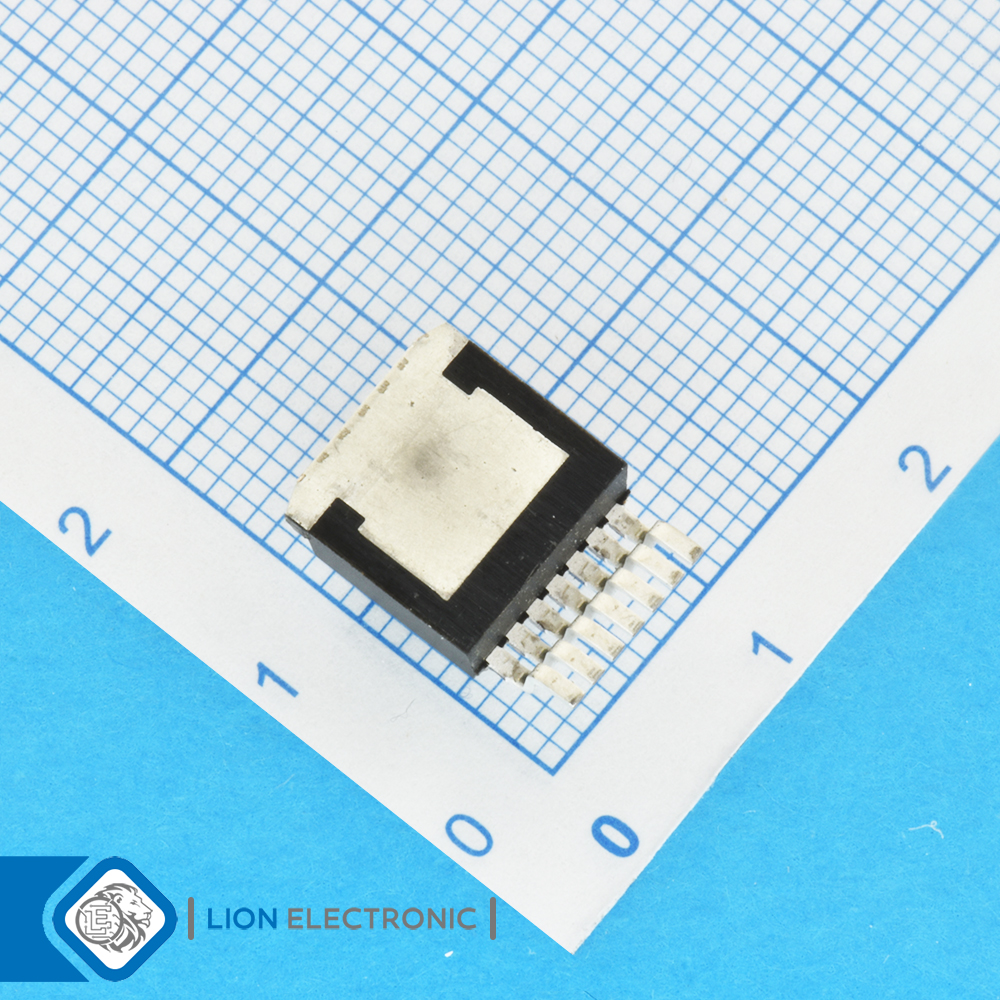

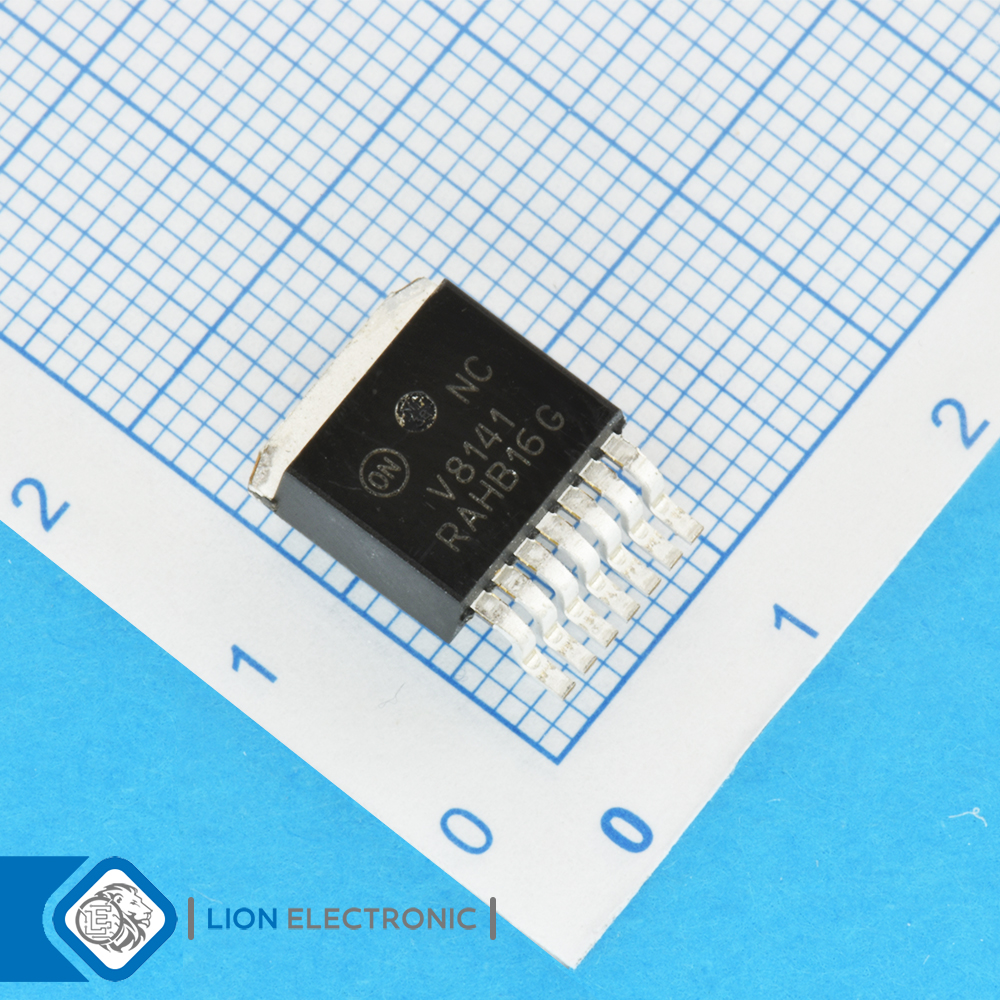

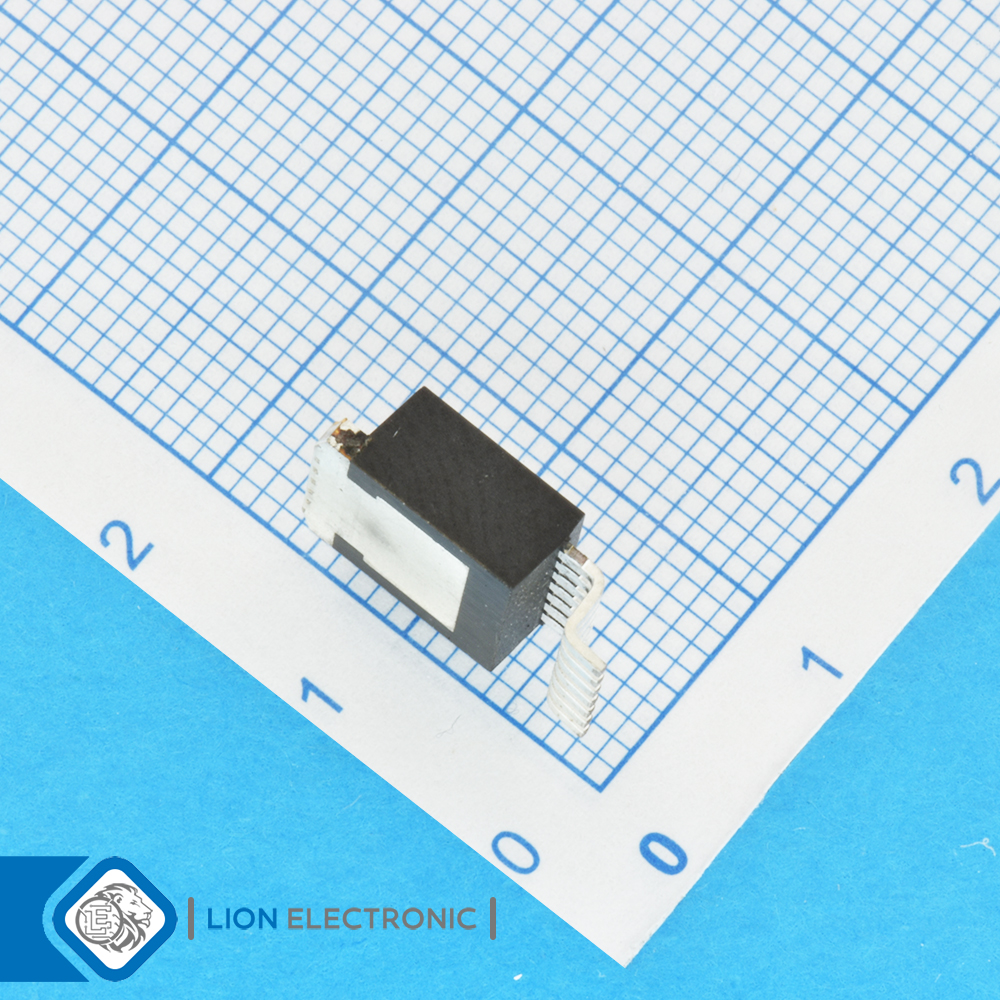

Fixed LDO Voltage Regulator 5V, 500mA with TO-252-7 (DPAK) Package
معرفی
رگولاتور LDO ثابت 5 ولت 500 میلیآمپر با پکیج TO-252-7 (DPAK)
Fixed LDO Voltage Regulator 5V, 500mA with TO-252-7 (DPAK) Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: DPAK
- Output Voltage: 5V
- Output Current: 500mA
- Dropout Voltage: 1.25V
- Input Voltage Min: -500mV
- Input Voltage Max: 26V
- PSRR / Ripple Rejection - Typ: 75dB
- Quiescent Current: 15mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات NCV8141D2TR4G
NCV8141D2TR4G
Part Number
1
Number of Outputs
Reel
Packaging
25mV
Line Regulation
-40C
Minimum Operating Temperature
Positive
Polarity
-500mV
Input Voltage Min
SMD/SMT
Mounting Style
Fixed
Output Type
80mV
Load Regulation
+125C
Maximum Operating Temperature
75dB
PSRR - Ripple Rejection - Typ
26V
Input Voltage Max
1.25V
Dropout Voltage
500mA
Output Current
15mA
Quiescent Current
DPAK
Package-Case
5V
Output Voltage
