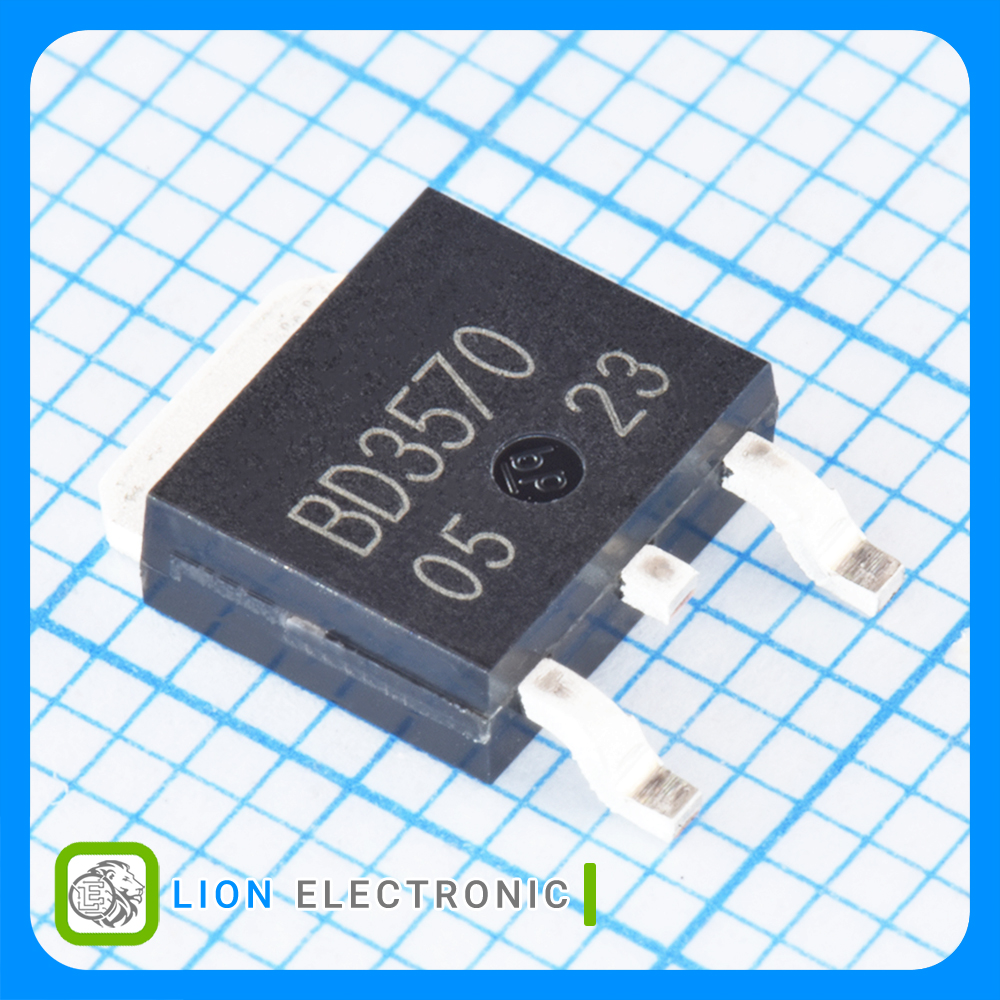

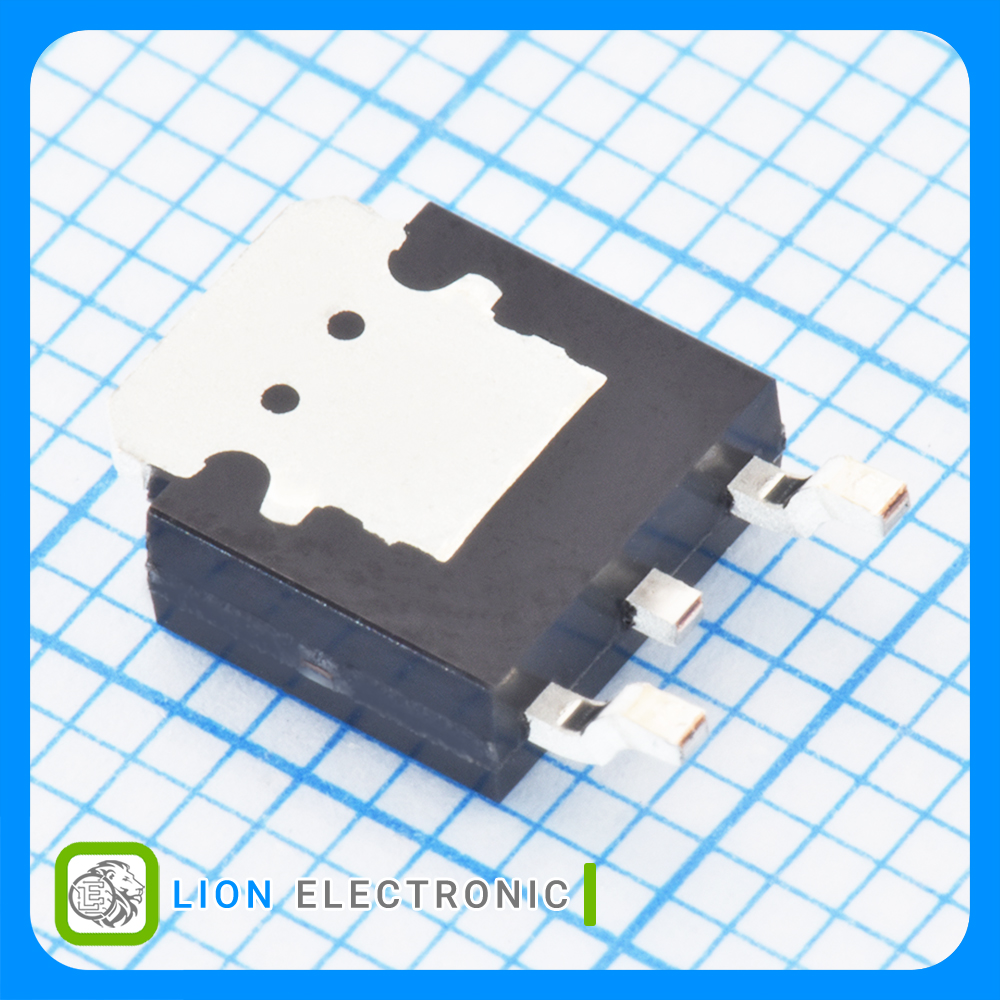

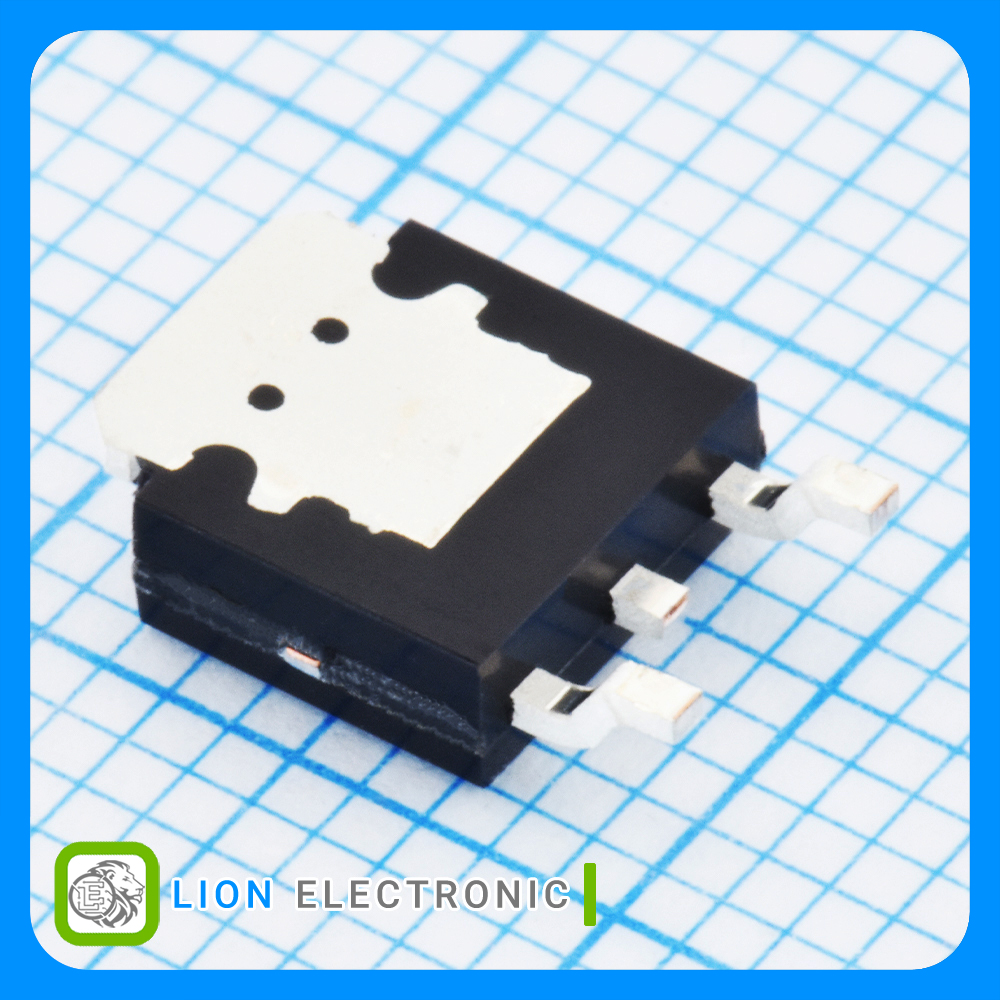

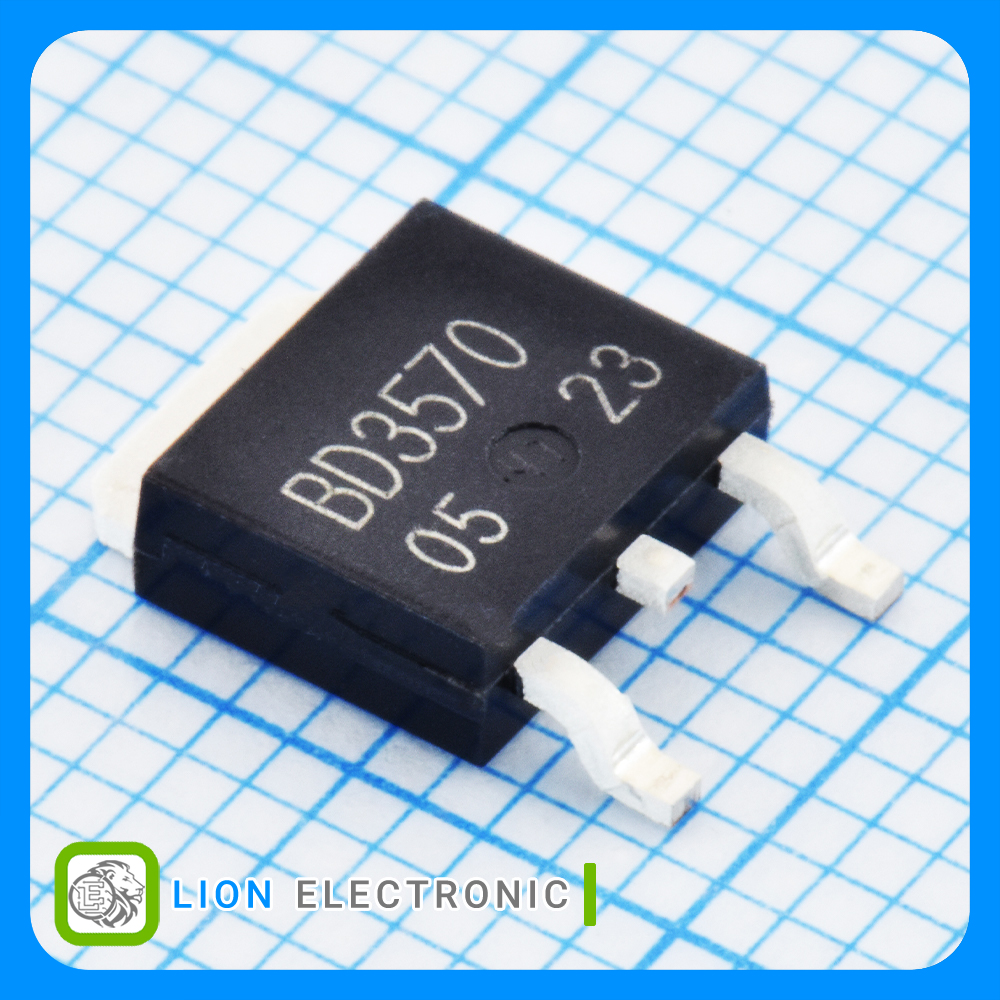

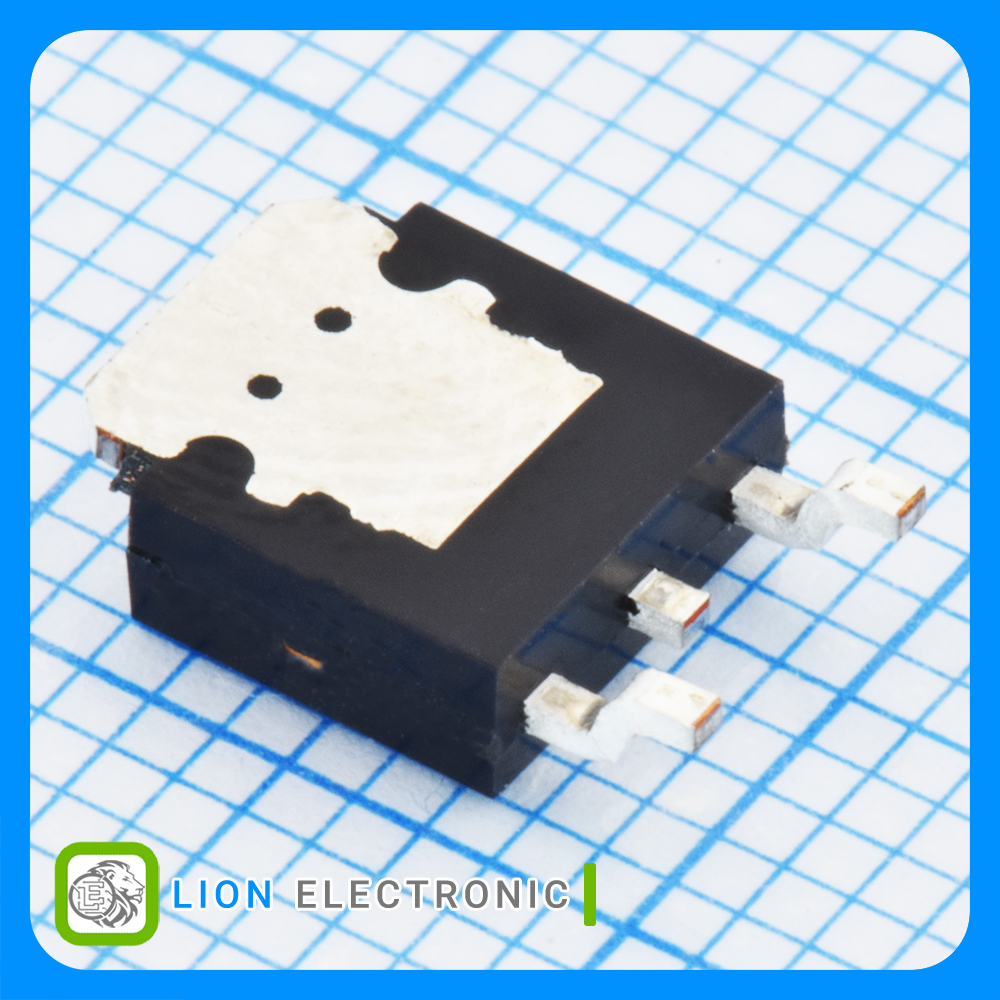

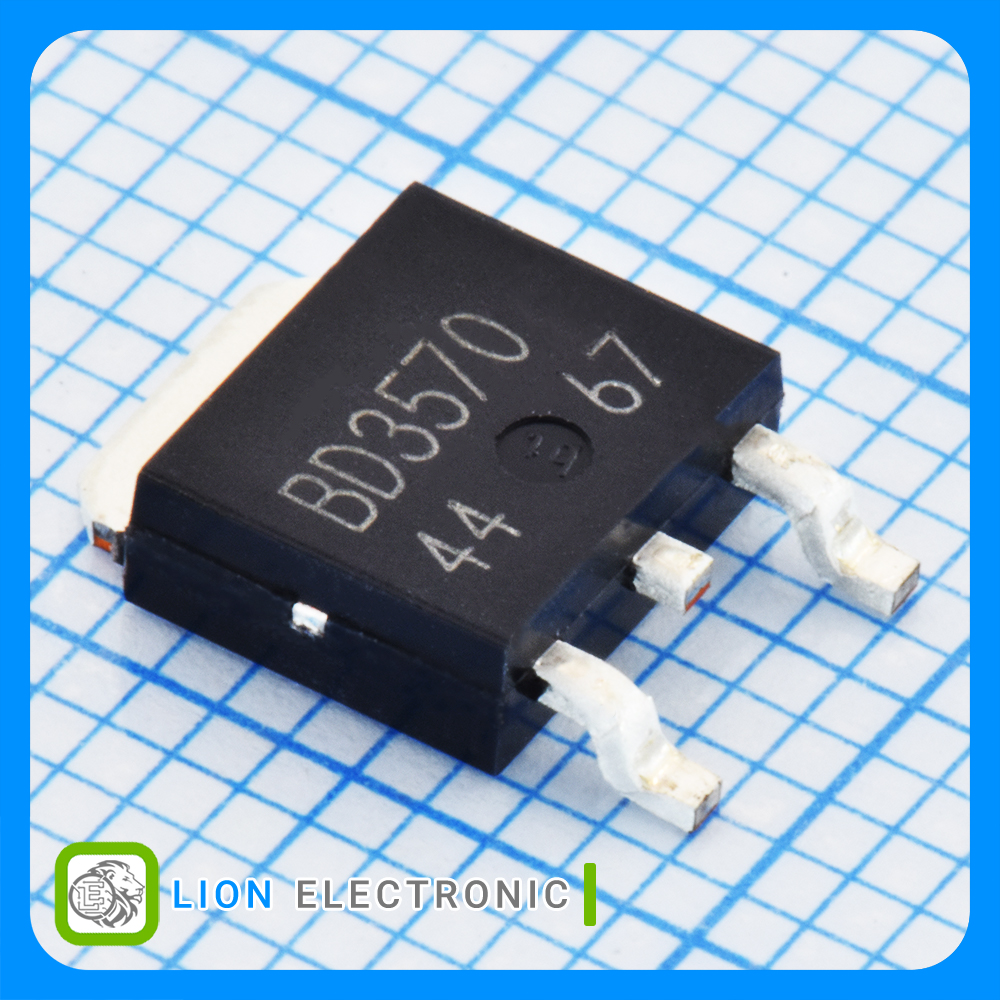

BD3570FP-E2
BD3570FP-E2
Part Number
2616
Lion Part
Datasheet
ROHM Semiconductor Manufacture
رگولاتور LDO ثابت 3.3 ولت 500 میلیآمپر با پکیج TO-252-3
Fixed LDO Voltage Regulator 3.3V, 500mA with TO-252-3 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 500 میلیآمپر با پکیج TO-252-3
Fixed LDO Voltage Regulator 3.3V, 500mA with TO-252-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: DPAK
- Output Voltage: 3.3V
- Output Current: 500mA
- Dropout Voltage: 250mV
- Input Voltage Min: 4.5V
- Input Voltage Max: 36V
- PSRR / Ripple Rejection - Typ: 55dB
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات BD3570FP-E2
BD3570FP-E2
Part Number
1
Number of Outputs
10mV
Line Regulation
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
20mV
Load Regulation
55dB
PSRR - Ripple Rejection - Typ
SMD/SMT
Mounting Style
Fixed
Output Type
+125C
Maximum Operating Temperature
250mV
Dropout Voltage
36V
Input Voltage Max
4.5V
Input Voltage Min
500mA
Output Current
-
Quiescent Current
DPAK
Package-Case
3.3V
Output Voltage
