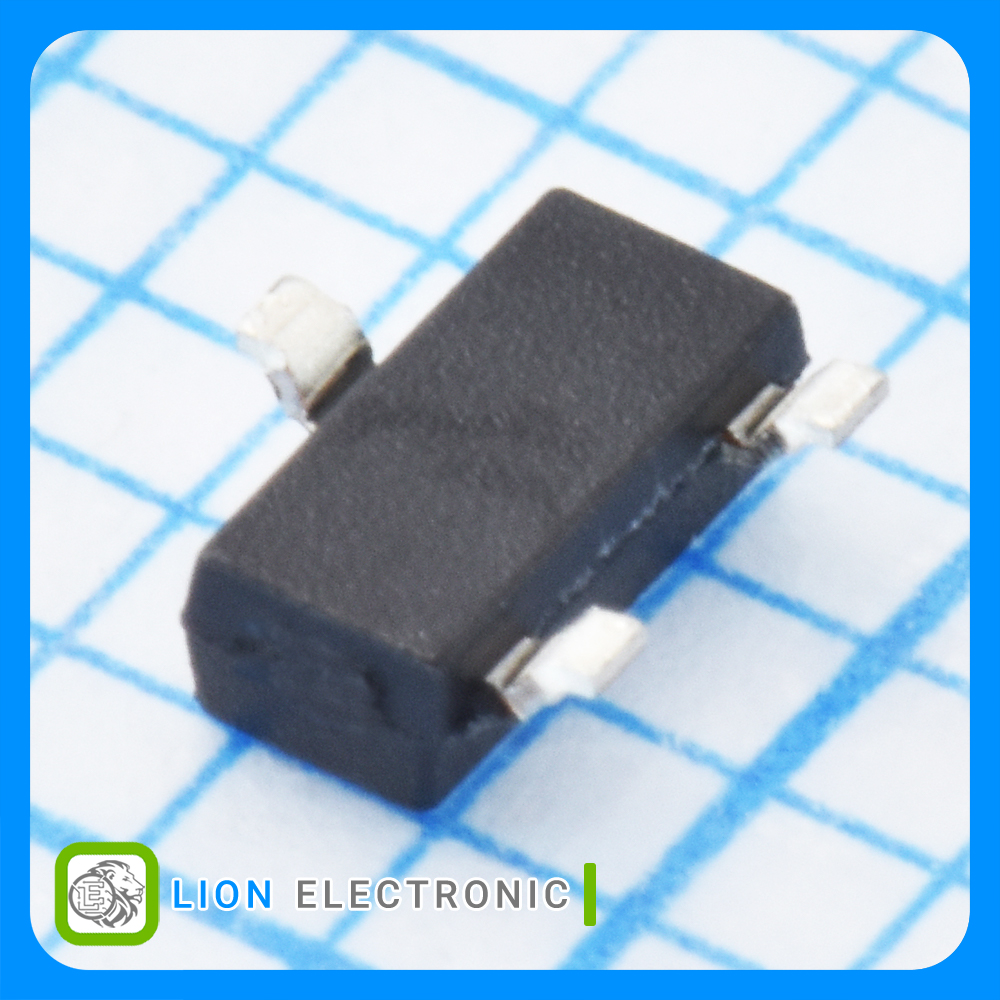

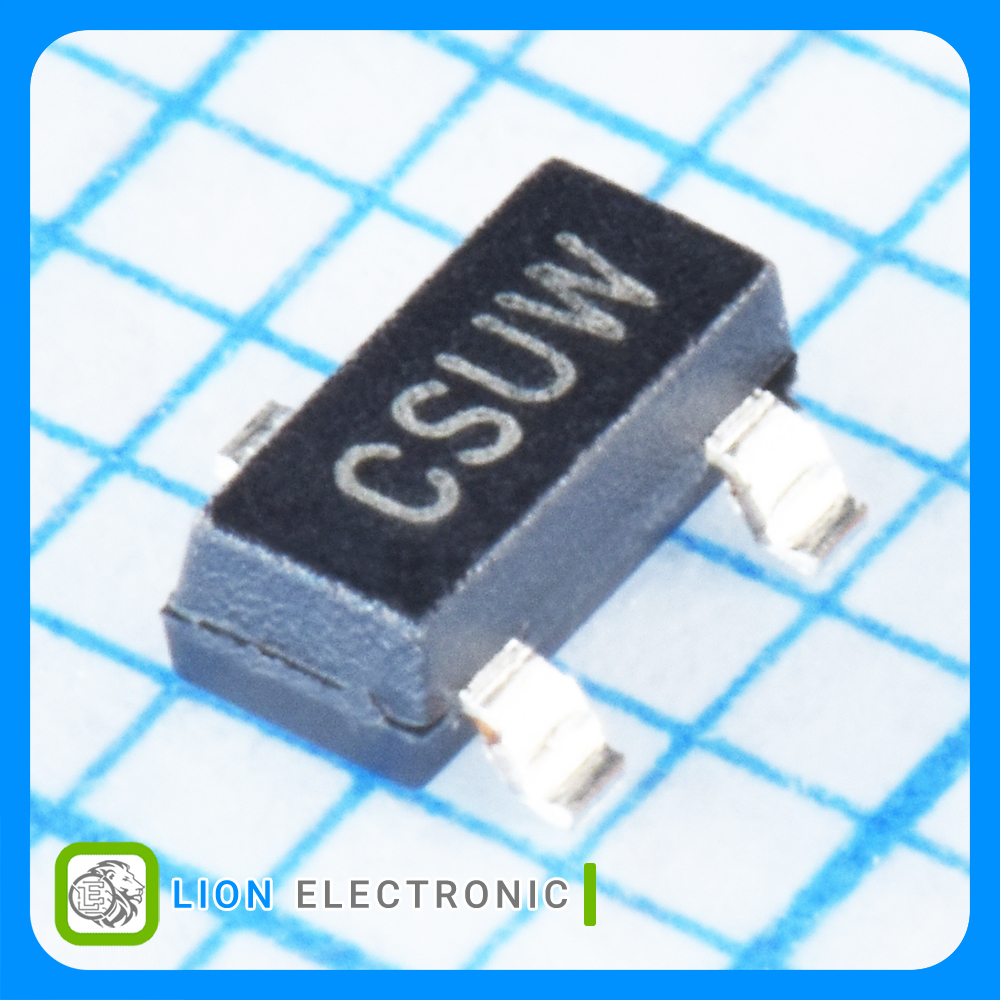

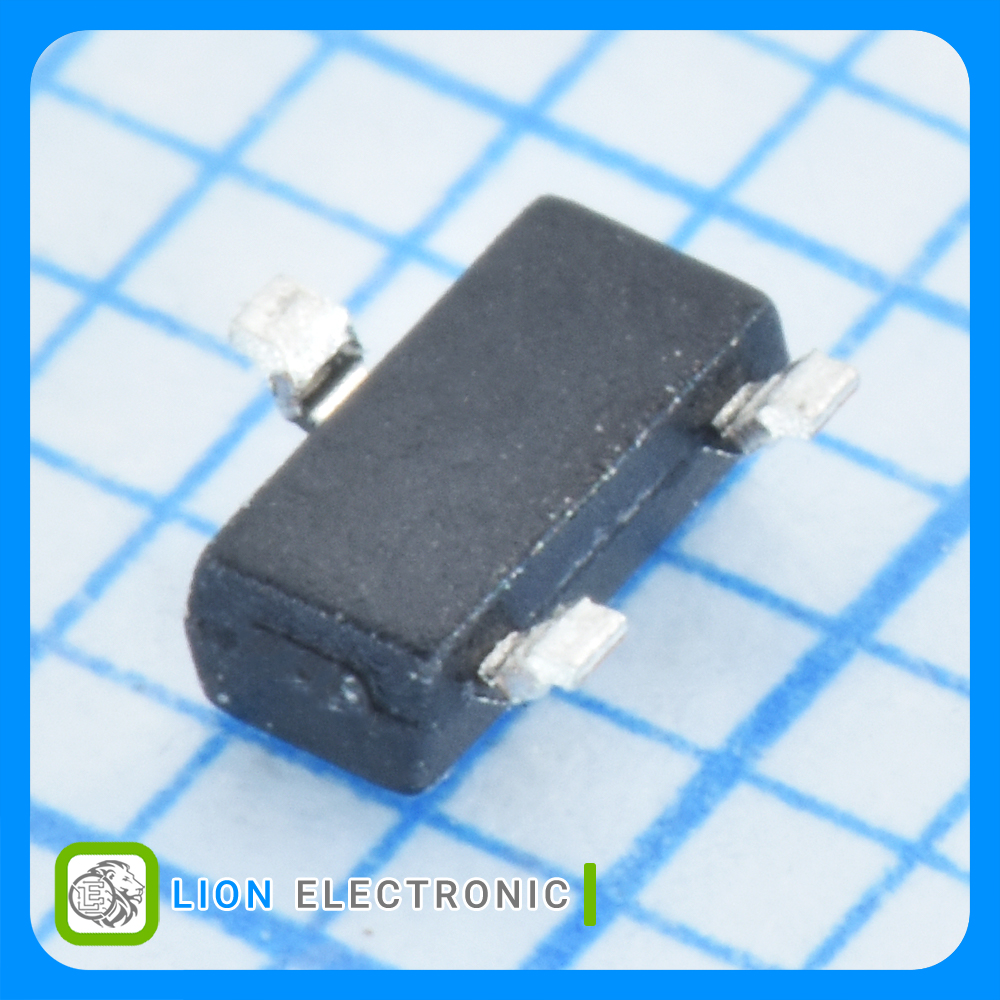

MCP1700T-3302E/TT
MCP1700T-3302E/TT
Part Number
2694
Lion Part
Datasheet
Microchip Technology Manufacture
رگولاتور LDO ثابت 3.3 ولت 250 میلیآمپر با پکیج SOT-23-3 محصول ایراد دارد و مناسب مونتاژ ماشینی نیست
Fixed LDO Voltage Regulator 3.3V, 250mA with SOT-23-3 Package, TAPE, defective and not suitable for machine assembly
معرفی
رگولاتور LDO ثابت 3.3 ولت 250 میلیآمپر با پکیج SOT-23-3 محصول ایراد دارد و مناسب مونتاژ ماشینی نیست
Fixed LDO Voltage Regulator 3.3V, 250mA with SOT-23-3 Package, TAPE, defective and not suitable for machine assembly
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-3
- Output Voltage: 3.3V
- Output Current: 250mA
- Dropout Voltage: 178mV
- Input Voltage Min: 2.3V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 44dB
- Quiescent Current: 4uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور خطی MCP1700T-3302E/TT

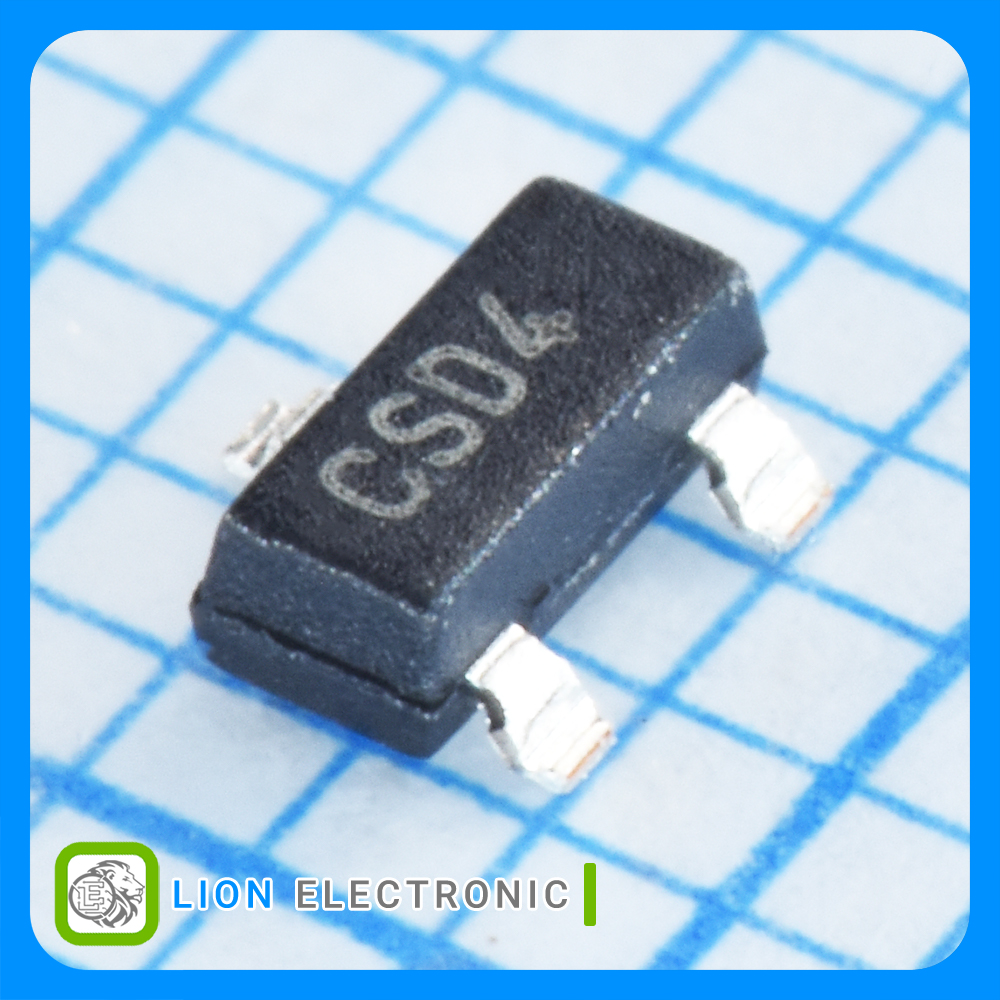

رگولاتور خطی MCP1700T-3302E/TT
Part Number
1
Number of Outputs
44dB
PSRR - Ripple Rejection - Typ
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
6V
Input Voltage Max
178mV
Dropout Voltage
4uA
Quiescent Current
Fixed
Output Type
+125C
Maximum Operating Temperature
2.3V
Input Voltage Min
250mA
Output Current
3.3V
Output Voltage
SOT-23-3
Package-Case
