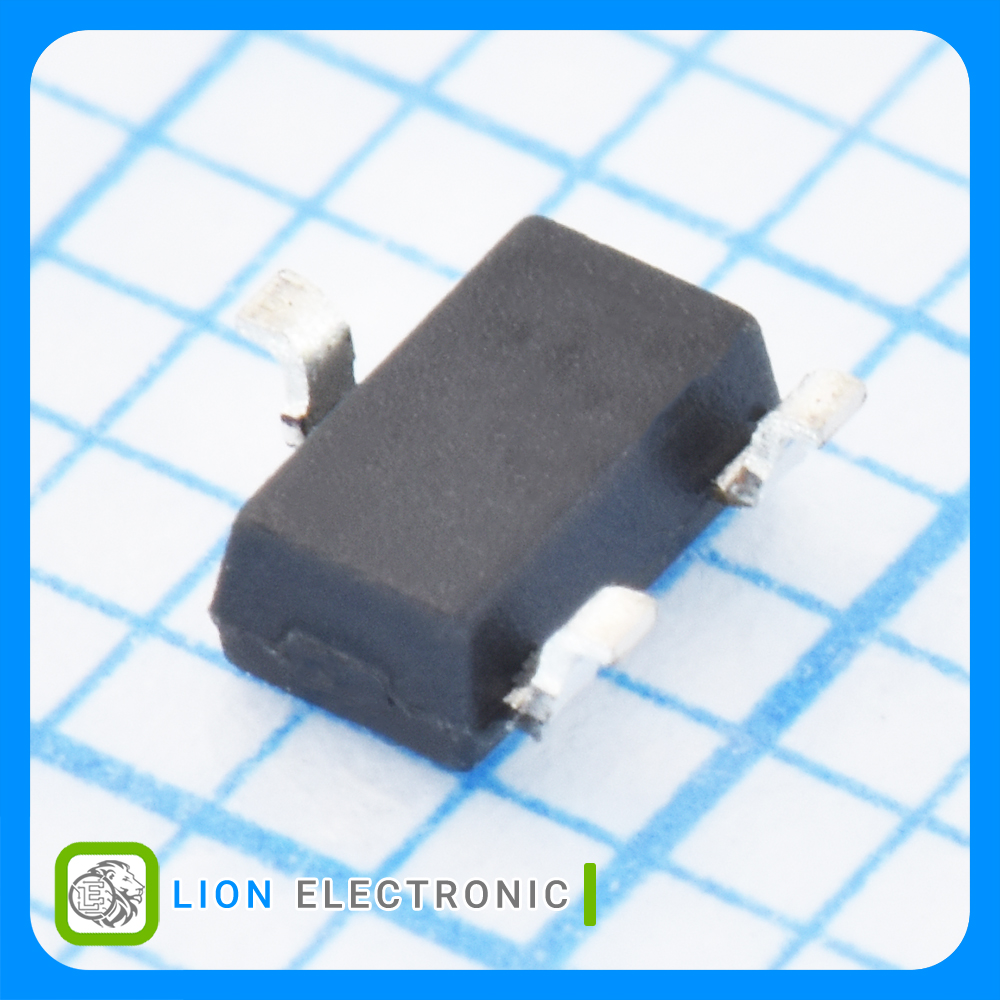

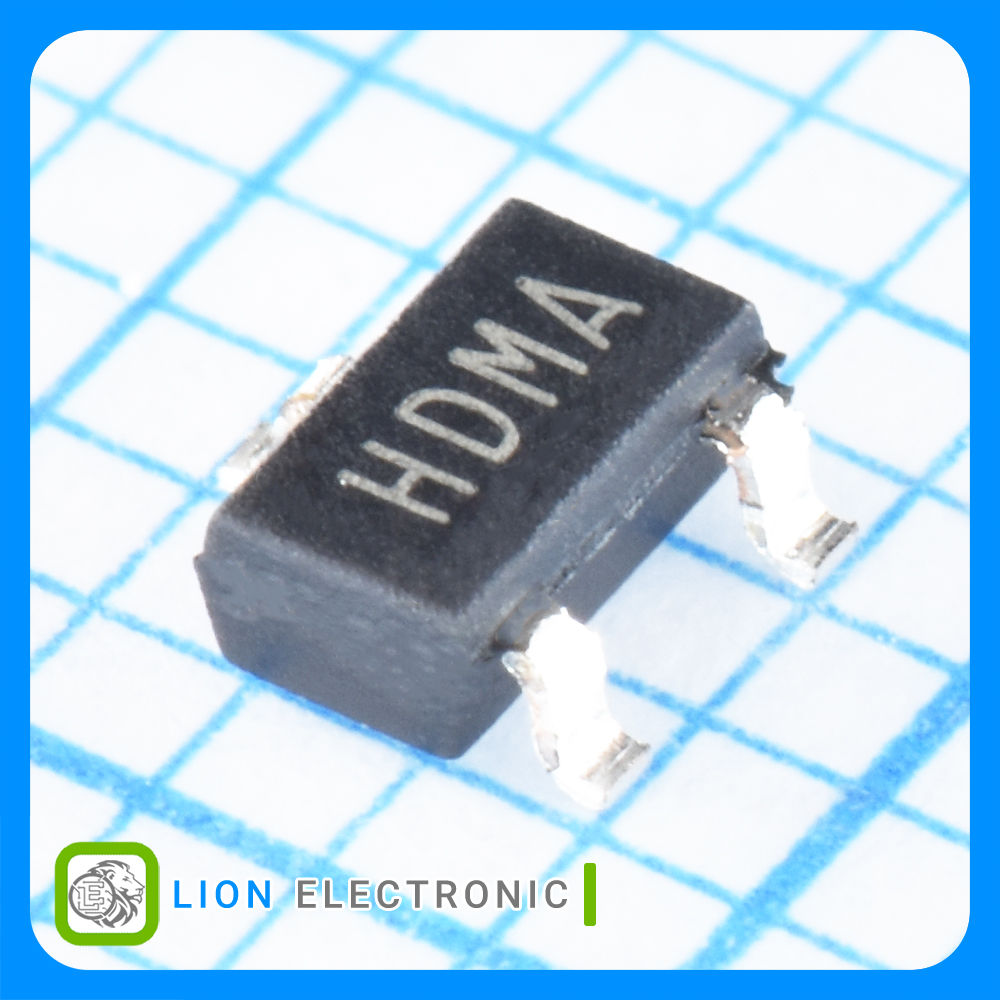

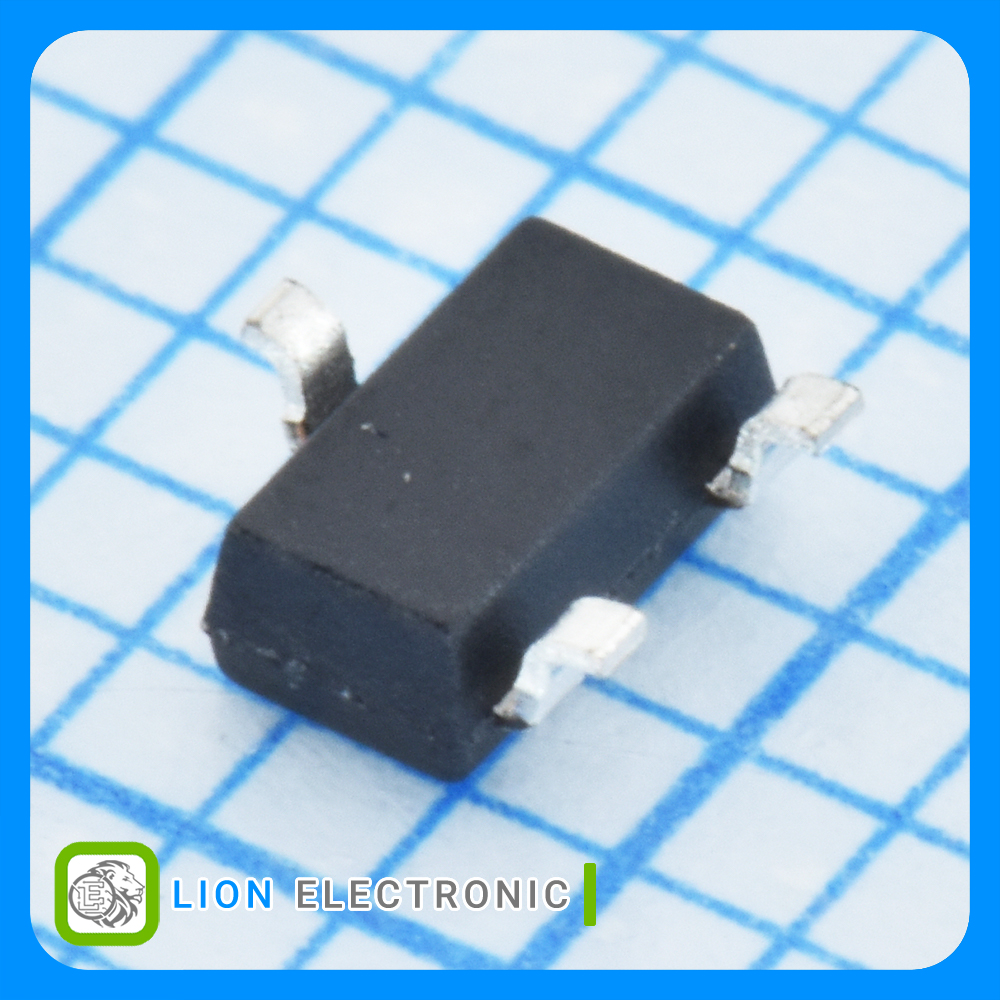

MCP1702T-2502E/CB
MCP1702T-2502E/CB
Part Number
2701
Lion Part
Datasheet
Microchip Technology Manufacture
رگولاتور LDO ثابت 2.5 ولت 250 میلیآمپر با پکیج SOT-23-3
Fixed LDO Voltage Regulator 2.5V, 250mA with SOT-23-3 Package
معرفی
رگولاتور LDO ثابت 2.5 ولت 250 میلیآمپر با پکیج SOT-23-3
Fixed LDO Voltage Regulator 2.5V, 250mA with SOT-23-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-3
- Output Voltage: 2.5V
- Output Current: 250mA
- Dropout Voltage: 750mV
- Input Voltage Min: 2.7V
- Input Voltage Max: 13.2V
- PSRR / Ripple Rejection - Typ: 44dB
- Quiescent Current: 2uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور MCP1702T-2502E/CB

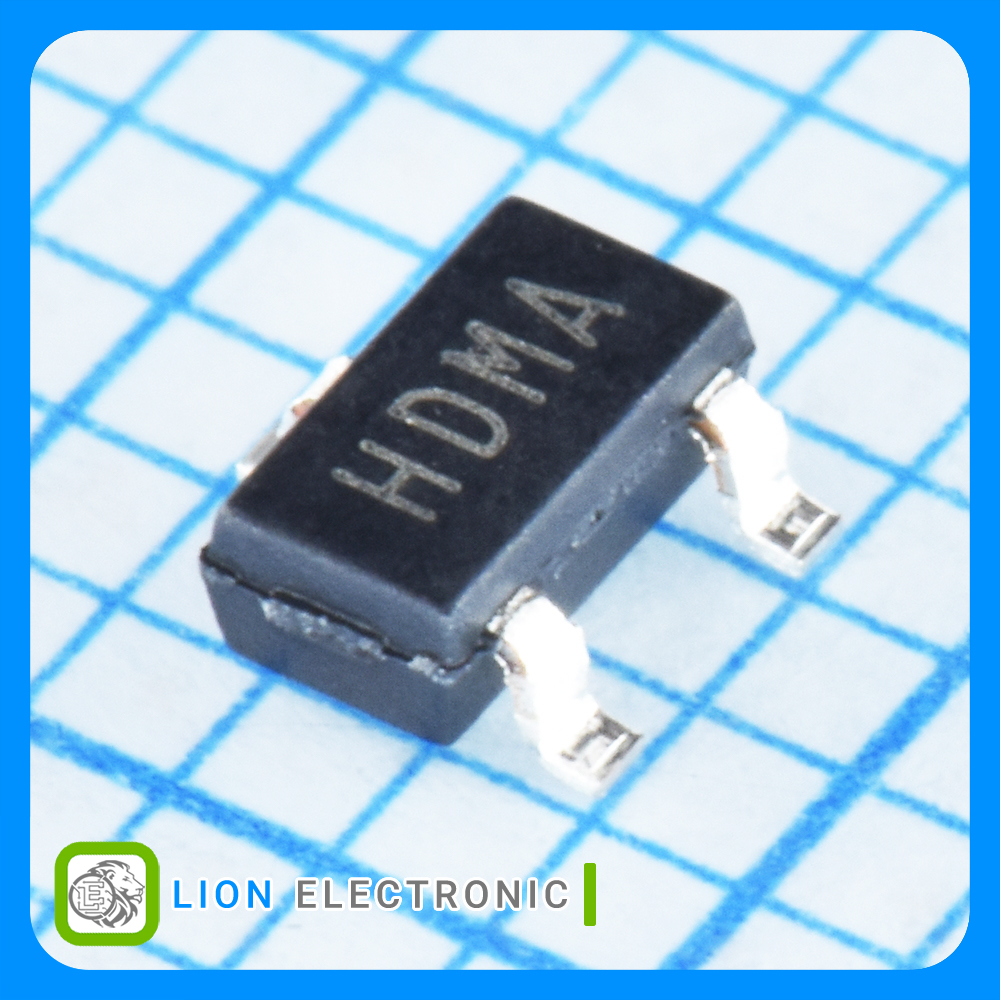

رگولاتور MCP1702T-2502E/CB
Part Number
1
Number of Outputs
44dB
PSRR - Ripple Rejection - Typ
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
2uA
Quiescent Current
Fixed
Output Type
13.2V
Input Voltage Max
+125C
Maximum Operating Temperature
1%
Load Regulation
0.1%/V
Line Regulation
2.7V
Input Voltage Min
750mV
Dropout Voltage
250mA
Output Current
2.5V
Output Voltage
SOT-23-3
Package-Case
