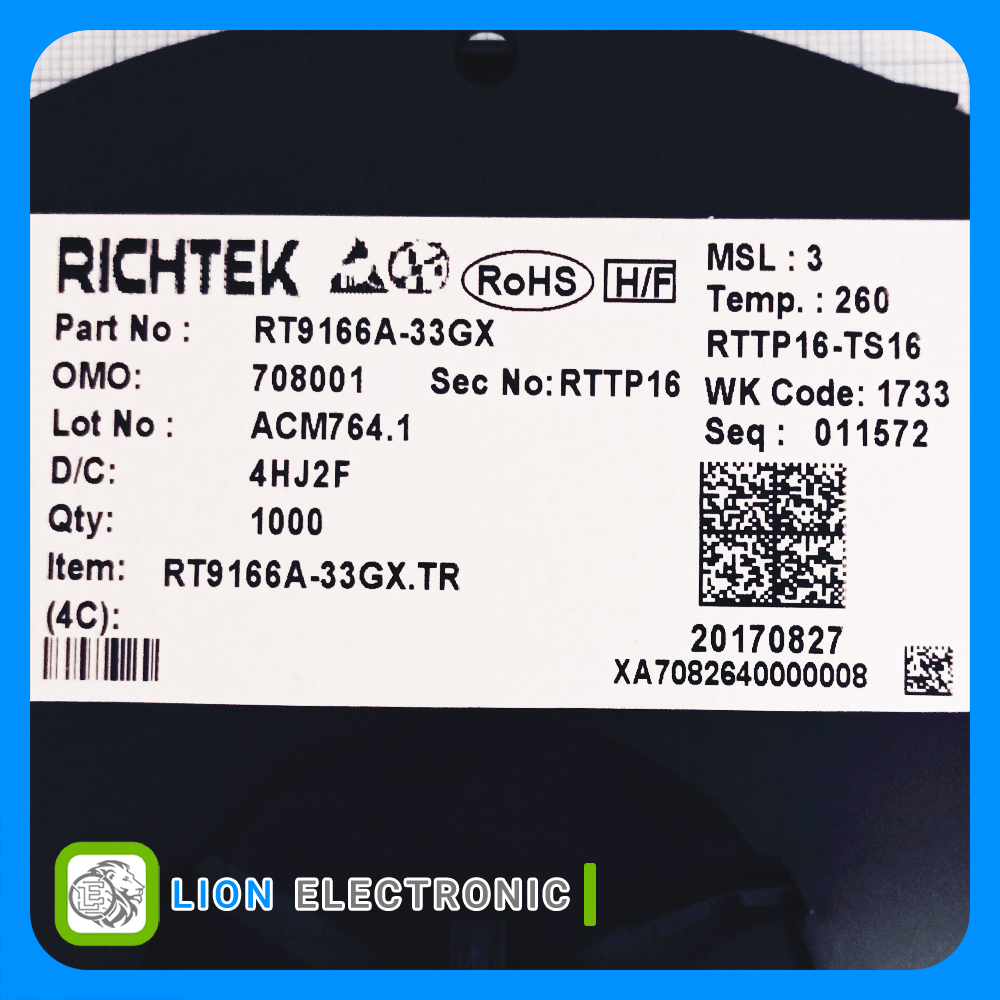

RT9166A-33GXL
RT9166A-33GXL
Part Number
2706
Lion Part
Datasheet
Richtek Technology Manufacture
رگولاتور LDO ثابت 3.3 ولت 600 میلیآمپر با پکیج SOT-89-3، پینبندی در تصاویر محصول

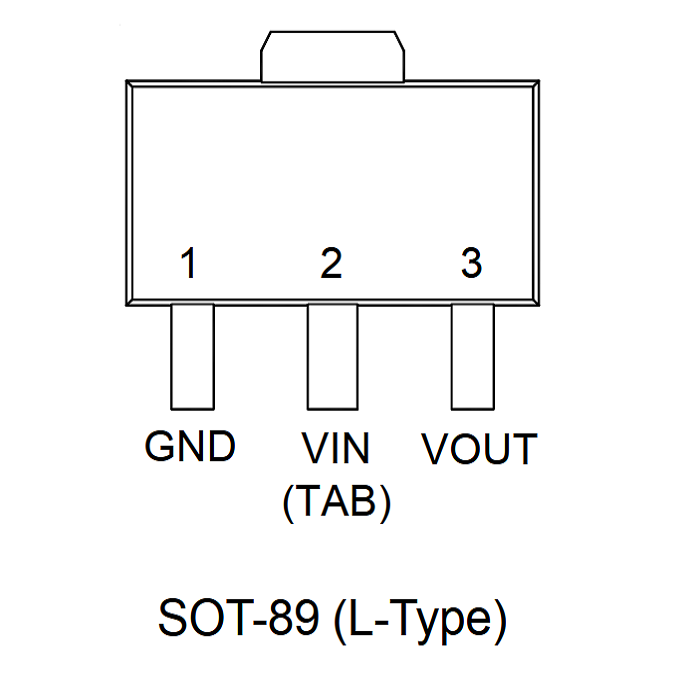

Fixed LDO Voltage Regulator 3.3V, 600mA with SOT-89-3 Package, pinout in product images
معرفی
رگولاتور LDO ثابت 3.3 ولت 600 میلیآمپر با پکیج SOT-89-3، پین بندی در تصاویر محصول
Fixed LDO Voltage Regulator 3.3V, 600mA with SOT-89-3 Package, pinout in product images
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-89
- Output Voltage: 3.3V
- Output Current: 600mA
- Dropout Voltage: 580mV
- Input Voltage Min: 2.8V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: -55dB
- Quiescent Current: 220uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور RT9166A-33GXL
رگولاتور RT9166A-33GXL
Part Number
-55dB
PSRR - Ripple Rejection - Typ
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
30mV
Load Regulation
Fixed
Output Type
220uA
Quiescent Current
0.2%/V
Line Regulation
2.8V
Input Voltage Min
580mV
Dropout Voltage
600mA
Output Current
3.3V
Output Voltage
SOT-89
Package-Case
