RT9166-33GVL
RT9166-33GVL
Part Number
2707
Lion Part
Datasheet
Richtek Technology Manufacture

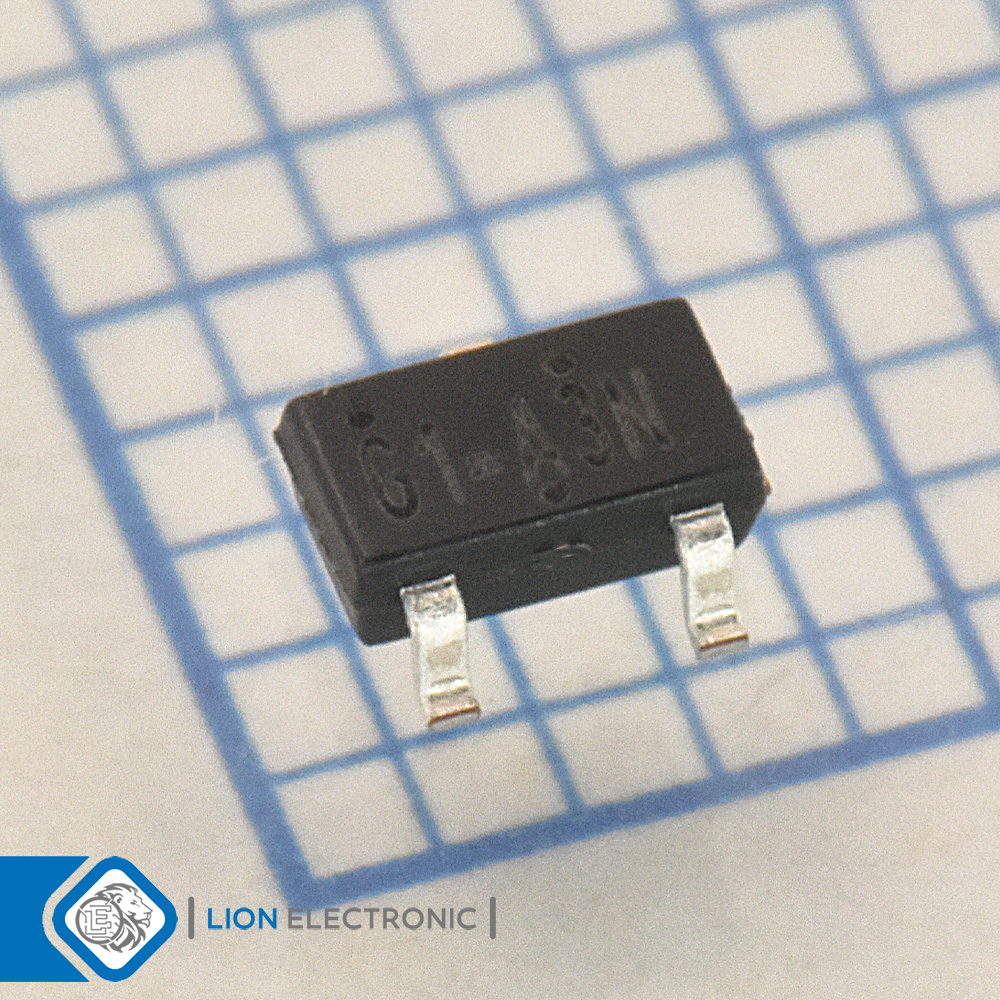

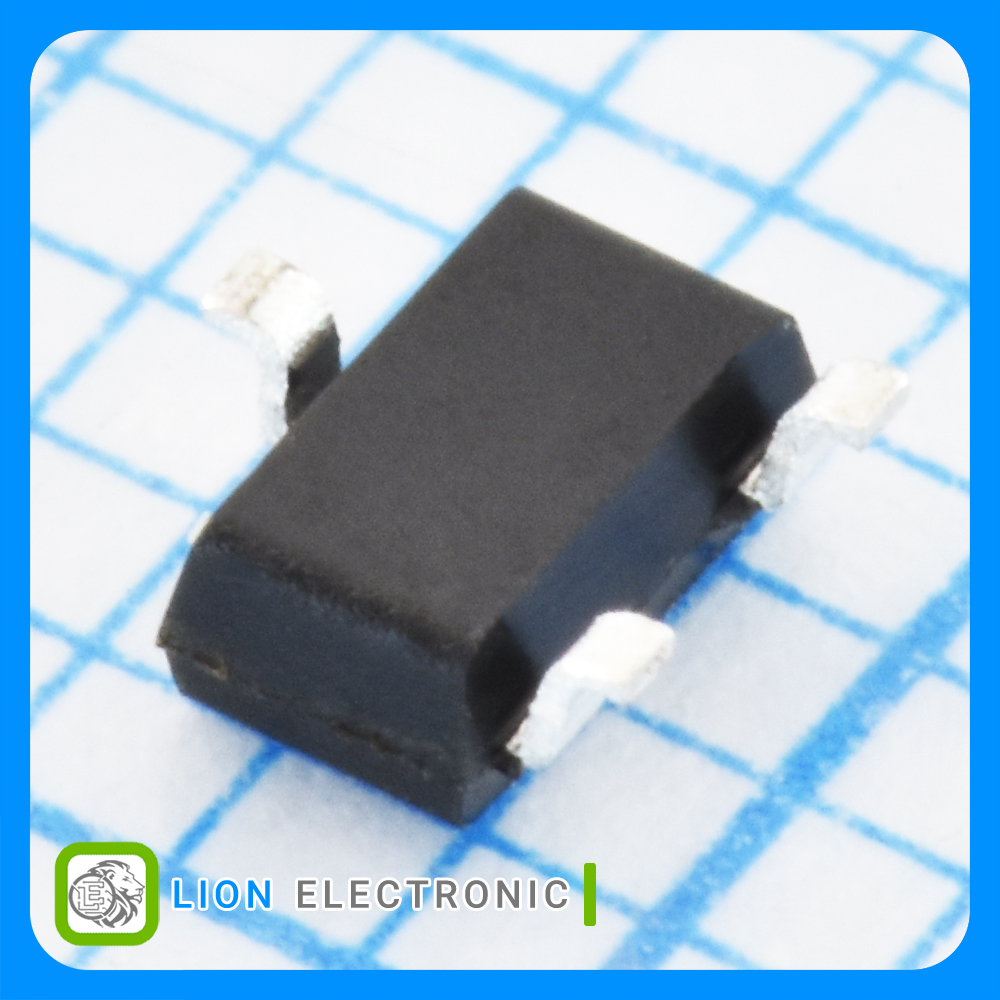

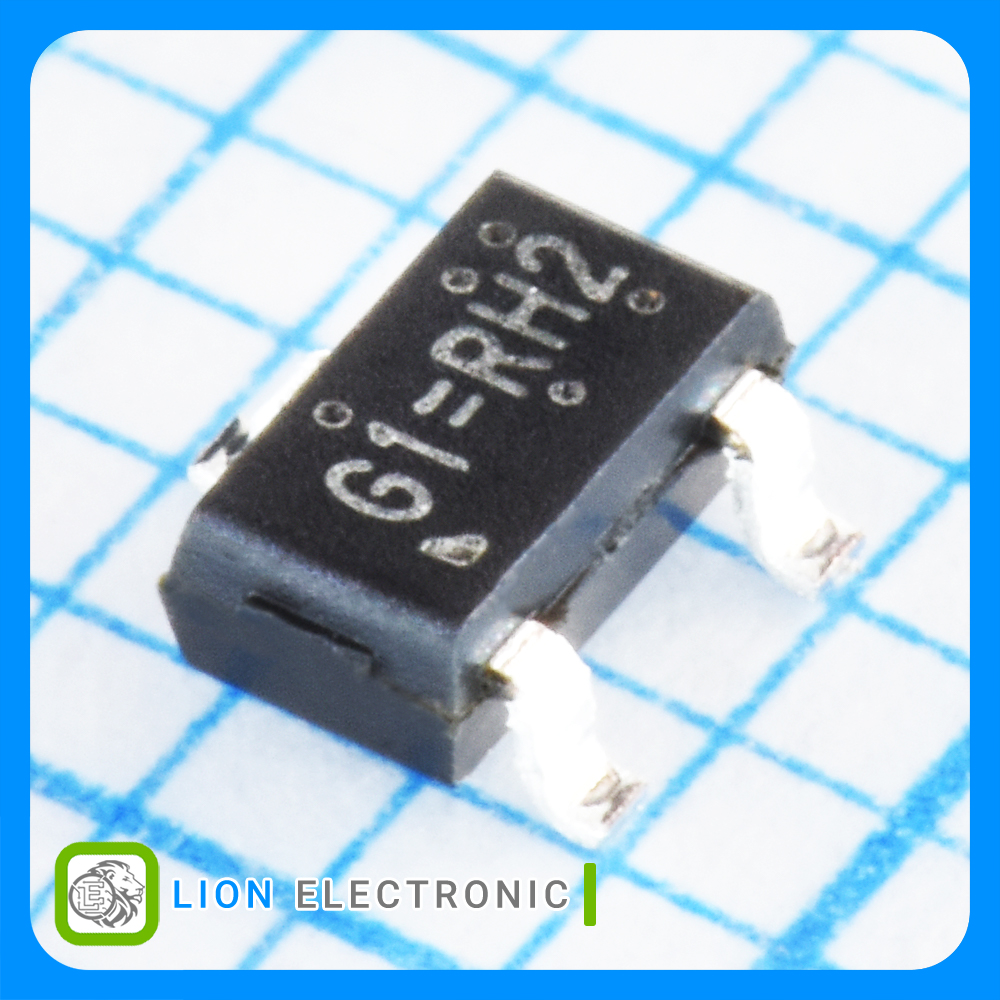

رگولاتور LDO ثابت 3.3 ولت 300 میلیآمپر با پکیج SOT-23-3، پینبندی در تصاویر محصول

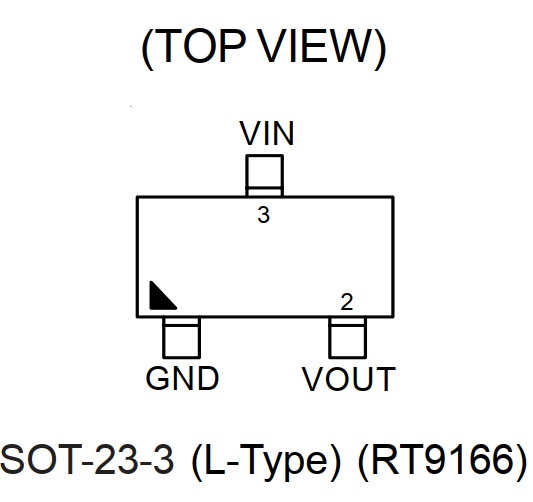

Fixed LDO Voltage Regulator 3.3V, 300mA with SOT-23-3 Package, pinout in product images
معرفی
رگولاتور LDO ثابت 3.3 ولت 300 میلیآمپر با پکیج SOT-23-3، پینبندی در تصاویر محصول
Fixed LDO Voltage Regulator 3.3V, 300mA with SOT-23-3 Package, pinout in product images
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-3
- Output Voltage: 3.3V
- Output Current: 300mA
- Dropout Voltage: 230mV
- Input Voltage Min: 2.8V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: -55dB
- Quiescent Current: 220uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور RT9166-33GVL
رگولاتور RT9166-33GVL
Part Number
1
Number of Outputs
-55dB
PSRR - Ripple Rejection - Typ
15mV
Load Regulation
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
5.5V
Input Voltage Max
+85C
Maximum Operating Temperature
Fixed
Output Type
230mV
Dropout Voltage
220uA
Quiescent Current
0.2%/V
Line Regulation
2.8V
Input Voltage Min
300mA
Output Current
3.3V
Output Voltage
SOT-23-3
Package-Case
