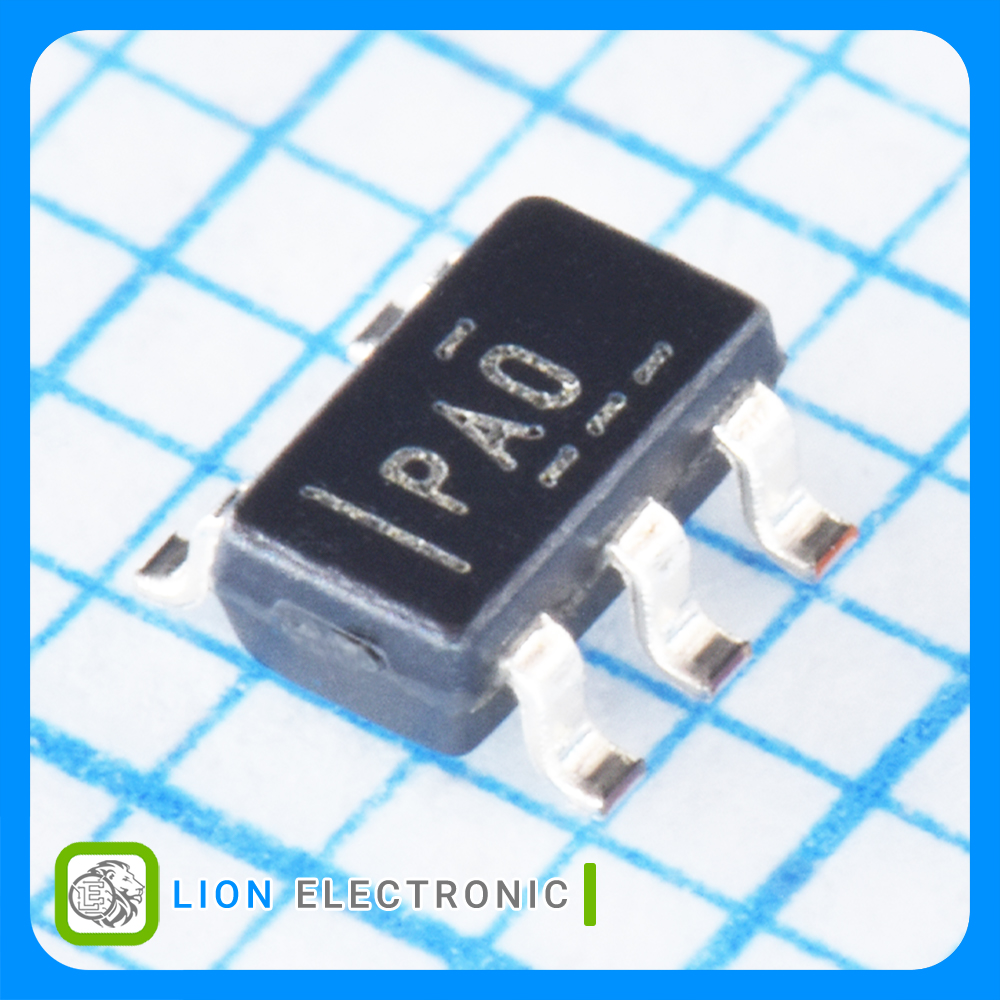

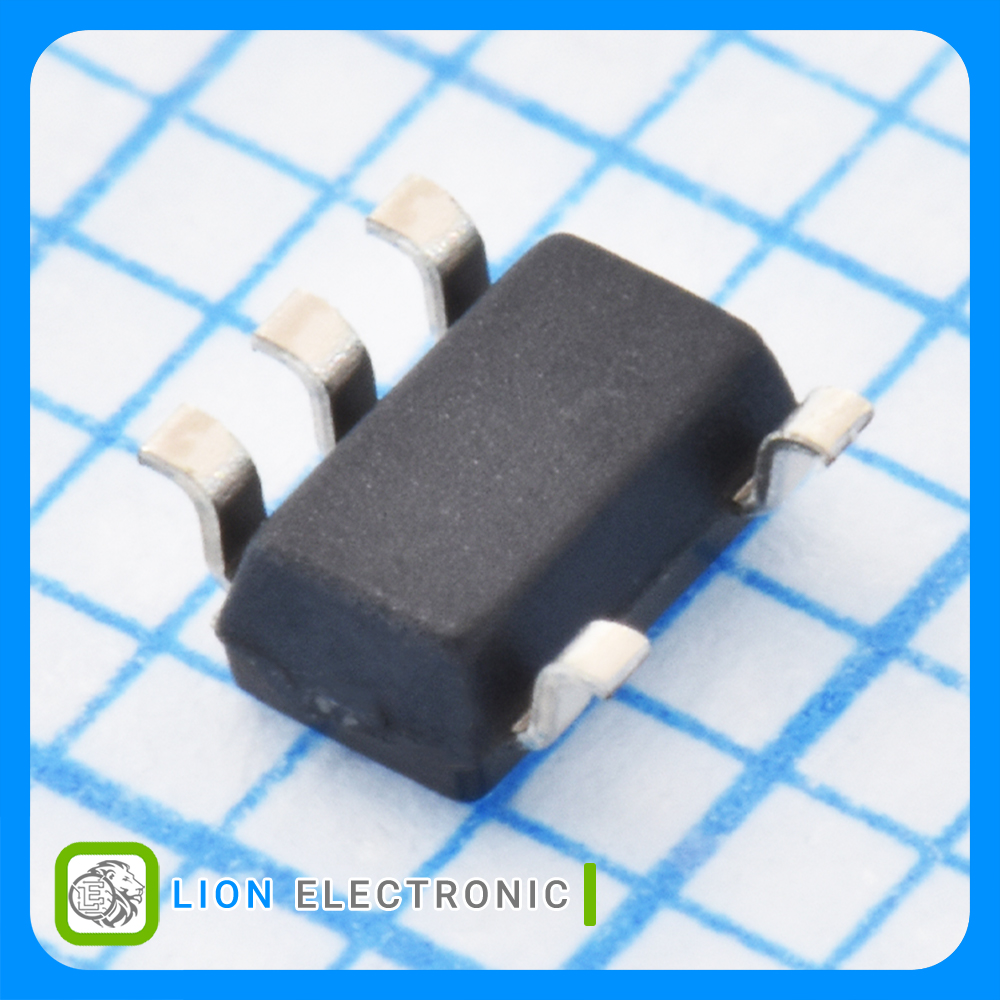

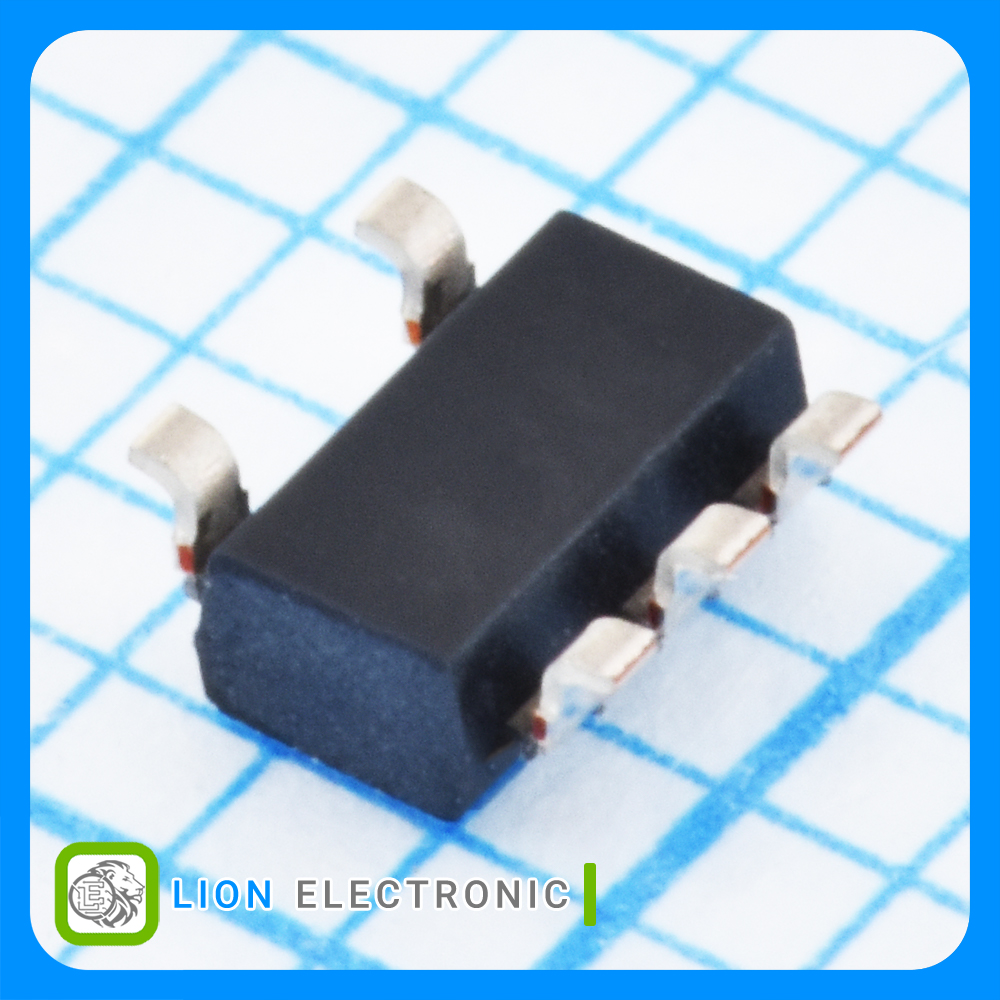

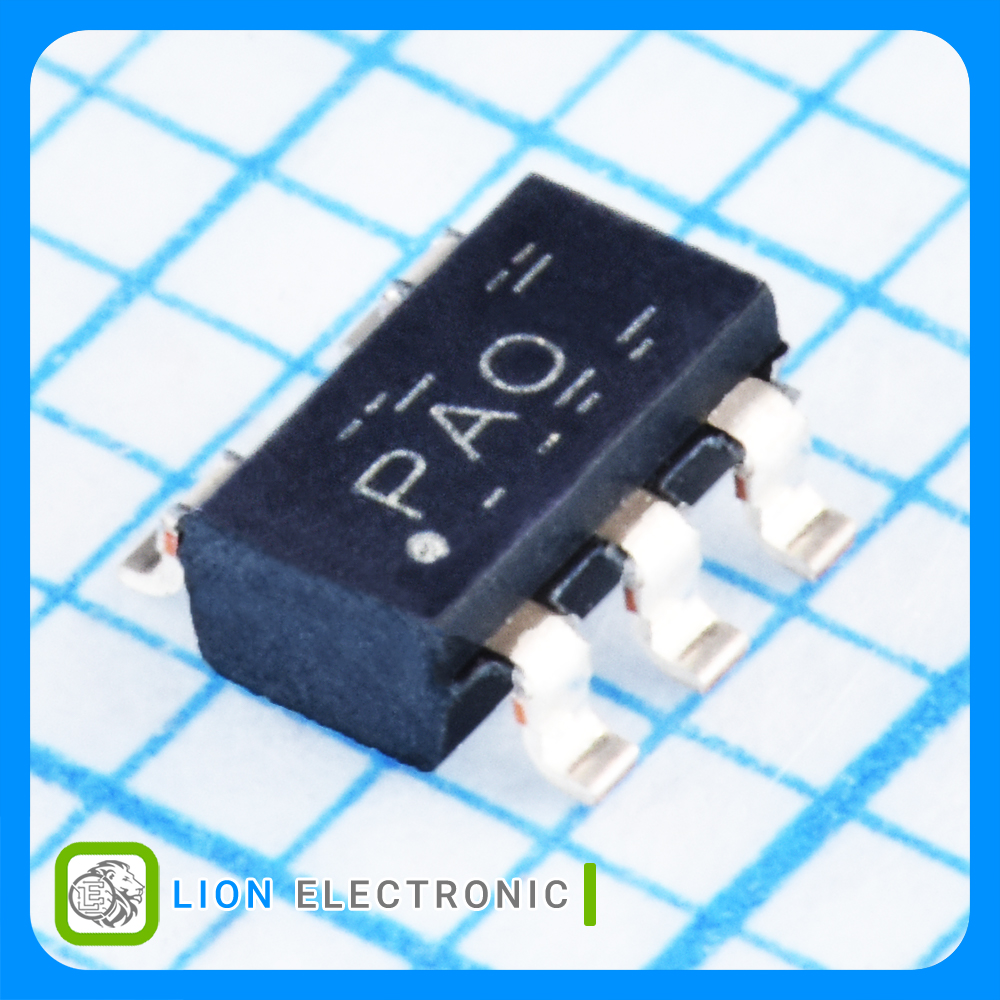

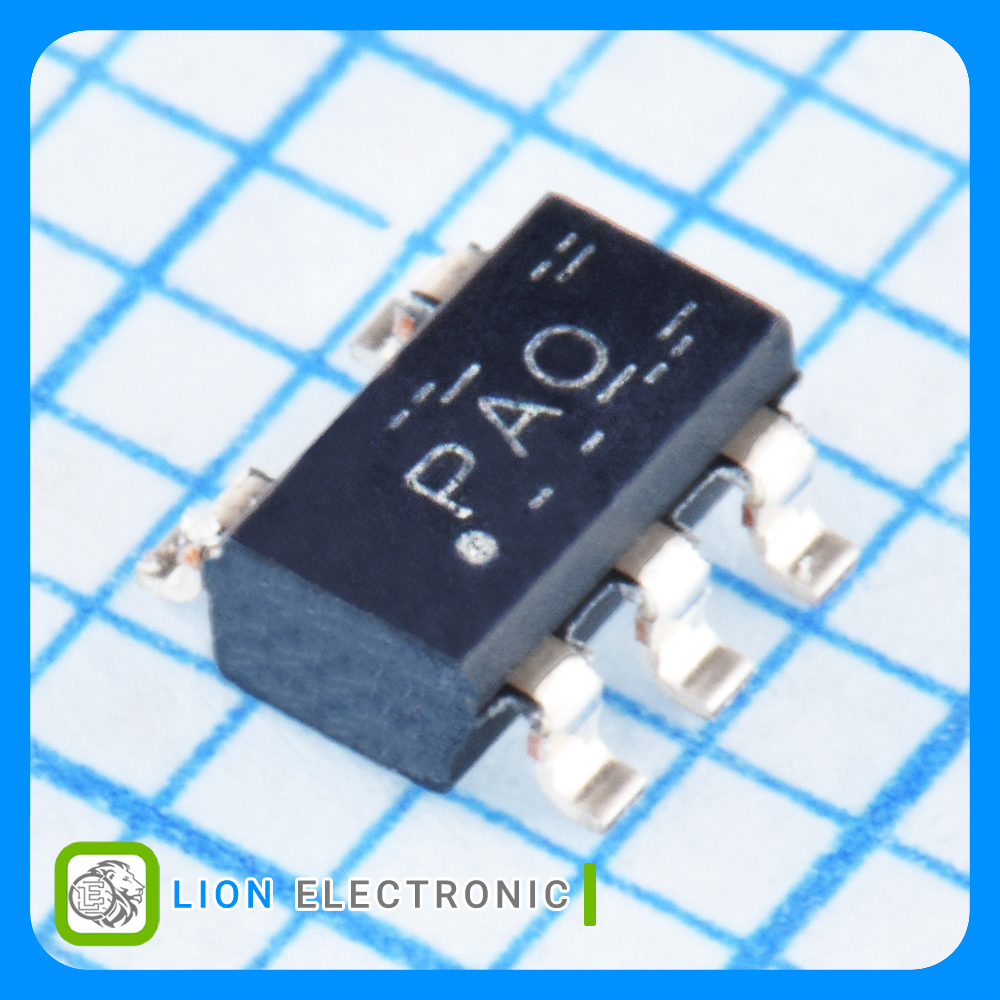

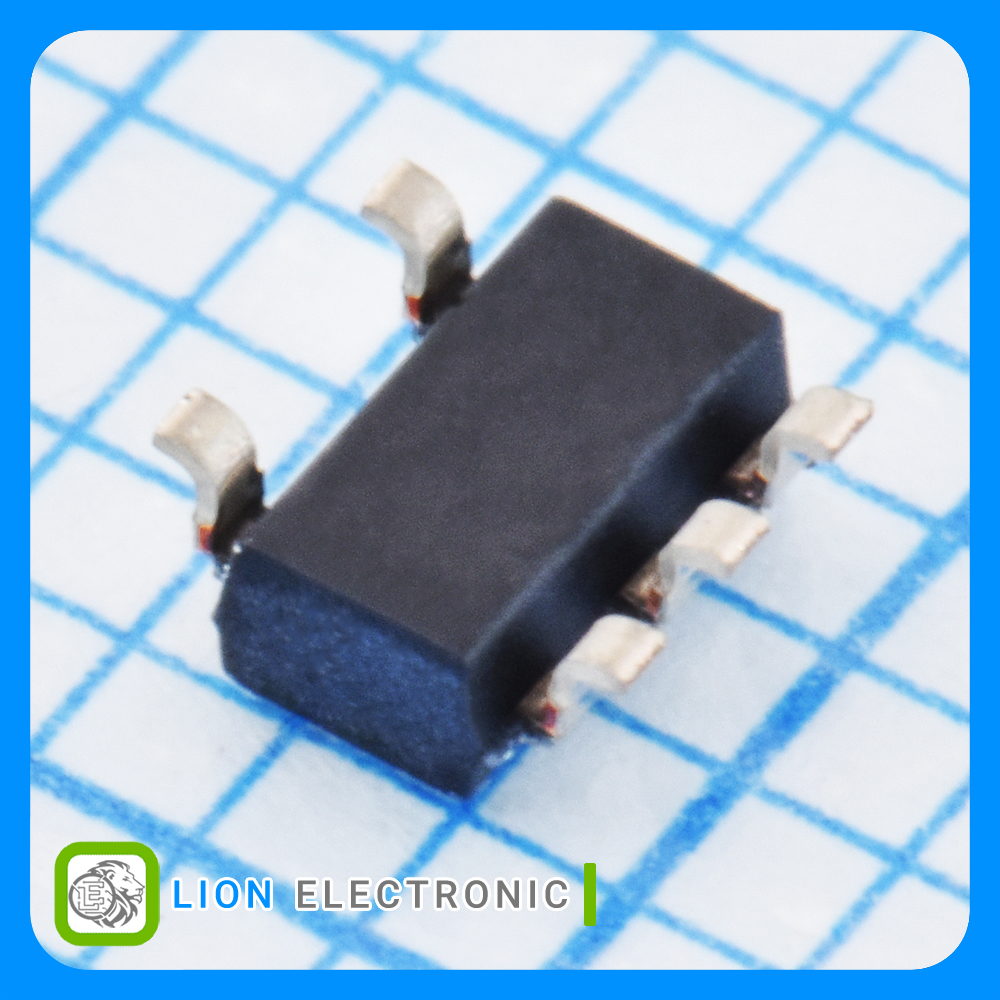

TLV70433DBV
TLV70433DBV
Part Number
2804
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 3.3 ولت 150 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 150mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 150 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 150mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 3.3V
- Output Current: 150mA
- Dropout Voltage: 400mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 24V
- PSRR / Ripple Rejection - Typ: 60dB
- Quiescent Current: 3.2uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور TLV70433DBV

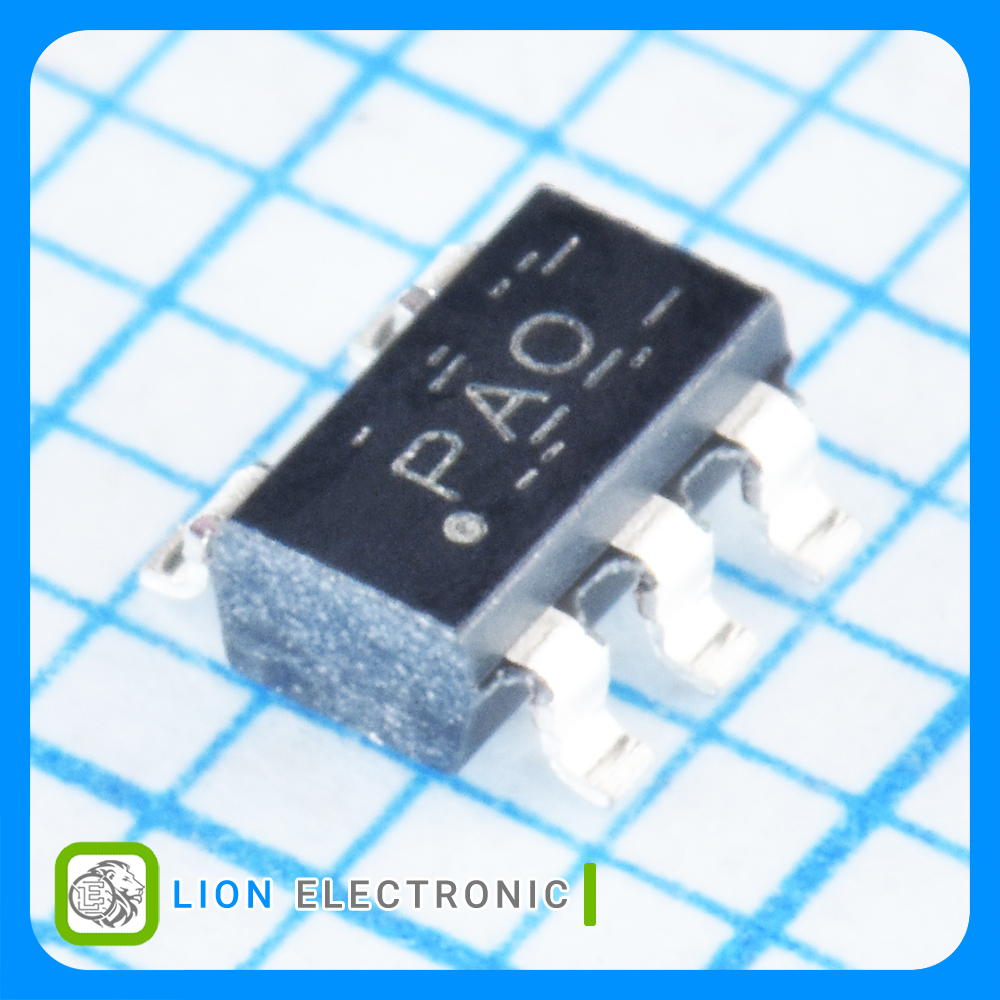

رگولاتور TLV70433DBV
Part Number
1
Number of Outputs
20mV
Line Regulation
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
33mV
Load Regulation
60dB
PSRR - Ripple Rejection - Typ
3.2uA
Quiescent Current
Fixed
Output Type
+125C
Maximum Operating Temperature
24V
Input Voltage Max
400mV
Dropout Voltage
2.5V
Input Voltage Min
150mA
Output Current
3.3V
Output Voltage
SOT-23-5
Package-Case
