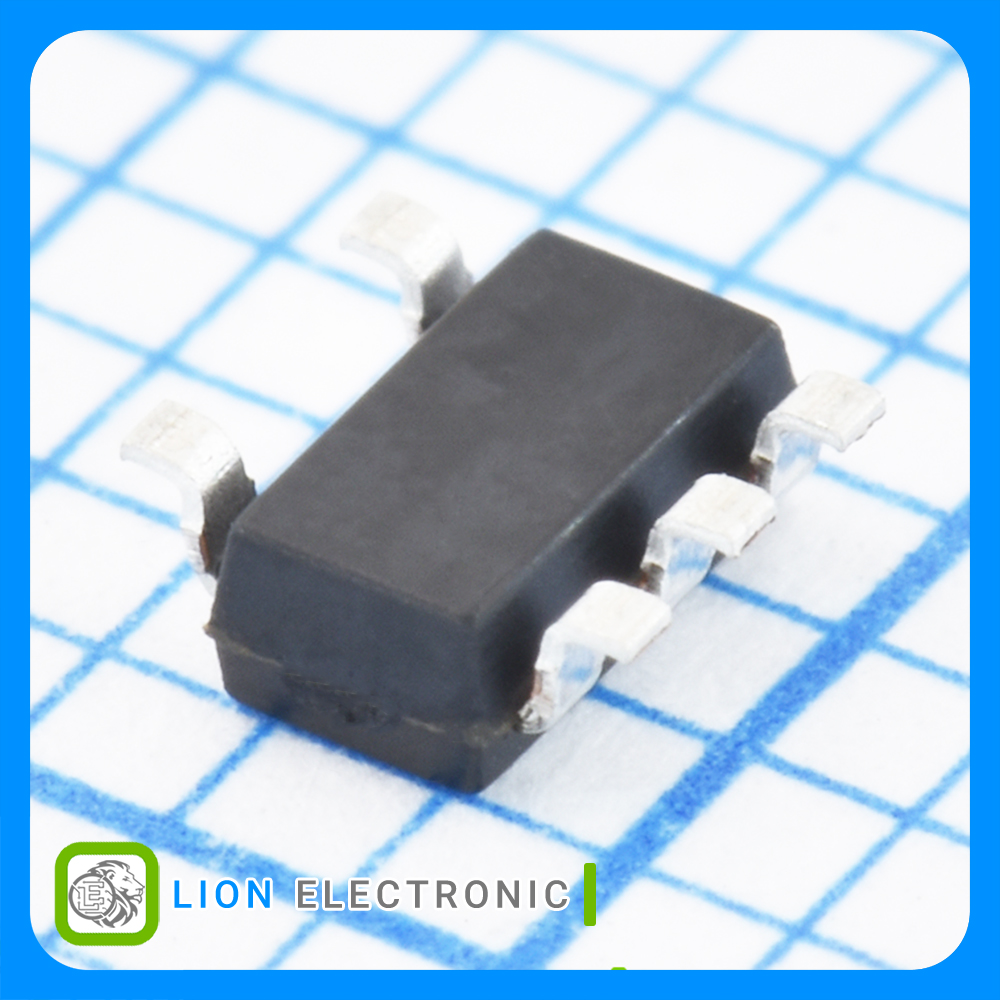

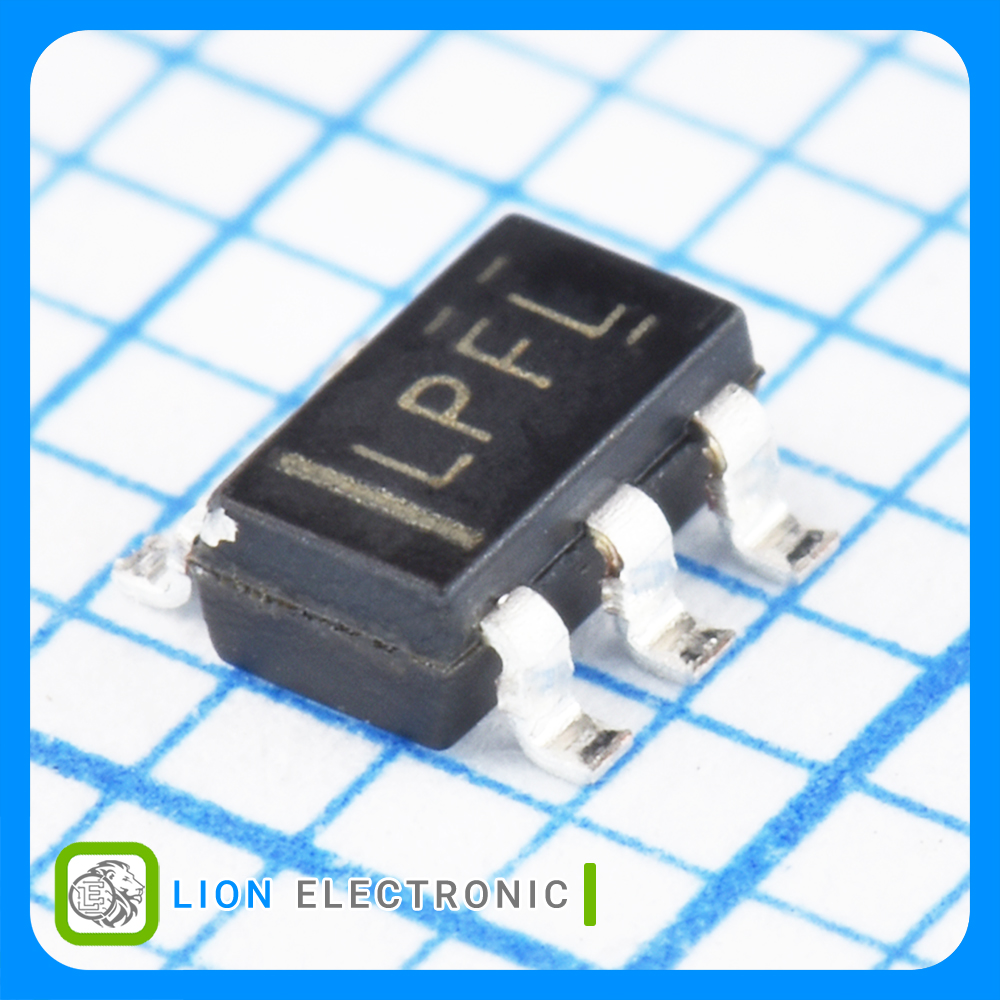

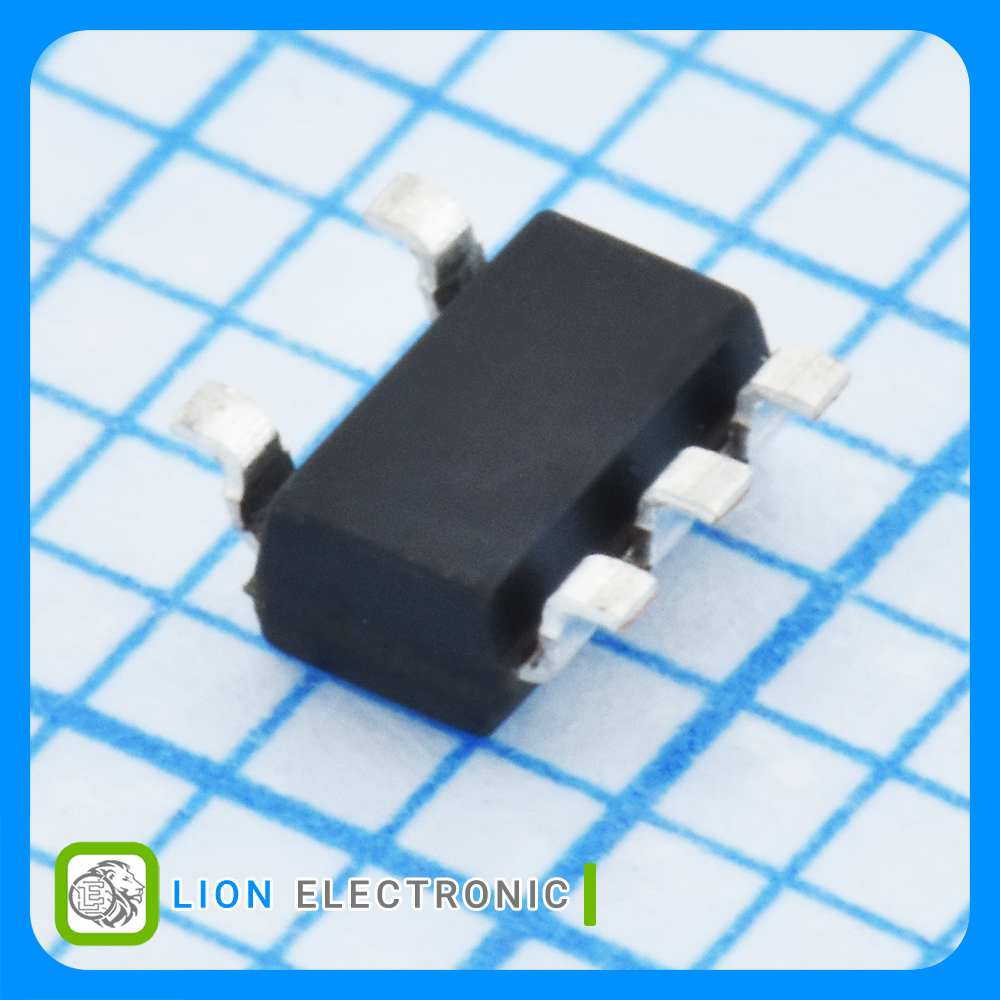

LP2985-33DBVRE4
LP2985-33DBVRE4
Part Number
2827
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 3.3 ولت 150 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 150mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 150 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 150mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 3.3V
- Output Current: 150mA
- Dropout Voltage: 280mV
- Input Voltage Min: 2.2V
- Input Voltage Max: 16V
- PSRR / Ripple Rejection - Typ: 78dB
- Quiescent Current: 850uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور LP2985-33DBVRE4

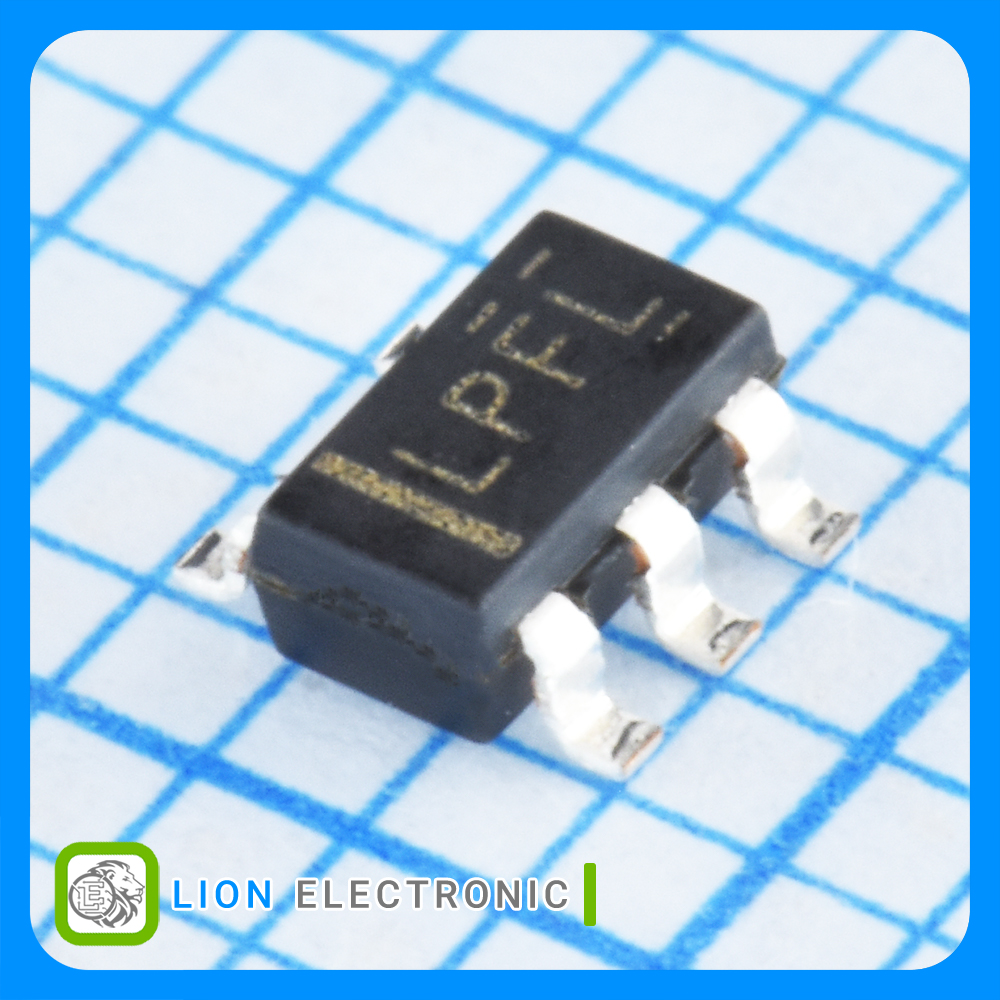

رگولاتور LP2985-33DBVRE4
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
Fixed
Output Type
+125C
Maximum Operating Temperature
16V
Input Voltage Max
280mV
Dropout Voltage
78dB
PSRR - Ripple Rejection - Typ
0.014%/V
Line Regulation
2.2V
Input Voltage Min
150mA
Output Current
-
Load Regulation
850uA
Quiescent Current
3.3V
Output Voltage
SOT-23-5
Package-Case
