MaxLinear
معرفی

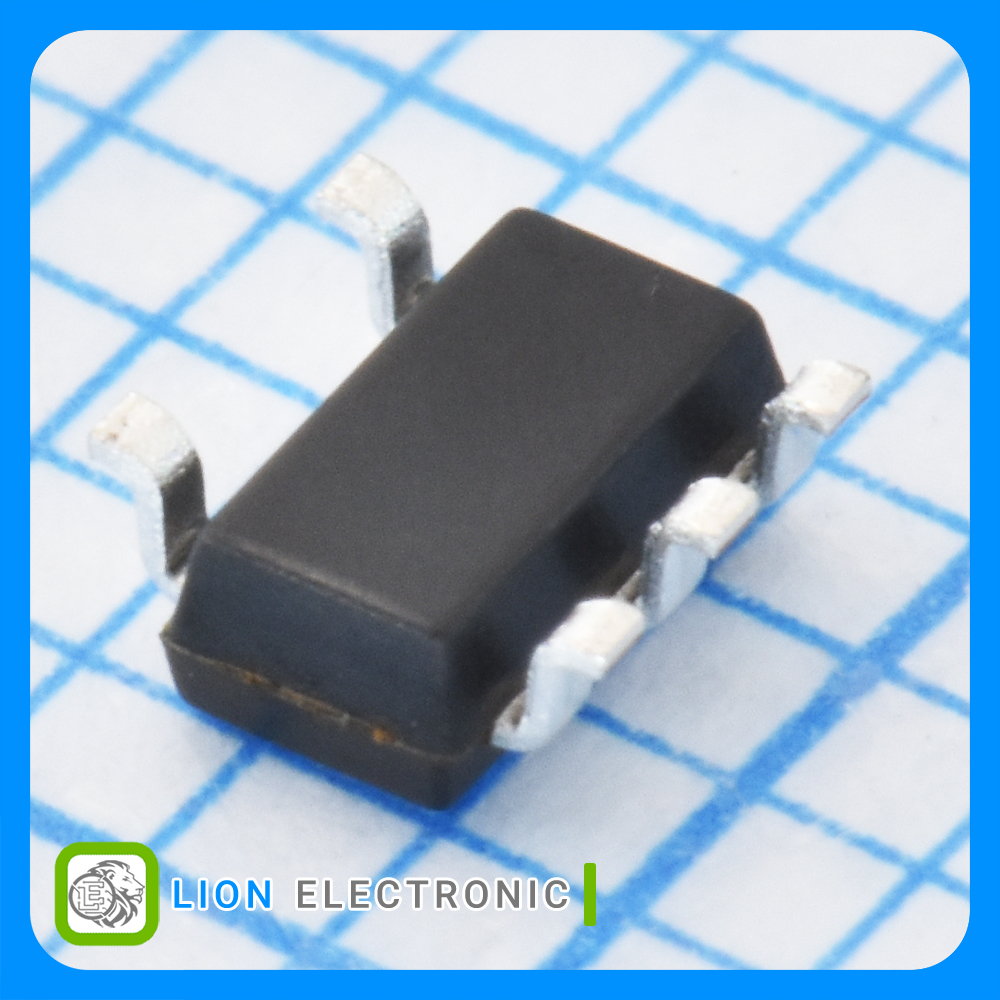

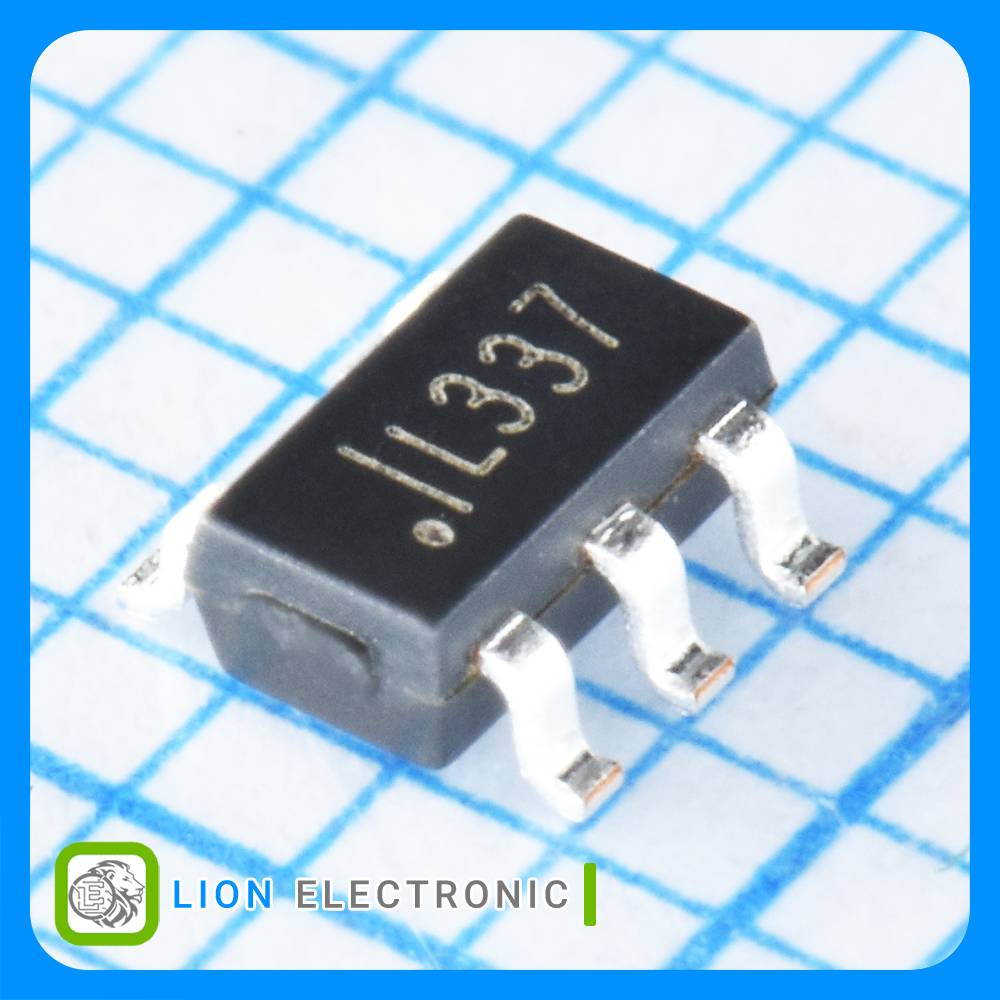

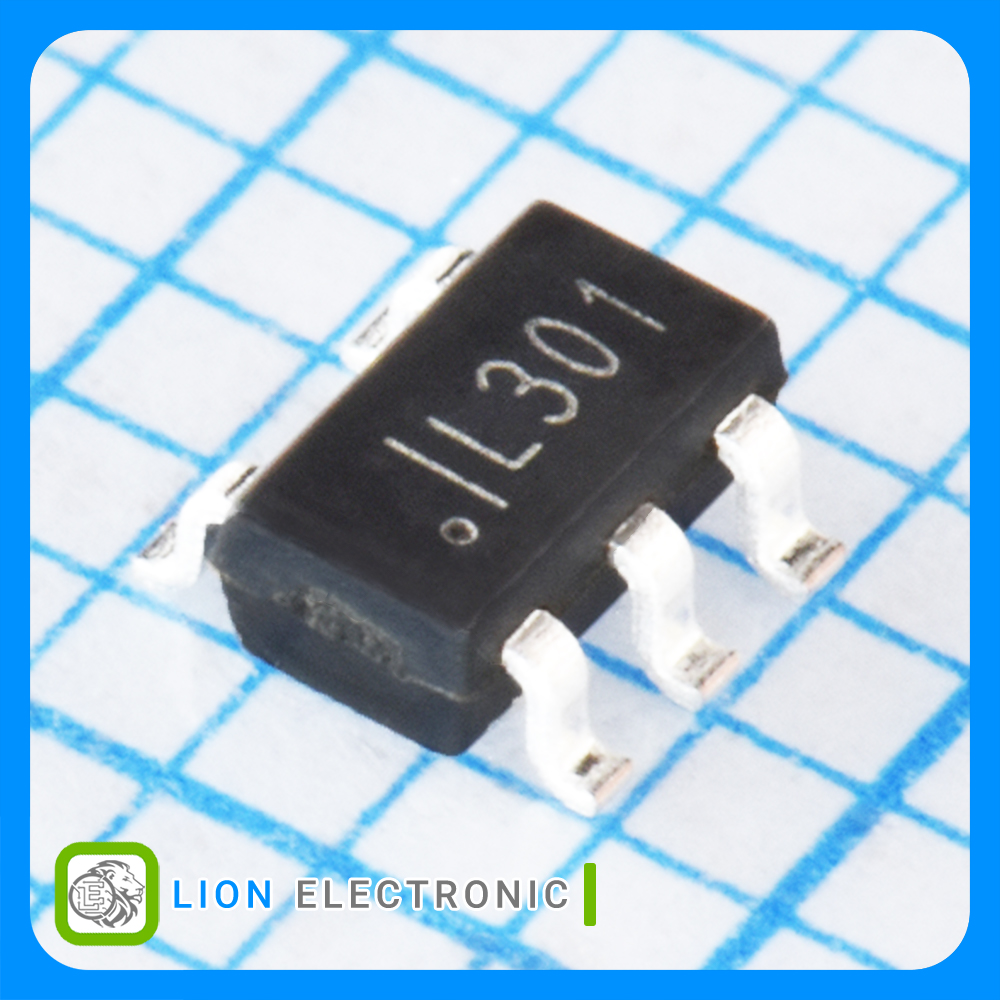

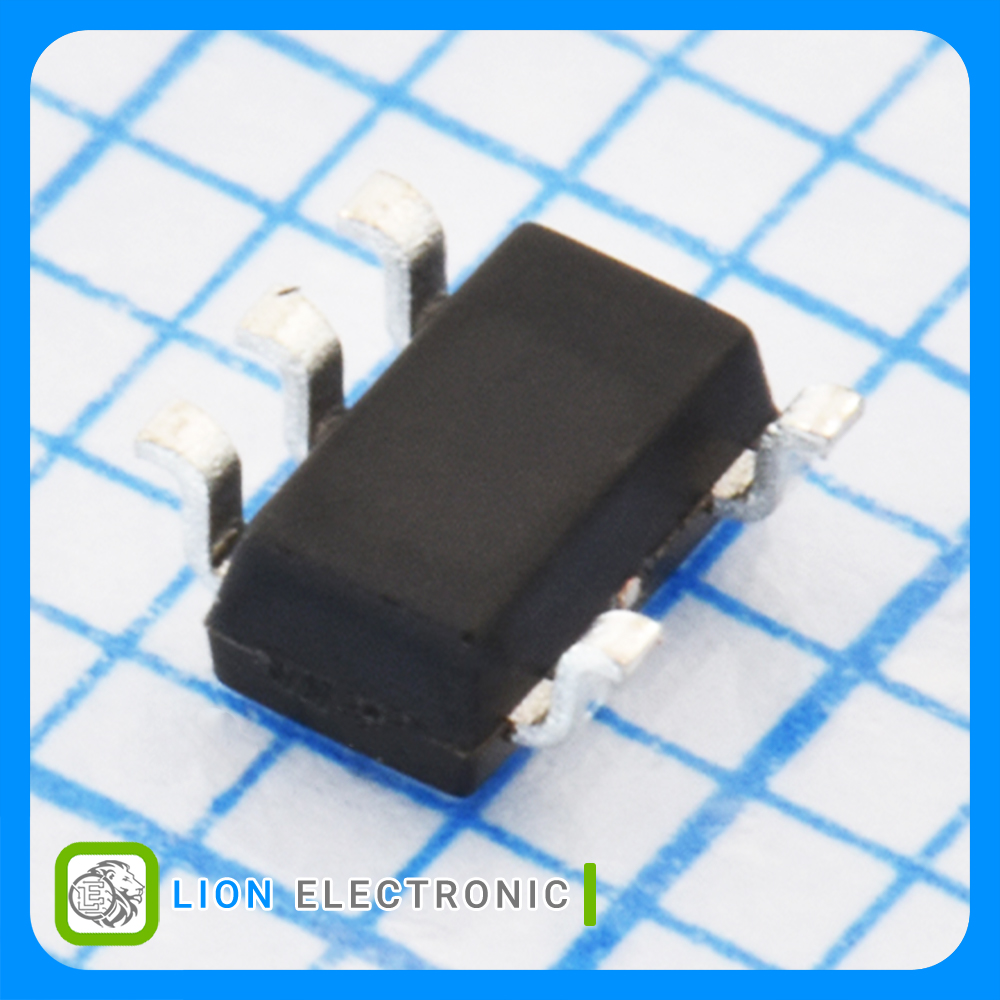

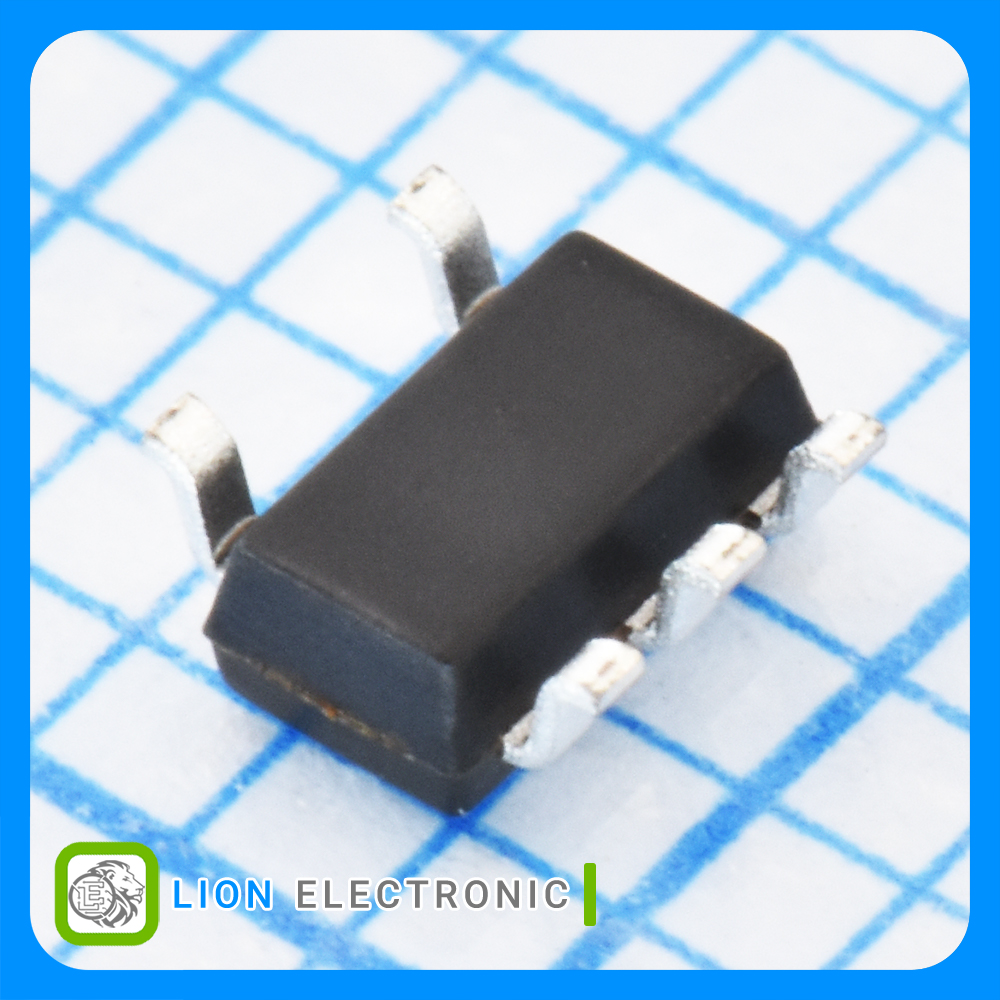

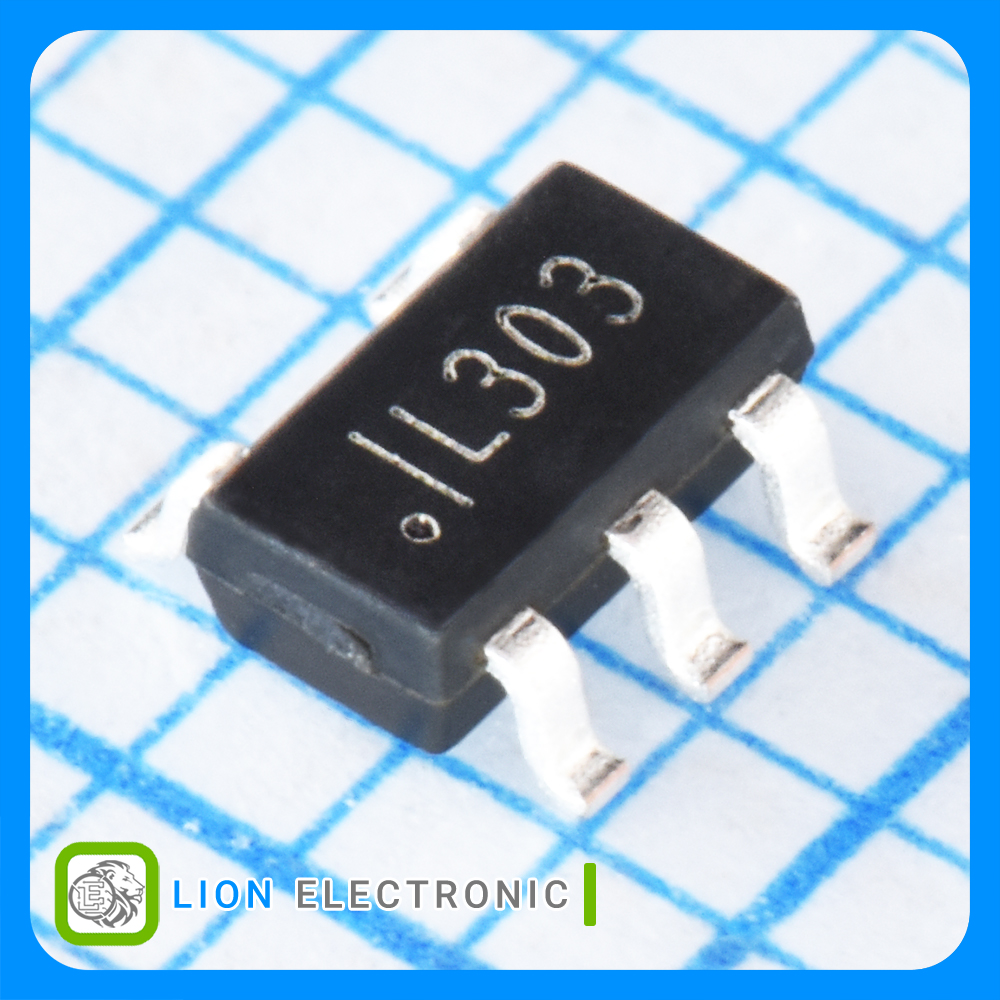

رگولاتور LDO ثابت 3.3 ولت 500 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 3.3V, 500mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 3.3V
- Output Current: 500mA
- Dropout Voltage: 340mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 16V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 90uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور SPX3819M5-L-3-3/TR

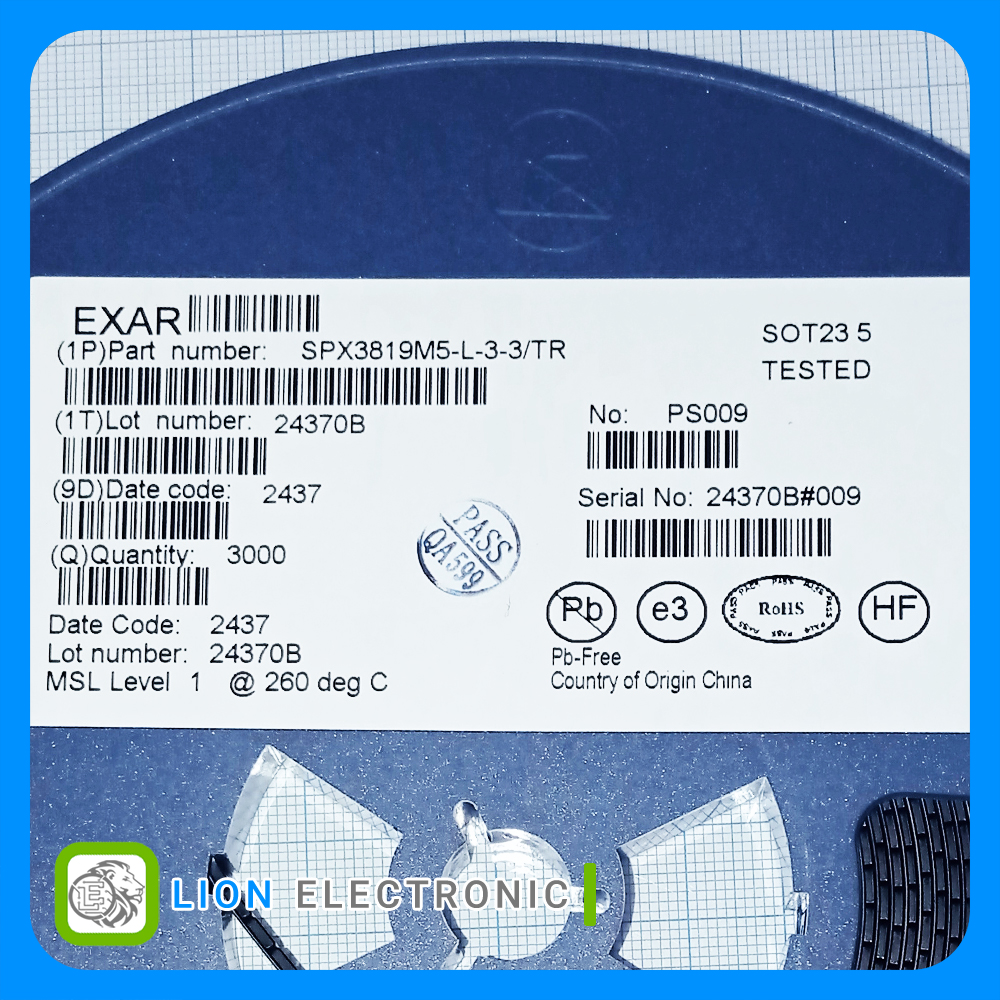

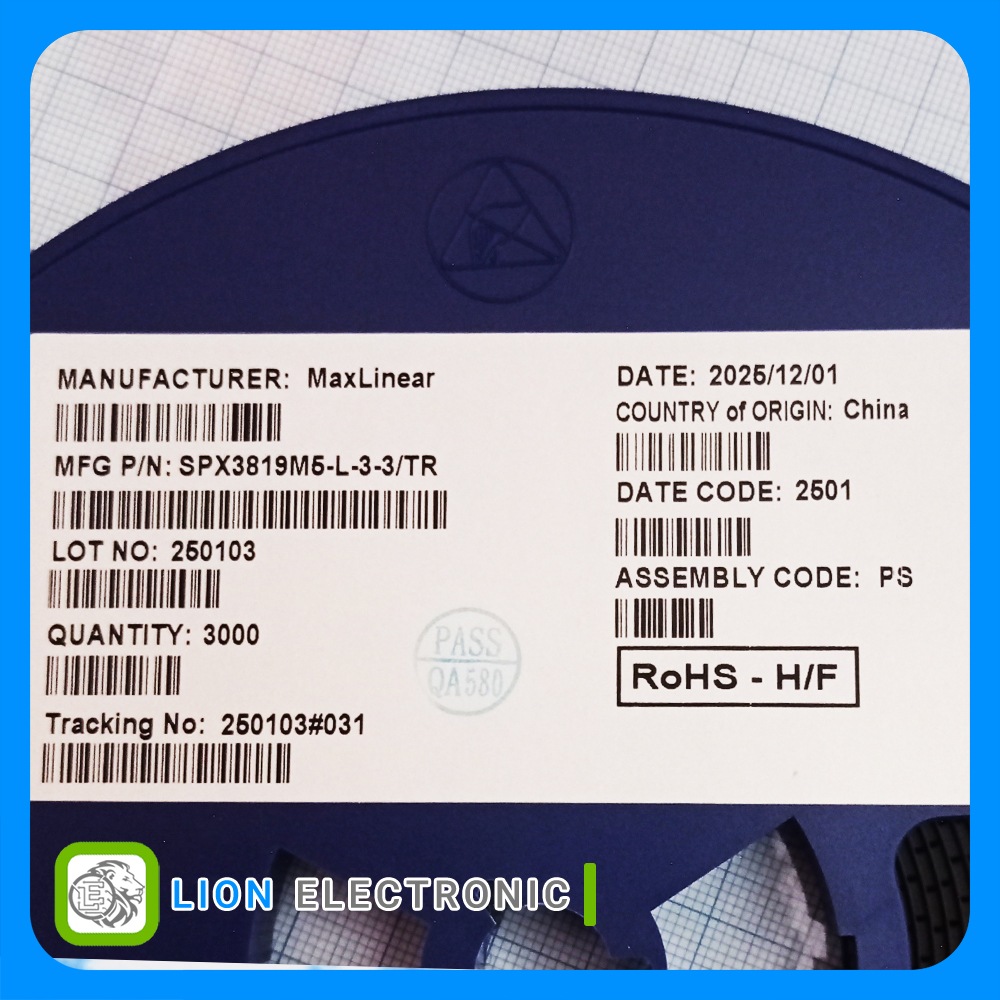

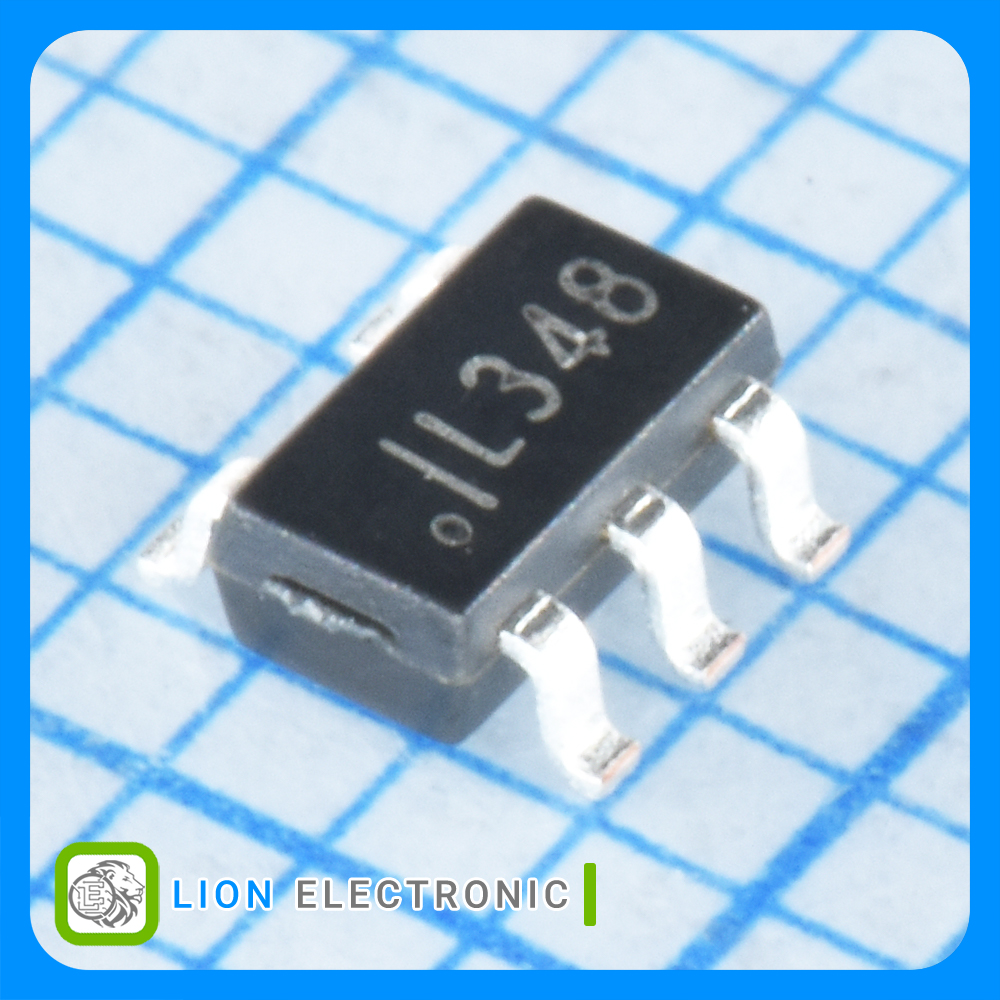

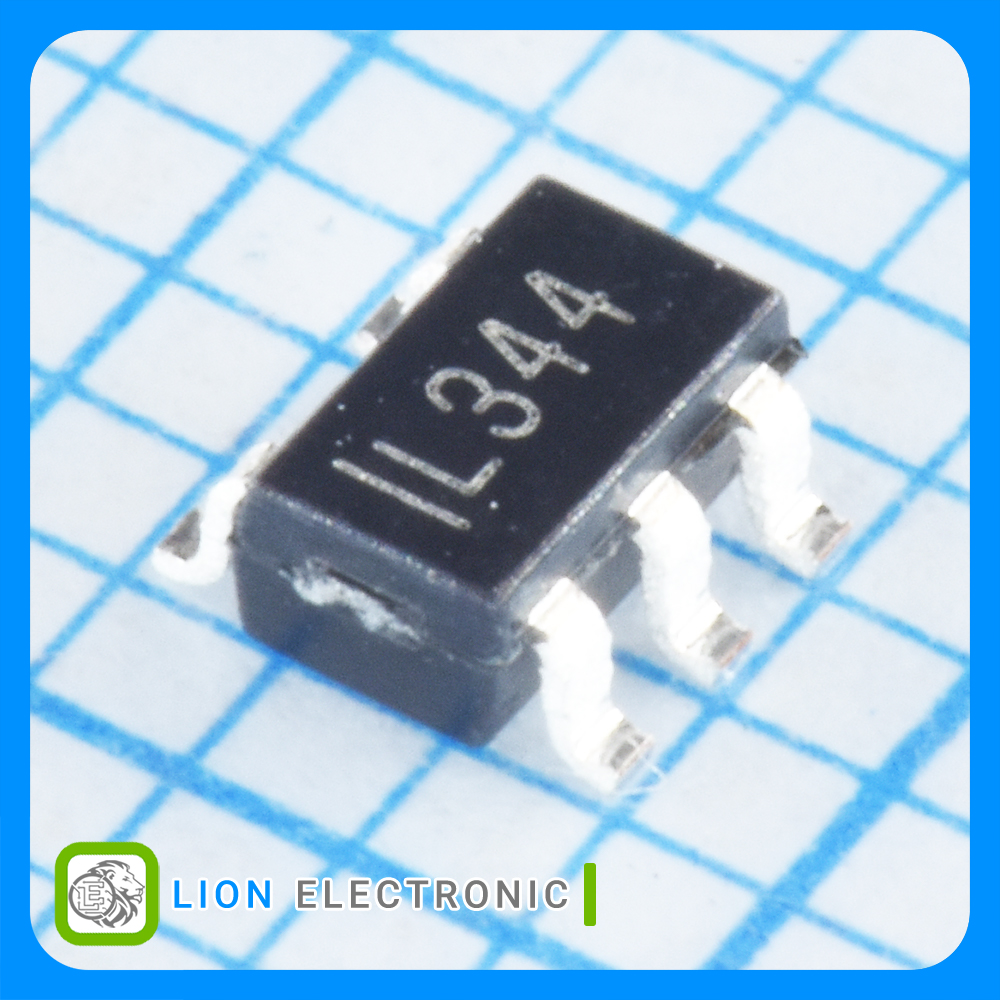

رگولاتور SPX3819M5-L-3-3/TR
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Fixed
Output Type
70dB
PSRR - Ripple Rejection - Typ
+125C
Maximum Operating Temperature
16V
Input Voltage Max
0.05 %
Load Regulation
340mV
Dropout Voltage
90uA
Quiescent Current
0.04 %/V
Line Regulation
2.5V
Input Voltage Min
500mA
Output Current
3.3V
Output Voltage
SOT-23-5
Package-Case
