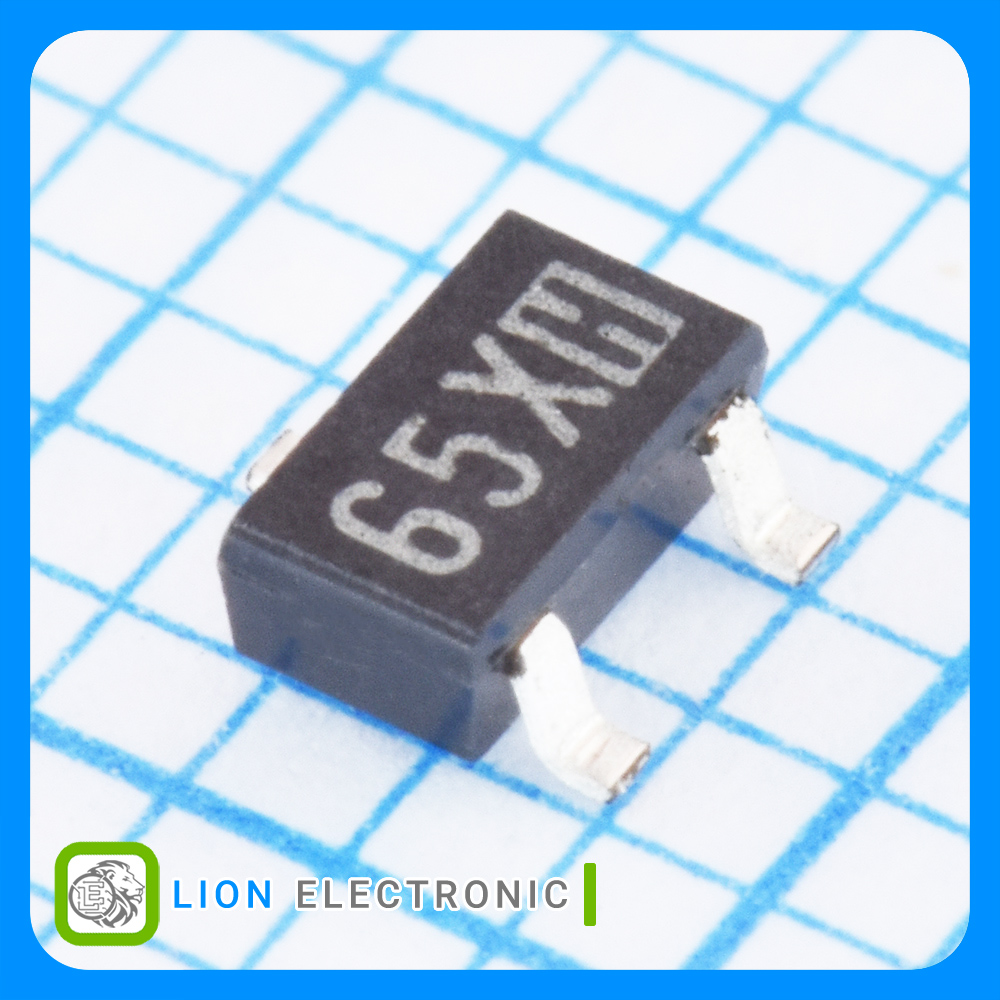

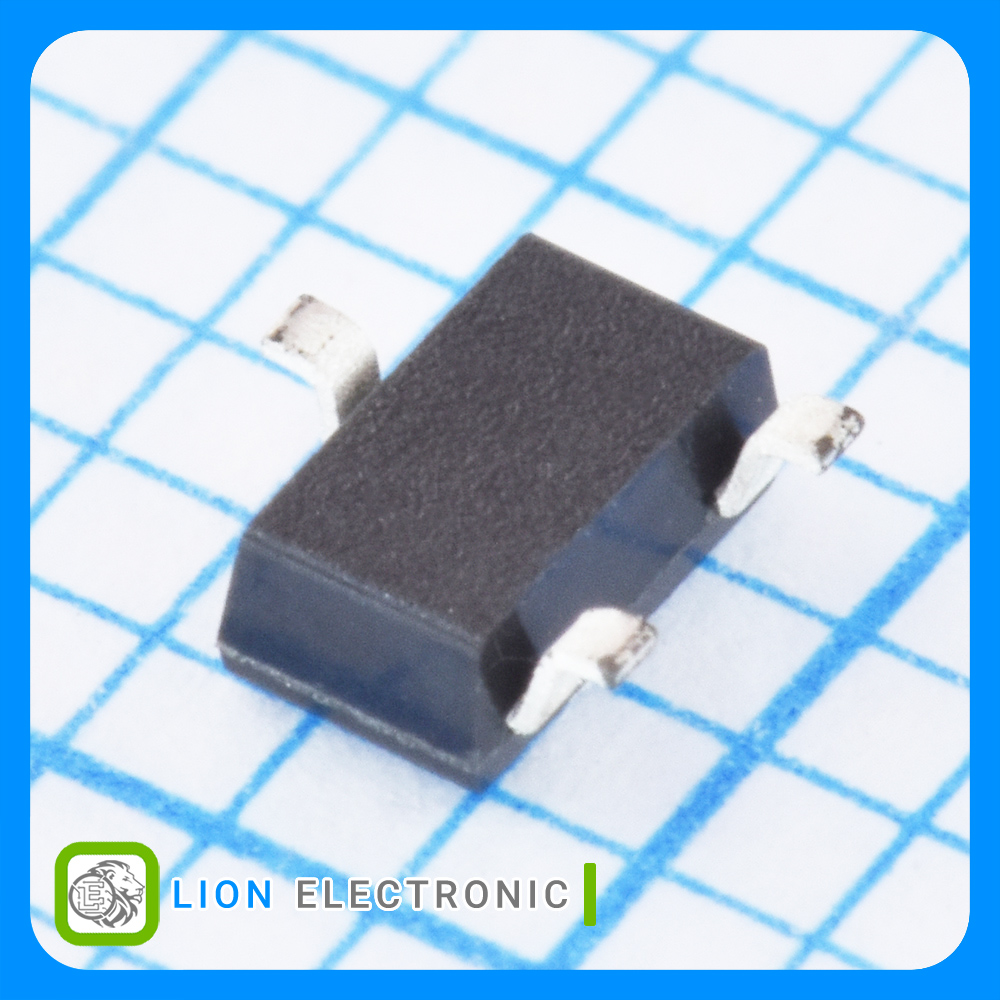

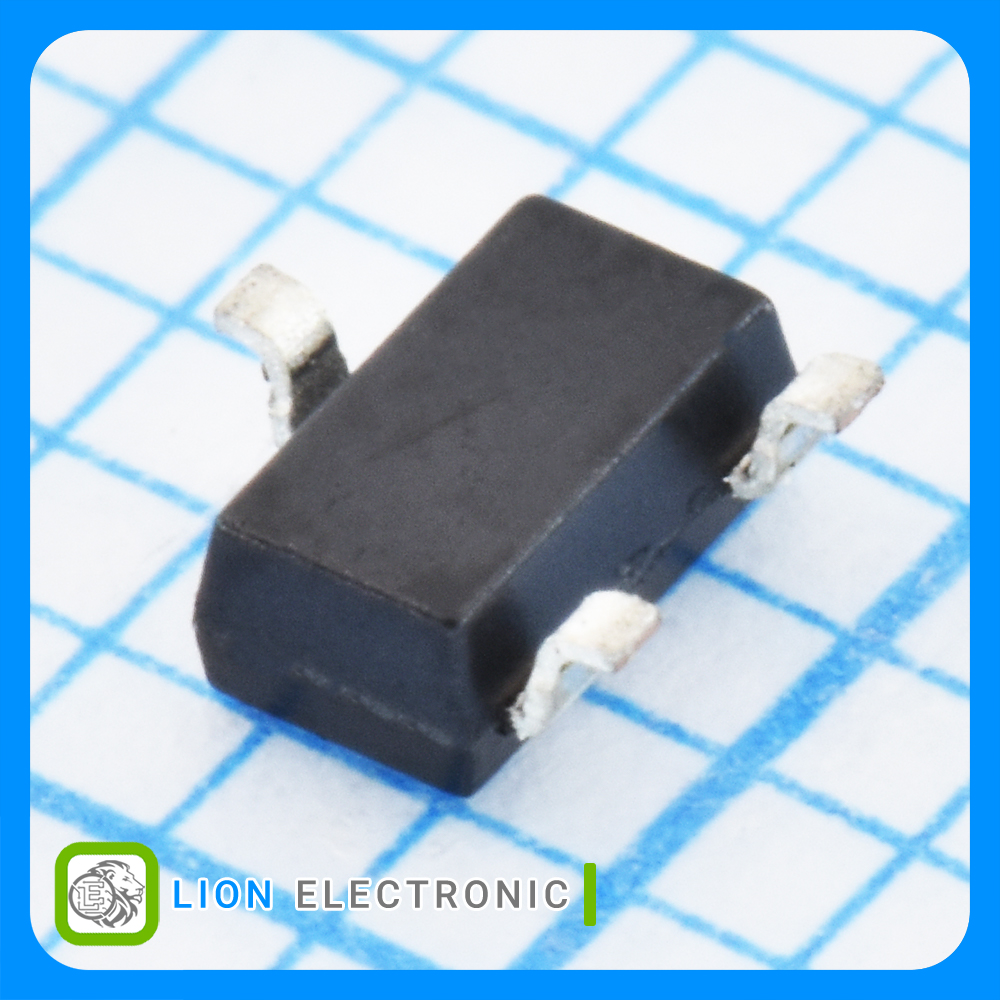

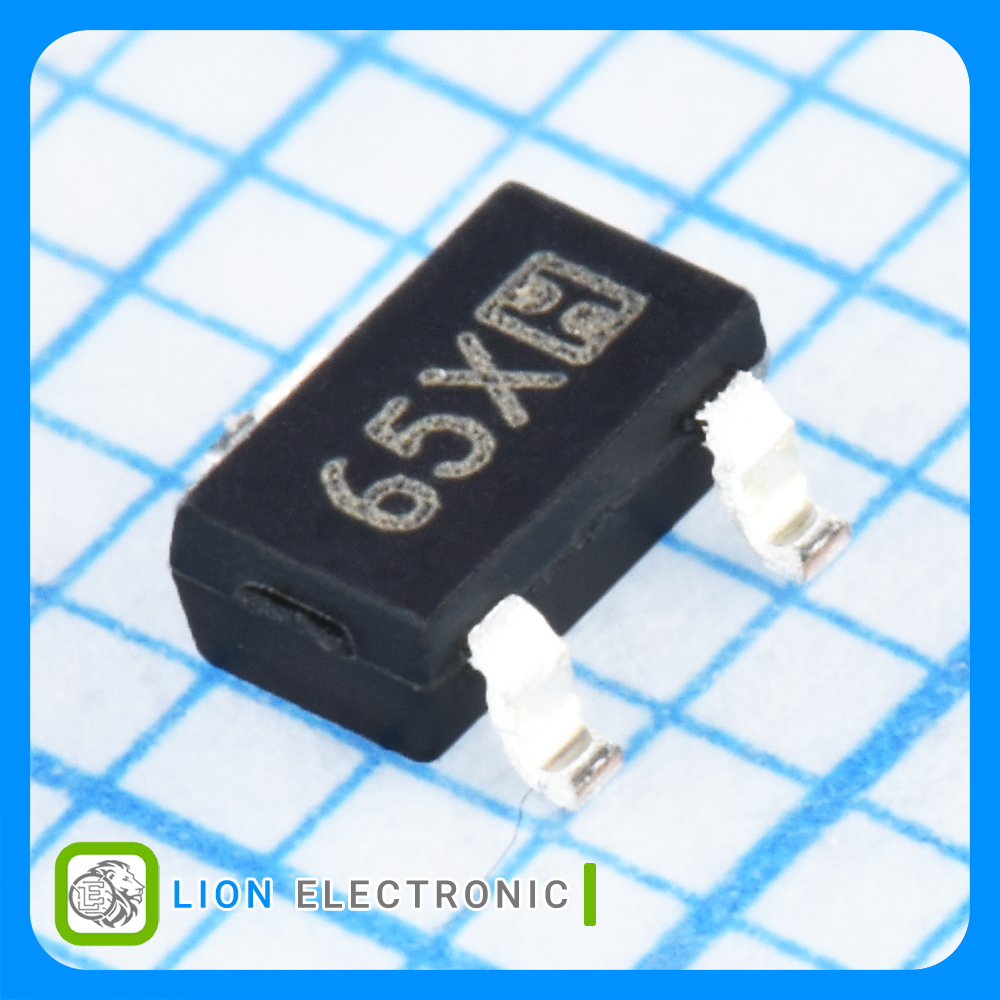

XC6206P282MR
XC6206P282MR
Part Number
3226
Lion Part
Datasheet
Torex Semiconductor Manufacture
رگولاتور LDO ثابت 2.8 ولت 200 میلیآمپر با پکیج SOT-23-3L
Fixed LDO Voltage Regulator 2.8V, 200mA with SOT-23-3L Package
معرفی
رگولاتور LDO ثابت 2.8 ولت 200 میلیآمپر با پکیج SOT-23-3L
Fixed LDO Voltage Regulator 2.8V, 200mA with SOT-23-3L Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-3
- Output Voltage: 2.8V
- Output Current: 200mA
- Dropout Voltage: 250mV
- Input Voltage Min: 2.9V
- Input Voltage Max: 6V
- Quiescent Current: 1uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور(LDO) XC6206P282MR
رگولاتور(LDO) XC6206P282MR
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
1uA
Quiescent Current
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
6V
Input Voltage Max
Fixed
Output Type
250mV
Dropout Voltage
N/A
PSRR - Ripple Rejection - Typ
200mA
Output Current
2.9V
Input Voltage Min
2.8V
Output Voltage
SOT-23-3
Package-Case
