BD3571FP-E2
BD3571FP-E2
Part Number
4139
Lion Part
Datasheet
ROHM Semiconductor Manufacture

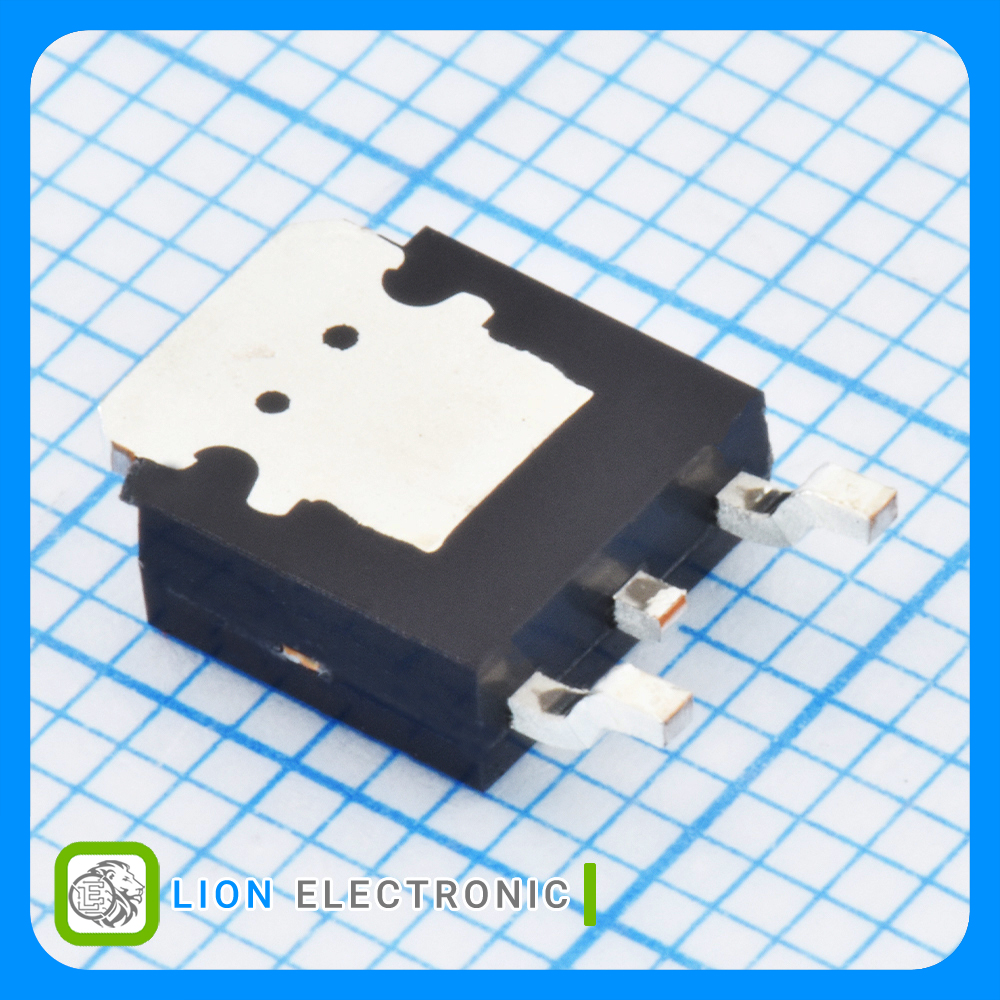

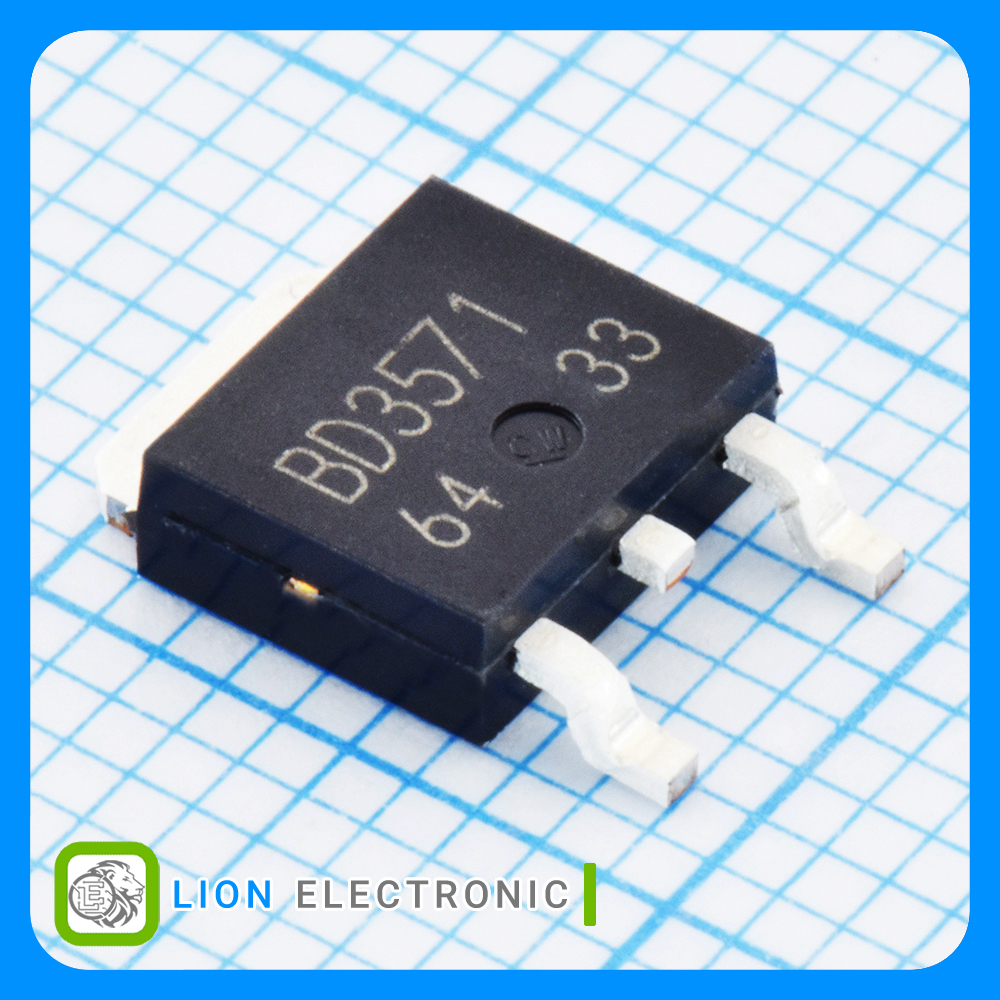

رگولاتور LDO ثابت 5 ولت 500 میلیآمپر با پکیج TO-252-3
Fixed High Voltage LDO Voltage Regulator 5V, 500mA with TO-252-3 Package
معرفی
رگولاتور LDO ثابت 5 ولت 500 میلیآمپر با پکیج TO-252-3
Fixed High Voltage LDO Voltage Regulator 5V, 500mA with TO-252-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: DPAK
- Output Voltage: 5V
- Output Current: 500mA
- Dropout Voltage: 250mV
- Input Voltage Min: 5.5V
- Input Voltage Max: 36V
- PSRR / Ripple Rejection - Typ: 55dB
- Quiescent Current: 30uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) BD3571FP-E2
رگولاتور(LDO) BD3571FP-E2
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
55dB
PSRR - Ripple Rejection - Typ
Fixed
Output Type
+125C
Maximum Operating Temperature
250mV
Dropout Voltage
30uA
Quiescent Current
36V
Input Voltage Max
500mA
Output Current
5.5V
Input Voltage Min
DPAK
Package-Case
5V
Output Voltage
