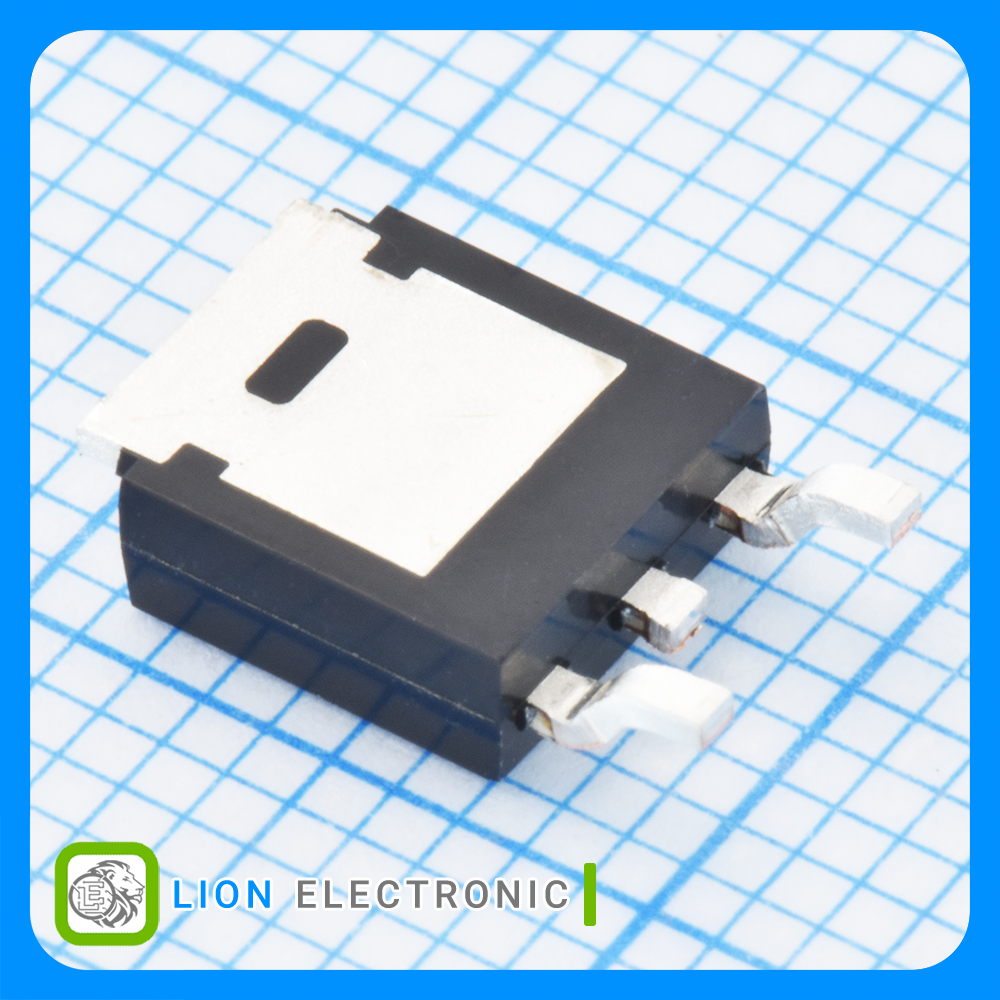

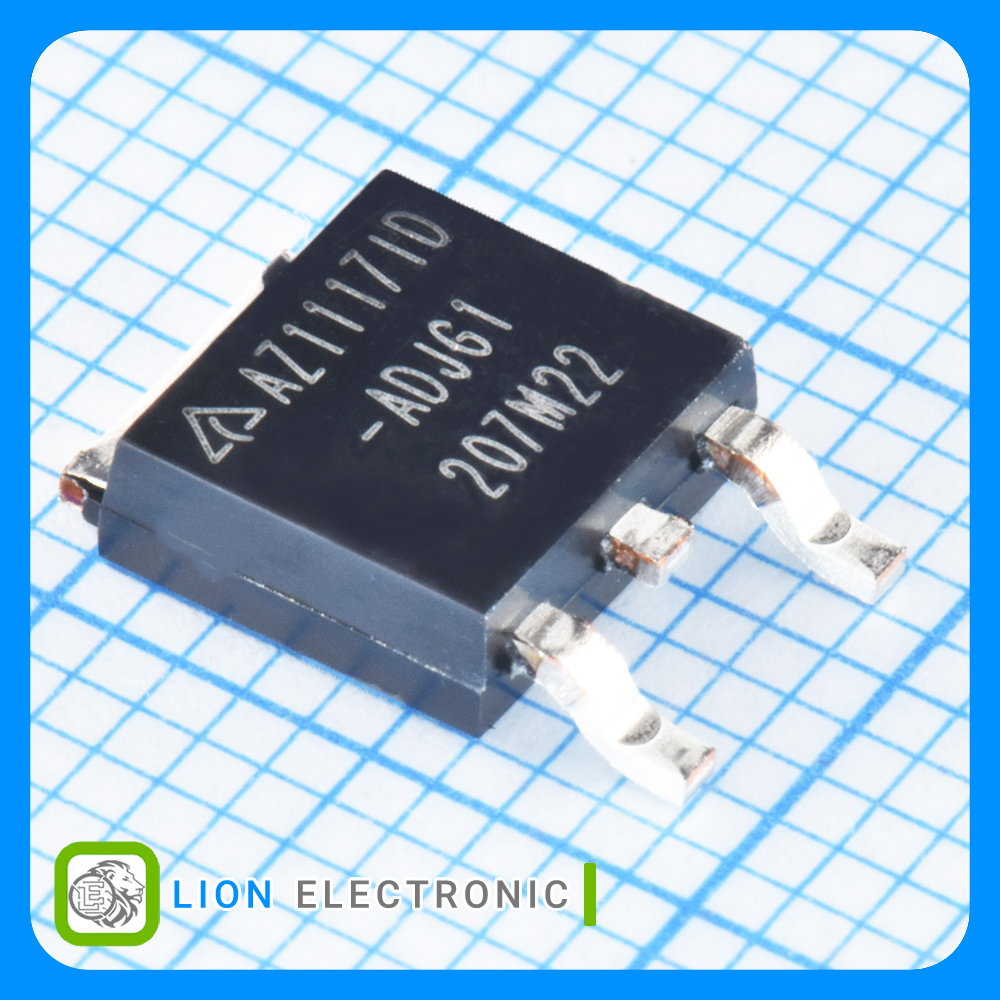

AZ1117ID-ADJTRG1
AZ1117ID-ADJTRG1
Part Number
4140
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 1 آمپر با پکیج DPAK
Adjustable LDO Voltage Regulator, 1A High Speed, Extremely Low Noise with DPAK Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 1 آمپر با پکیج DPAK
Adjustable LDO Voltage Regulator, 1A High Speed, Extremely Low Noise with DPAK Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: DPAK
- Output Voltage: Adjustable
- Output Current: 1A
- Dropout Voltage: 1.3V
- Input Voltage Min: 1.5V
- Input Voltage Max: 15V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 6mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور AZ1117ID-ADJTRG1
رگولاتور AZ1117ID-ADJTRG1
Part Number
Adjustable
Output Voltage
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
Adjustable
Output Type
70dB
PSRR - Ripple Rejection - Typ
+125C
Maximum Operating Temperature
15V
Input Voltage Max
1.5V
Input Voltage Min
1.3V
Dropout Voltage
6mA
Quiescent Current
1A
Output Current
DPAK
Package-Case
