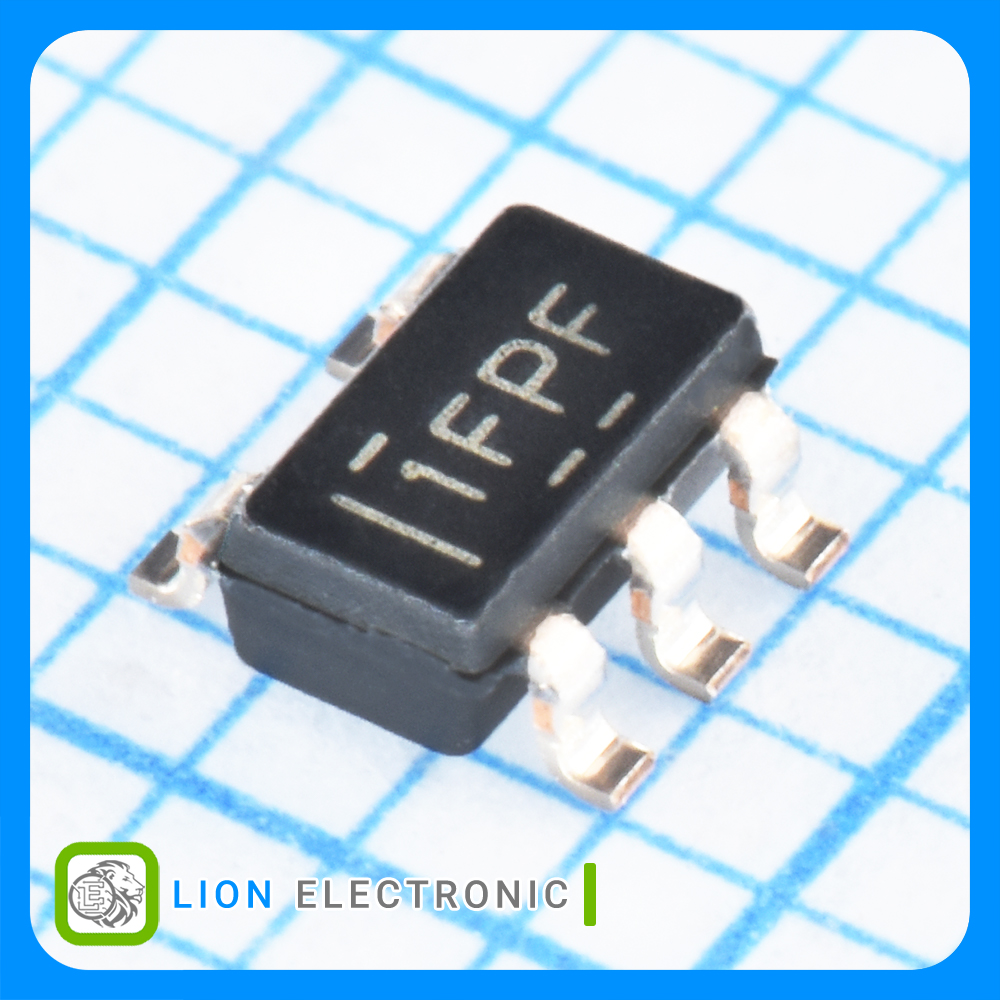

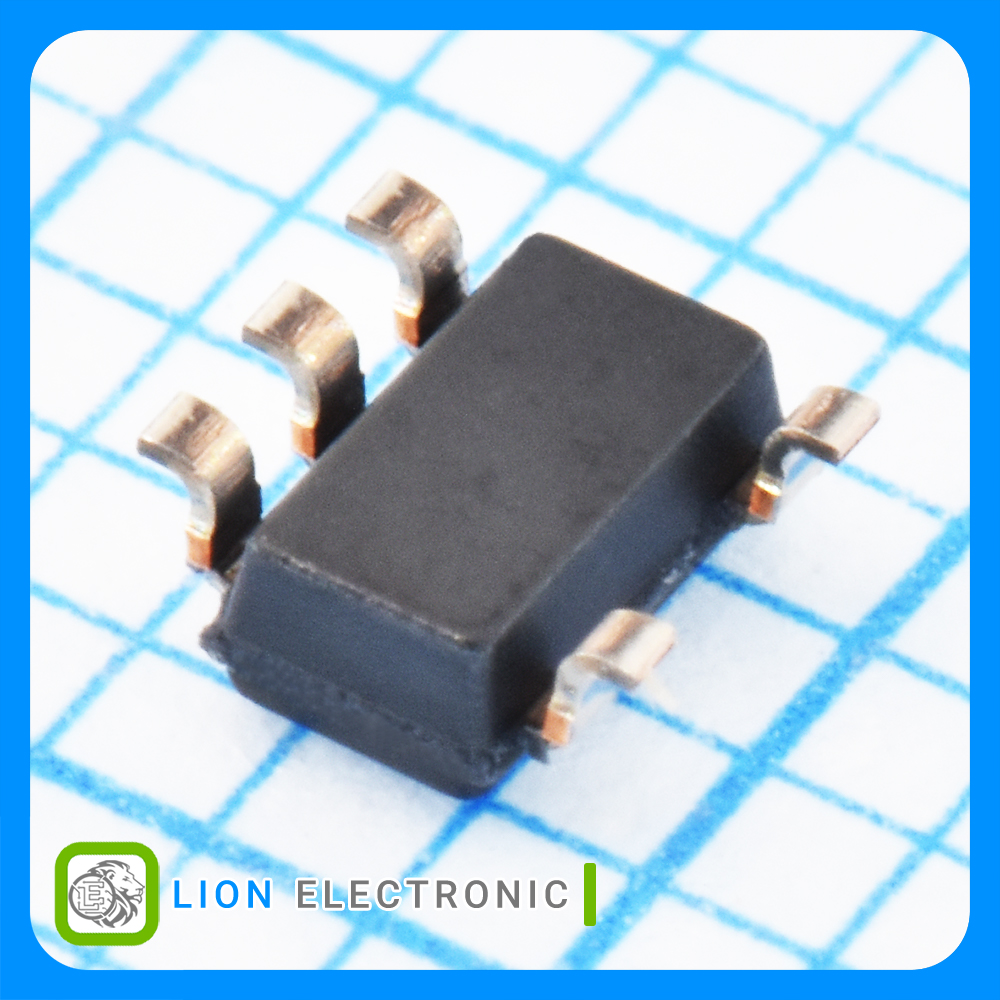

TLV75510PDBVR
TLV75510PDBVR
Part Number
4161
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 1 ولت 500 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 1V, 500mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 1 ولت 500 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 1V, 500mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 1V
- Output Current: 500mA
- Dropout Voltage: 220mV
- Input Voltage Min: 1.45V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: 52dB
- Quiescent Current: 25uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور TLV75510PDBVR
رگولاتور TLV75510PDBVR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
52dB
PSRR - Ripple Rejection - Typ
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
Fixed
Output Type
220mV
Dropout Voltage
+125C
Maximum Operating Temperature
1.45V
Input Voltage Min
25uA
Quiescent Current
500mA
Output Current
1V
Output Voltage
SOT-23-5
Package-Case
