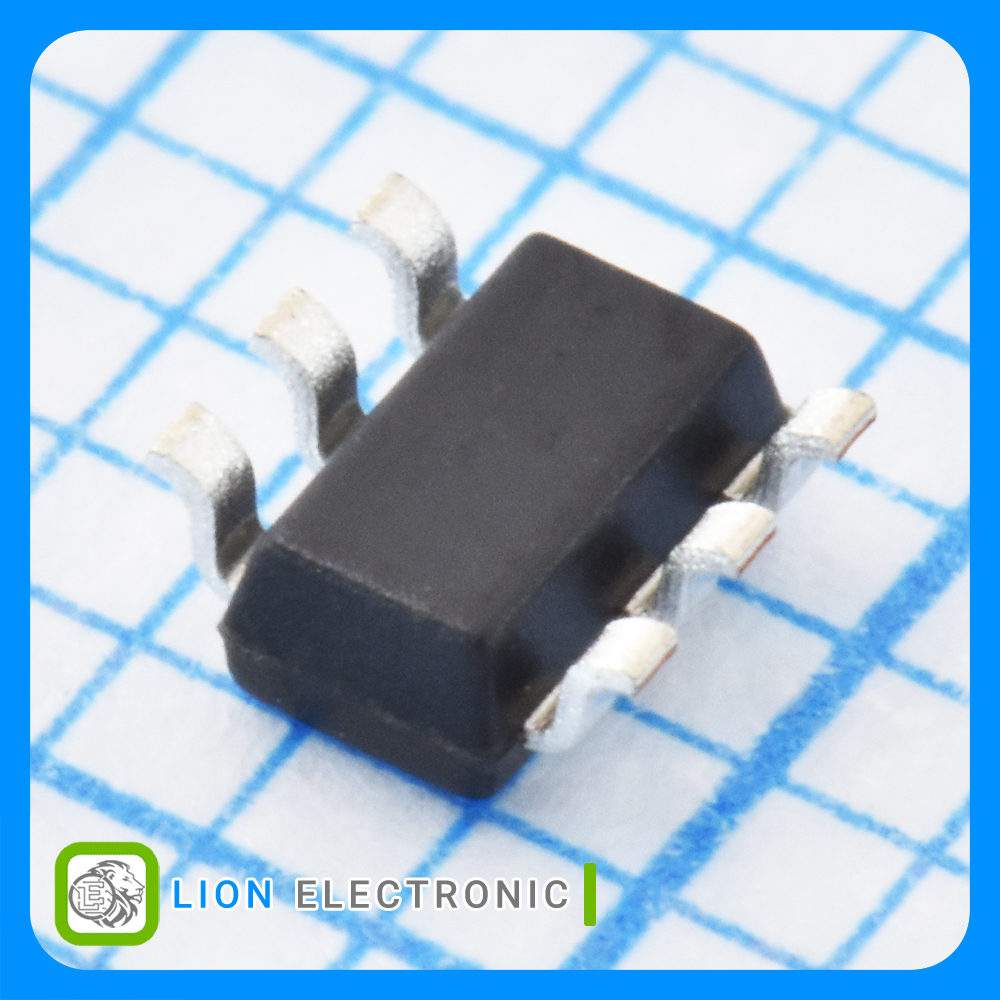

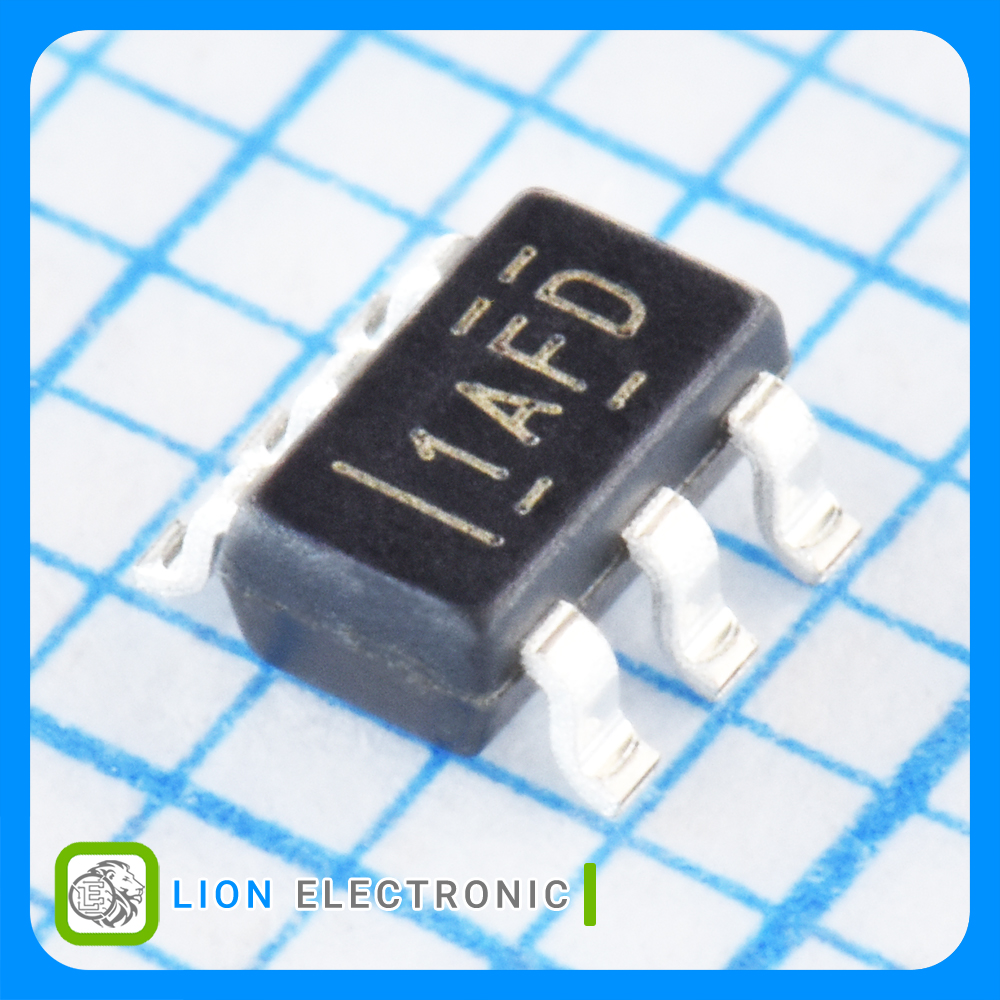

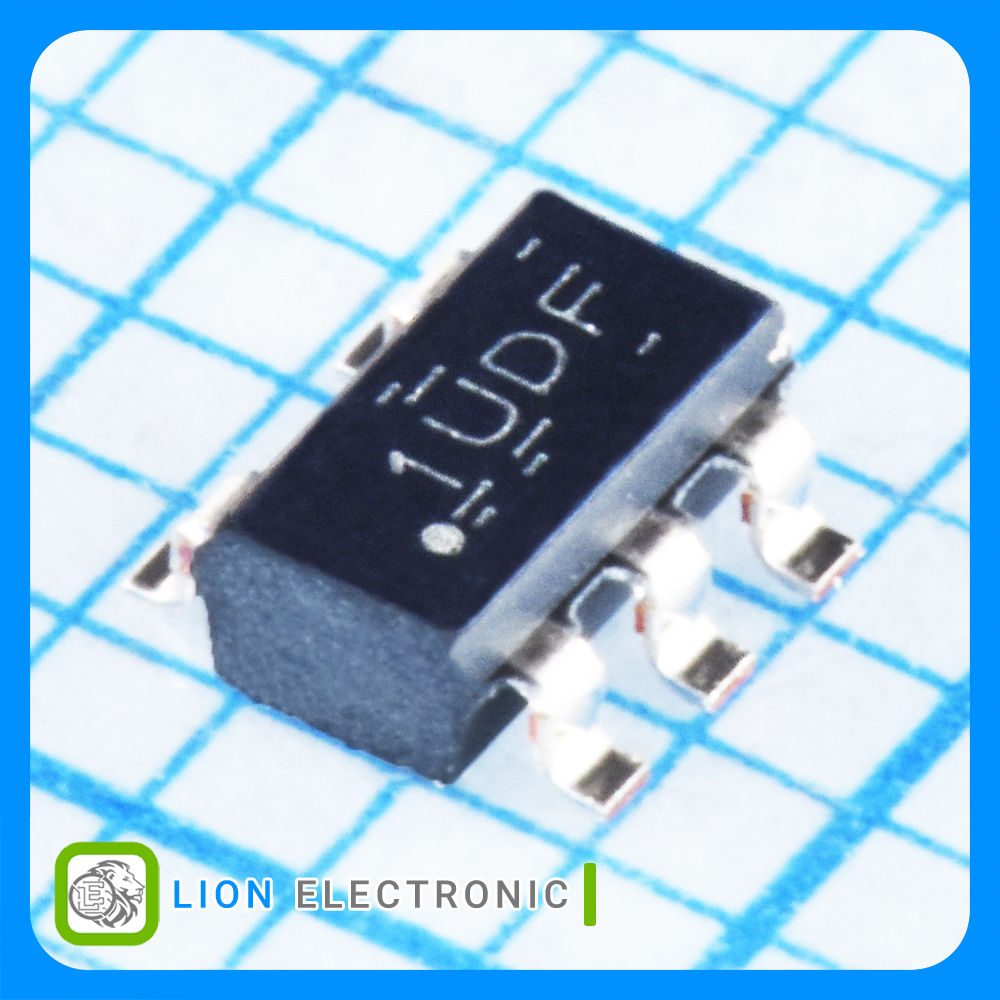

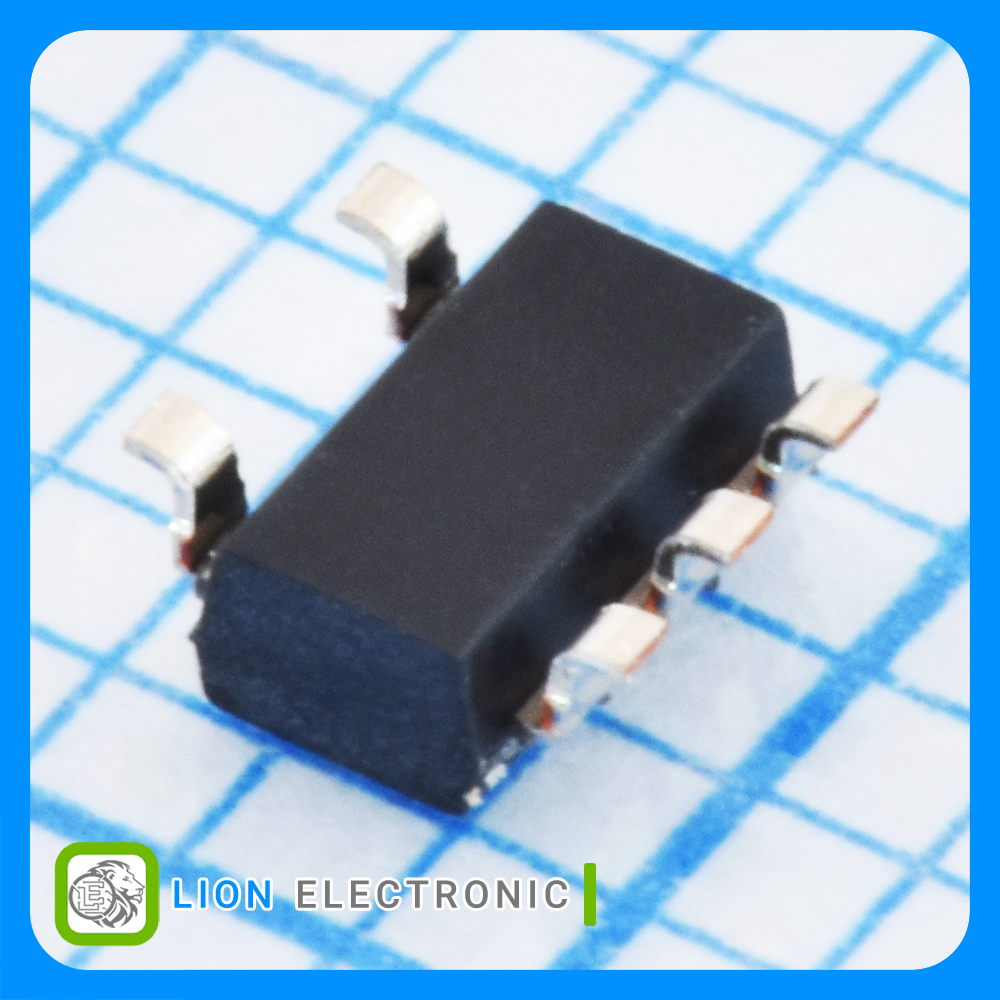

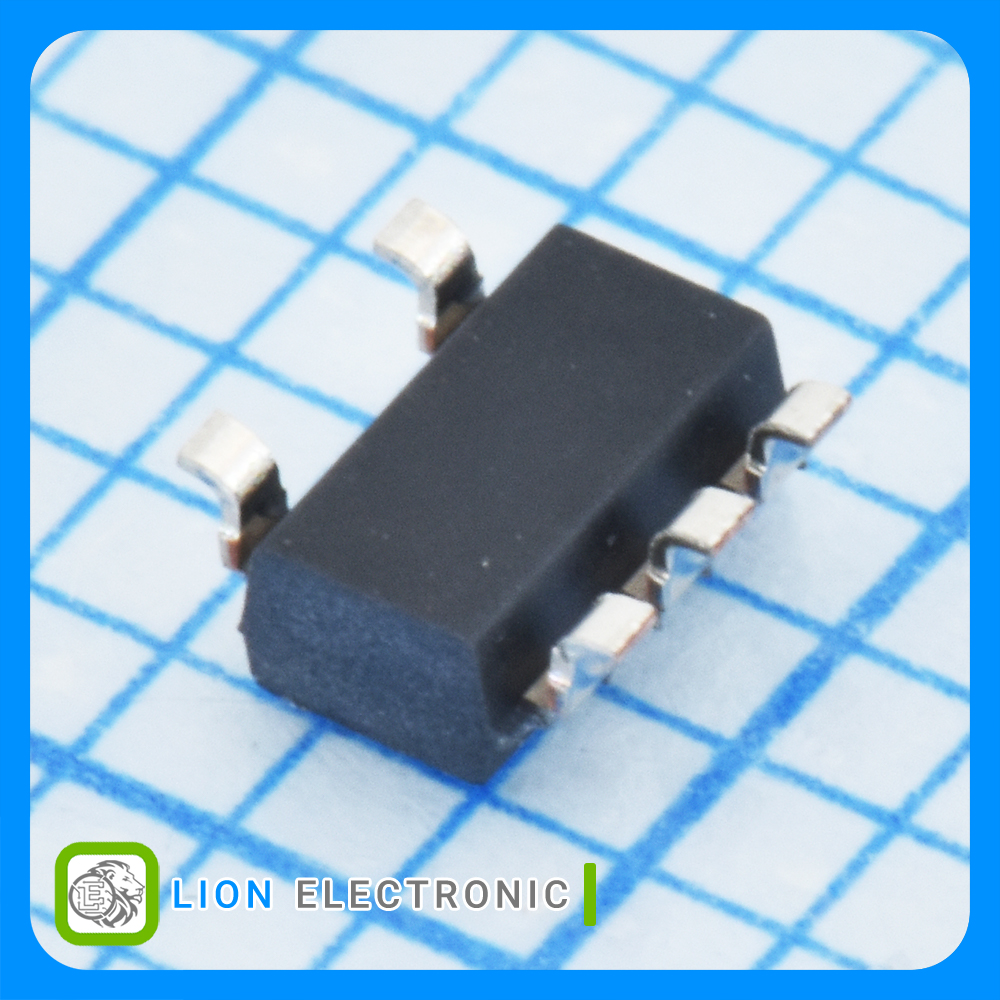

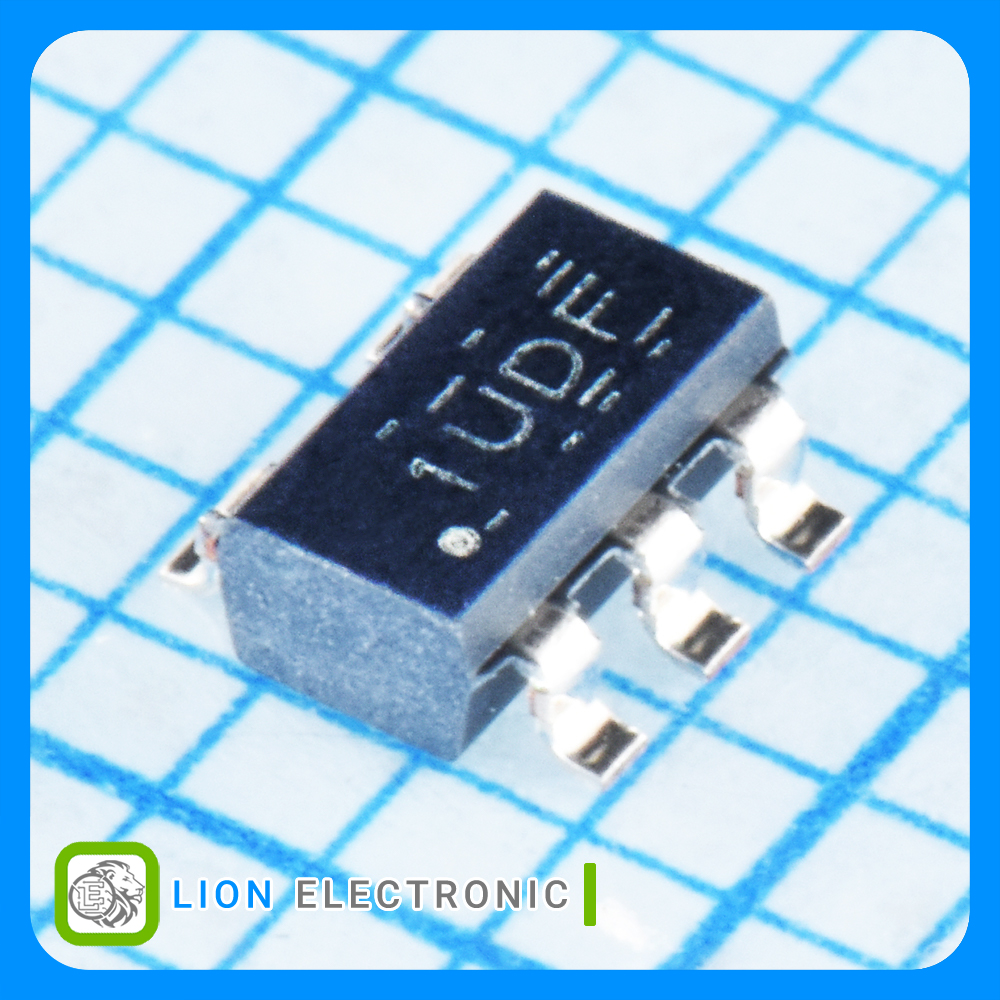

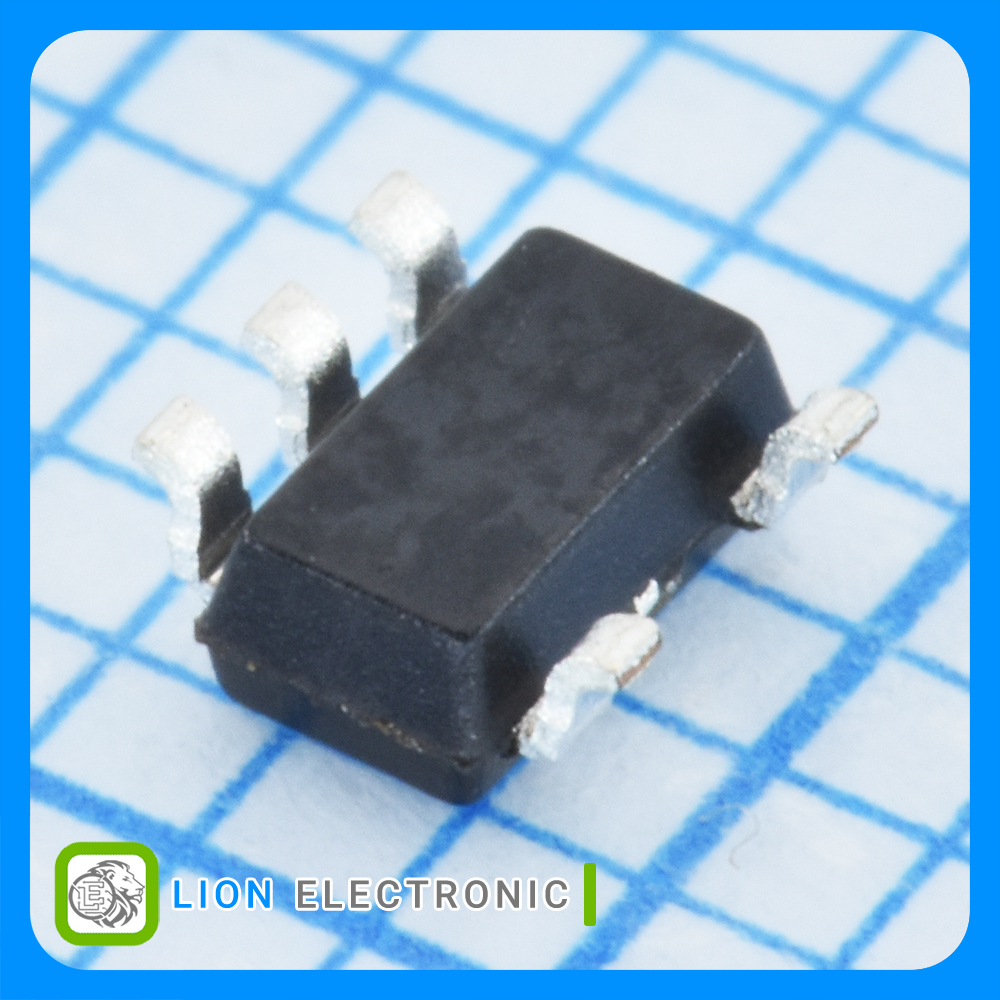

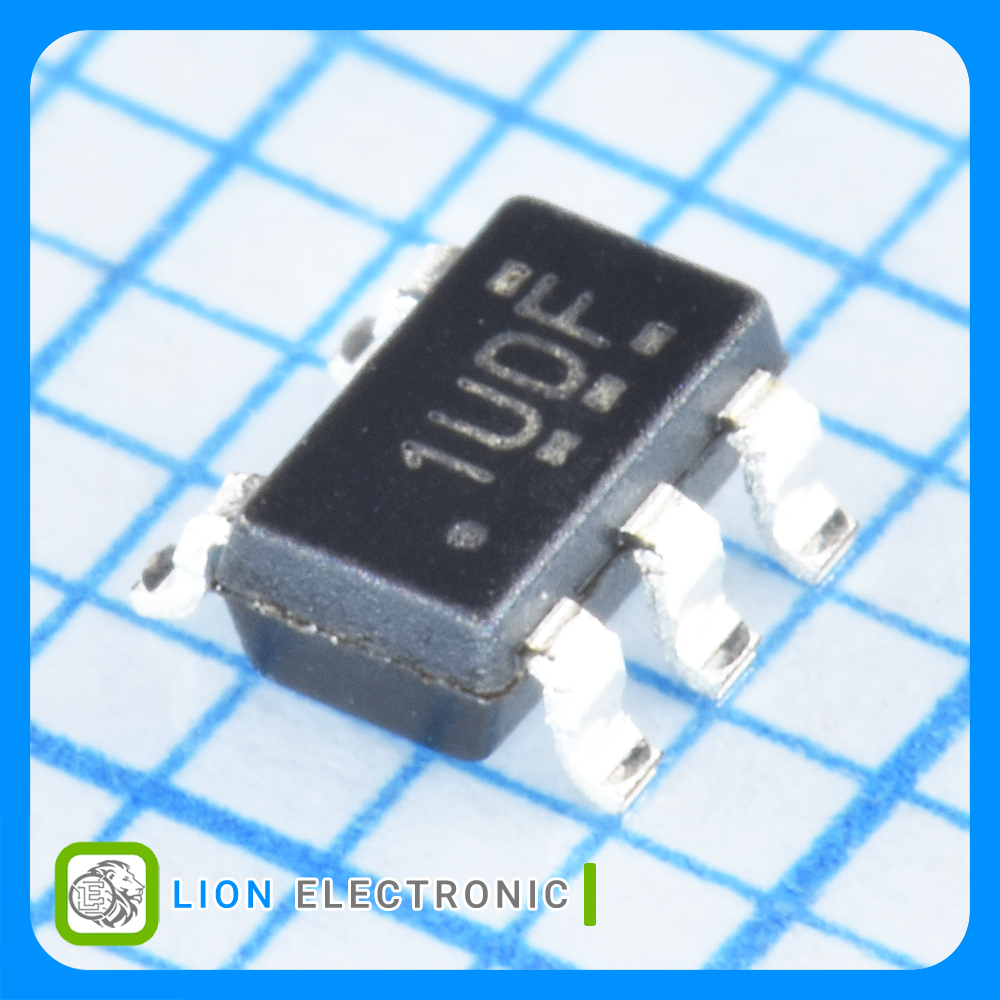

TLV75801PDBVR
TLV75801PDBVR
Part Number
4162
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO با خروجی قابل تنظیم 500 میلیآمپر با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 500mA, High Speed, Extremely Low Noise, with SOT-23-5 Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 500 میلیآمپر با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 500mA, High Speed, Extremely Low Noise, with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOT-23-5
- Output Voltage: Adjustable
- Output Current: 500mA
- Dropout Voltage: 95mV
- Input Voltage Min: 1.5V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 30dB
- Quiescent Current: 25uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) TLV75801PDBVR
رگولاتور(LDO) TLV75801PDBVR
Part Number
Adjustable
Output Voltage
1
Number of Outputs
30dB
PSRR - Ripple Rejection - Typ
95mV
Dropout Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
6V
Input Voltage Max
Adjustable
Output Type
+125C
Maximum Operating Temperature
1.5V
Input Voltage Min
25uA
Quiescent Current
500mA
Output Current
SOT-23-5
Package-Case
