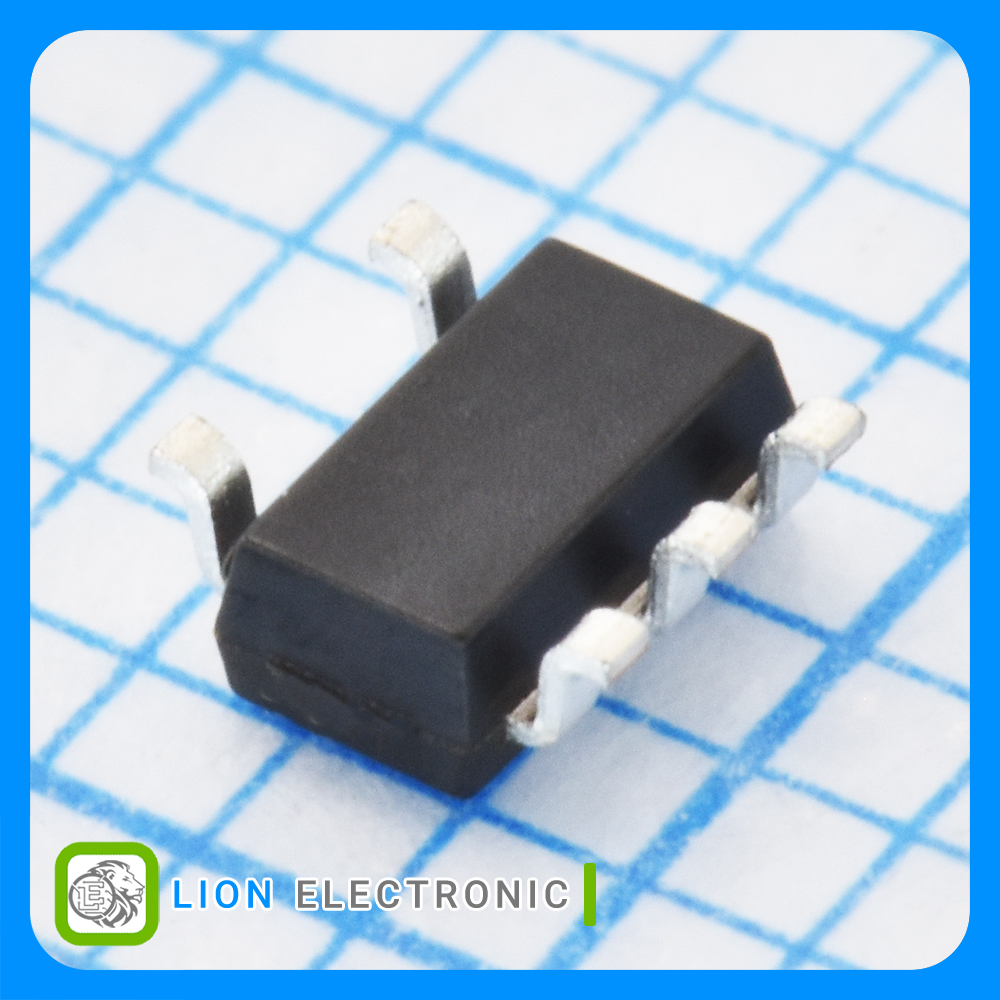

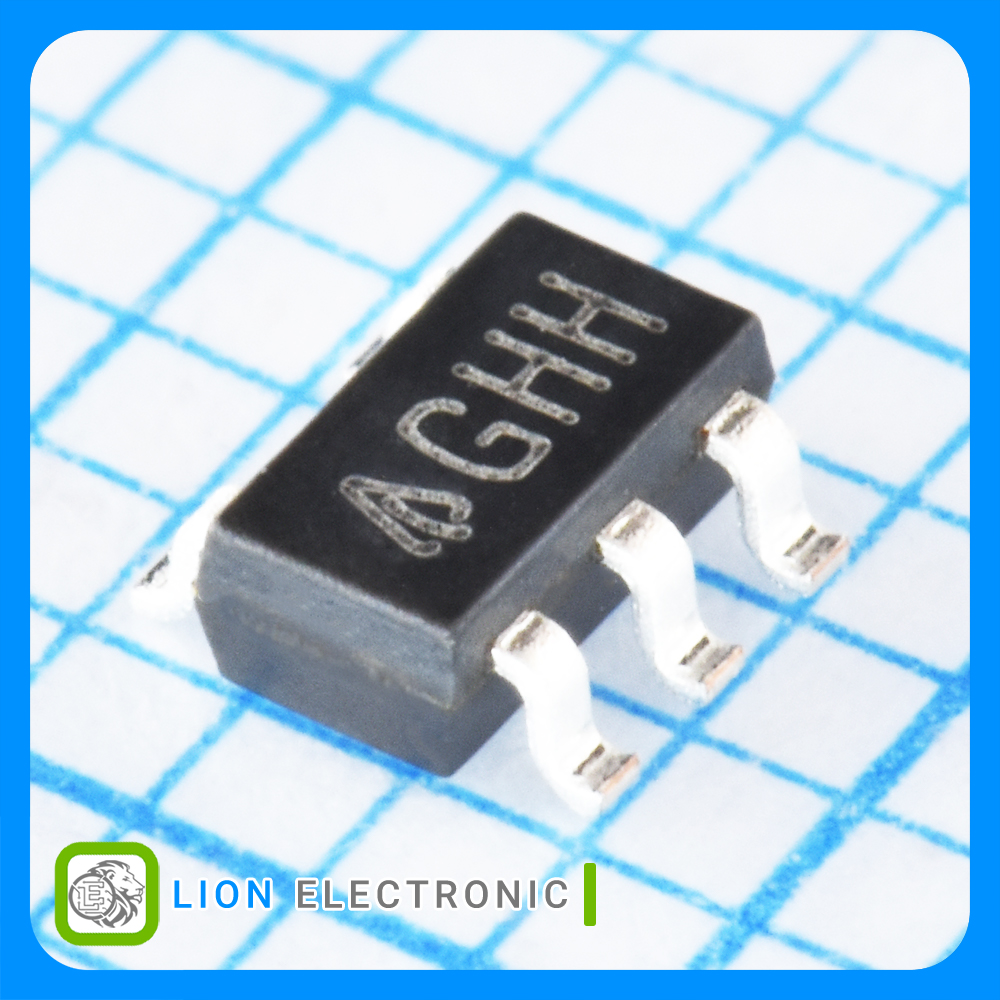

AP2126K-ADJTRG1
AP2126K-ADJTRG1
Part Number
4193
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 1.25 تا 5.5 ولت 300 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 1.25 - 5.5V, 300mA High Speed, Extremely Low Noise with SOT-23-5 Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 1.25 تا 5.5 ولت 300 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 1.25 - 5.5V, 300mA High Speed, Extremely Low Noise with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOT-23-5
- Output Voltage: 1.25 - 5.5V
- Output Current: 300mA
- Dropout Voltage: 170mV
- Input Voltage Min: 3V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 68dB
- Quiescent Current: 60uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور(LDO) AP2126K-ADJTRG1
رگولاتور(LDO) AP2126K-ADJTRG1
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
6V
Input Voltage Max
Adjustable
Output Type
170mV
Dropout Voltage
68dB
PSRR - Ripple Rejection - Typ
60uA
Quiescent Current
3V
Input Voltage Min
300mA
Output Current
1.25 - 5.5V
Output Voltage
SOT-23-5
Package-Case
