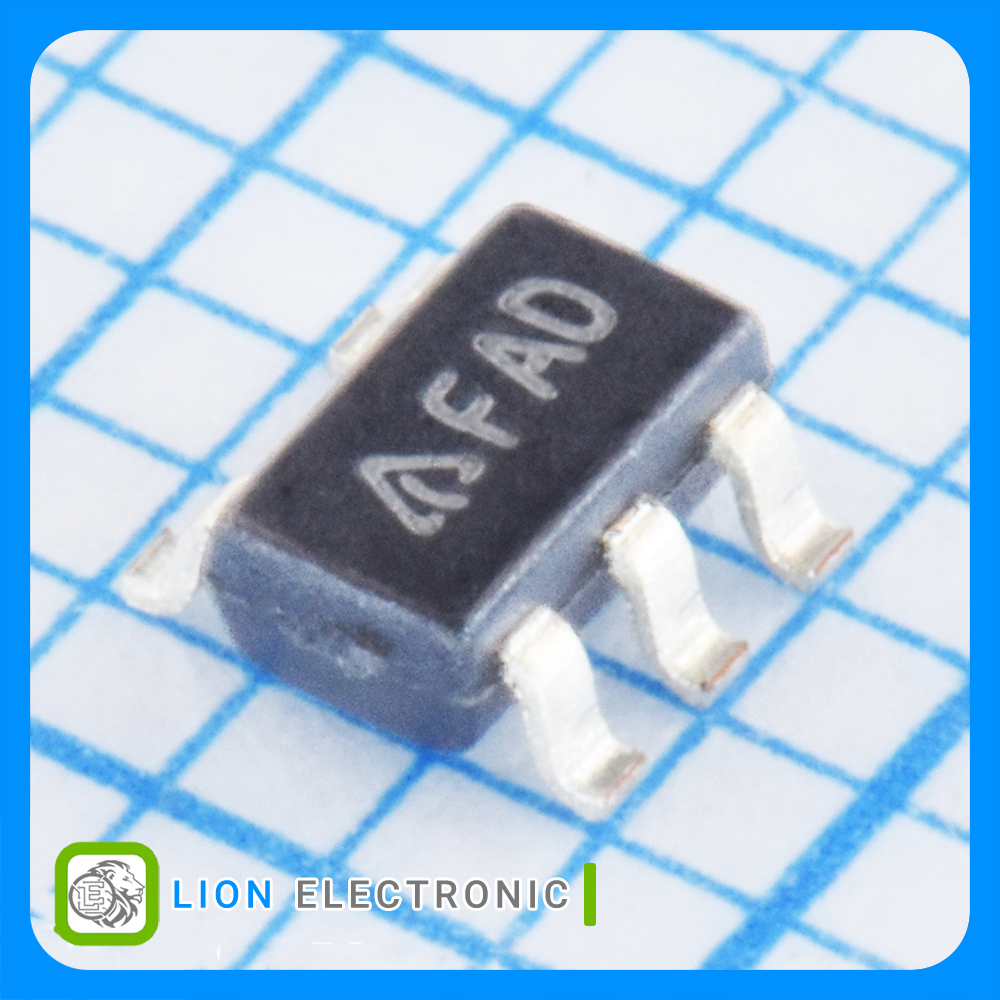

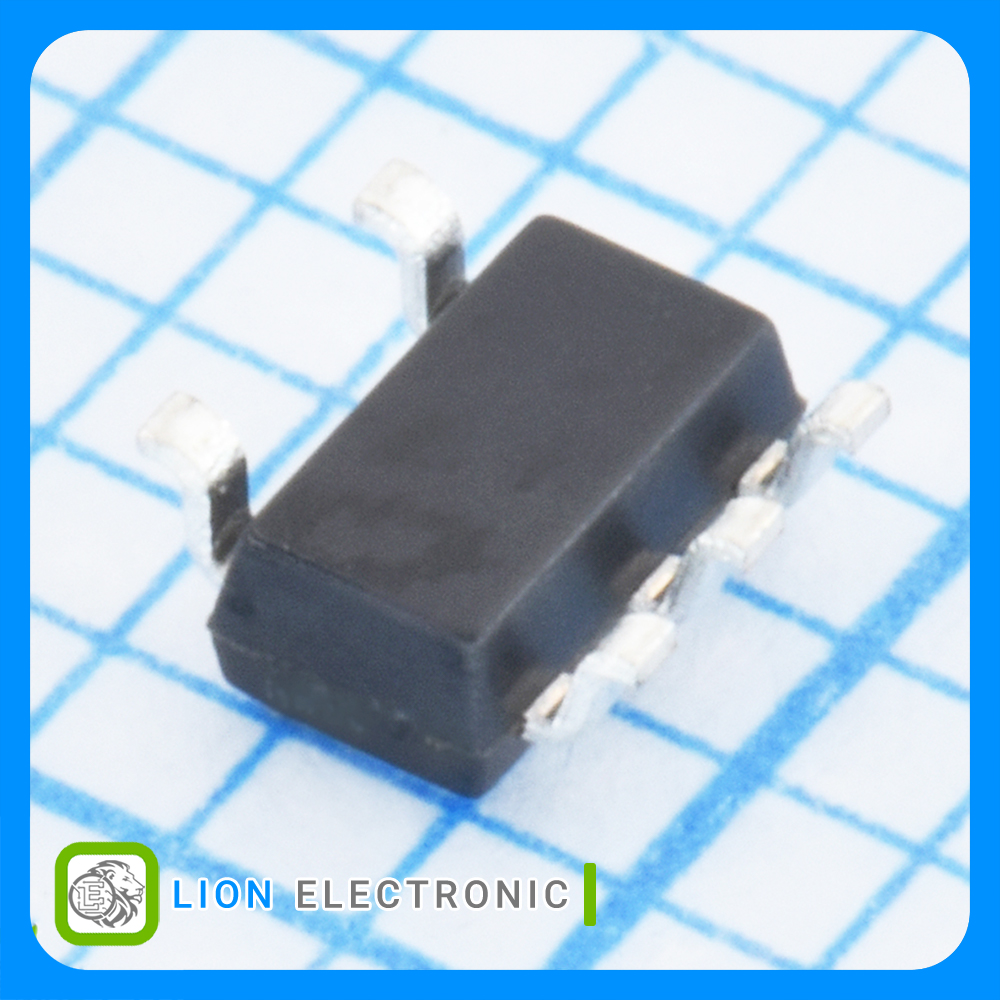

AP2128K-ADJTRG1
AP2128K-ADJTRG1
Part Number
4195
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO قابل تنظیم 0.8 تا 5.5 ولت 300 میلیآمپر با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 0.8 - 5.5V, 300mA with SOT-23-5 Package
معرفی
رگولاتور LDO قابل تنظیم 0.8 تا 5.5 ولت 300 میلیآمپر با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 0.8 - 5.5V, 300mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOT-23-5
- Output Voltage: 0.8 - 5.5V
- Output Current: 300mA
- Dropout Voltage: 600mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 54dB
- Quiescent Current: 60uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور(LDO) AP2128K-ADJTRG1
رگولاتور(LDO) AP2128K-ADJTRG1
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
54dB
PSRR - Ripple Rejection - Typ
SMD/SMT
Mounting Style
Adjustable
Output Type
+85C
Maximum Operating Temperature
6V
Input Voltage Max
60uA
Quiescent Current
2.5V
Input Voltage Min
600mV
Dropout Voltage
0.8 - 5.5V
Output Voltage
300mA
Output Current
SOT-23-5
Package-Case
