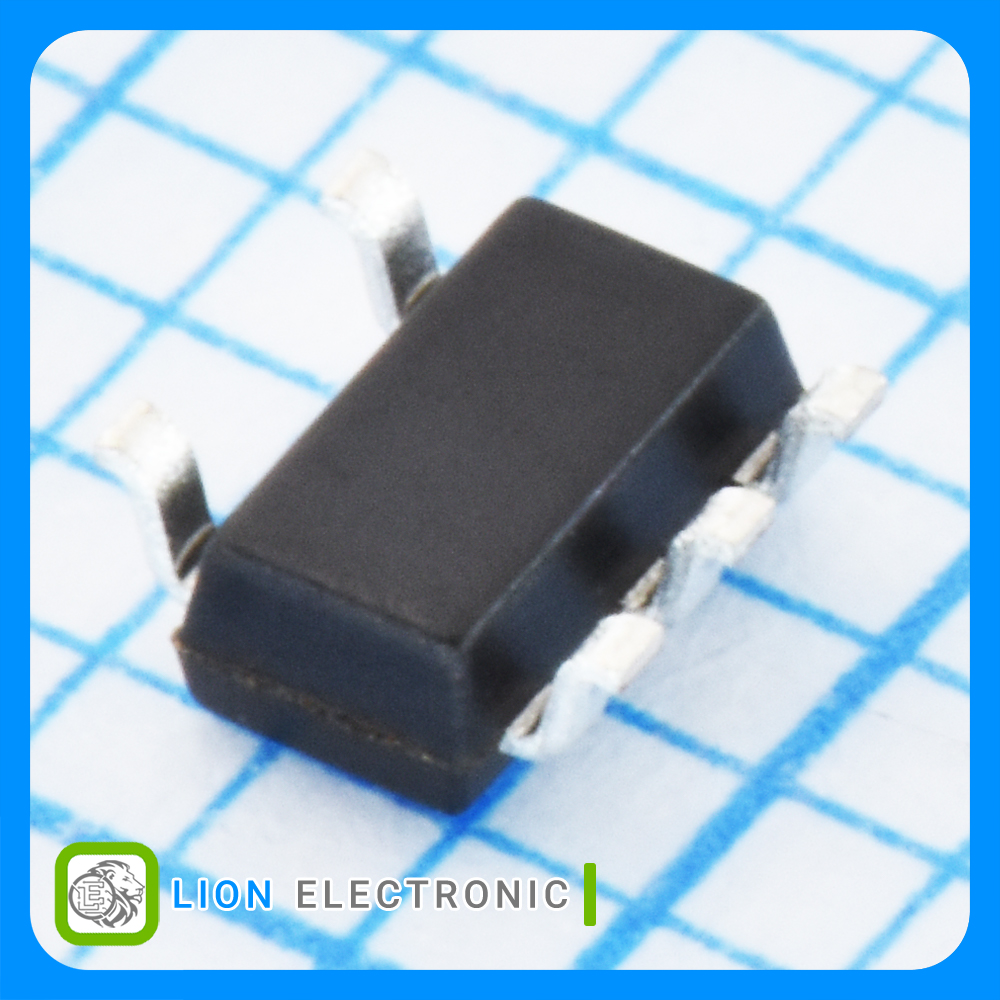

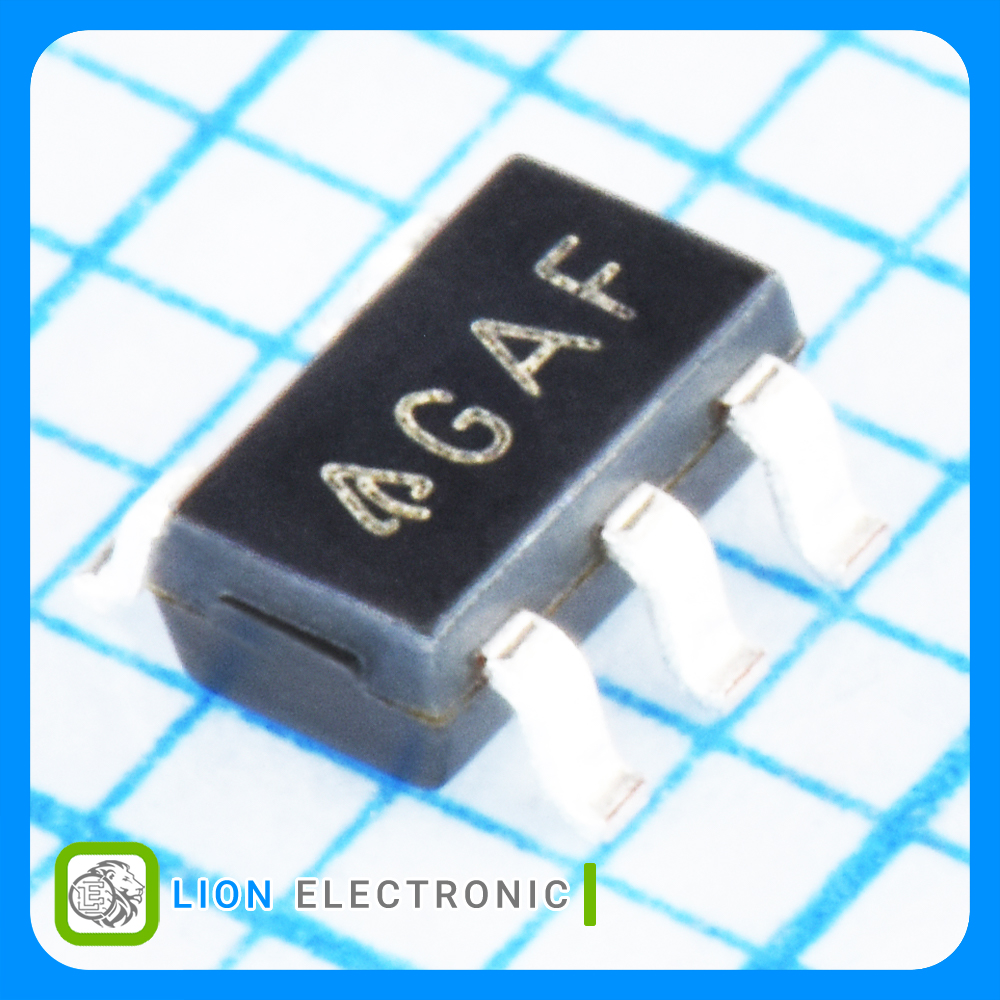

AP2204K-ADJTRG1
AP2204K-ADJTRG1
Part Number
4196
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 1.24 تا 22 ولت 150 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 1.24 - 22V, 150mA High Speed, Extremely Low Noise with SOT-23-5 Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 1.24 تا 22 ولت 150 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-23-5
Adjustable LDO Voltage Regulator 1.24 - 22V, 150mA High Speed, Extremely Low Noise with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOT-23-5
- Output Voltage: 1.24 - 22V
- Output Current: 150mA
- Dropout Voltage: 360mV
- Input Voltage Min: 2.6V
- Input Voltage Max: 24V
- PSRR / Ripple Rejection - Typ: 60dB
- Quiescent Current: 20uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO)AP2204K-ADJTRG1
رگولاتور(LDO)AP2204K-ADJTRG1
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
Adjustable
Output Type
60dB
PSRR - Ripple Rejection - Typ
+125C
Maximum Operating Temperature
20uA
Quiescent Current
24V
Input Voltage Max
360mV
Dropout Voltage
2.6V
Input Voltage Min
150mA
Output Current
1.24 - 22V
Output Voltage
SOT-23-5
Package-Case
