AP2210K-ADJTRG1
AP2210K-ADJTRG1
Part Number
4197
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 300 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-23-5

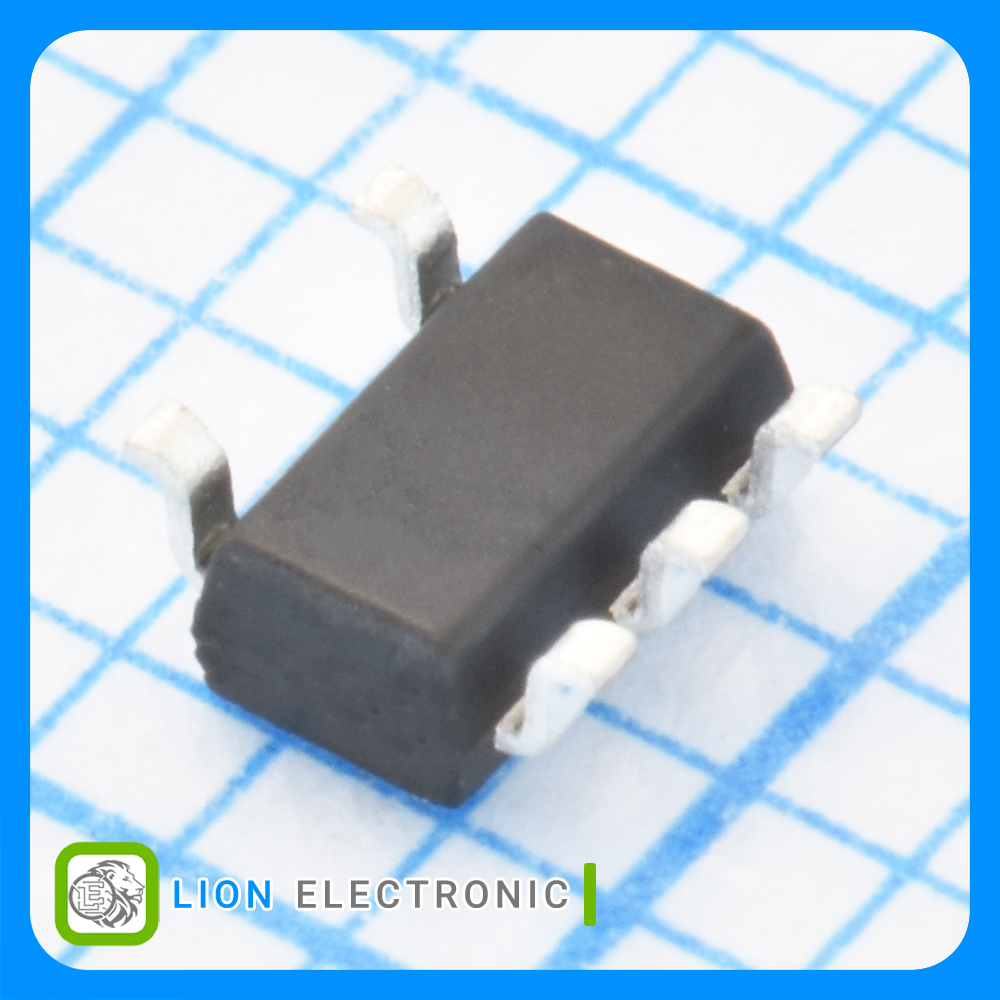

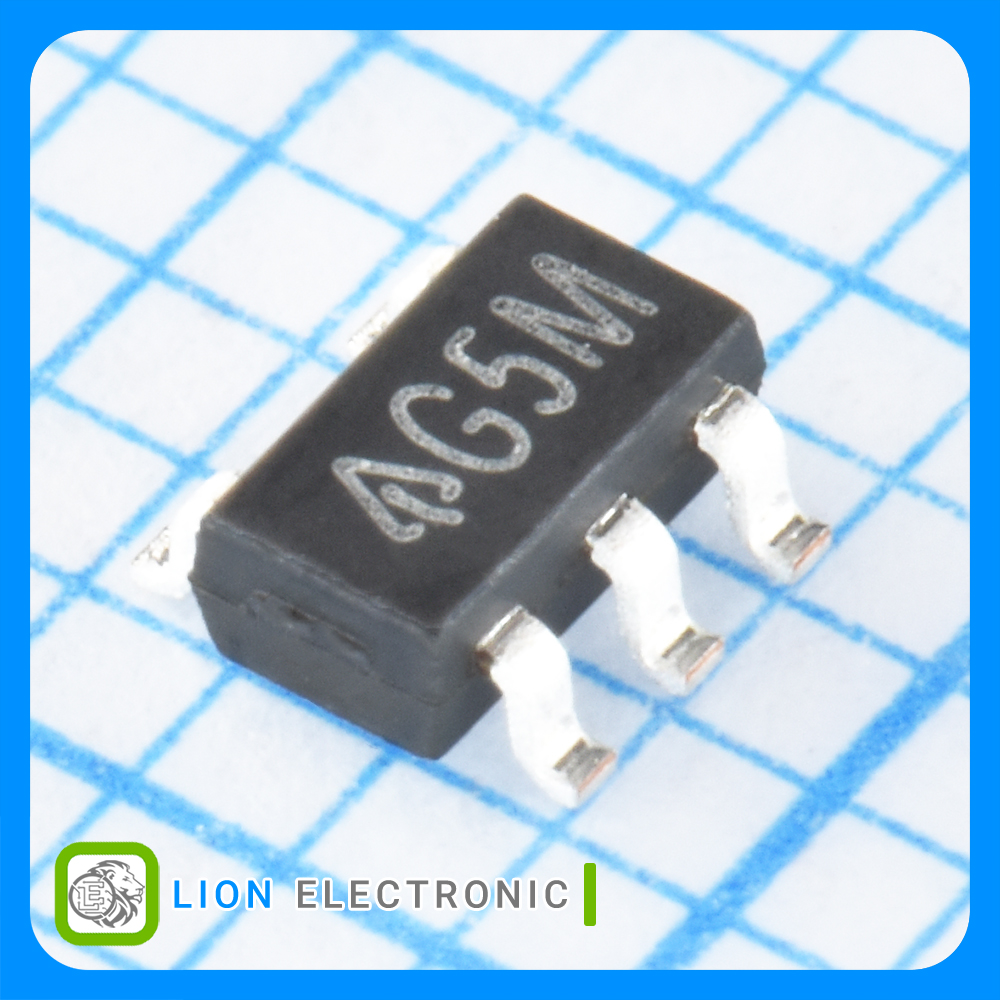

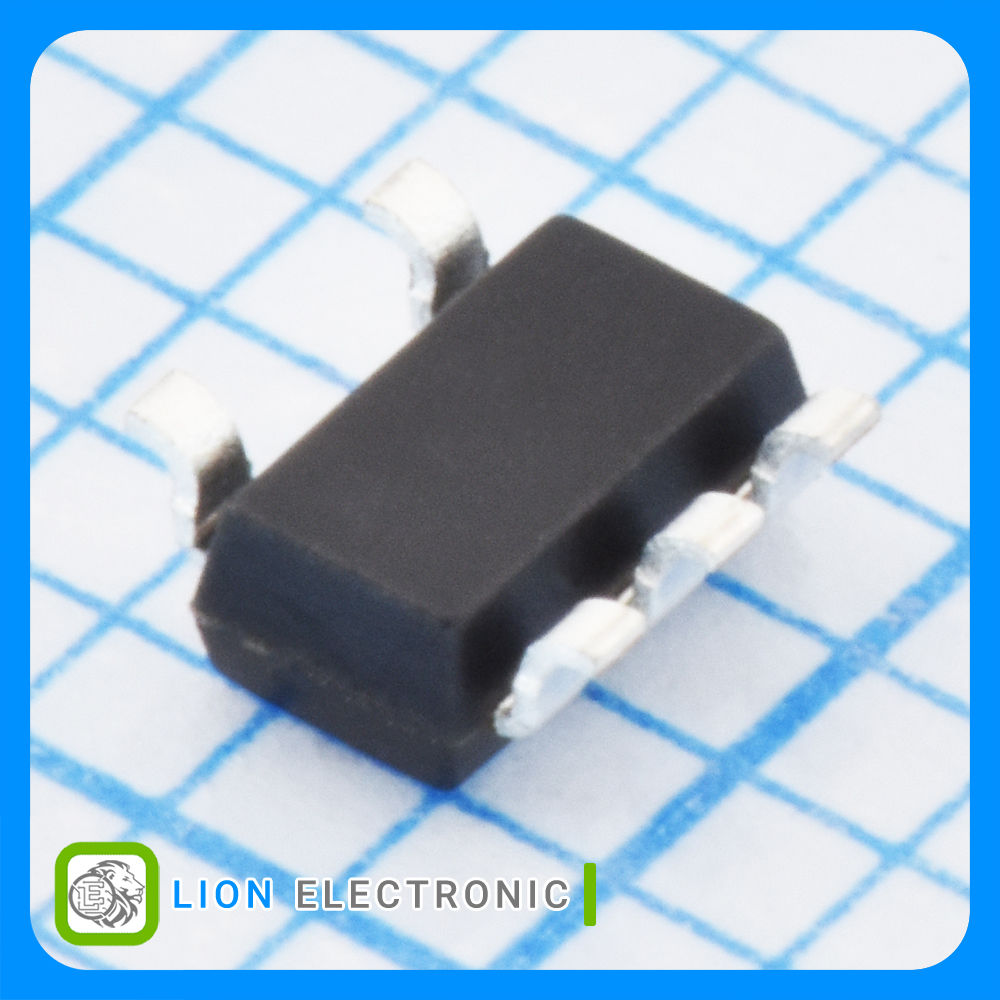

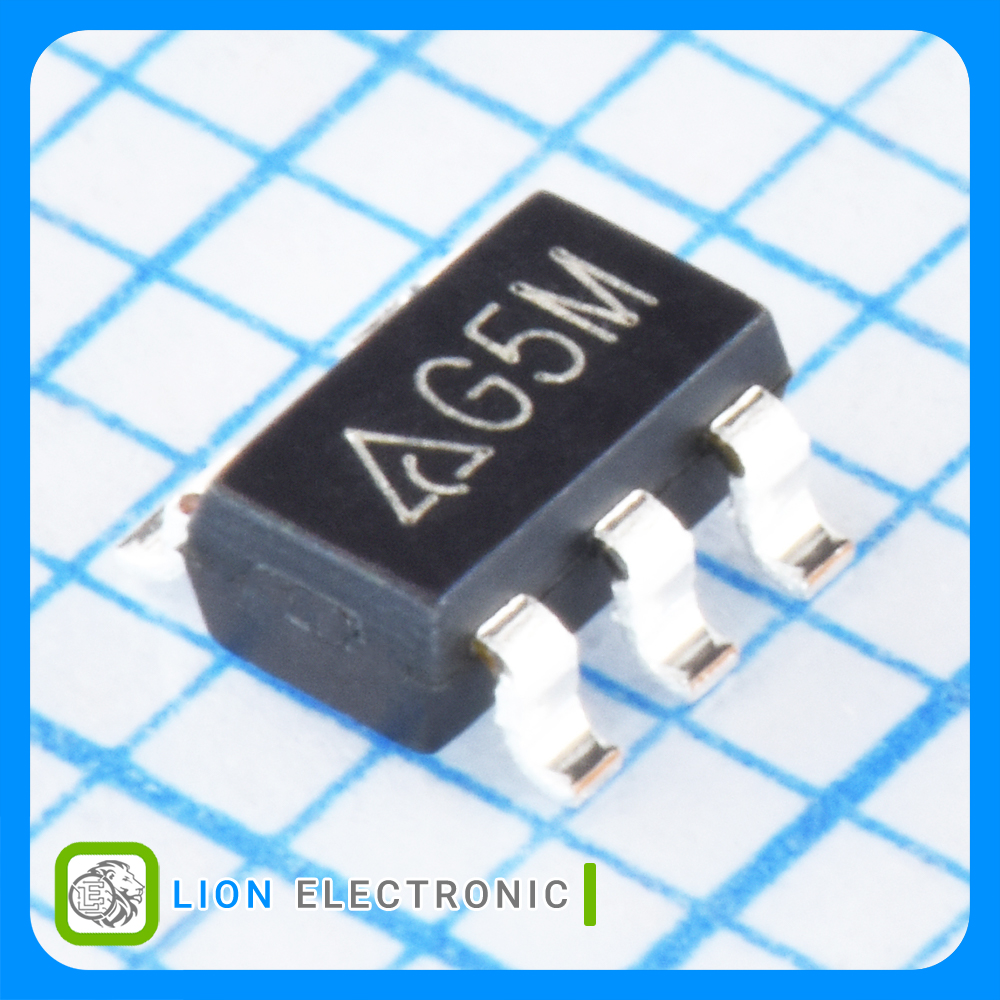

Adjustable LDO Voltage Regulator, 300mA High Speed, Extremely Low Noise with SOT-23-5 Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 300 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-23-5
Adjustable LDO Voltage Regulator, 300mA High Speed, Extremely Low Noise with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOT-23-5
- Output Voltage: Adjustable
- Output Current: 300mA
- Dropout Voltage: 250mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 13.2V
- PSRR / Ripple Rejection - Typ: 75dB
- Quiescent Current: 100uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO)AP2210K-ADJTRG1
رگولاتور(LDO)AP2210K-ADJTRG1
Part Number
Adjustable
Output Voltage
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Adjustable
Output Type
+125C
Maximum Operating Temperature
13.2V
Input Voltage Max
75dB
PSRR - Ripple Rejection - Typ
250mV
Dropout Voltage
100uA
Quiescent Current
2.5V
Input Voltage Min
300mA
Output Current
SOT-23-5
Package-Case
