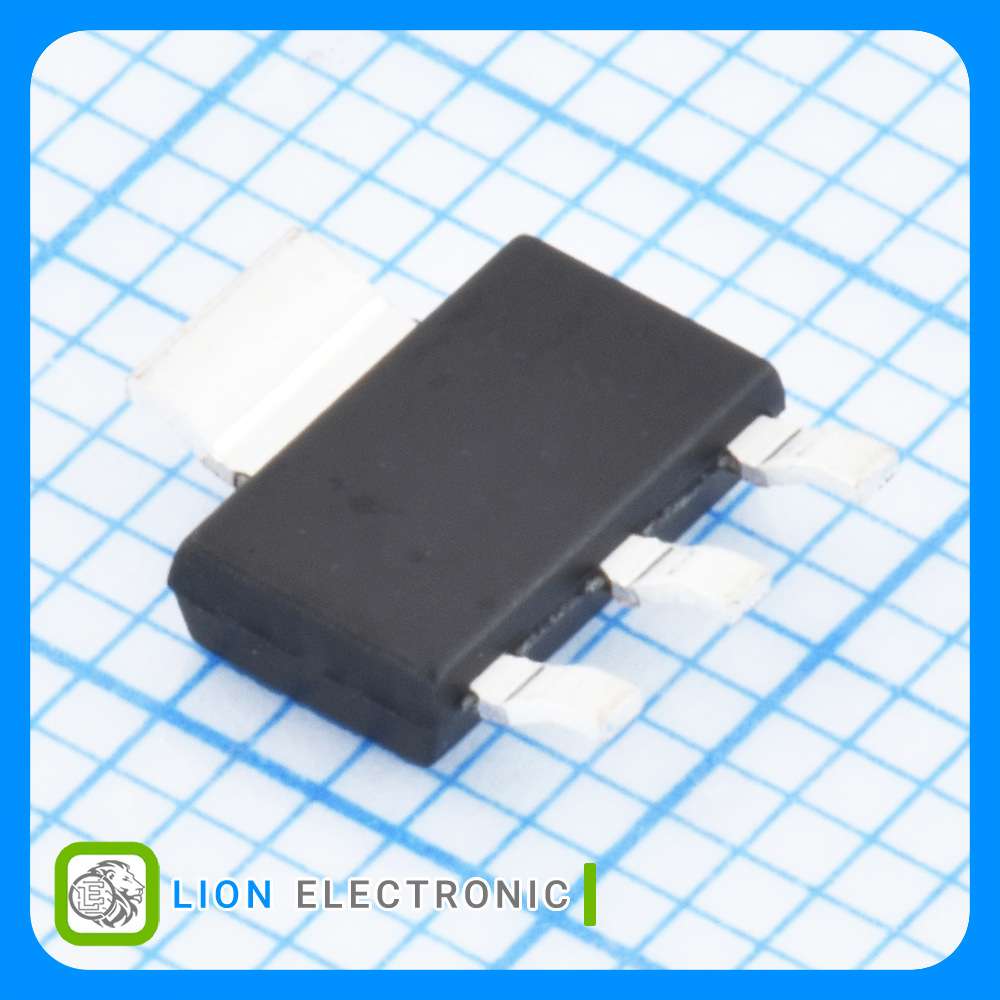

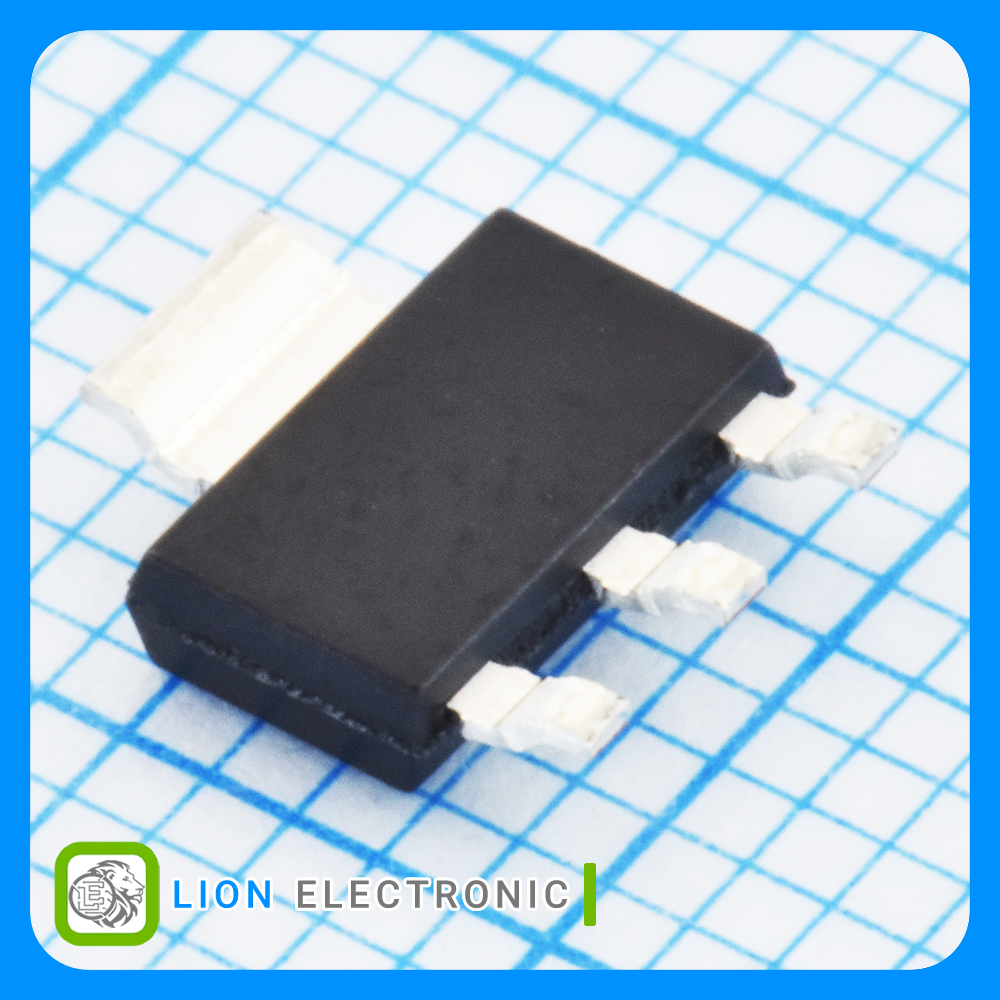

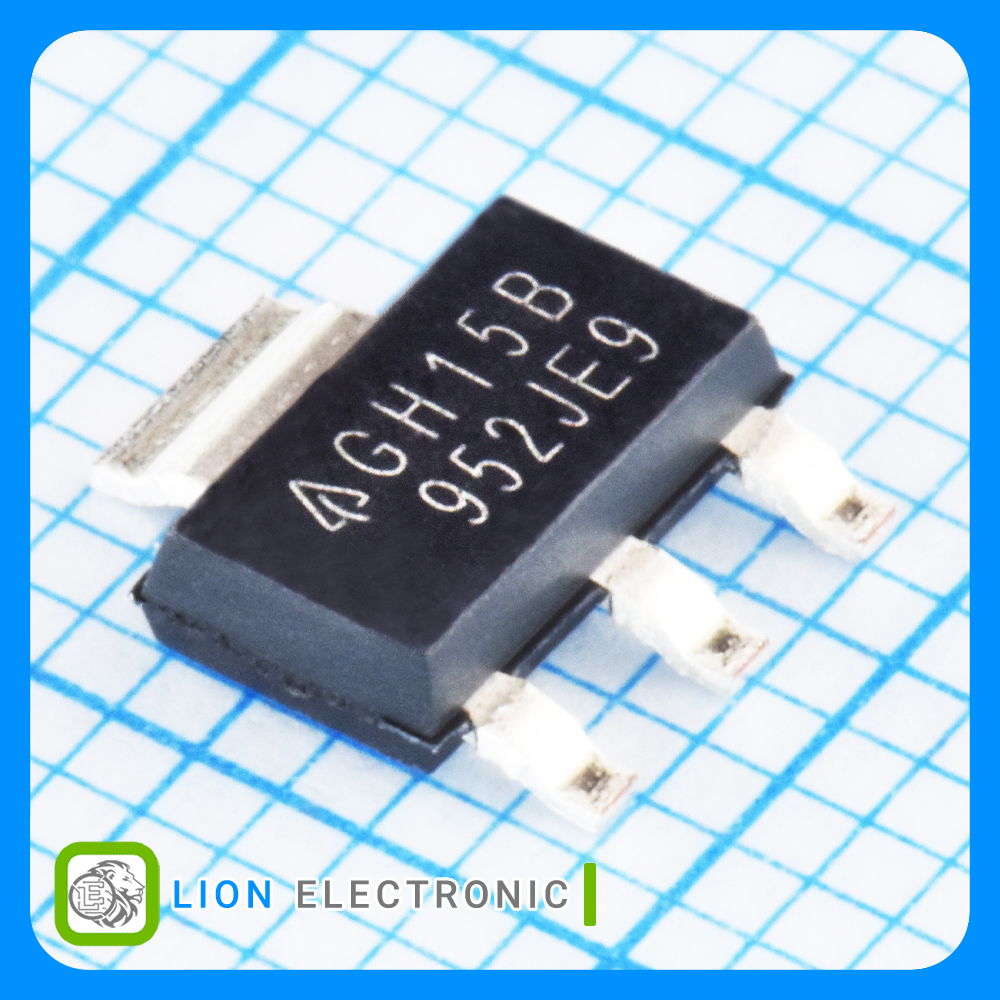

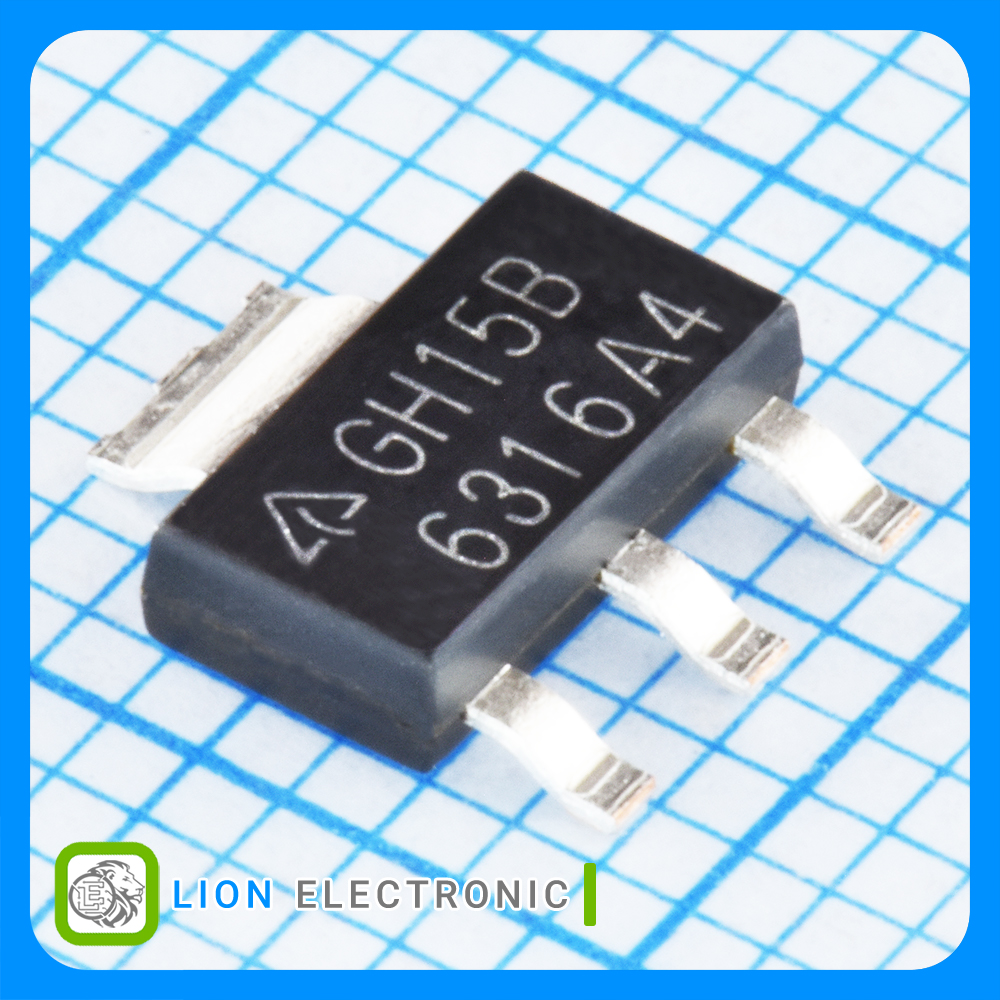

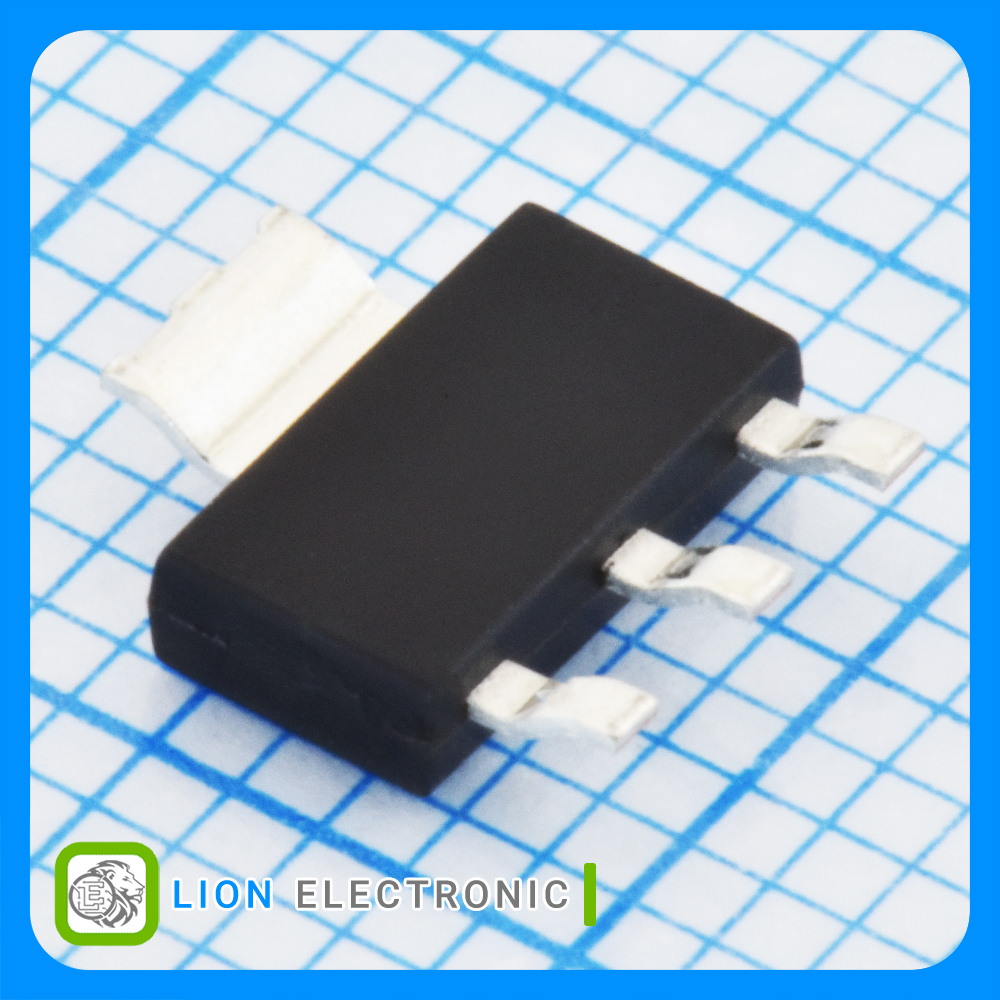

AZ1117CH-ADJTRG1
AZ1117CH-ADJTRG1
Part Number
4198
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 1.25 تا 13.7 ولت 800 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-223-3
Adjustable LDO Voltage Regulator 1.25 - 13.7V, 800mA High Speed, Extremely Low Noise with SOT-223-3 Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 1.25 تا 13.7 ولت 800 میلیآمپر، سرعت بالا و نویز بسیار کم با پکیج SOT-223-3
Adjustable LDO Voltage Regulator 1.25 - 13.7V, 800mA High Speed, Extremely Low Noise with SOT-223-3 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOT-223
- Output Voltage: 1.25 - 13.7V
- Output Current: 800mA
- Dropout Voltage: 1.2V
- Input Voltage Min: 3.2V
- Input Voltage Max: 15V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 6mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) AZ1117CH-ADJTRG1
رگولاتور(LDO) AZ1117CH-ADJTRG1
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
SMD/SMT
Mounting Style
Adjustable
Output Type
-20C
Minimum Operating Temperature
+125C
Maximum Operating Temperature
70dB
PSRR - Ripple Rejection - Typ
15V
Input Voltage Max
3.2V
Input Voltage Min
1.2V
Dropout Voltage
6mA
Quiescent Current
800mA
Output Current
1.25 - 13.7V
Output Voltage
SOT-223
Package-Case
