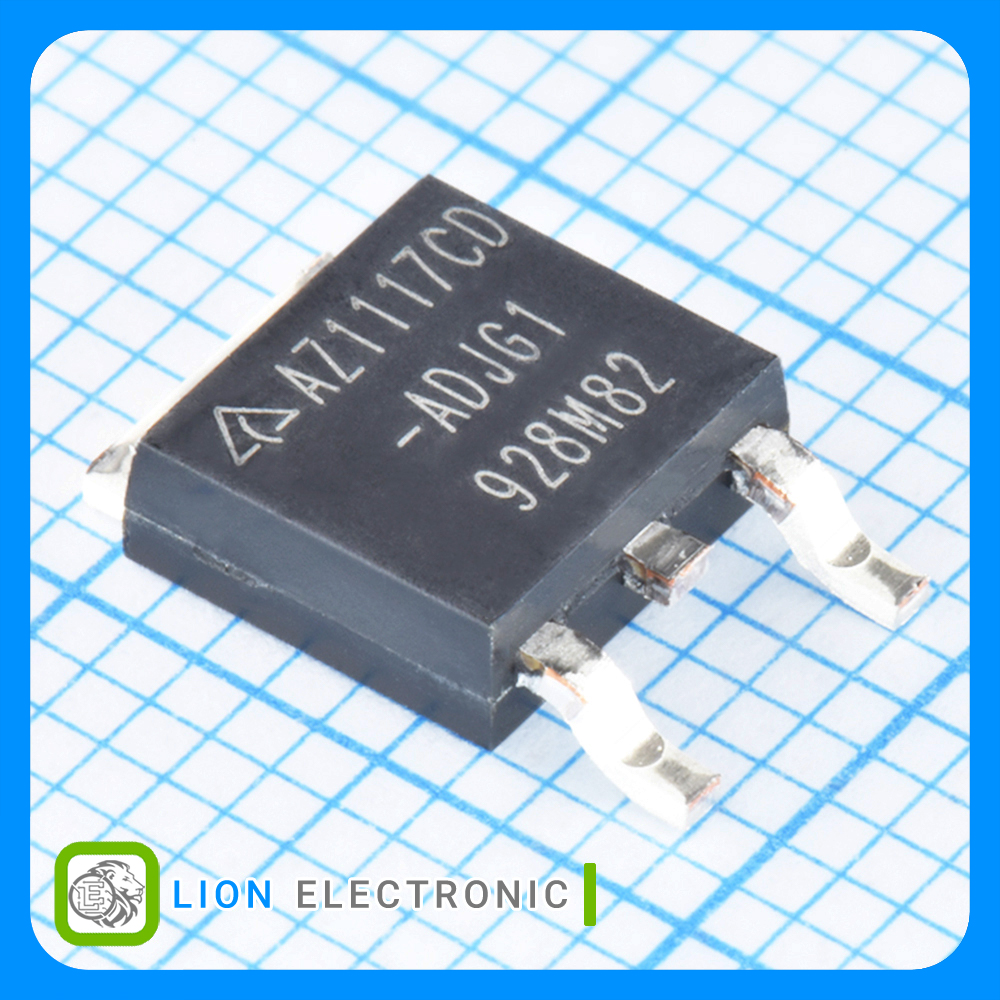

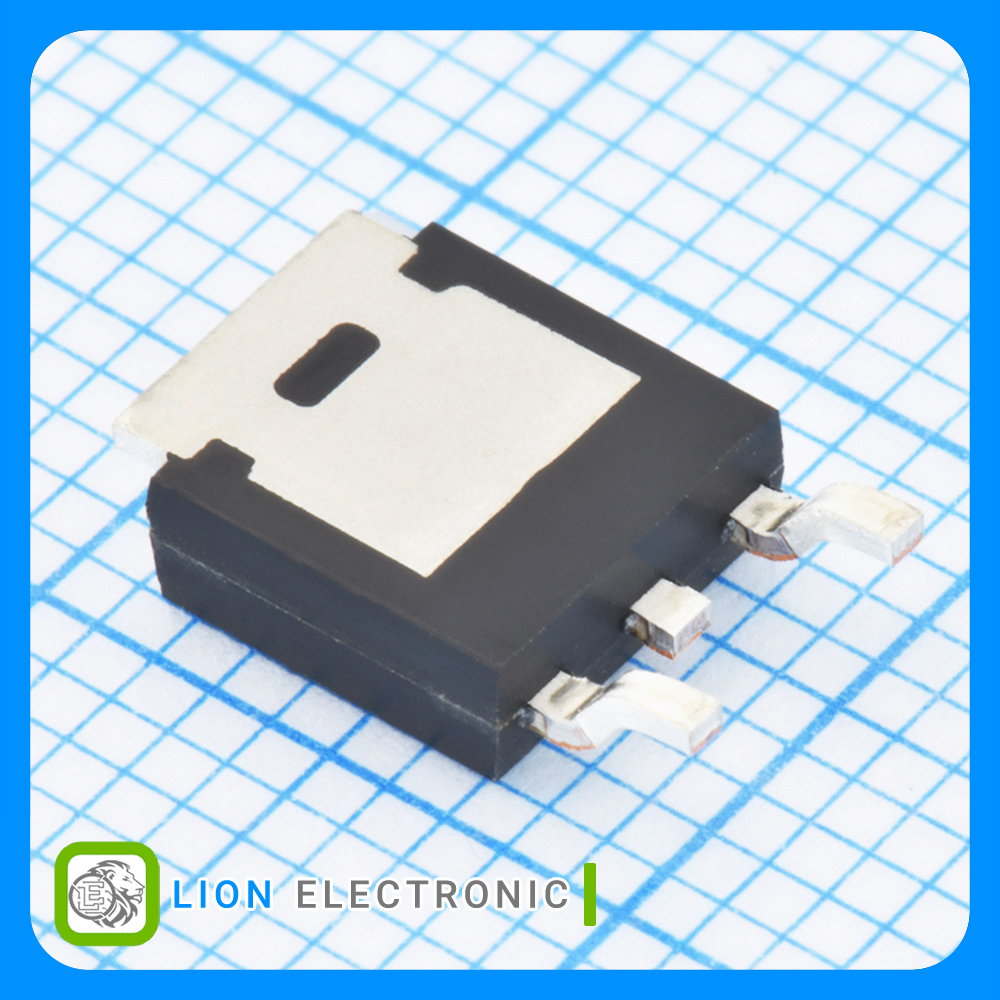

AZ1117CD-ADJTRG1
AZ1117CD-ADJTRG1
Part Number
4200
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 800 میلیآمپر، سرعت بالا و نویز بسیار کم، با پکیج TO-252-3
Adjustable LDO Voltage Regulator 800mA High Speed, Extremely Low Noise with TO-252-3 Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 800 میلیآمپر، سرعت بالا و نویز بسیار کم، با پکیج TO-252-3
Adjustable LDO Voltage Regulator 800mA High Speed, Extremely Low Noise with TO-252-3 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: TO-252-3
- Output Voltage: Adjustable
- Output Current: 800mA
- Dropout Voltage: 1.25V
- Input Voltage Min: 3.2V
- Input Voltage Max: 15V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 6mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) AZ1117CD-ADJTRG1
رگولاتور(LDO) AZ1117CD-ADJTRG1
Part Number
Adjustable
Output Voltage
1
Number of Outputs
Reel
Packaging
Positive
Polarity
SMD/SMT
Mounting Style
Adjustable
Output Type
-20C
Minimum Operating Temperature
70dB
PSRR - Ripple Rejection - Typ
+125C
Maximum Operating Temperature
15V
Input Voltage Max
3.2V
Input Voltage Min
1.25V
Dropout Voltage
6mA
Quiescent Current
800mA
Output Current
DPAK
Package-Case
