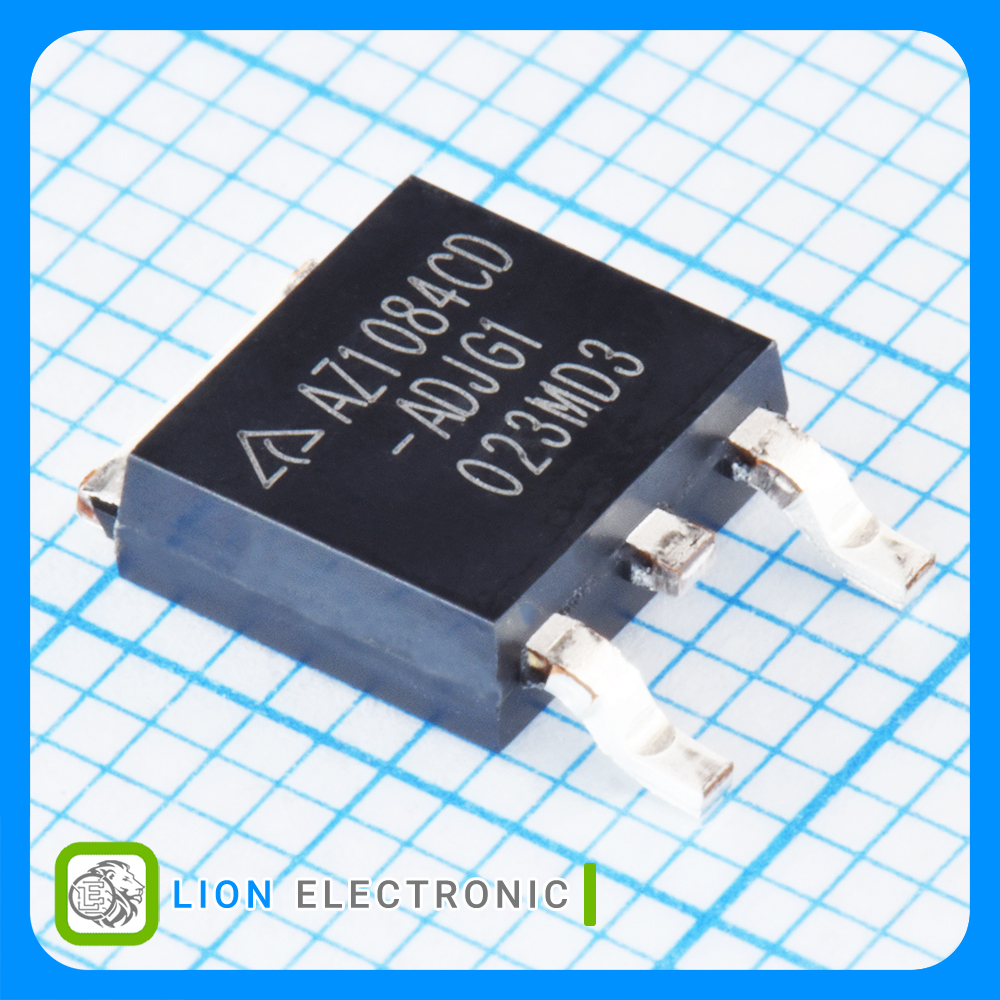

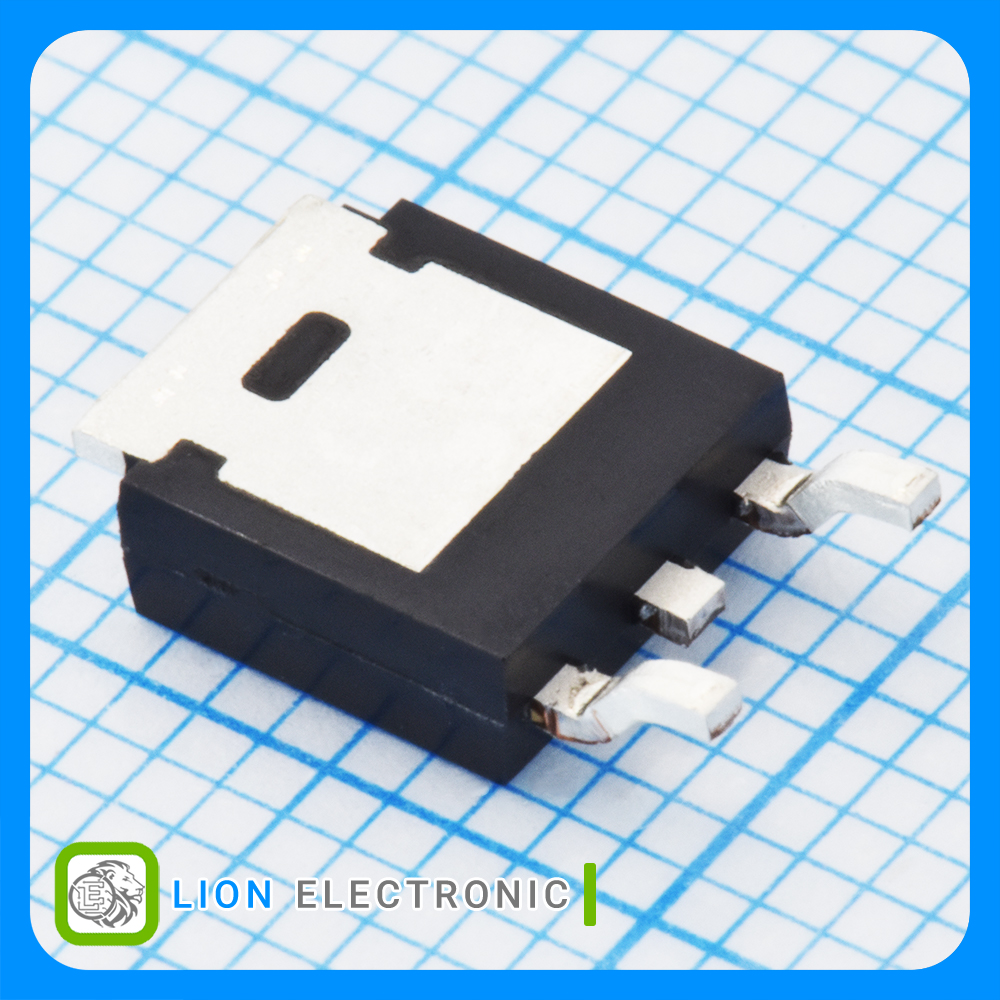

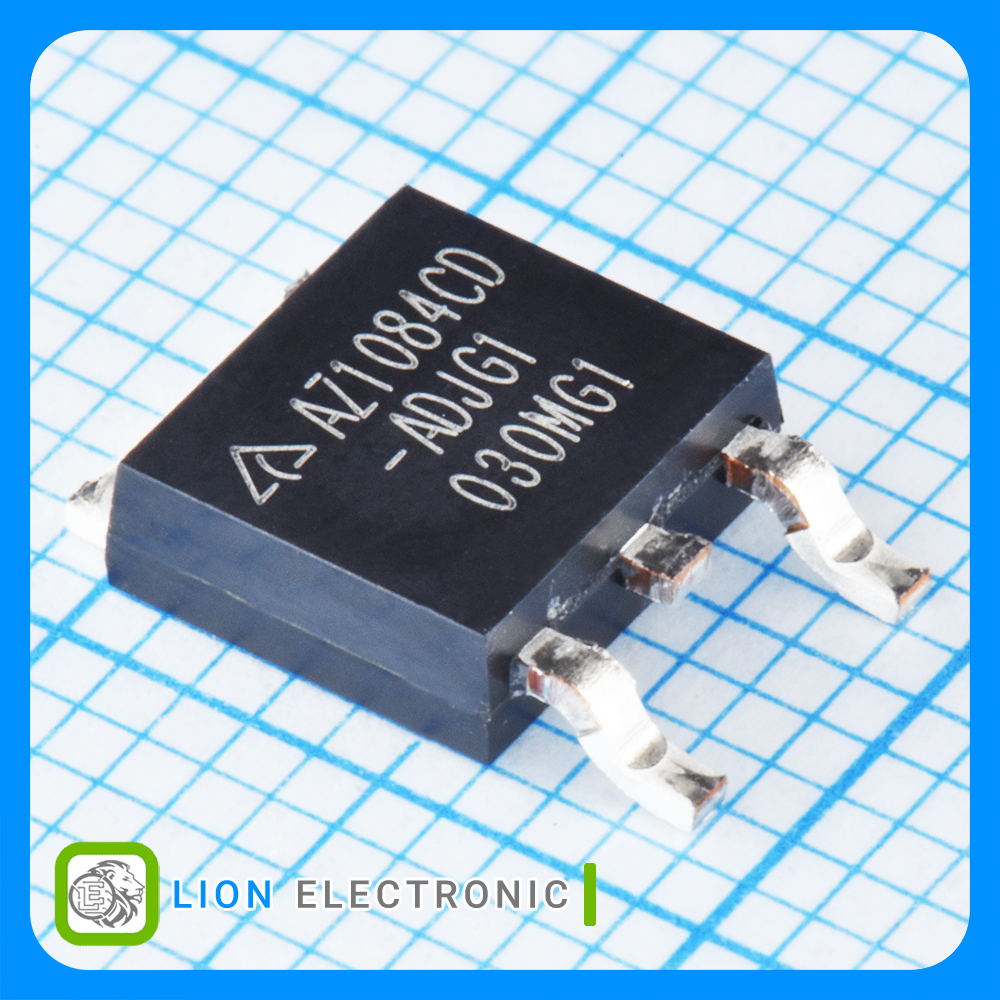

AZ1084CD-ADJTRG1
AZ1084CD-ADJTRG1
Part Number
4202
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO با خروجی قابل تنظیم 5 آمپر با محدودیت جریان 6.5 آمپر و حفاظت حرارتی با پکیج TO-252-3
Adjustable LDO Voltage Regulator, 5A Current Limiting 6.5A and Thermal Protection with DPAK Package
معرفی
رگولاتور LDO با خروجی قابل تنظیم 5 آمپر با محدودیت جریان 6.5 آمپر و حفاظت حرارتی با پکیج TO-252-3
Adjustable LDO Voltage Regulator, 5A Current Limiting 6.5A and Thermal Protection with DPAK Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: DPAK
- Output Voltage: Adjustable
- Output Current: 5A
- Dropout Voltage: 1.35V
- Input Voltage Min: 1.5V
- Input Voltage Max: 12V
- PSRR / Ripple Rejection - Typ: 72dB
- Quiescent Current: 5mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) AZ1084CD-ADJTRG1
رگولاتور(LDO) AZ1084CD-ADJTRG1
Part Number
1
Number of Outputs
Adjustable
Output Voltage
Reel
Packaging
Positive
Polarity
SMD/SMT
Mounting Style
Adjustable
Output Type
0C
Minimum Operating Temperature
12V
Input Voltage Max
+125C
Maximum Operating Temperature
72dB
PSRR - Ripple Rejection - Typ
1.5V
Input Voltage Min
1.35V
Dropout Voltage
5mA
Quiescent Current
5A
Output Current
DPAK
Package-Case
