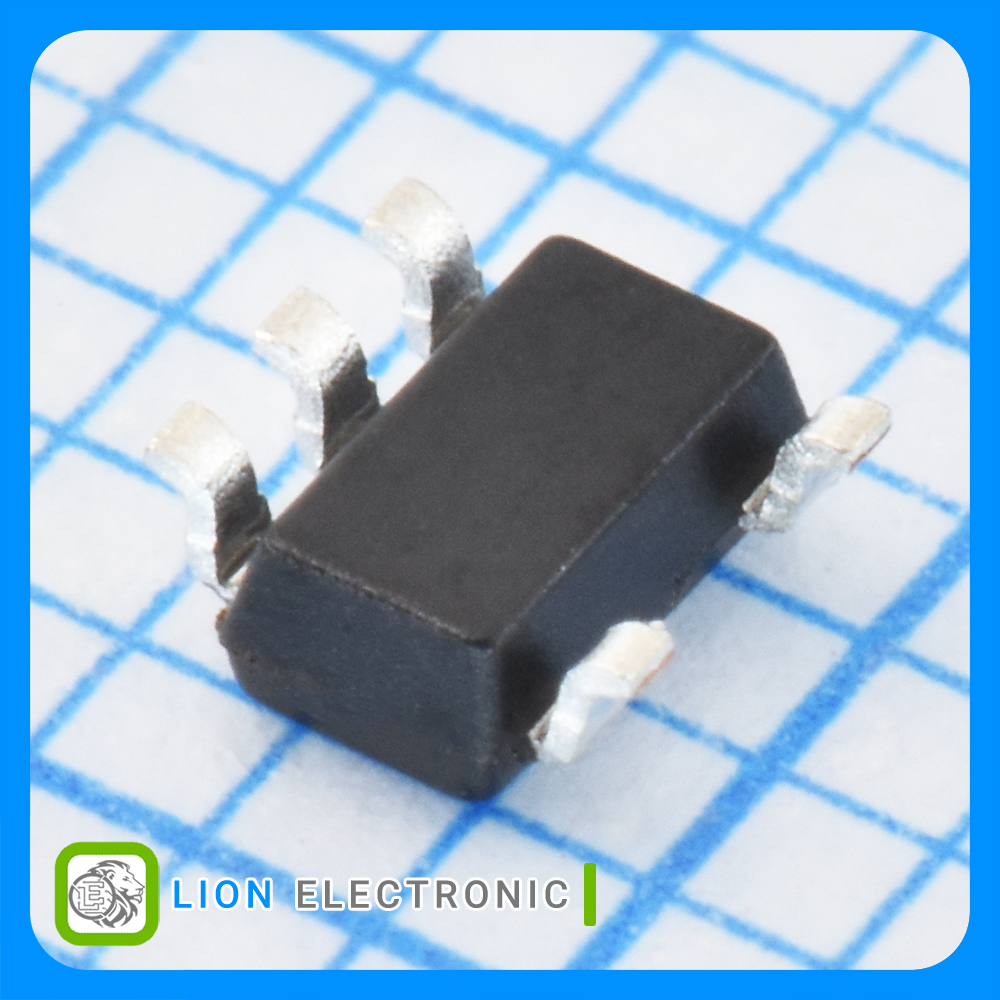

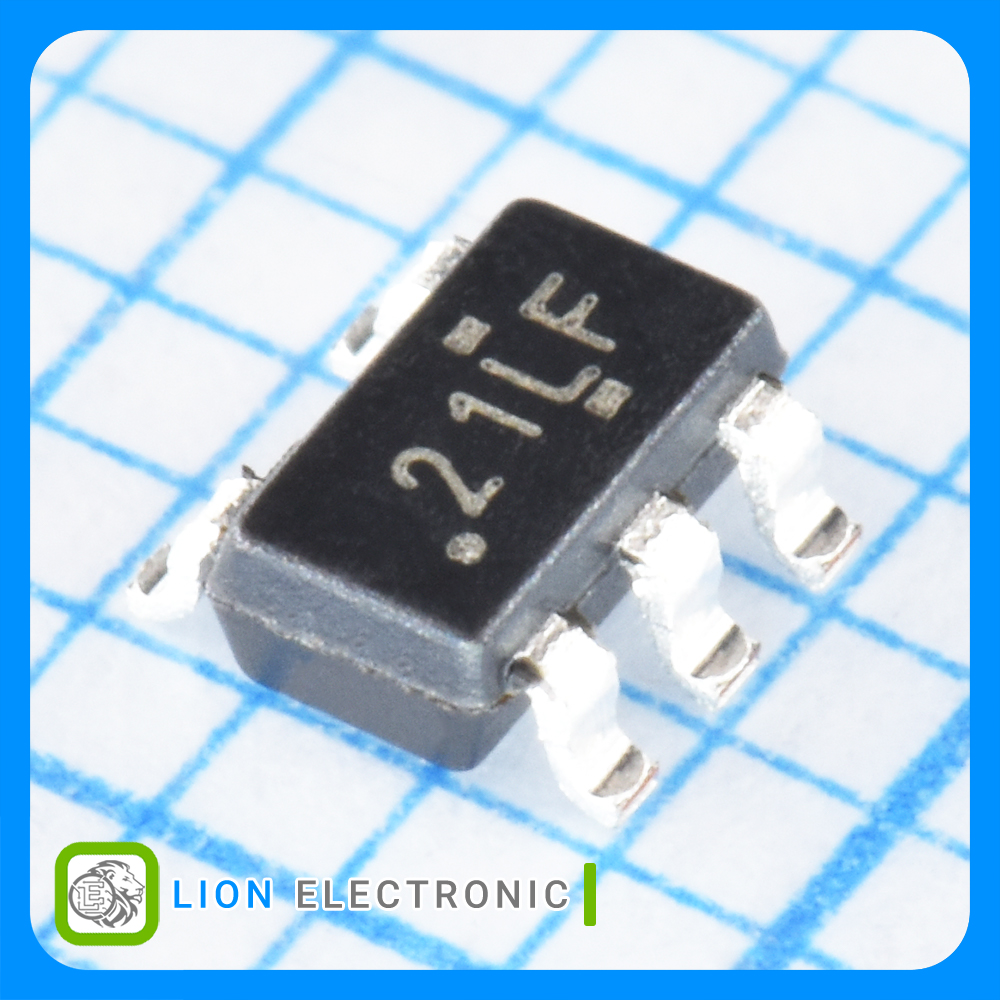

TPS7A0218PDBVR
TPS7A0218PDBVR
Part Number
4451
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 1.8 ولت 200 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 1.8V, 200mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 1.8 ولت 200 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 1.8V, 200mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 1.8V
- Output Current: 200mA
- Dropout Voltage: 450mV
- Input Voltage Min: 1.5V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 55dB
- Quiescent Current: 25nA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) TPS7A0218PDBVR
رگولاتور(LDO) TPS7A0218PDBVR
Part Number
1
Number of Outputs
25nA
Quiescent Current
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
55dB
PSRR - Ripple Rejection - Typ
SMD/SMT
Mounting Style
6V
Input Voltage Max
Fixed
Output Type
+125C
Maximum Operating Temperature
1.5V
Input Voltage Min
450mV
Dropout Voltage
200mA
Output Current
1.8V
Output Voltage
SOT-23-5
Package-Case
